Description
Description:

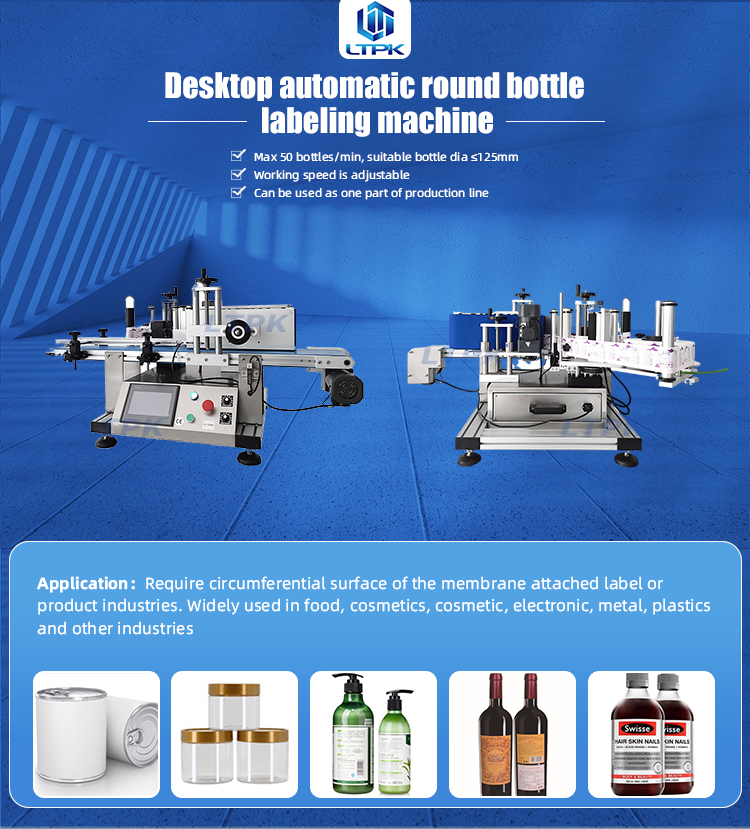

Compared with the full automatic labeling machine, this one is smaller. But the functions are still great as the full automatic labeling machine. It is with conveyor, and can be equipped with date coder machine to help you reduce production process. This machine gets a lot of popularity.
Features:

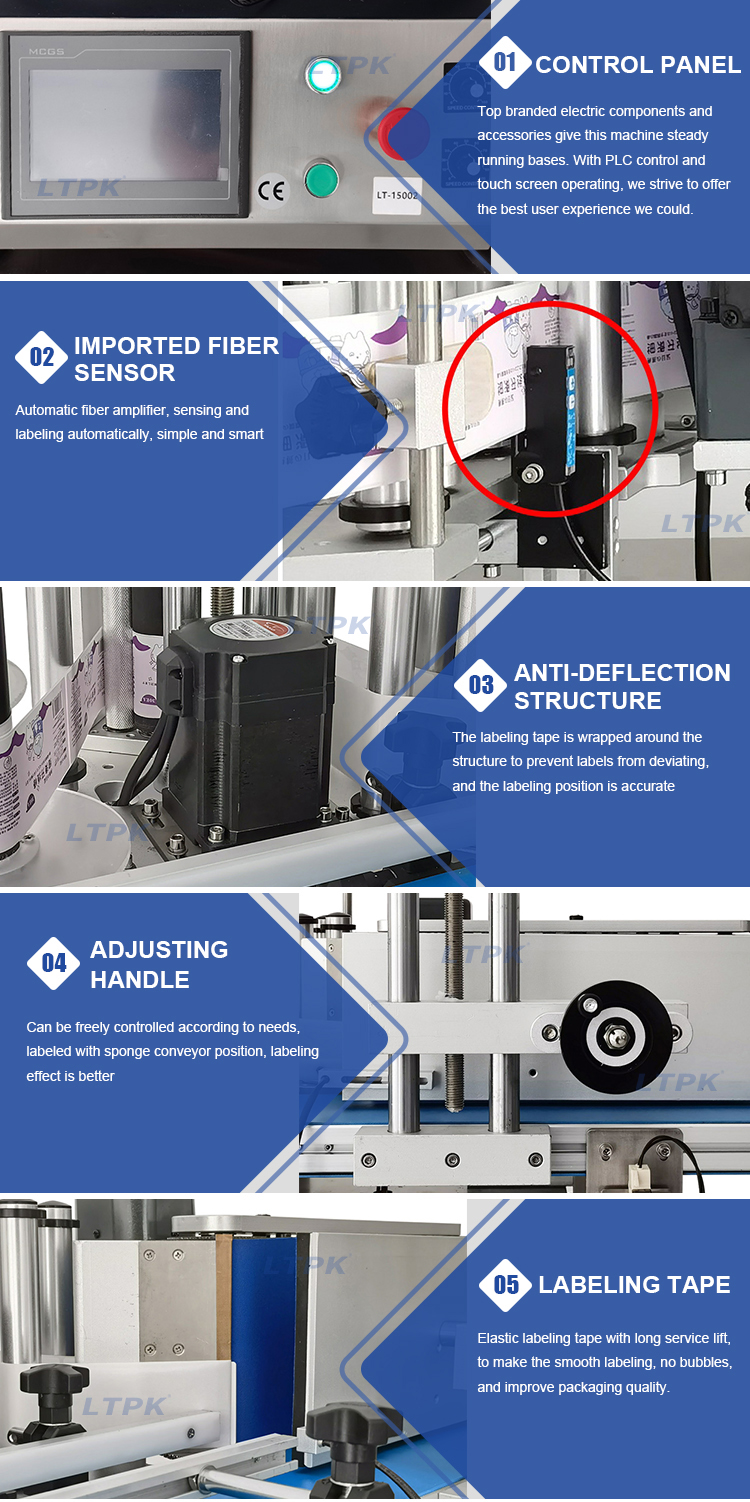

1) Simple structure in linear type, easy in installation and maintenance.
2) Adopting advanced world famous brand components in pneumatic parts, electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization, no pollution
5) Apply a linker to connect with the air conveyor, which can directly inline with filling machine.
Application:
Require circumferential surface of the membrane attached label or product industries. Widely used in food, cosmetics, cosmetic, electronic, metal, plastics and other industries
Product parameters:

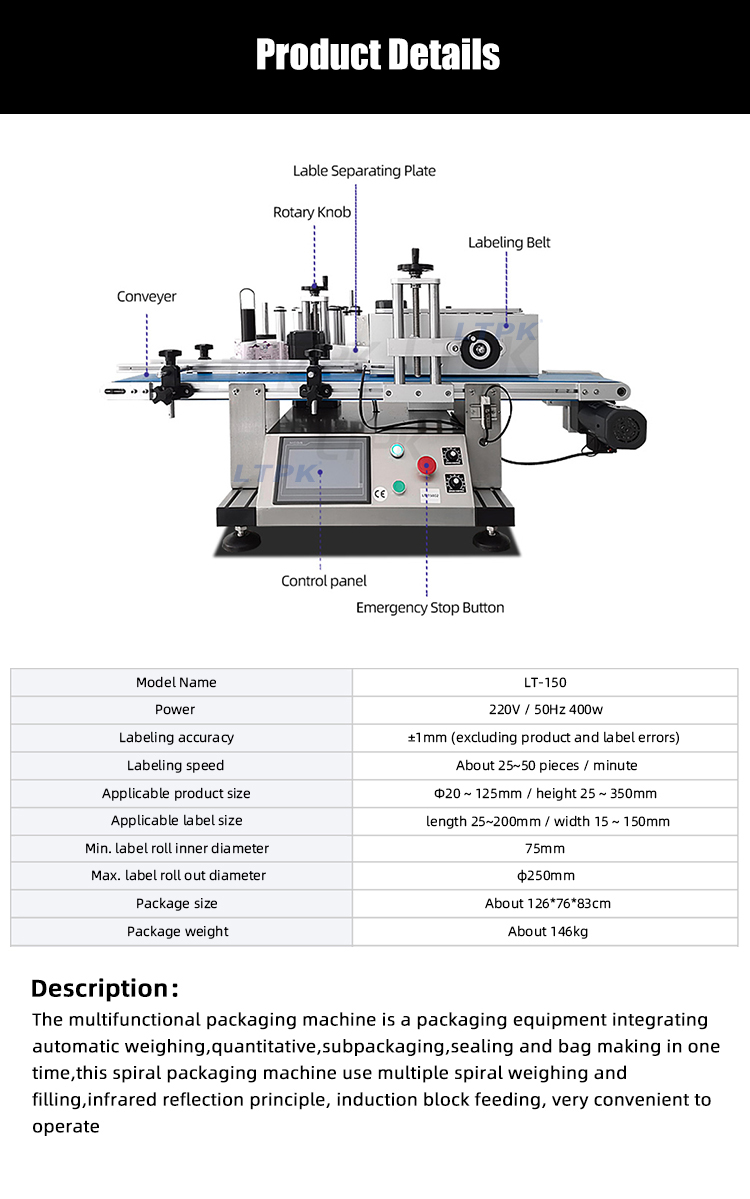

Model | LT-150 |
Power | 220V / 50Hz 400w |
Labeling accuracy | ±1mm (excluding product and label errors) |
Labeling speed | About 25~50 pieces / minute |
Applicable product size | Φ20 ~ 125mm / height 25 ~ 350mm |
Applicable label size | length 25~200mm / width 15 ~ 150mm |
Min. label roll inner diameter | 75mm |
Max. label roll out diameter | φ250mm |
Package size | About 126*76*83cm |
Package weight | About 146kg |
