Description
About this item

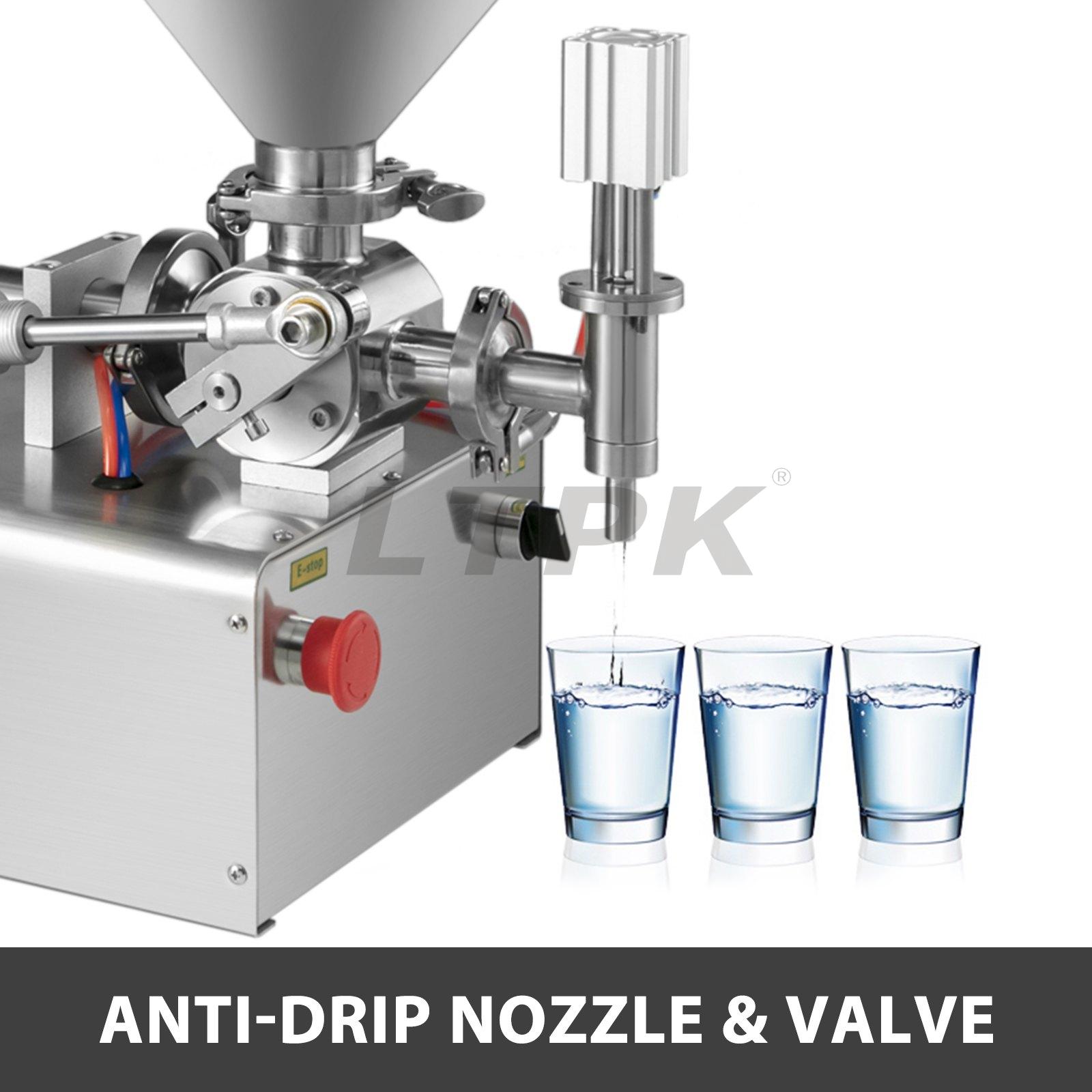

【NO DRIPPING PASTE FILLING DEVICE】- This paste filling machine has an efficient filling performance. Equipped with a 30L hopper with a large inlet volume at once. A rotary valve control the transfer of paste material to the outlet, no dripping.
【ARBITRARILY CONTROLLABLE PROCESS】- With large power air cylinder, the whole filling process is controllable, including the operating speed of air cylinder, filling speed, and filling volume, to meet different needs for accurate filling.
【STAINLESS STEEL CONSTRUCTION 10-300ML】- Large Capacity: 10-300ml. Pneumatic shampoo filling machine is made of stainless steel materials, resistant to corrosion, rust, acid and alkali. Easy and safe to operate, remove and clean switches for better operation of the machine.
【ADVANCED AIR PRESSURE GAUGE】- Adopt air pressure gauge to accurately monitor air pressure change. This cream filling machine needs to work with an air compressor(not offered).
【VARIOUS APPLICATION】- Pneumatic filling machine is suitable for all liquid and paste without particles, like cream, shampoo, oil, toothpaste. Perfect for usage in any fields.
Technical Parameters
- Voltage: 110V/60Hz
- Material: Stainless Steel
- Head: Single Head
- Filling volume: 10-300ml
- Filling Speed: 10-20 bottles/min
- Filling Accuracy: ±1%
- Air Pressure: 58-87psi/0.4-0.6MP
- Hopper Volume: 30L / 7gal
- Application Temperature: Max 104℉/40℃
- Total Size: 36.2 x 14.6 x 26.4in/92 x 37 x 67cm

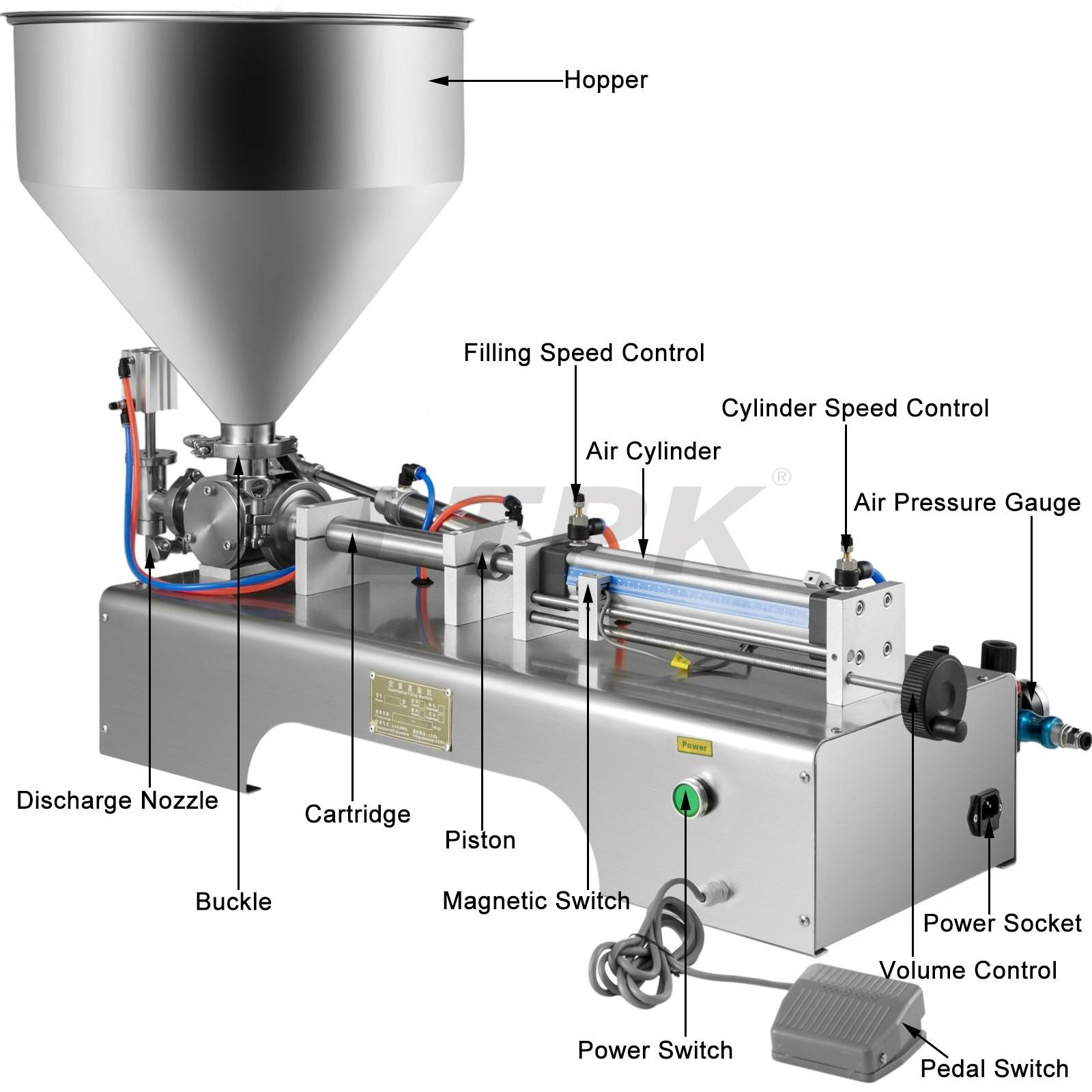

Machine Details

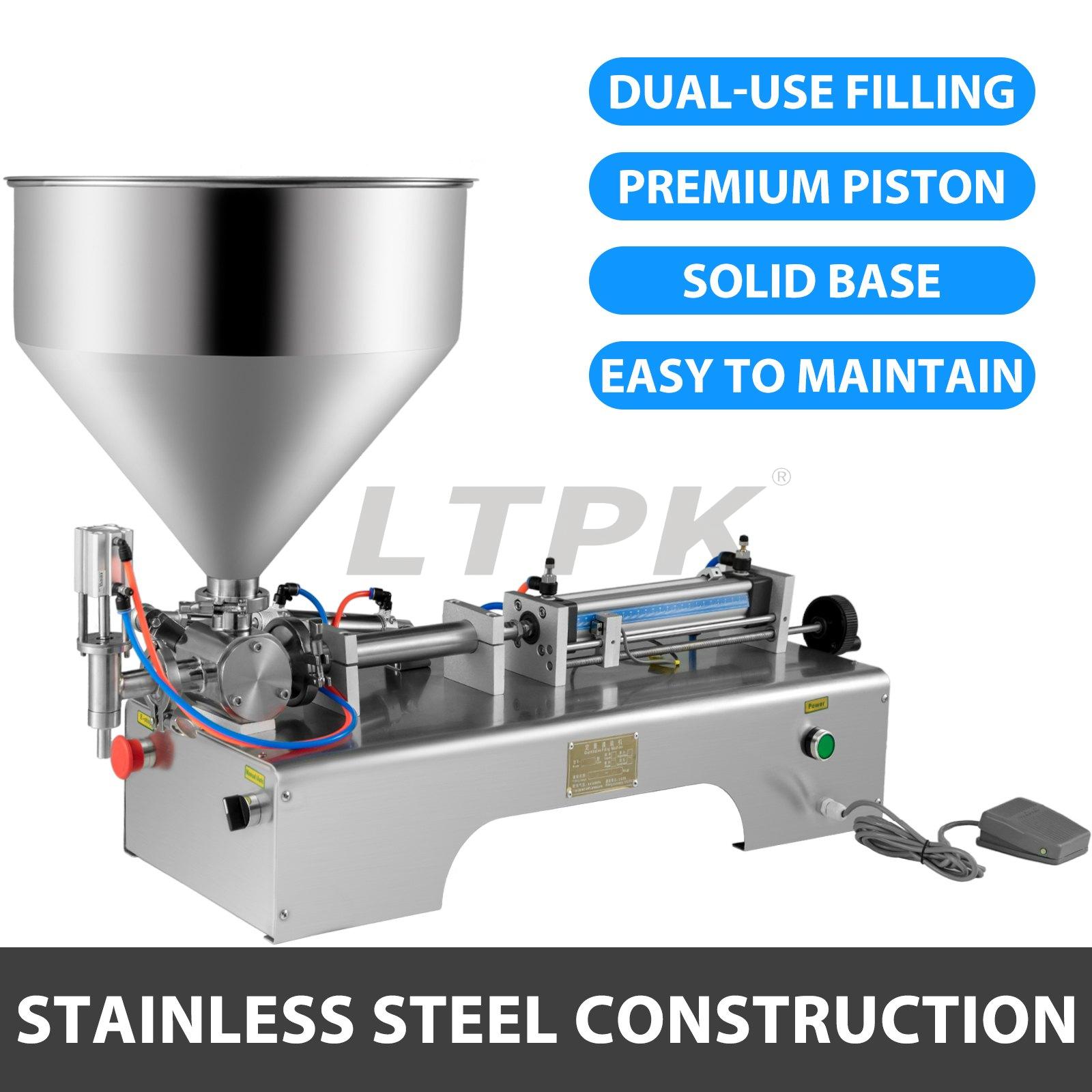

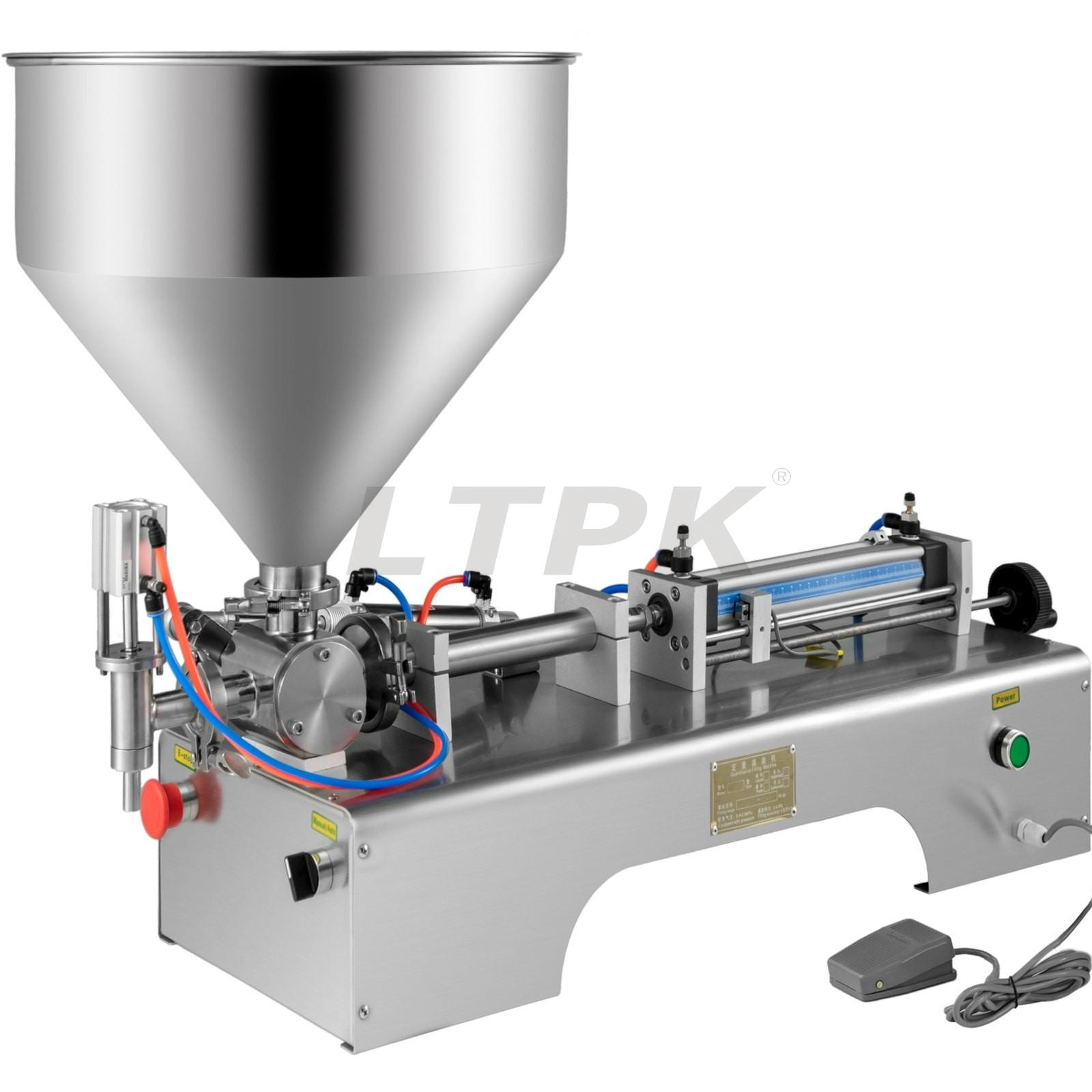

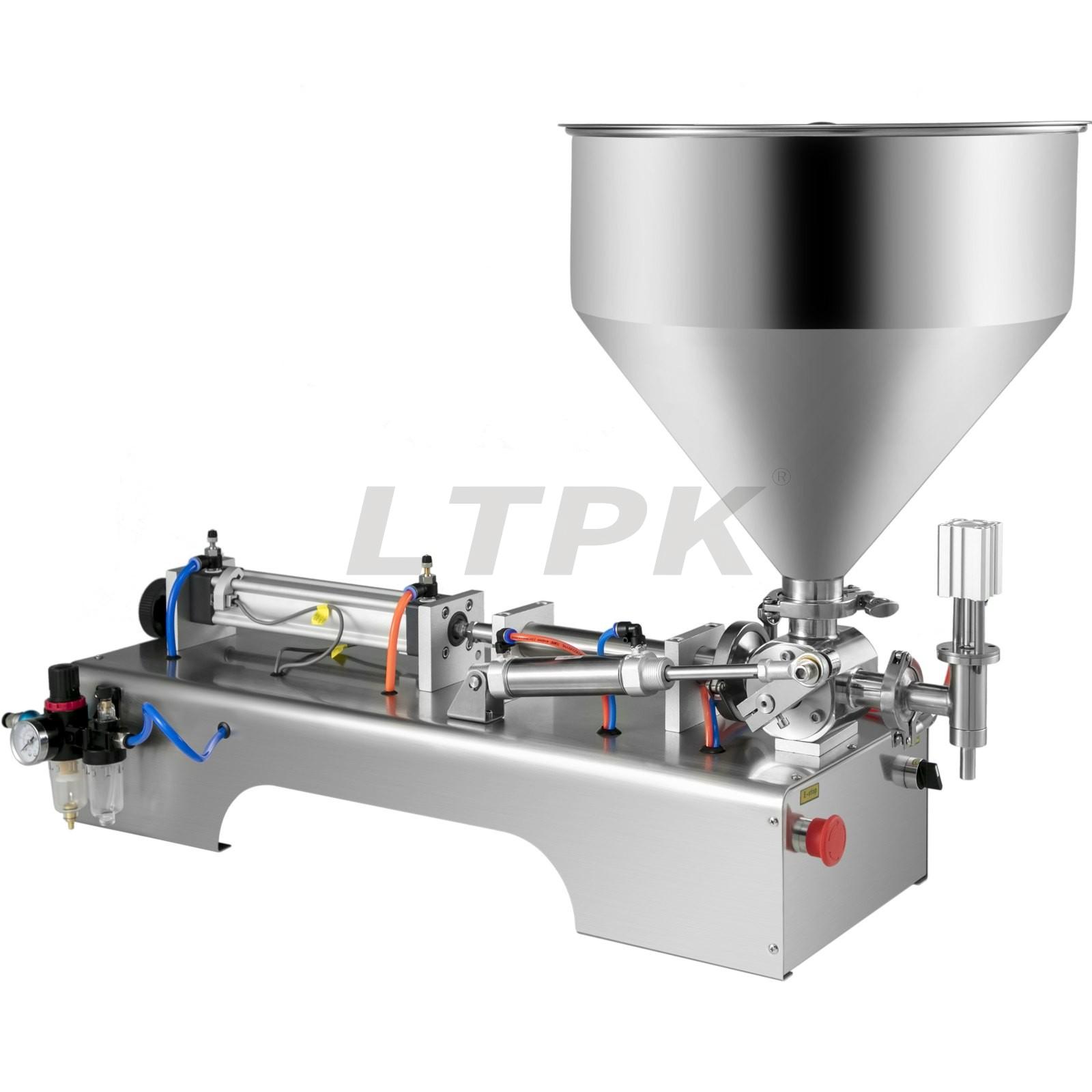

Stainless Steel Construction 10-300ml
Large Capacity: 10-300ml. Material of this dual-use paste and liquid filling bottle machine is mainly food-grade stainless steel. Piston is made of teflon materials. Removable buckles make the lotion filling machine easy to maintain.

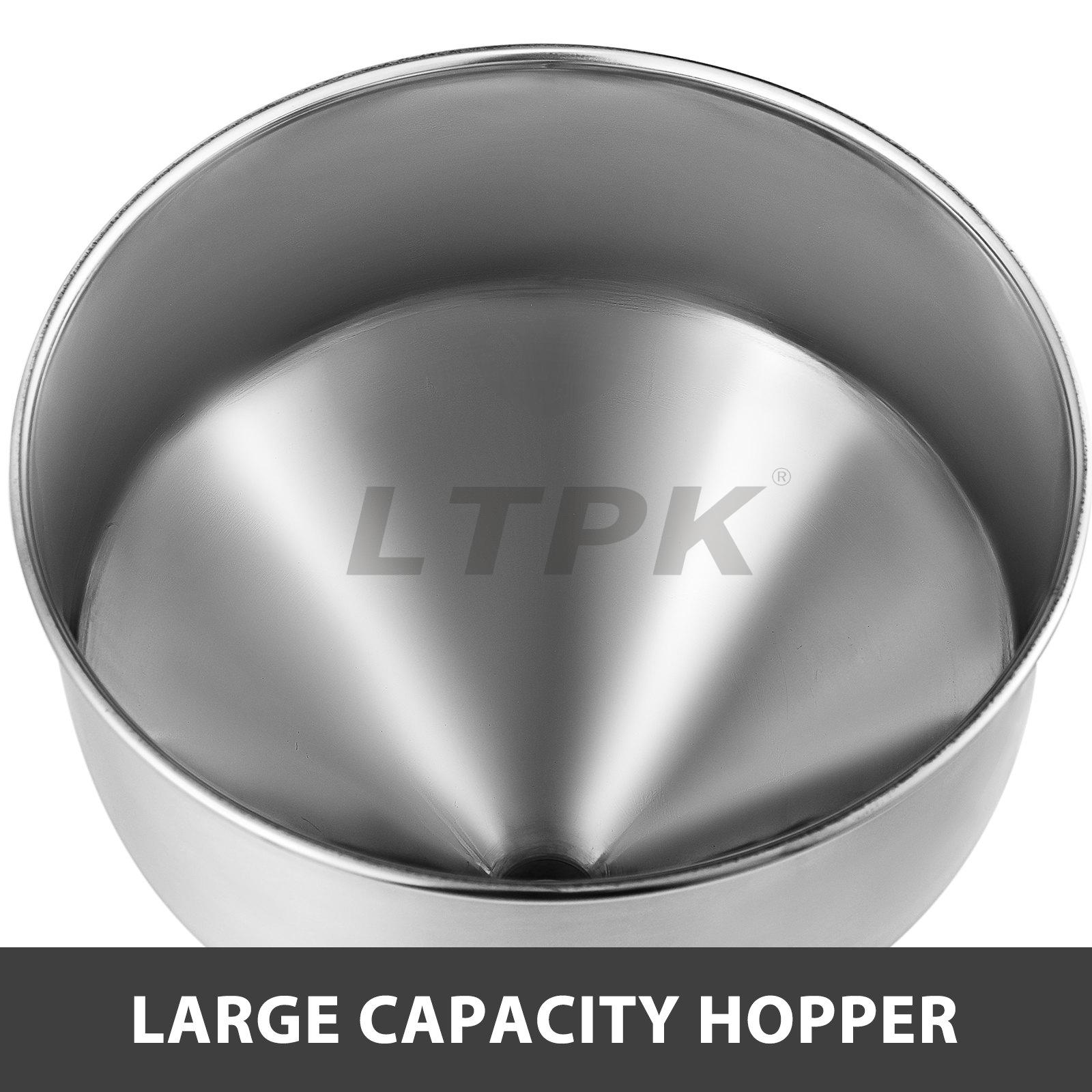

Large Capacity Hopper
30L hopper allows the filler continuously work efficiently. Made of stainless steel, food-grade material, with a perfect surface treatment, the hopper is worthy to be used. Work well with this piston filling machine.
Large Capacity Hopper
30L hopper allows the filler continuously work efficiently. Made of stainless steel, food-grade material, with a perfect surface treatment, the hopper is worthy to be used. Work well with this piston filling machine.

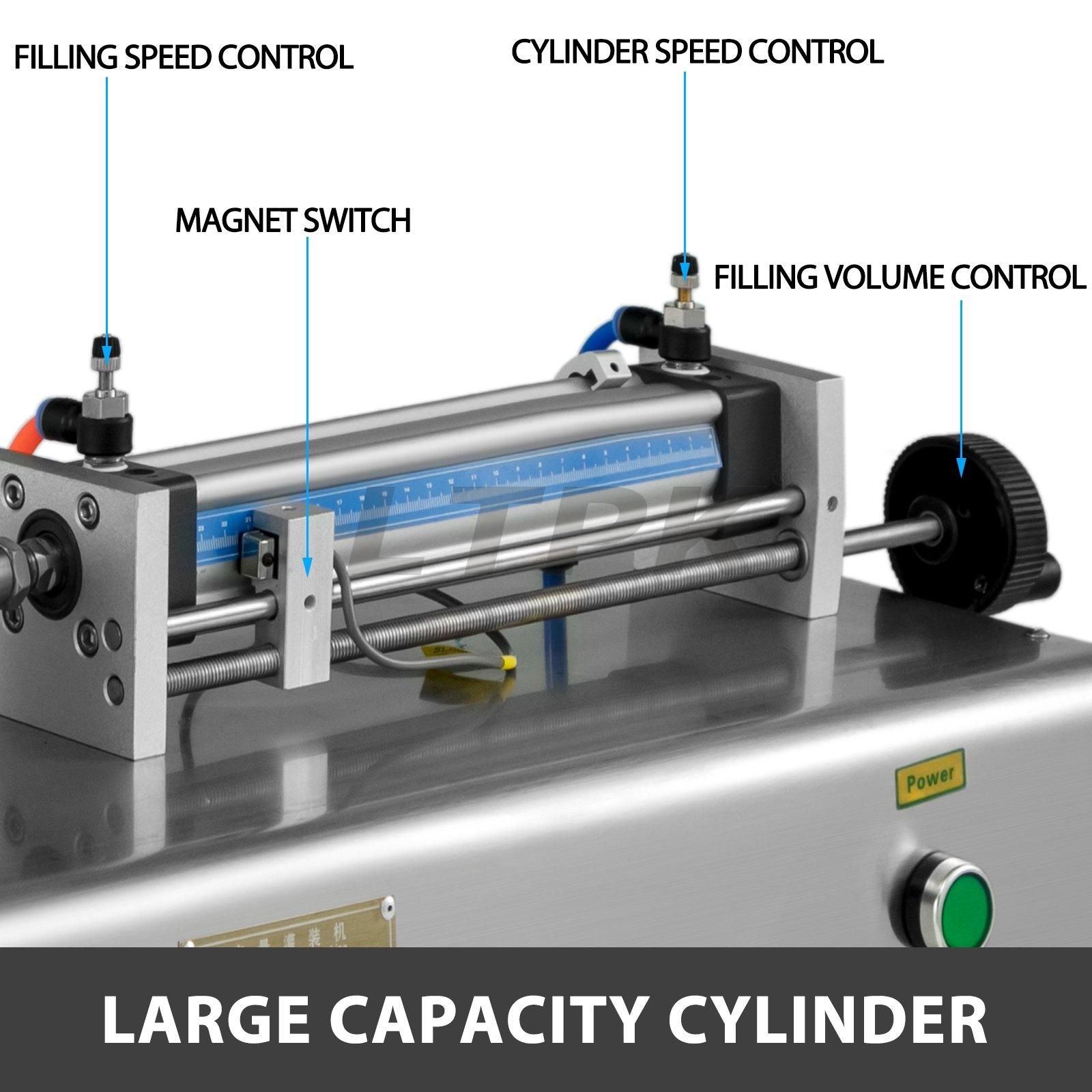

Adjustable Speed & Volume
With a great power and stable air pressure, the air cylinder supports the filling process well. Blue button controls the working speed of cylinder, orange one for filling speed. Filling volume is adjustable through swing handle.

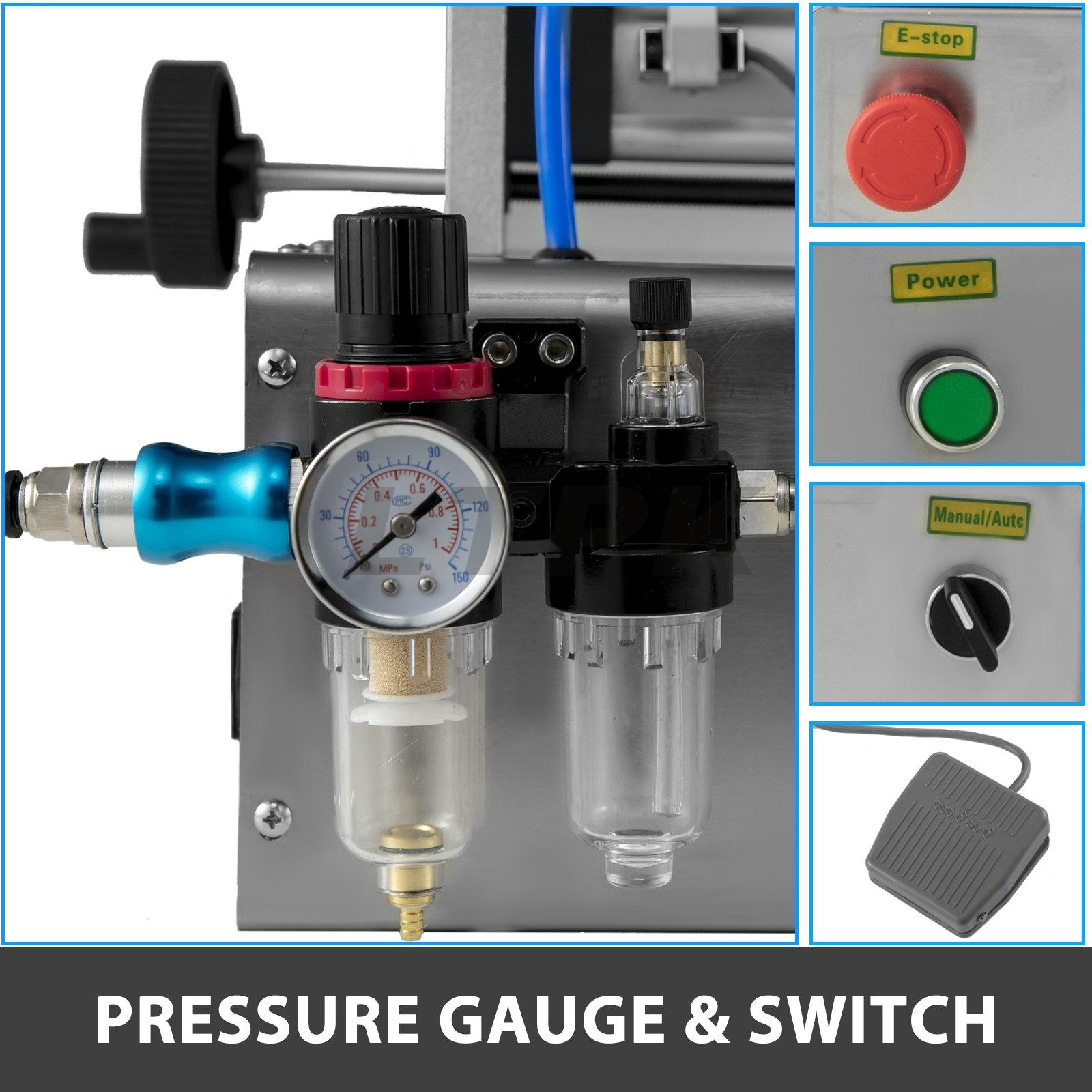

Air Pressure Gauge & Switch
Equipped with an advanced air pressure gauge, the machine works well and keeps a good operation with air compressor(not offered). Support manual/automatic model, emergency stop with safe cut-out device.
Air Pressure Gauge & Switch
Equipped with an advanced air pressure gauge, the machine works well and keeps a good operation with air compressor(not offered). Support manual/automatic model, emergency stop with safe cut-out device.

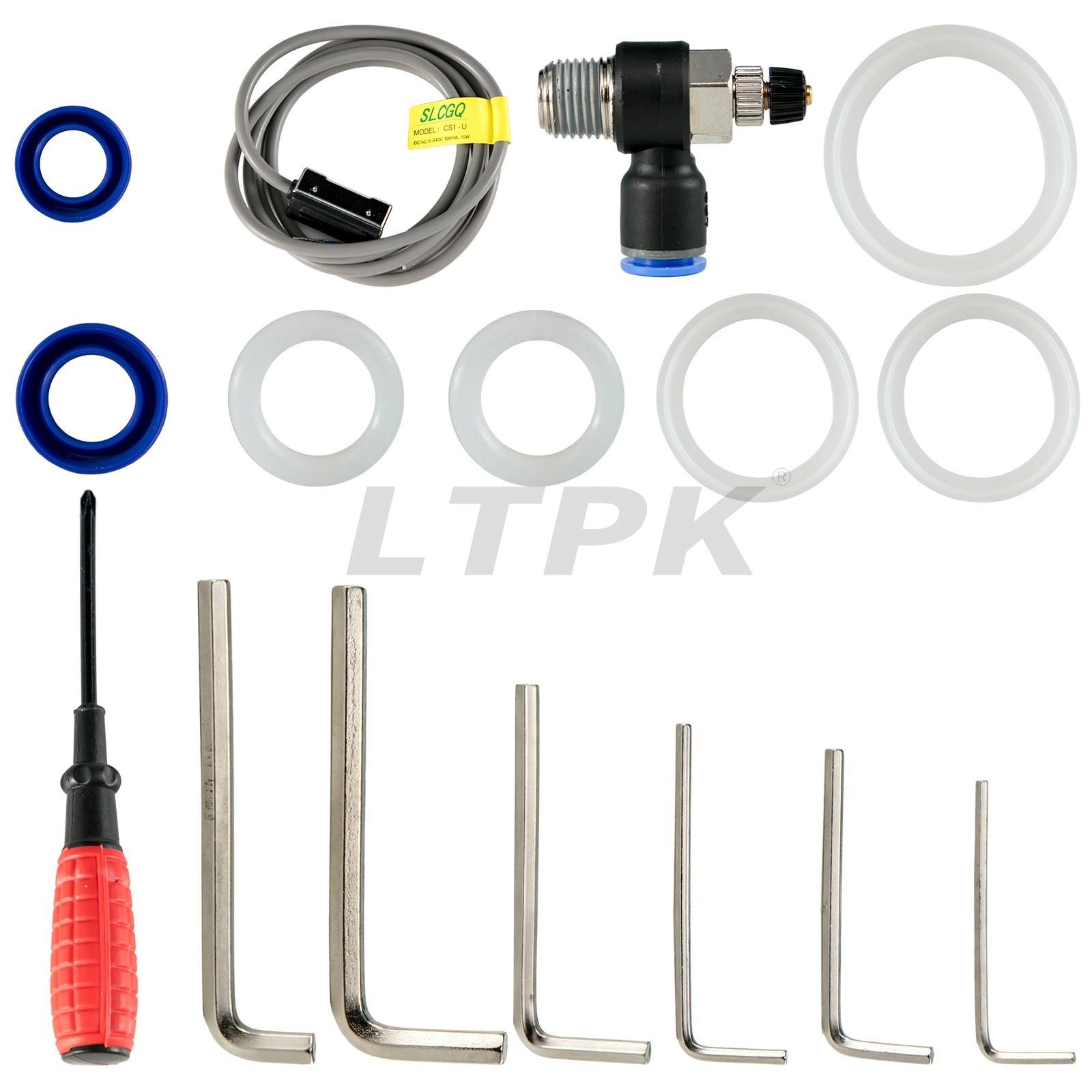

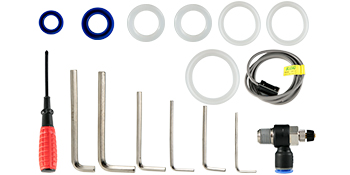

Package Content
- 1 x 10-300ml paste filling machine
- 1 x 30 L hopper
- 1 x Piezometer
- 6 x Screwdriver
- 1 x Foot Pedal
- 5 x Spacer Sheet
- 1 x Power Cord
- 1 x Kit of accessories
