Description
About this item

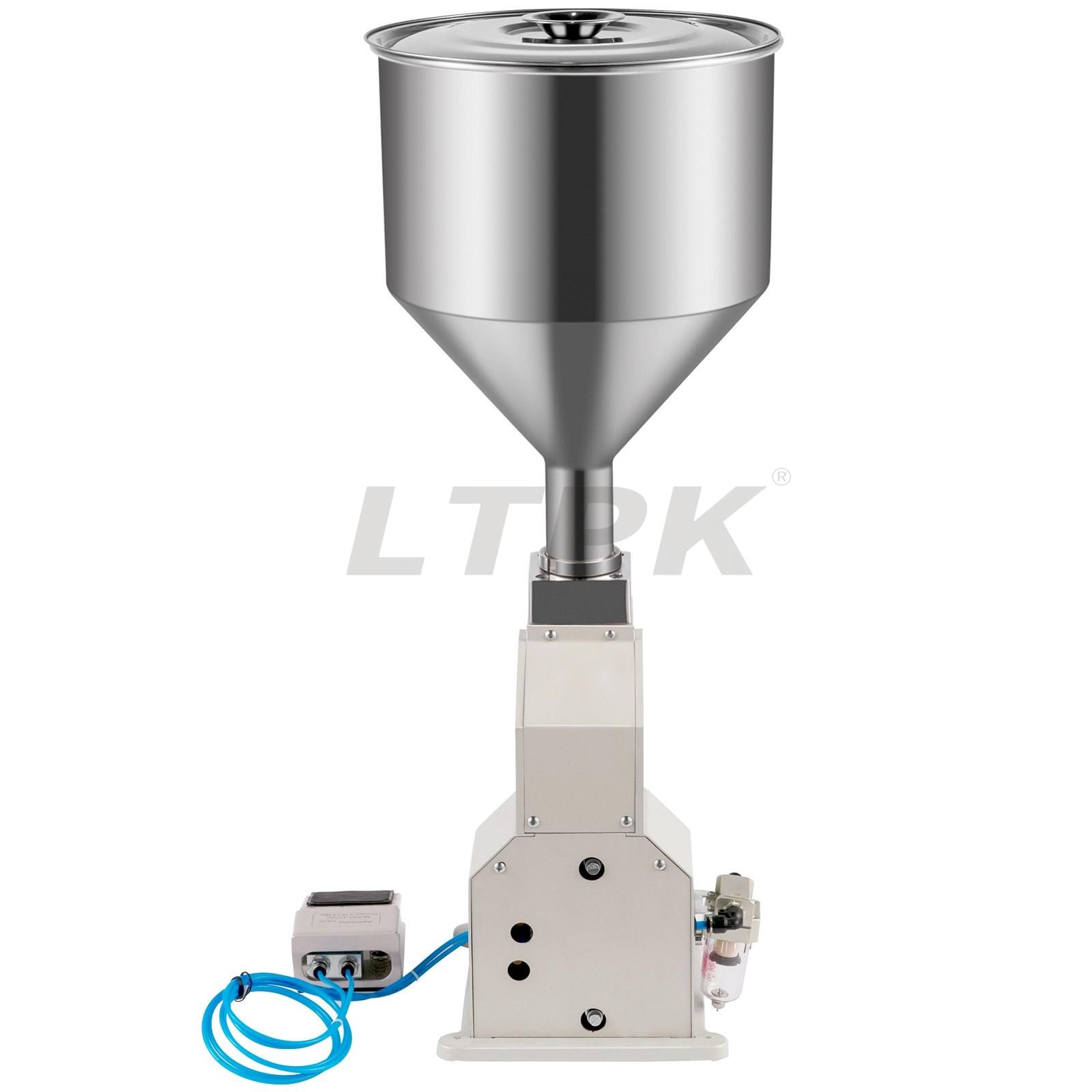

Efficient Pneumatic Filling: The liquid and paste filling machine is driven by pneumatic power, providing an efficient and accurate filling with high speed. Filling speed: 20-60 times/min. Filling volume:0.17-1.7 oz/5-50 ml(adjustable). The capacity of the hopper: 2.6 gal/10 L. They are filling accuracy is +/- 1%.
Stainless Steel Structure: Our manual liquid filling comes with a food-grade 304 stainless steel hopper, which is easy to disassemble and clean. Besides, the thickened piston ensures the fill more smoothly without plugging. The solid base keeps the machine sturdy, making the machine work steadily.
Reasonable Design: Designed with a high-quality anti-drip filling nozzle made of premium steel that is able to endure wear and high temperature, this lip gloss filler machine features precise filling. Filling volume and speed can be controlled manually through two screws. Please loosen the screws A1 and A2 to adjust the output.

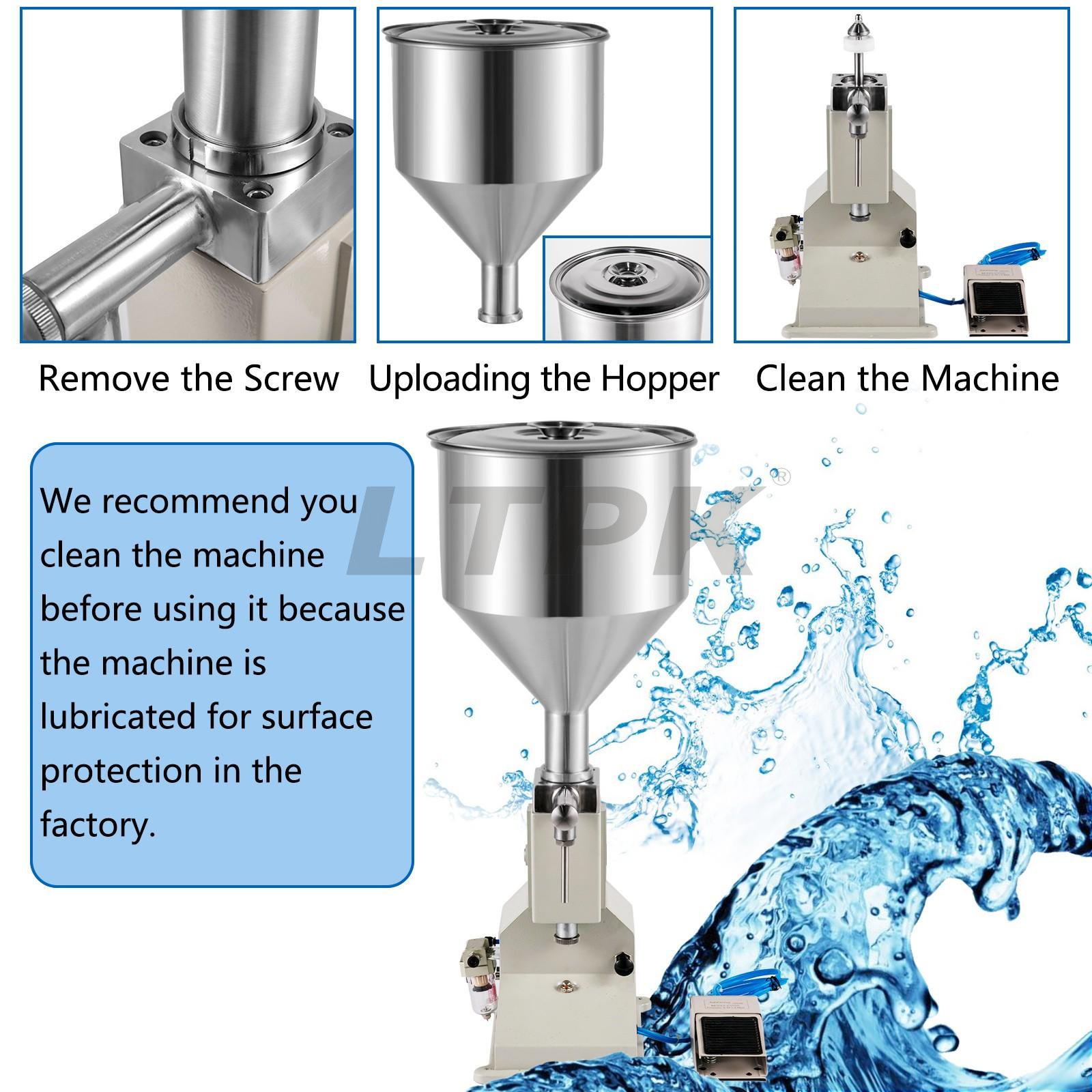

Easy to Operate: Add the filling material to the hopper, adjust the filling volume, then use the handle switch to control and finish the filling. We recommend you clean the machine before using it. Just put aside the screw and upload the hopper. It is convenient to operate and clean this liquid filler with no fatigue.
Various Application: This manual filling machine is widely used in pharmaceutical, cosmetic, pesticides, and other particular industries, perfect for liquid and paste with excellent liquidity. Note: This liquid filling machine is not suitable for a particularly thick paste.
Technical Parameters
Technical Parameters

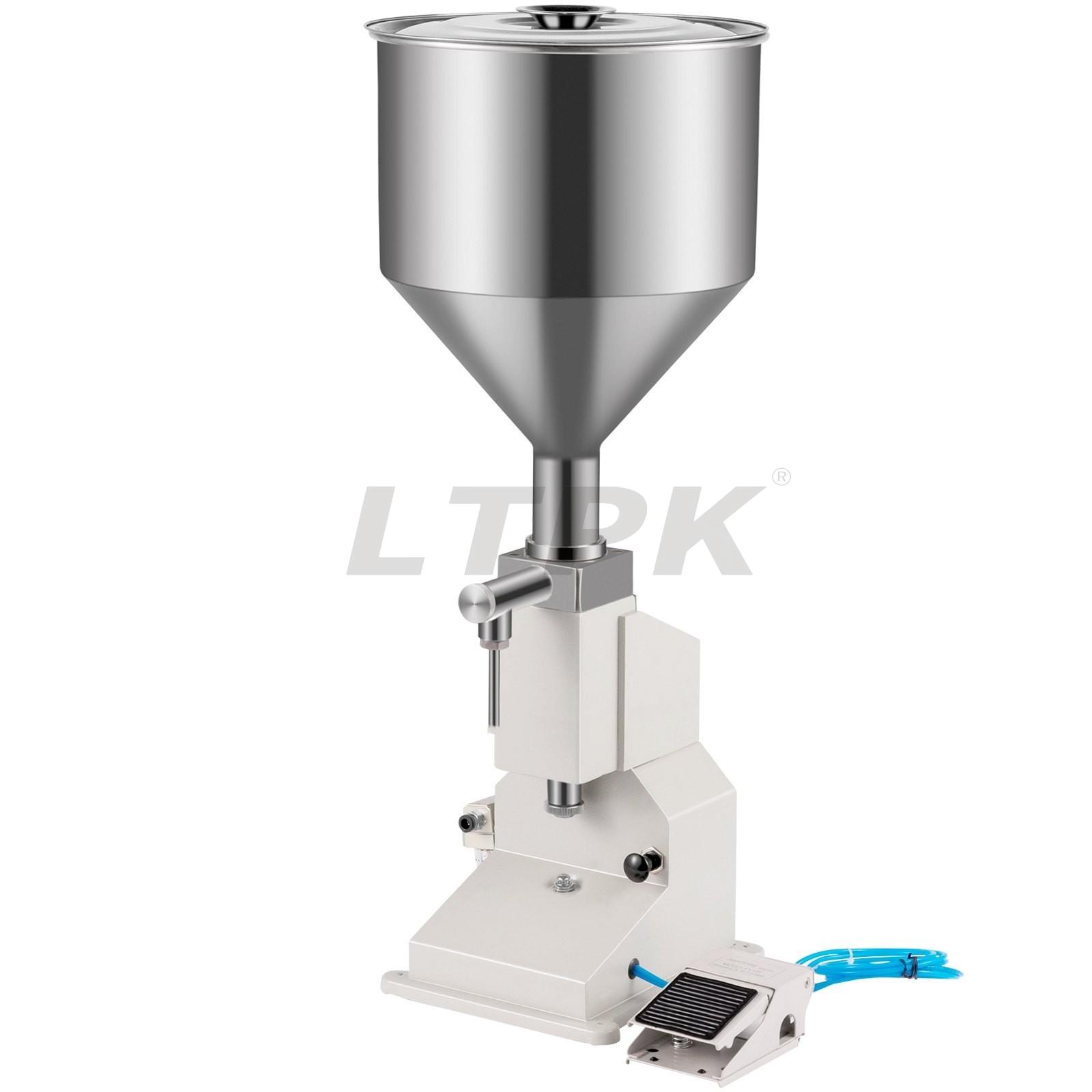

Model: A02
Material: Stainless Steel
Filling Range: 0.17-1.7 oz / 5-50 ml(adjustable)
Filling Accuracy: +/-1%
Hopper Volume: 2.6 gal / 10 L
Working Power: Pneumatic
Working Pressure: 0.4-0.6MPa or 58-87PSI
Speed: 20-60 times/min
Bottle Diameter Range: 0.12-0.6 in / 3-15 mm
Height Range: 7.87 in / 20 cm
Filling Material: Paste liquid with good fluidity(cosmetic, cream, shampoo)
Machine Size(L x W x H): 10.6 x 10.6 x 27.5 in / 27 x 27 x 71 cm
Package Size(L x W x H): 14 x 14 x 31 in / 34 x 34 x 77 cm
Gross Weight: 22 lbs / 10 kg

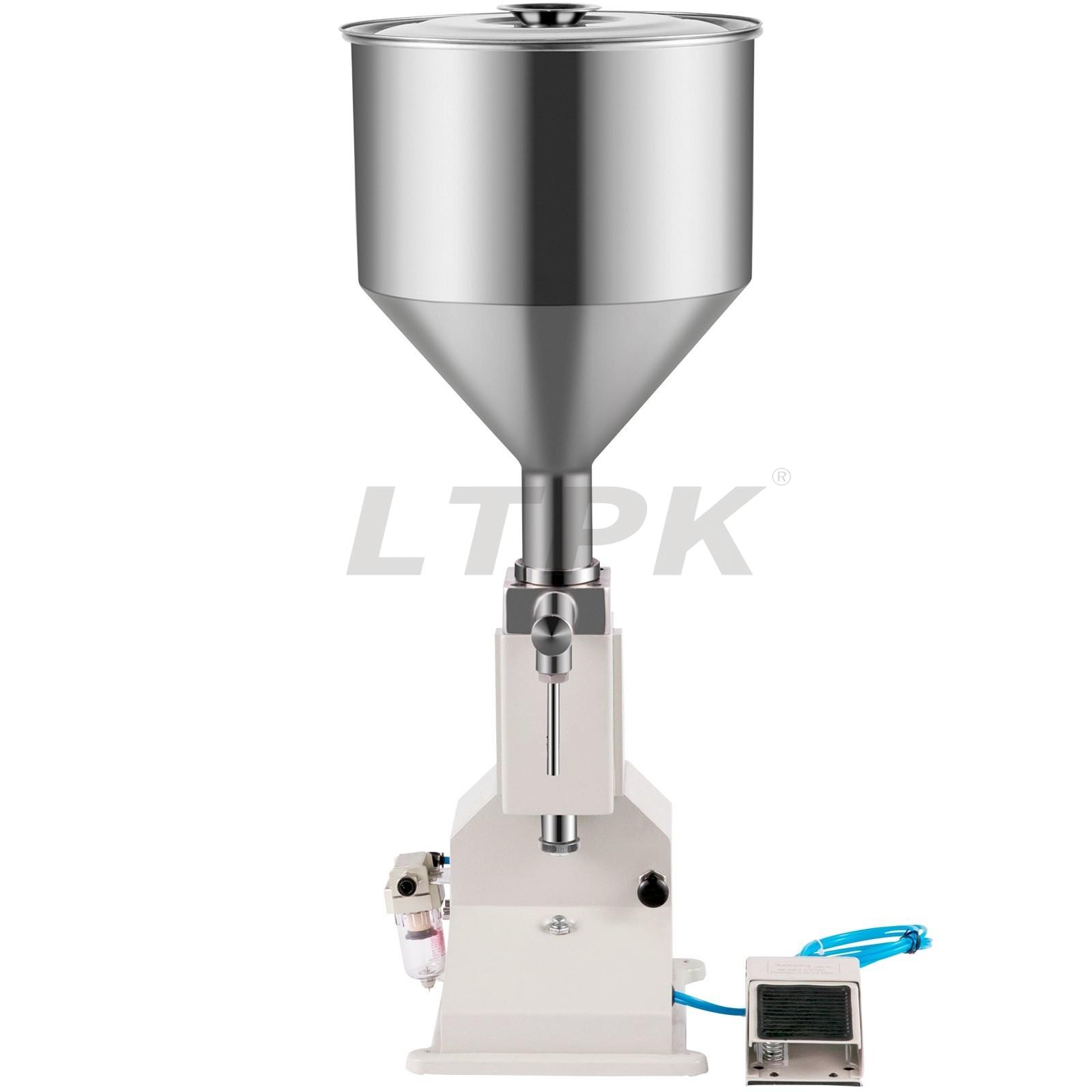

Machine Details
Large Capacity Filling
This liquid filling machine is equipped with a 2.6 gal/10 L large capacity hopper. The filling speed is 20-60 times/minute, and the filling volume is 0.17-1.7 oz / 5-50 ml. Those adjustable speeds and volumes are changed from your needs.
304 Stainless Steel
Our filling machine is made of 304 stainless steel. The food-grade material is anti-corrosion and wear-resistances, easy to clean and maintain. The solid base keeps sturdy, supplies a stable working environment.

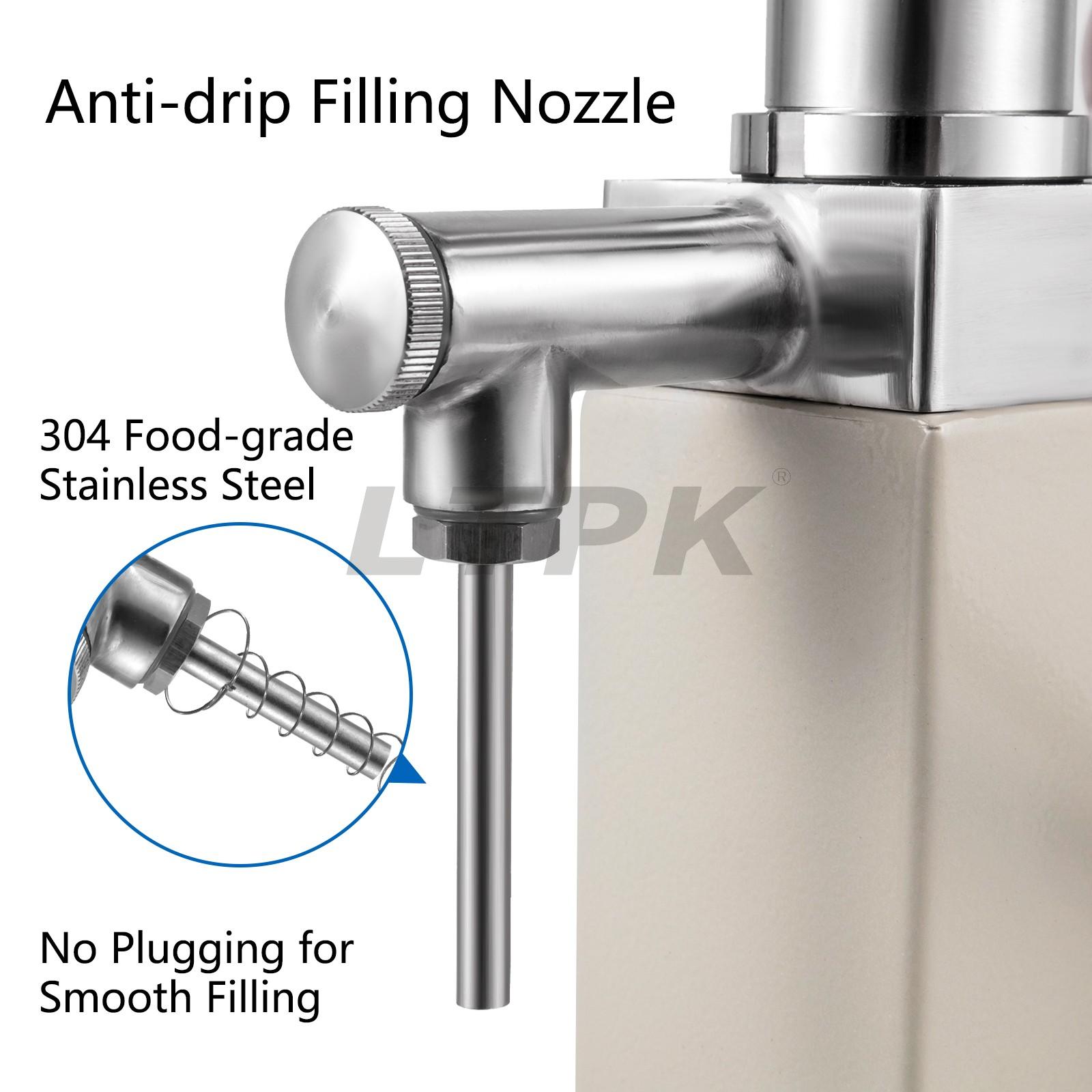

Anti-Drip Filling Nozzle
A high-quality anti-drip filling nozzle, made of premium steel, is not easily plugged, ensuring the automatic liquid filling machine has an accurate and efficient filling. Filling accuracy: +/- 1%, save more liquid during operation.

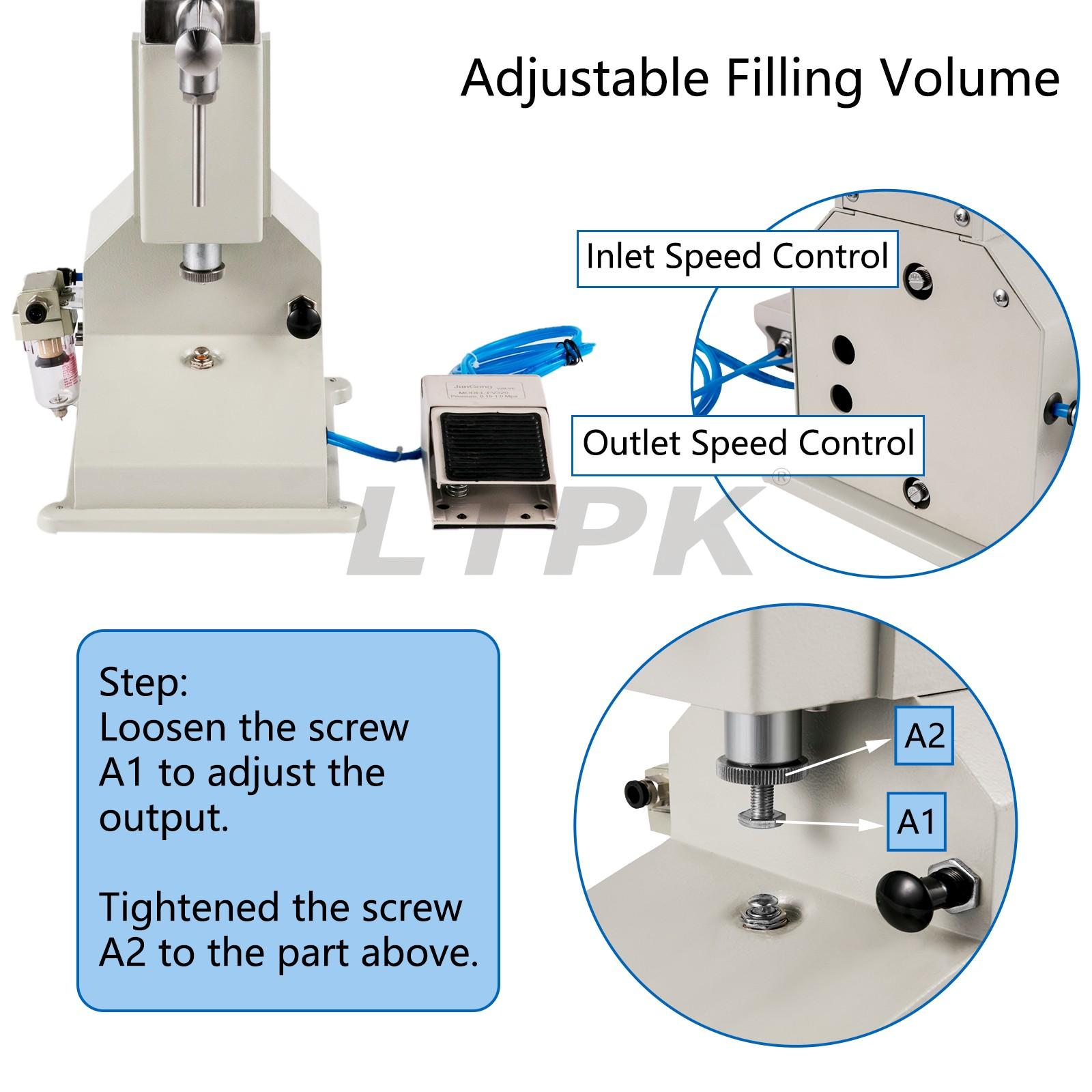

Adjustable Filling Volume
With the filling volume regulator knob, quantitative discharging, filling volume, and filling speed can be controlled. Turn the regulator knob clockwise or anti-clockwise to find your needed filling condition.

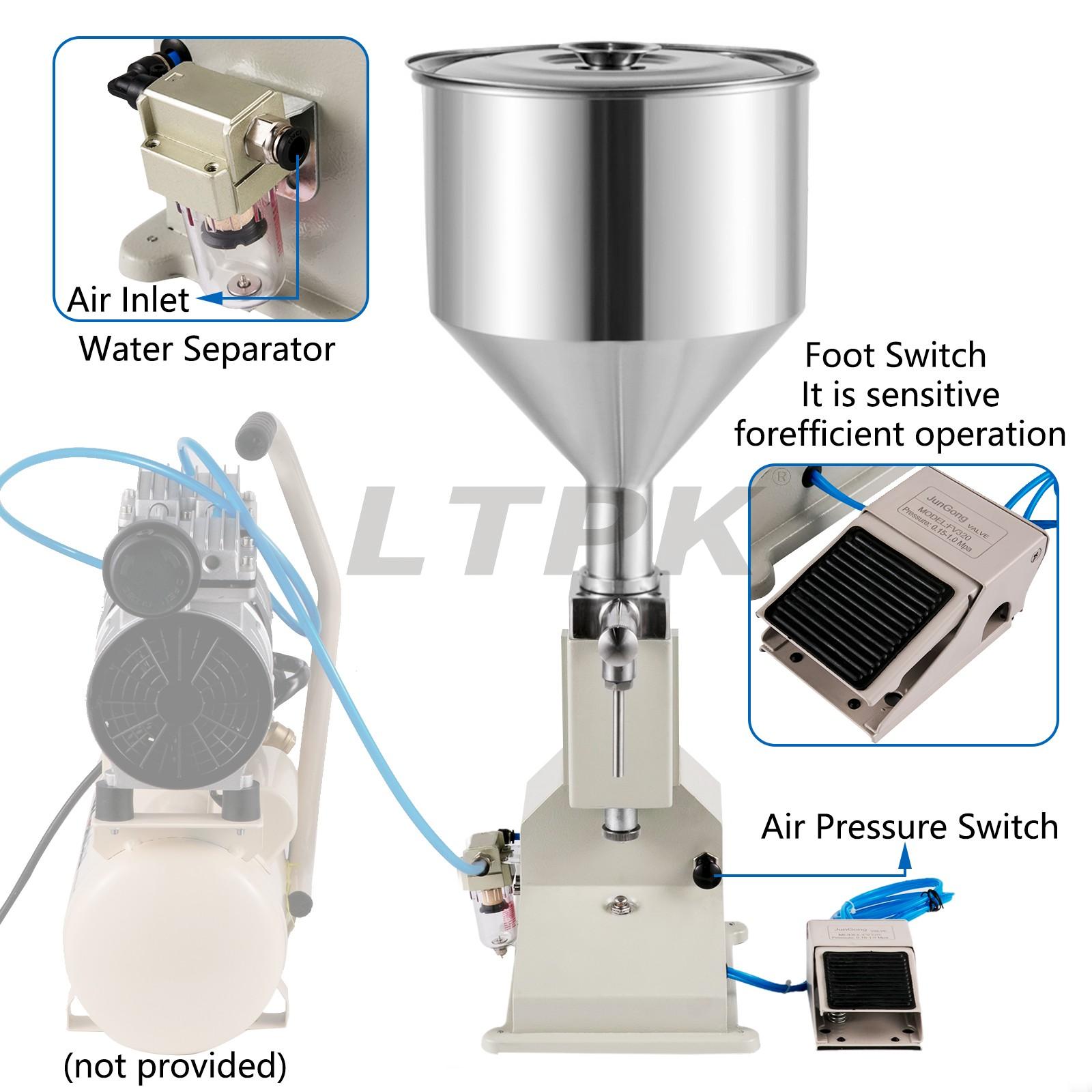

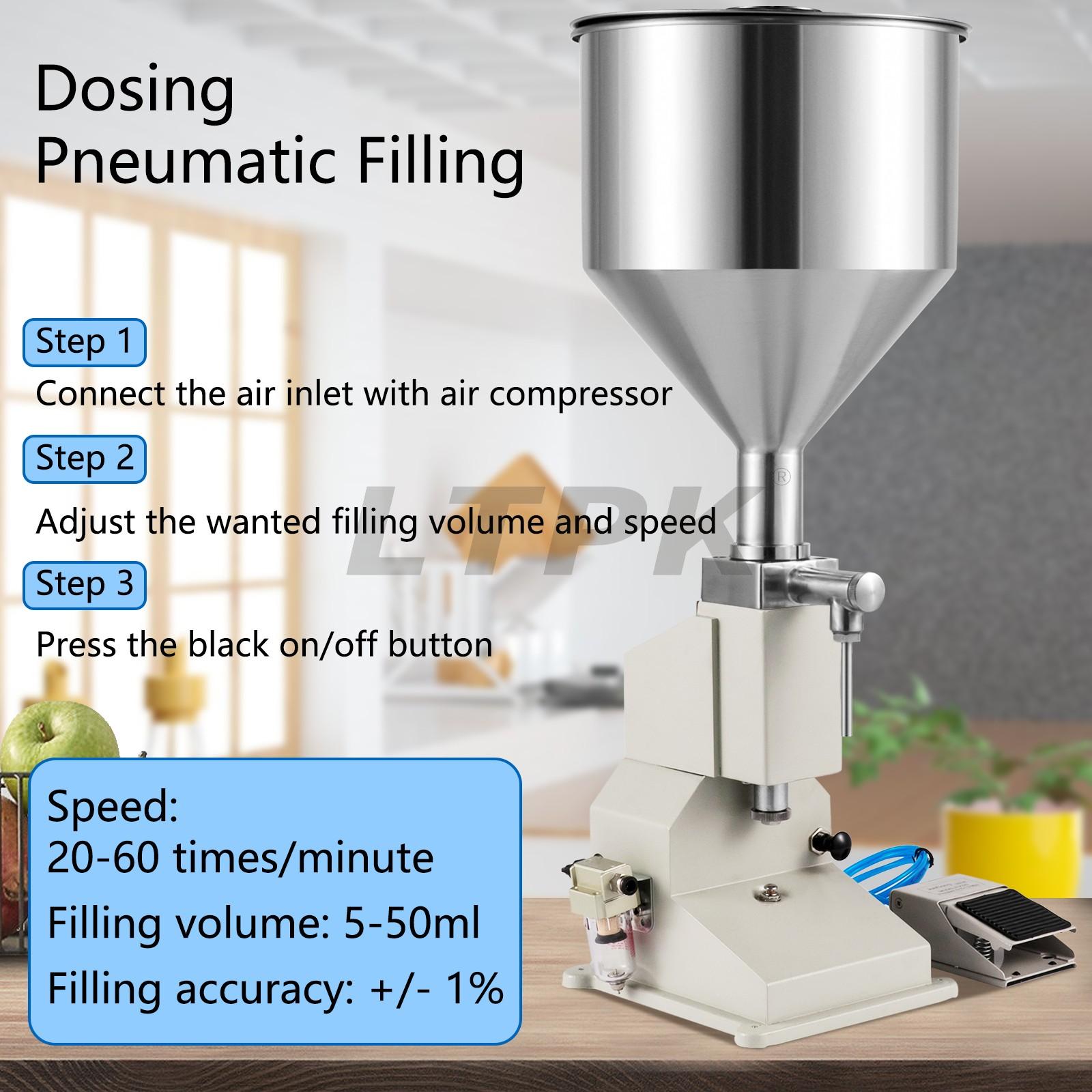

Simple Operation
After connecting the air compressor, adjust the filling condition, don't forget to press the on/off button to turn on the machine, then use the pedal switch to control and finish the filling. This liquid filler machine is convenient to operate.
Wide Application
This pneumatic liquid filling machine is perfect for filling liquid, oil, shampoo, liquid substance without particles. Applicable to the pharmaceutical, cosmetic, and other industries, it is the ideal paste liquid filling equipment.

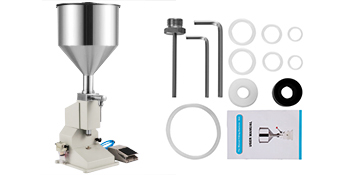

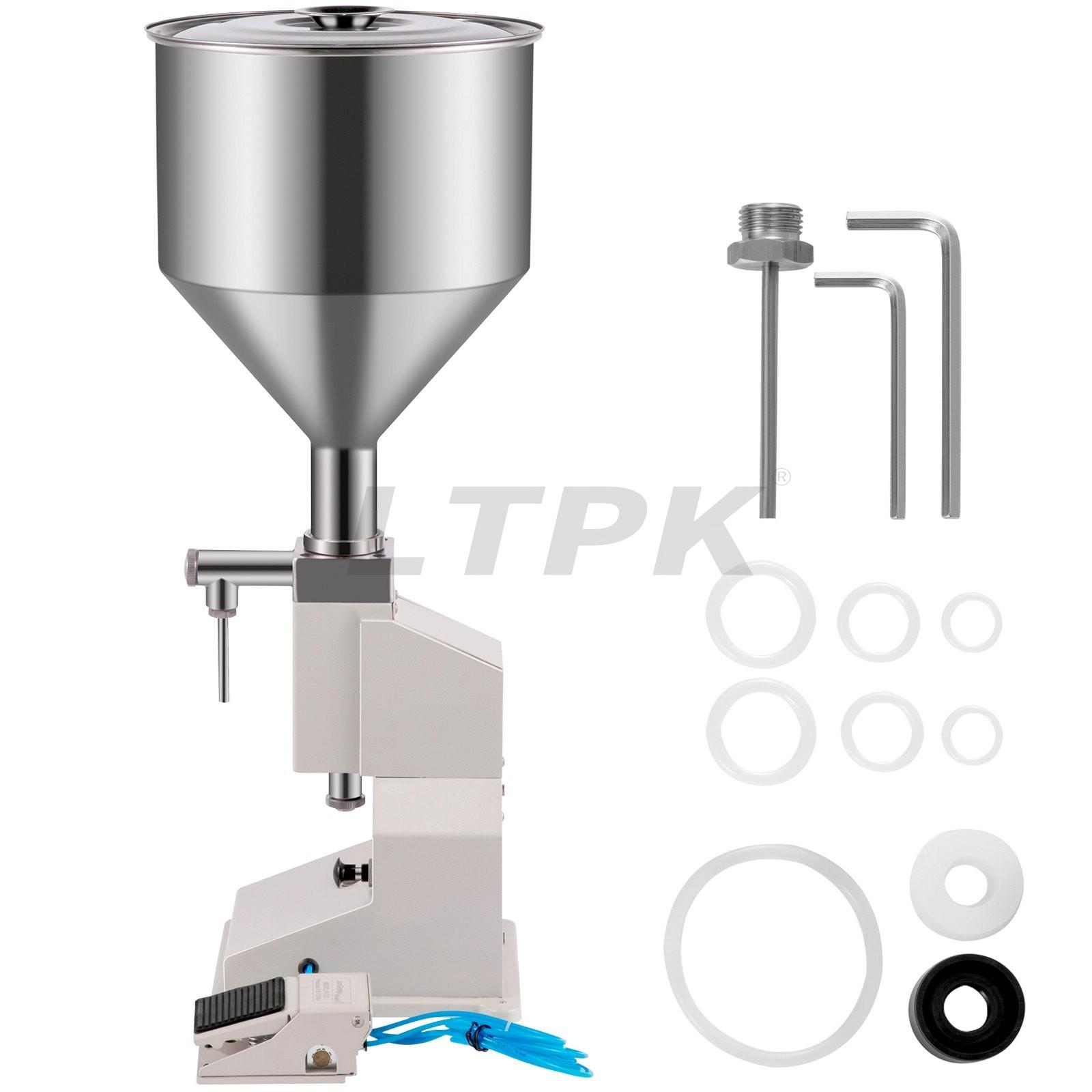

Package Content
1 x Paste and Liquid Filling Machine
- 1 x Funnel
- 9 x O-Rings
- 2 x L-Shape Tools
- 1 x Pedal Switch
- 1 x Screwdriver
- 1 x Manual
