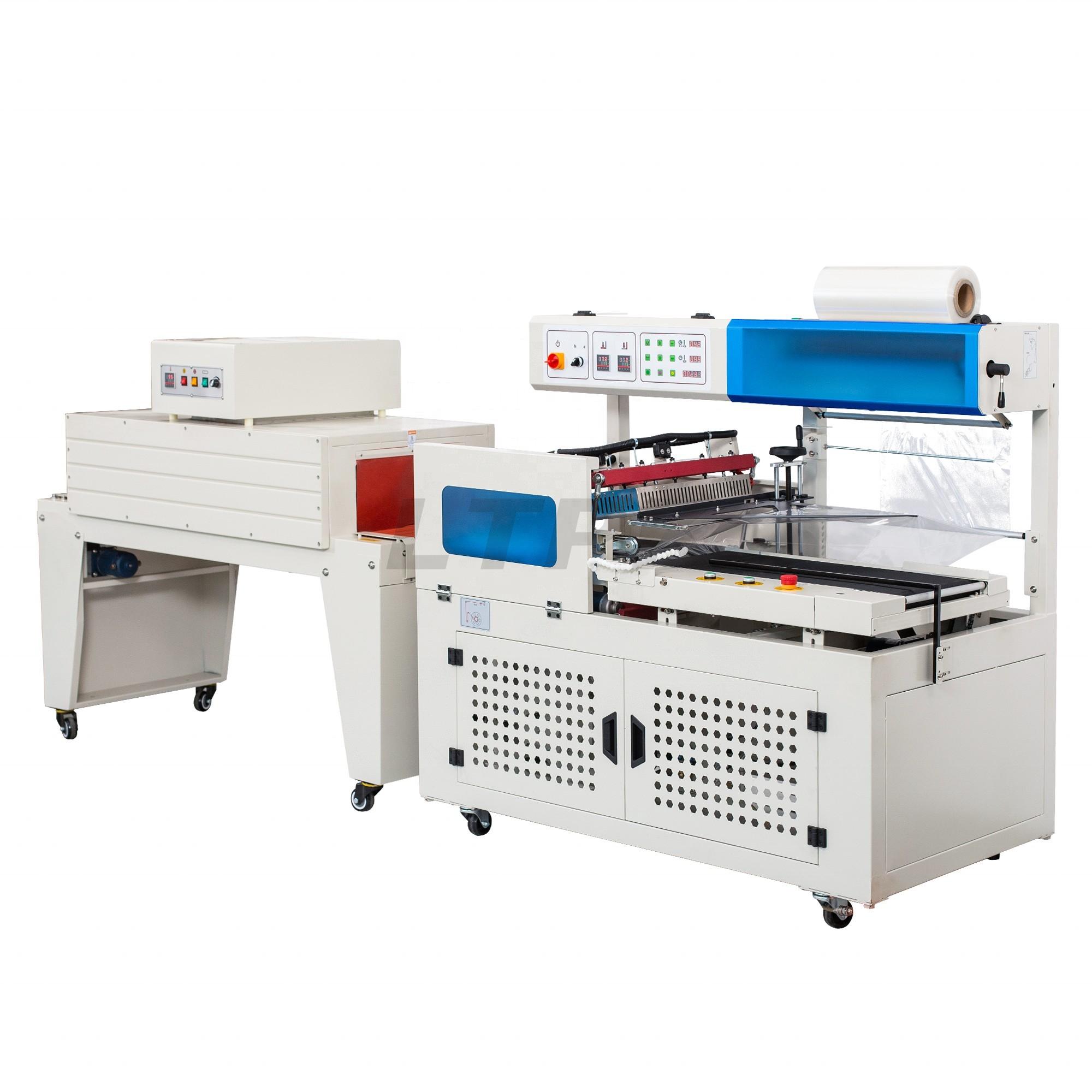

DQL5545D Automatic L-bar Sealer L type sealing packaging machine and DSB4522 Shrink Tunnel Packager

Home Products Strapping &Wrapping Machine L sealer Machine DQL5545D Automatic L-bar Sealer L type
 DQL5545D Automatic L-bar Sealer L type sealing packaging machine and DSB4522 Shrink Tunnel Packager DQL5545D Automatic L-bar Sealer L type sealing packaging machine and DSB4522 Shrink Tunnel Packager DQL5545D Automatic L-bar Sealer L type sealing packaging machine and DSB4522 Shrink Tunnel Packager DQL5545D Automatic L-bar Sealer L type sealing packaging machine and DSB4522 Shrink Tunnel Packager

DQL5545D Automatic L-bar Sealer L type sealing packaging machine and DSB4522 Shrink Tunnel Packager

  • Product Item:DQL5545D+DSB4522
  • Category:L sealer Machine
  • Inquiry Send Email

    Description

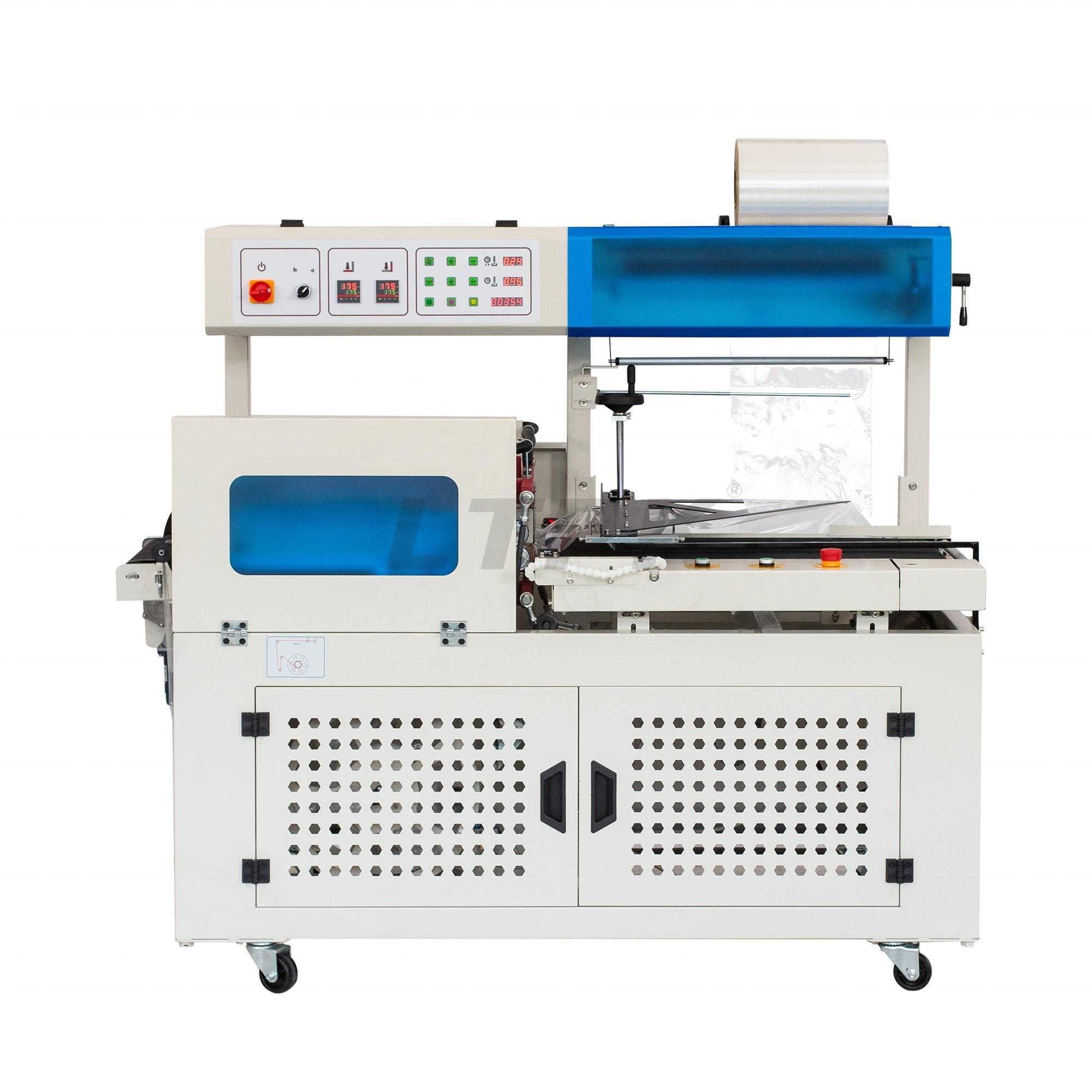

    DQL5545D automatic L-type sealer characteristic:

    1. The sealing knife adopts copper alloy sprayed with Teflon, it won't stick film, sealing fastness, without smoke, non-pollution. Horizontal and vertical sealing knife adopt whole connecting without gap, the film won't break. Sealing frame adopts high quality alloy steel, the sealing quality is stable, frame difficult to be damaged.

    2. The machine has entire automatic system, it equipped with sensors can reach high speed automatic working.

    3. It is convenient to adjust according to different sizes products, just adjust the handle wheel can reach it, operation is easy.

    4. It can be connected with production

    5. It has protection function to avoid sealing product wrong and ensure the safety of operator

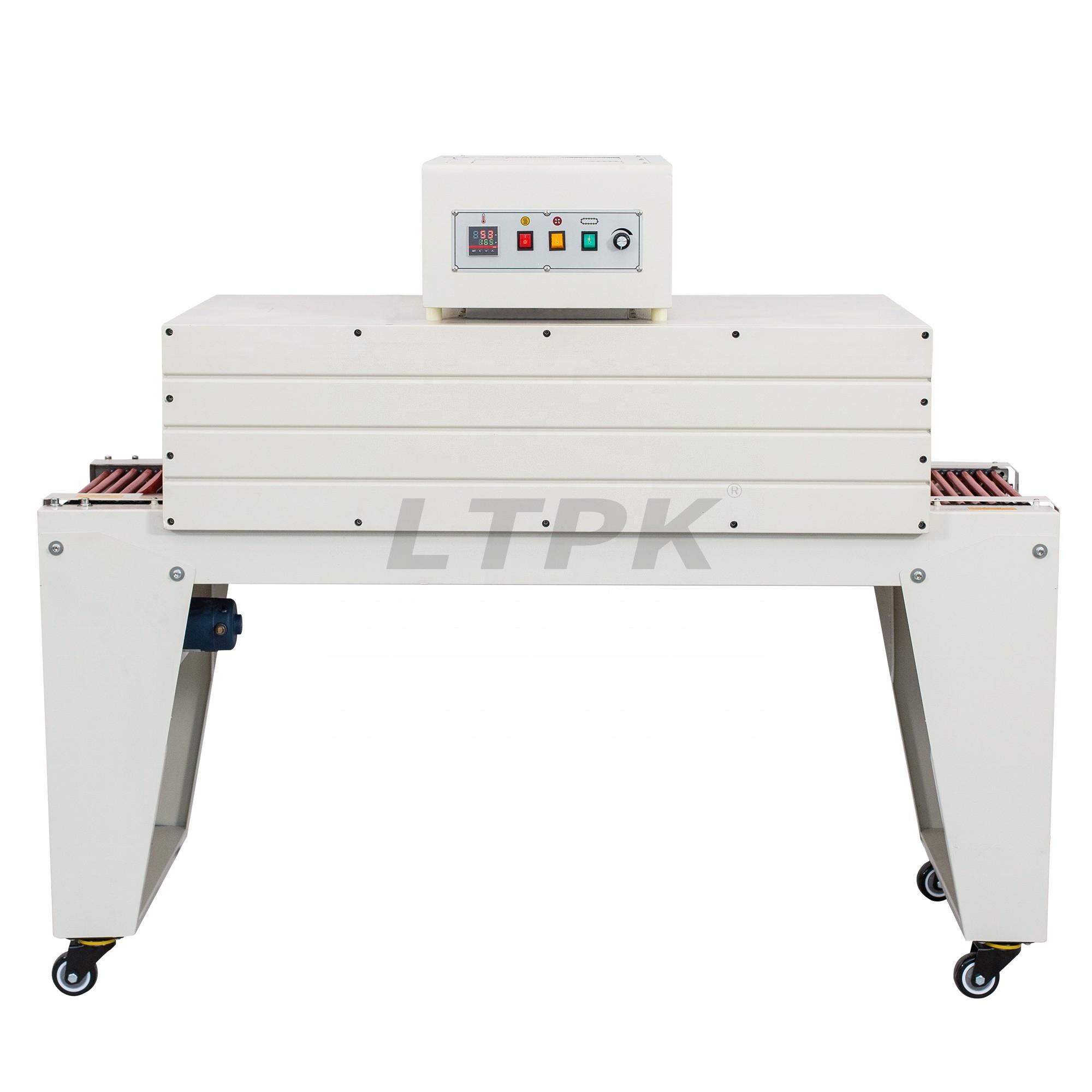

    DSB4522 shrink tunnel characteristic:

    1. It adopts solid roller conveyor, the rollers wrapped with high temperature silica gel tube. It can stand heavy product and difficult abraded (you can choose net type conveyor)

    2. It adopts high-power fan motor to ensure enough strong wind to reach perfect packing effect.


    3. It's with visual window, and it's convenient for observation.

    Application:
    This machine is widely used in foodstuff, drinks, printing, pharmaceutical, floor, hardware and other industries shrink packaging. It is suitable for POF packaging material.

    Model
    DQL5545D
    DSB4522
    Horizontal heat power
    800W
    9.2KW
    Vertical heat power
    1000W

    Voltage
    220V 50/60HZ
    380V 50HZ/60HZ
    Sealing time
    0.2-1.0s
    Speed: 0-12m/min
    Thickness of film
    0.012-0.06mm

    Compressor of work
    5-6mpa

    Max packing size
    L+2H≤550mm;W+2H≤330mm;H ≤140mm

    Max sealing size
    L550×W450
    Loading weight: 10kg
    Capacity
    0-25 pcs/min
    0-10 m/min
    Sealing temperature
    180℃—250℃ depends on thickness of film and environment temperature
    /
    Packing material
    PE POF PVC
    /
    Machine weight(kg)
    280
    Tunnel size 1200*450*220
    Machine size(mm)
    1680*840*1475
    1621*714*1335
