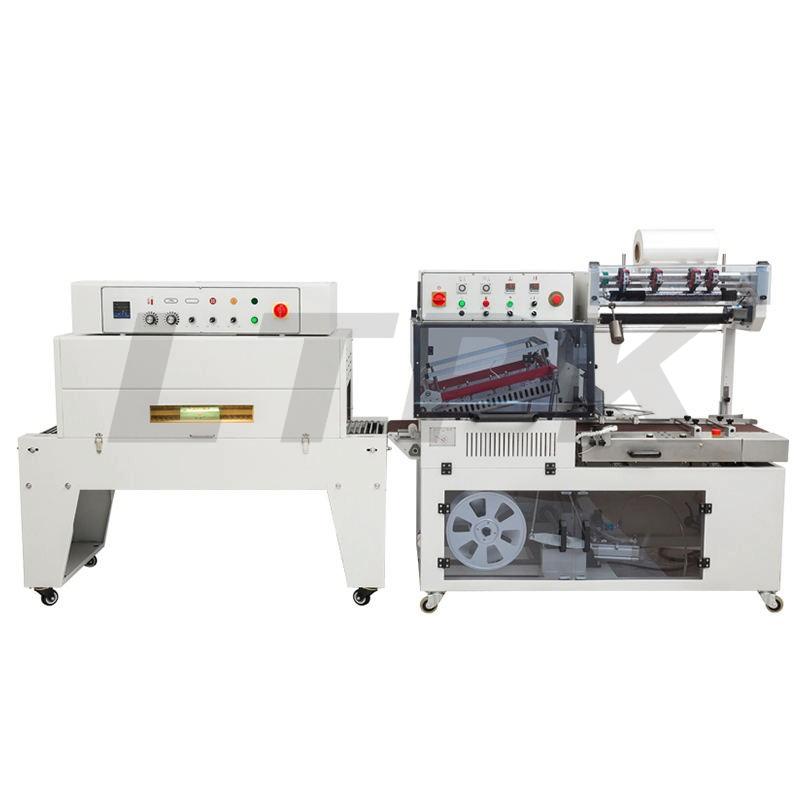

DQL5545S Automatic L bar type Sealer sealing packaging machine and DSD4520 Shrink Tunnel Packager

Home Products Strapping &Wrapping Machine L sealer Machine DQL5545S Automatic L bar type Sealer sea
DQL5545S Automatic L bar type Sealer sealing packaging machine and DSD4520 Shrink Tunnel PackagerDQL5545S Automatic L bar type Sealer sealing packaging machine and DSD4520 Shrink Tunnel PackagerDQL5545S Automatic L bar type Sealer sealing packaging machine and DSD4520 Shrink Tunnel PackagerDQL5545S Automatic L bar type Sealer sealing packaging machine and DSD4520 Shrink Tunnel Packager

DQL5545S Automatic L bar type Sealer sealing packaging machine and DSD4520 Shrink Tunnel Packager

  • Product Item:DQL5545S+DSD4520
  • Category:L sealer Machine
  • Inquiry Send Email

    Description

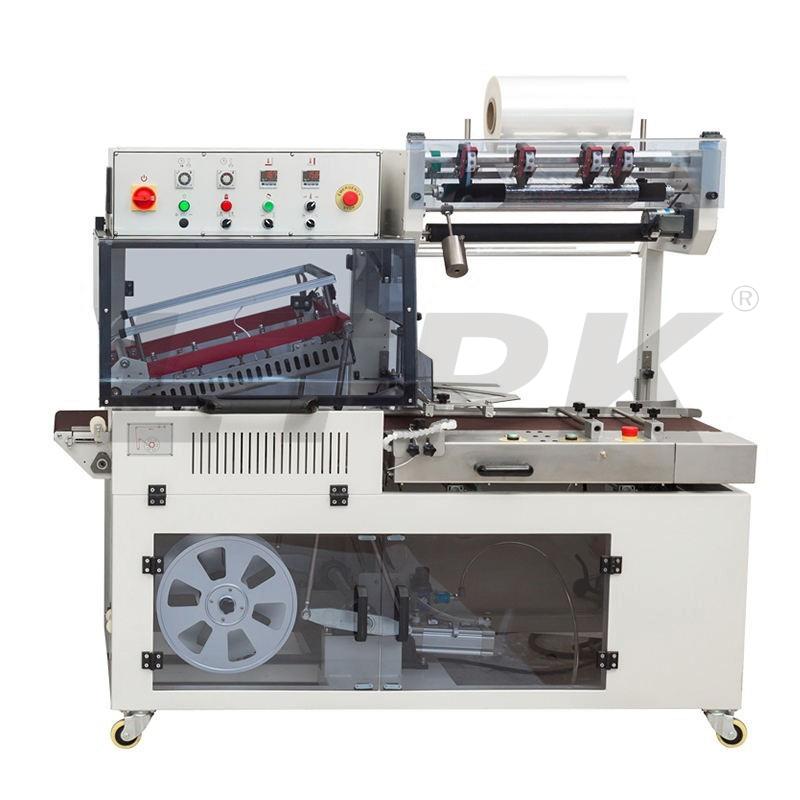

    DQL5545 automatic L-type sealer characteristic:

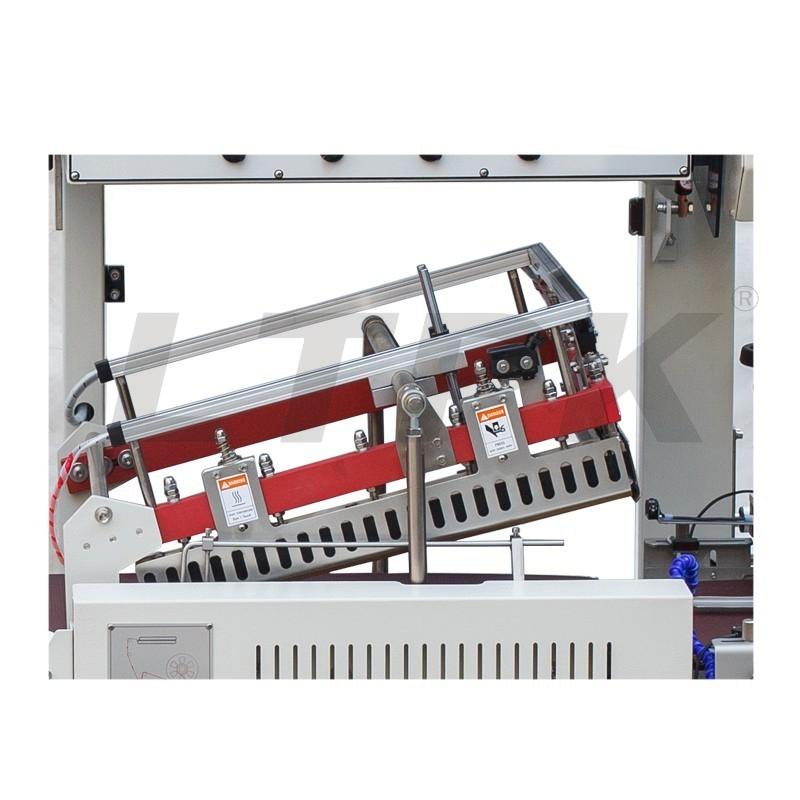

    1. The sealing knife adopts copper alloy sprayed with Teflon, it won't stick film, sealing fastness, without smoke, non-pollution. Horizontal and vertical sealing knife adopt whole connecting without gap, the film won't break. Sealing frame adopts high quality alloy steel, the sealing quality is stable, frame difficult to be damaged.

    2. The machine has entire automatic system, it equipped with sensors can reach high speed automatic working.

    3. It is convenient to adjust according to different sizes products, just adjust the handle wheel can reach it, operation is easy.

    4. It can be connected with production

    5. It has protection function to avoid sealing product wrong and ensure the safety of operator

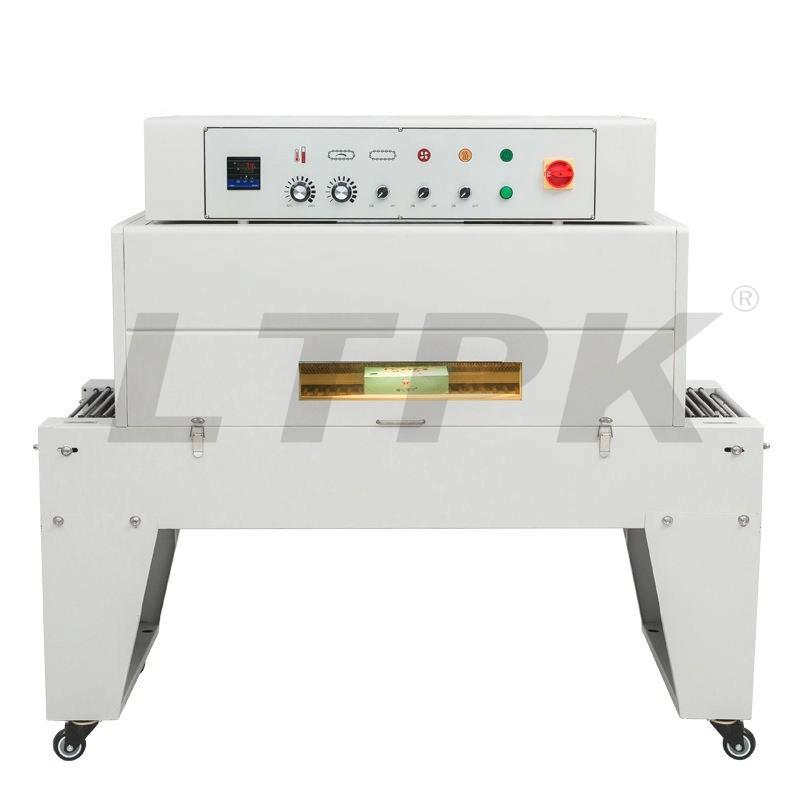

    DSD4520 shrink tunnel characteristic:

    1. It adopts Schneider AC contactor, high-power Solid state booster and intelligent temperature controller to make
    temperature system more accurate, prolong the working life.

    2. It adopts solid roller conveyor, the rollers wrapped with high temperature silica gel tube. It can stand heavy product and difficult abraded (you can choose net type conveyor)

    3. It adopts high-power fan motor to ensure enough strong wind to reach perfect packing effect.

    4. Inside wall adopts stainless steel, it has fast temperature transfer, even heating, low energy consumption, long working life characteristics.



    5. It's with visual window, and it's convenient for observation.

    Application:
    This machine is widely used in foodstuff, drinks, printing, pharmaceutical, floor, hardware and other industries shrink packaging. It is suit for POF packaging material.

    Model
    DQL5545S
    DSD4520
    Power
    2.1KW
    12.8kw
    Voltage
    220V 50/60HZ
    380V 50HZ/60HZ
    Sealing time
    0.2-1.0s

    Thickness of film
    0.012-0.06mm

    Compressor of work
    5-6mpa
    /
    Max packing size
    L+2H≤550mm;W+2H≤450mm;H ≤140mm
    W450×H200
    Max sealing size
    L550×W450
    Loading weight: 10kg
    Capacity
    0-25 pcs/min
    0-10 m/min
    Sealing temperature
    180℃-250℃ depends on thickness of film and environment temperature
    Packing material
    POF PVC
    Machine weight(kg)
    320
    180
    Machine size(mm)
    1760*940*1580
    L1600×W720×H1445
