Description
Premium Sealing: Our FR900 horizontal continuous sealing machine is suitable for different assembly lines with premium sealing. Sealing speed: 0-24 m/min, sealing width: 0.24-0.6 in/6-15 mm, film thickness: 0.0008-0.3 in/0.02-0.8 mm. The automatic conveyor belt and cooling/heating block both help the machine work more stably and securely.
Efficient Printing: This continuous sealing machine is equipped with an embossing wheel and type wheel, which can print date, remark, introduction, logo simultaneously when sealing. Furthermore, this sealer is also compatible with a stripping wheel and smooth wheel to meet your various demands to some extent.
All-Metal Construction: Our horizontal bag sealer has a durable iron body with electrostatic spray paint. This all-metal construction ensures the sealer provides a long-life service. In addition, this machine is constructed by a DC copper motor that provides enormous working power.
Powerful Control Panel: Automatic control panel is included in this band sealing machine for better operation. Different products need different sealing temperatures and speeds. Our machine can satisfy your working needs quickly because it possesses a thermostatic control, heat seal switch, and speed control knob.
Wide Application: This kind of continuous bag sealer is compatible with bags in thickness of 0.02 mm-0.8 mm on both sides, which is applied to the seal of plastic bag, aluminum foil bag, compound bag, and paper bag. As a result, it is widely used in pharmacy, agriculture, industrial, food, etc.
Technical Parameters
- Model: FR900 Vertical
- Power: 700W
- Voltage: 110V / 60Hz
- Seal Width: 0.24-0.59 in / 6-15 mm
- Sealing Speed: 0-24 m/min
- Sealing Thickness: 0.0008-0.3 in / 0.02-0.8 mm
- Temperature Range: 0°C - 300 °C / 32 ℉ - 572 ℉
- Conveyor Load: Max. 11 lbs / 5.0 kg
- Item Weight: 52 lbs / 23 kg
- Item Dimension: 32.6 x 14.3 x 20.4 in / 82.8 x 36.3 x 51.8 cm

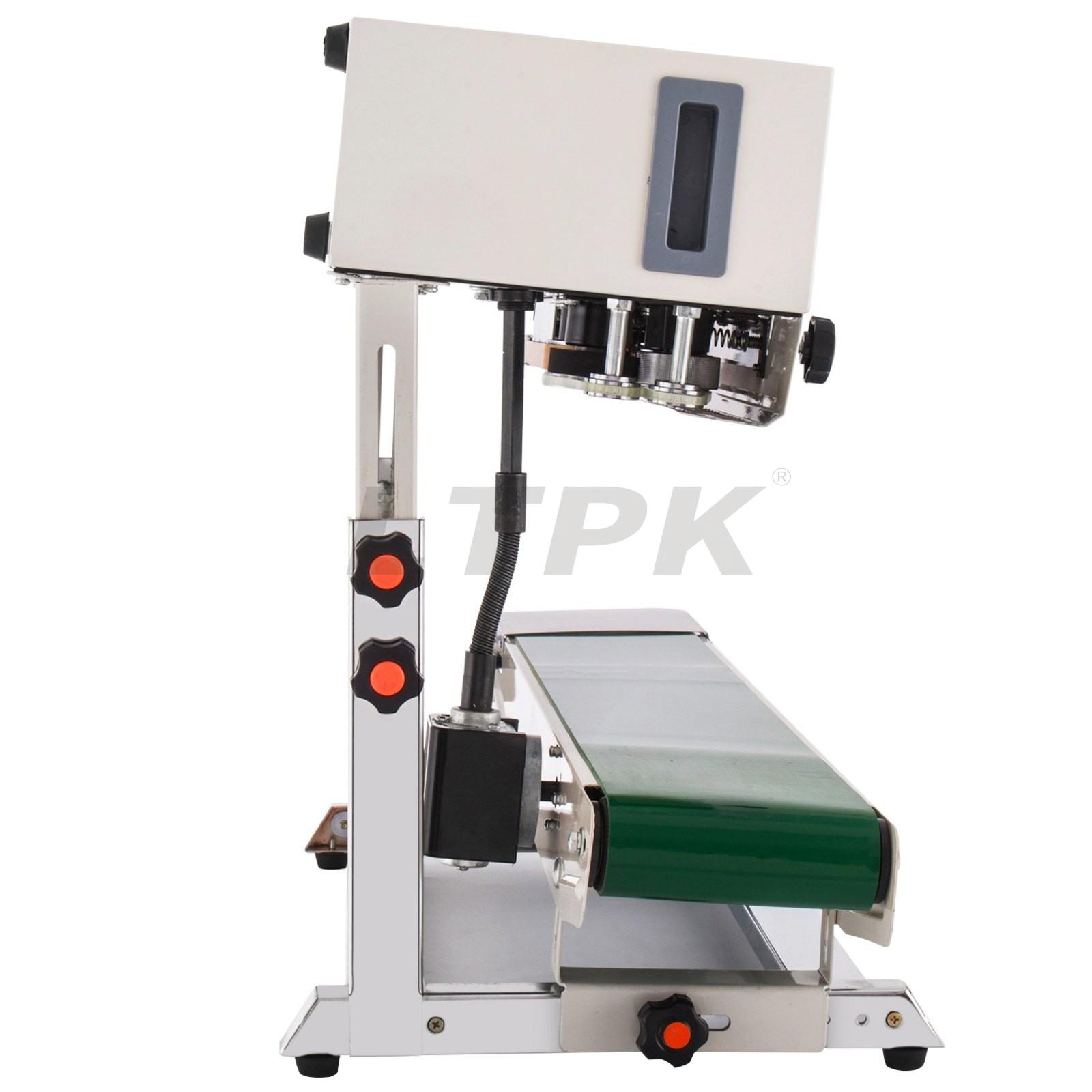

Machine Details

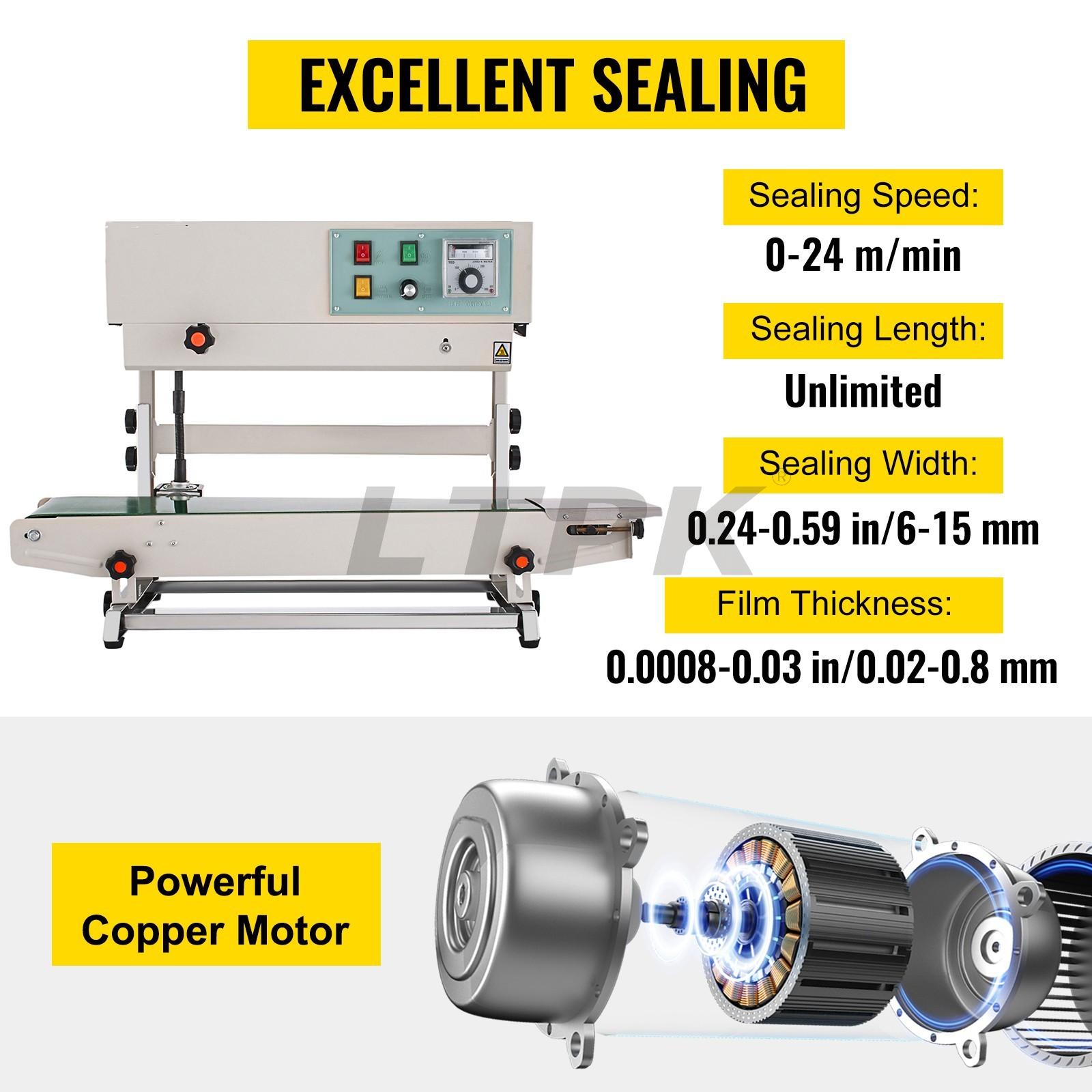

Excellent Sealing
The sealing machine is equipped with a thickened conveyor belt, stable and anti-friction. Comes with a 700W copper motor, providing strong power for excellent sealing. Film Sealing Speed:0-24 m/min. Sealing Width: 0.24-0.59 in/6-15 mm. Sealing Length: Unlimited.

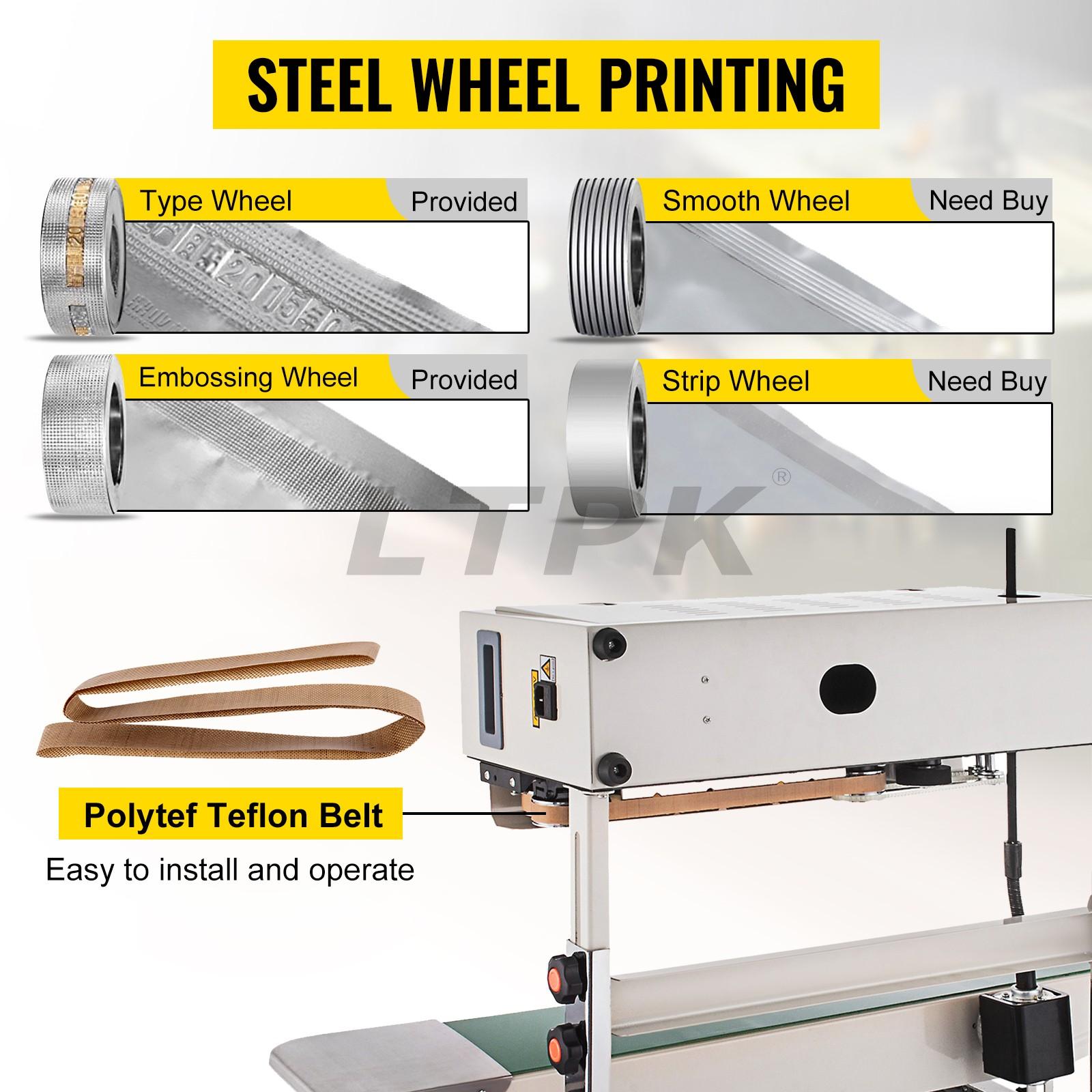

Steel Wheel Printing
The automatic bag sealer is equipped with an embossing wheel and a printing wheel. You can replace the type with what you need and print the production date, time, logo, etc, in the film. Extra polytef teflon belt is included, convenient for operation.

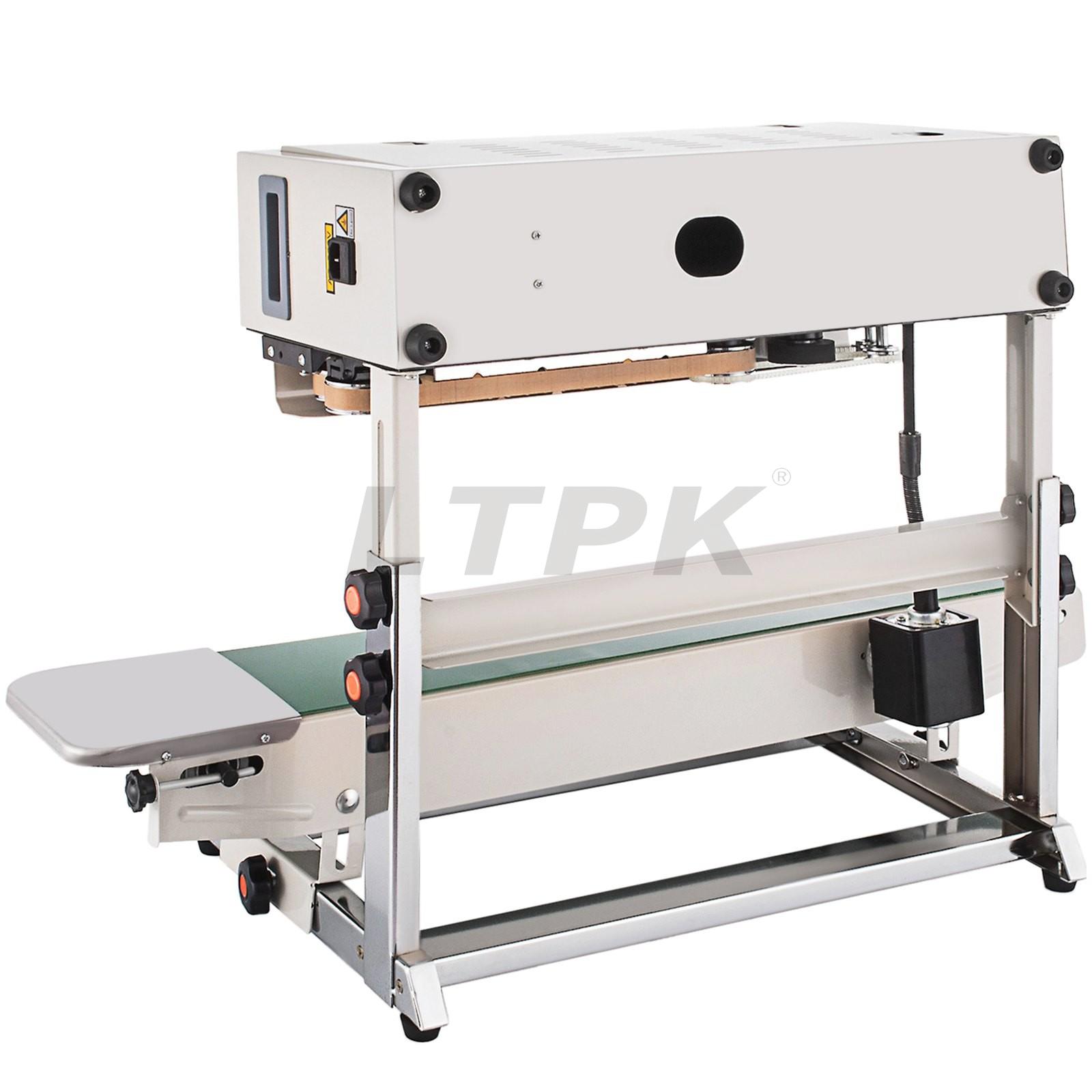

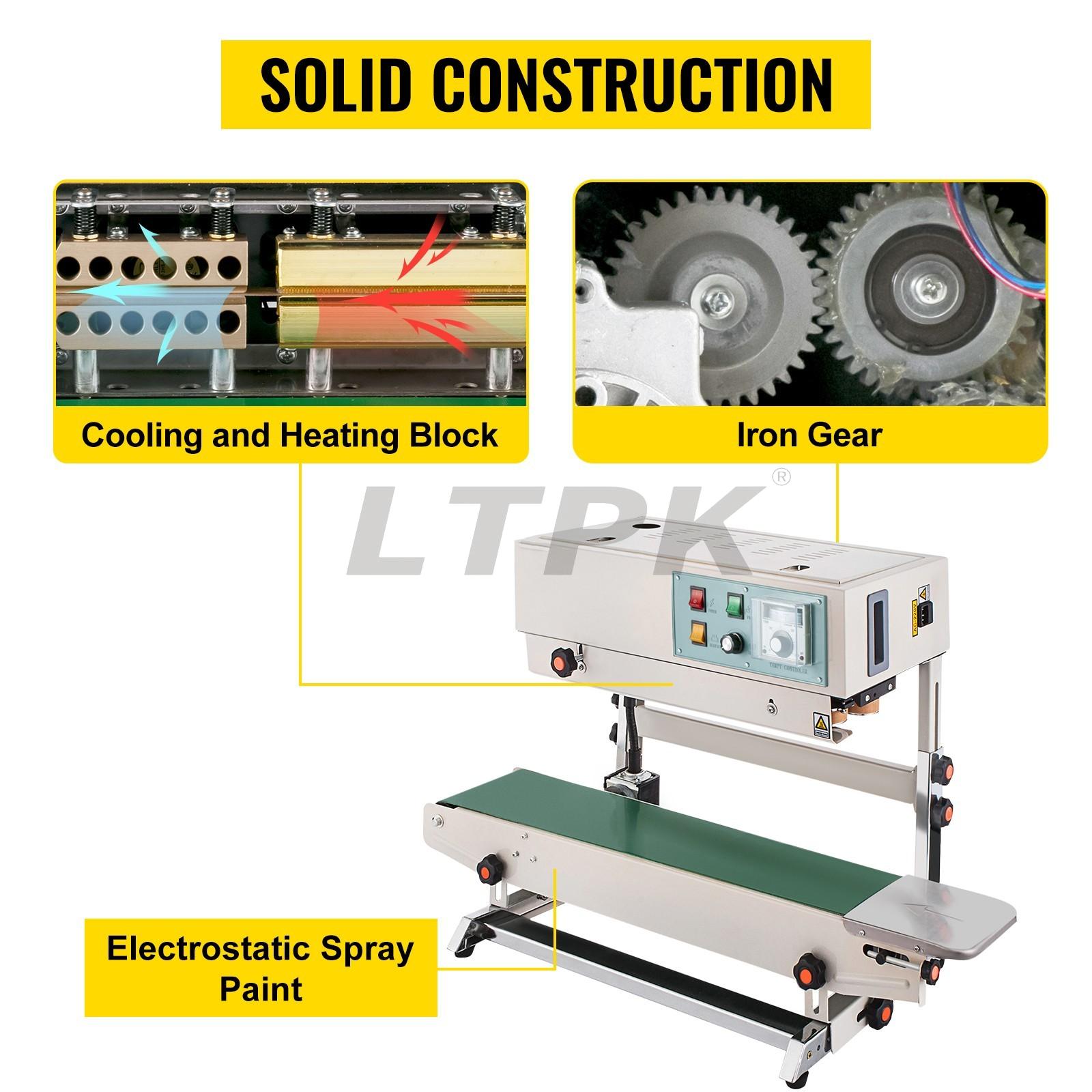

Solid Construction
The heating and cooling blocks are made of high-quality pure copper, and the gears are made of solid iron, durable and long time service. The automatic bag sealer adopts the roller conveyor, combined with a thickened belt and a stainless steel shelf.

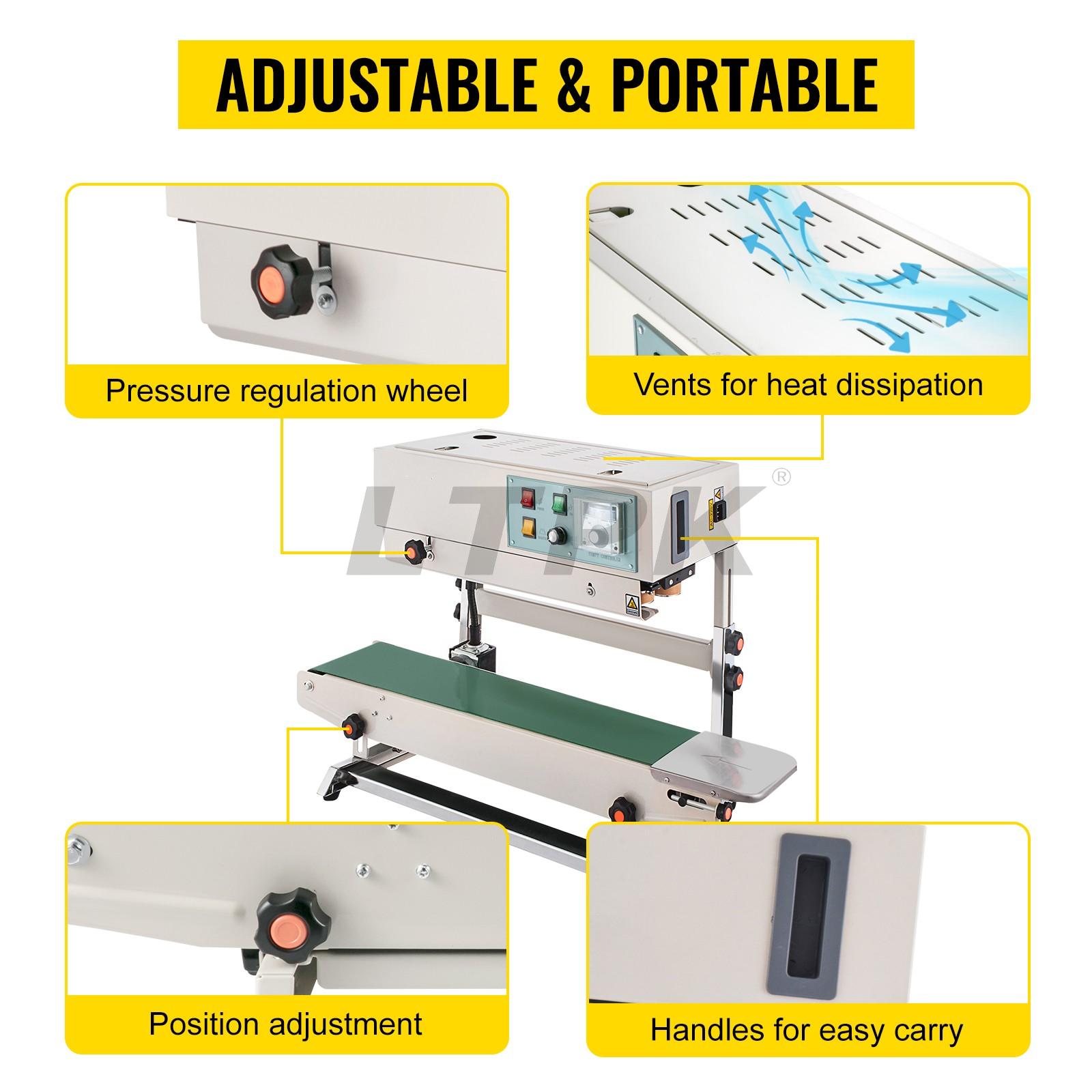

Adjustable & Portable
The pressure control button is used to adjust the printing wheel's pressure to meet the different thickness of the bag. The front and behind of the conveying table also can be adjustable. It is designed with handles for portability and exhaust holes for heat dissipation.

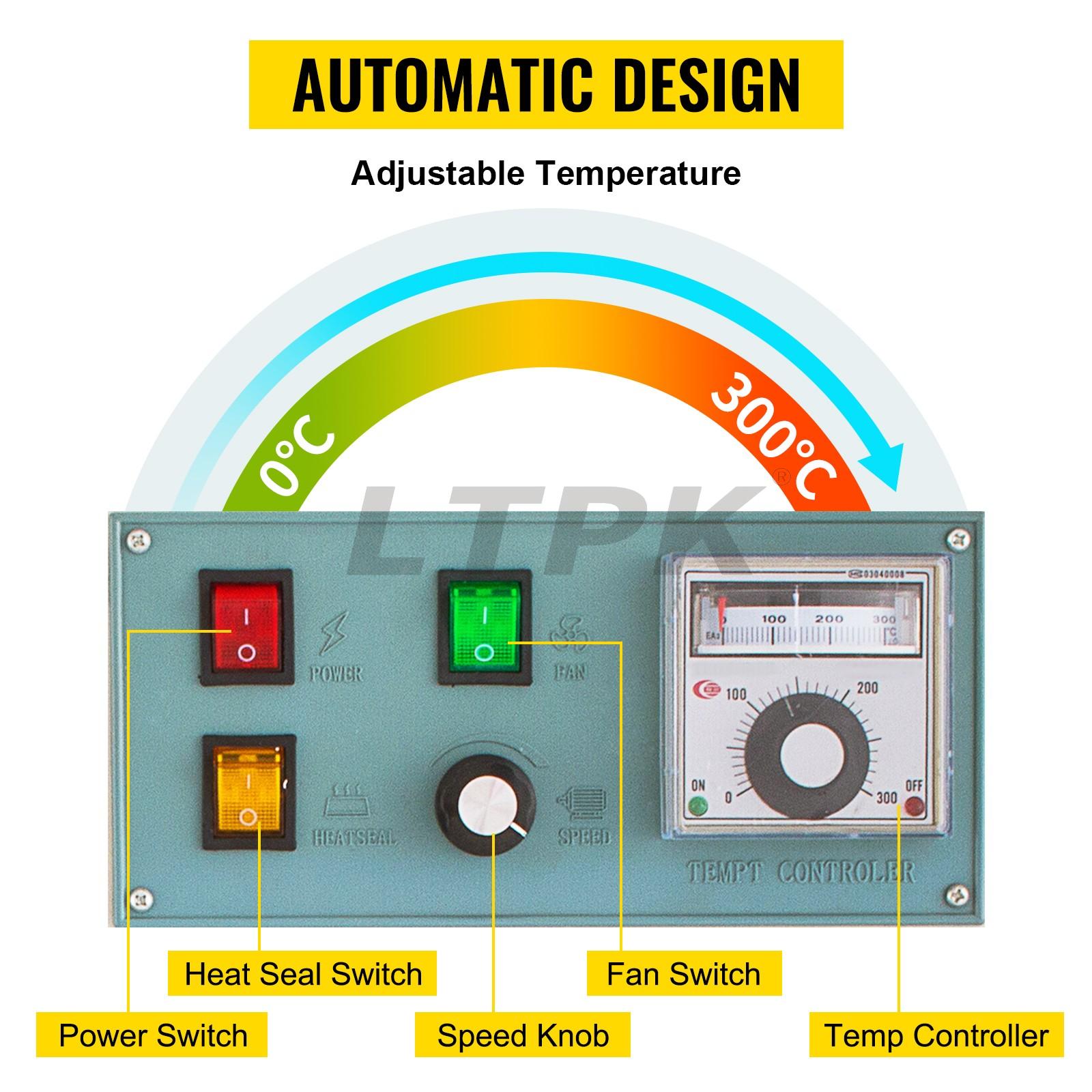

Automatic Design
The machine is possessed of an intelligent digital display with a temperature controller. Besides, the conveyor belt speed can be adjusted according to the actual situation, which helps you seal the bags more conveniently.
Extensive Uses
The design of this automatic sealer makes it perfect for the production line. It is suitable for food, medicine, daily necessities, chemicals, electronic units, seeds packaging. It suits many different film materials, such as PP, PE, PV, OPP, PS.

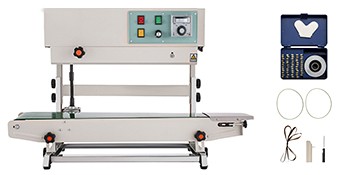

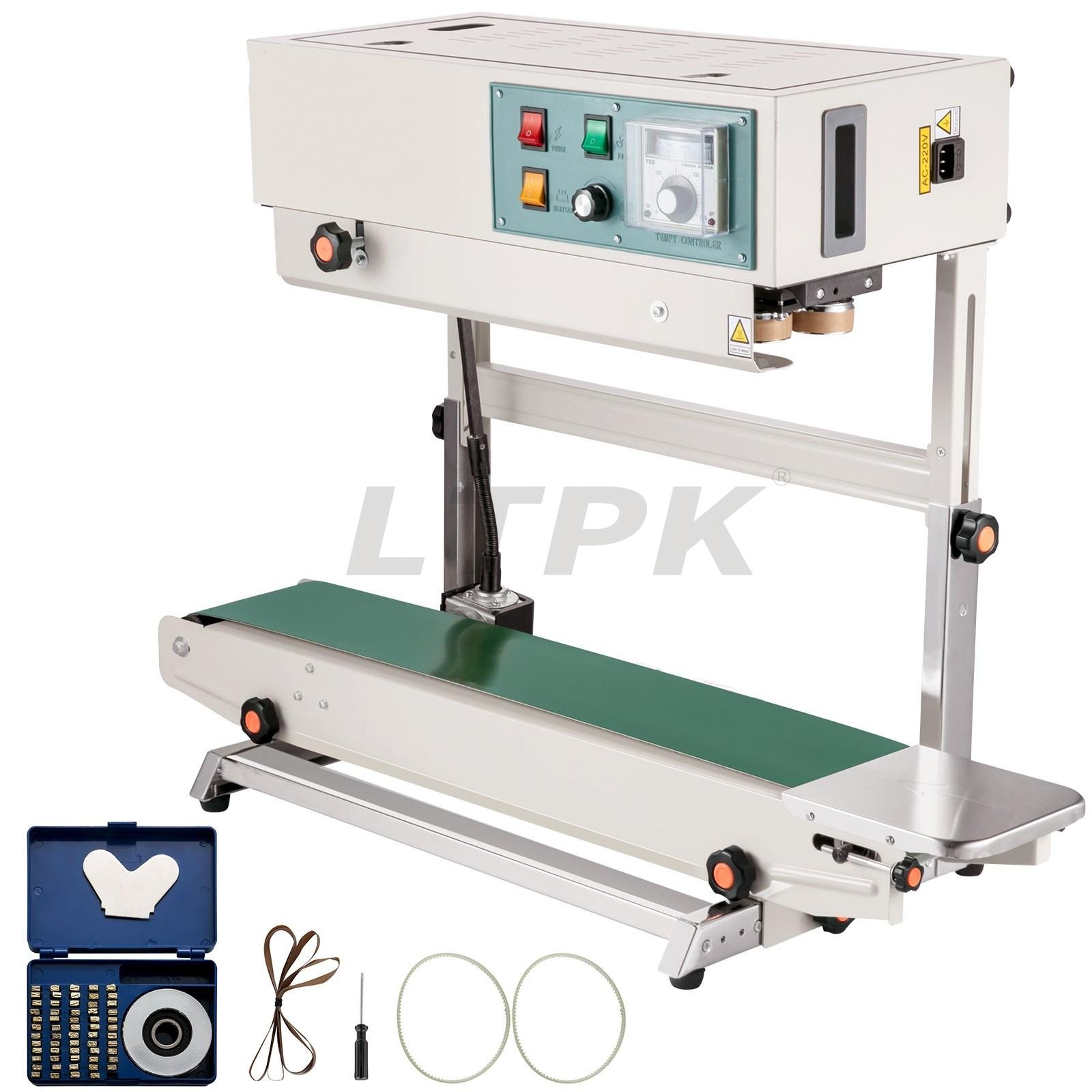

Package Content
1 x FR900 Vertical Sealing Machine
1 x Kit of Necessary Accessories
