Description
Product Description

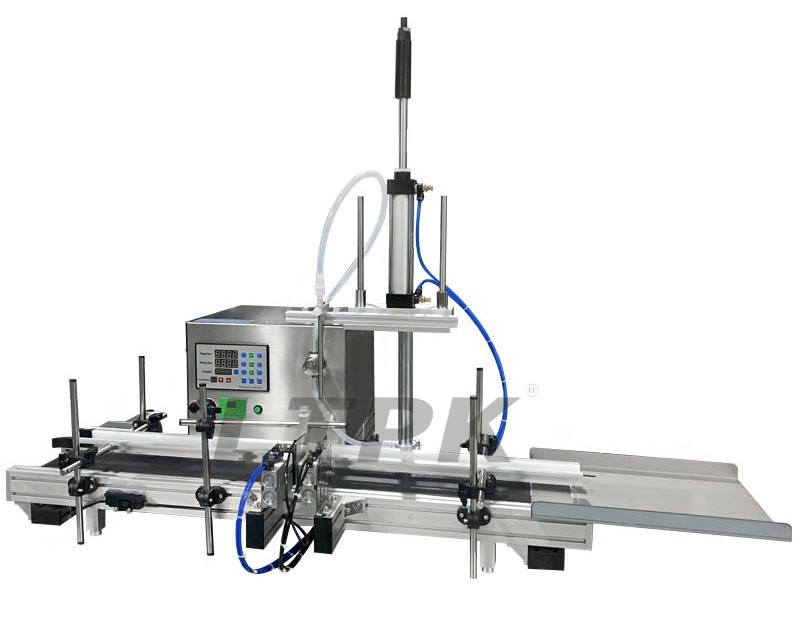

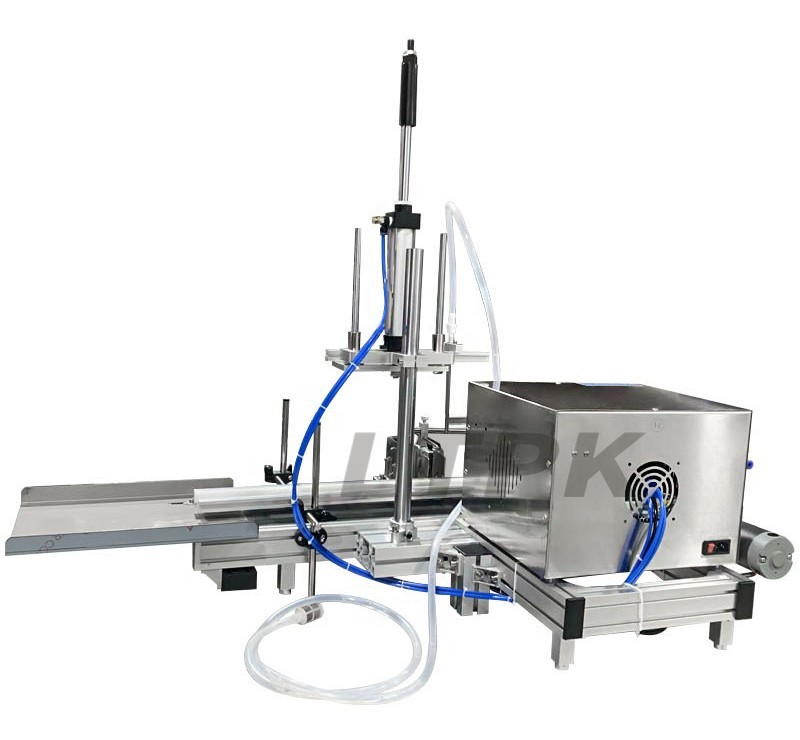

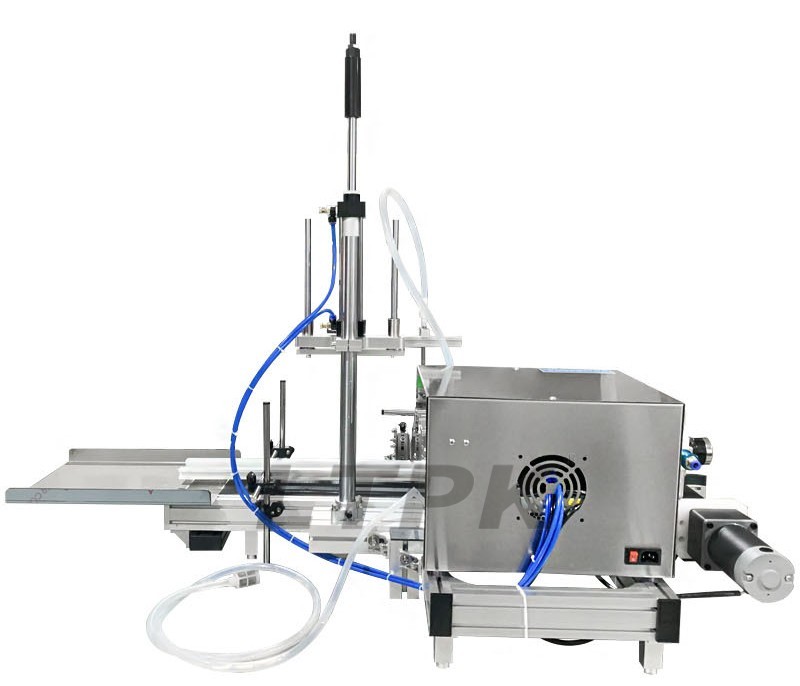

This kind of semi automatic filling machine is equipped with 316 magnetic pump is suitable for filling corrosive liquid like insecticide,solution.The magnetic pump filling machine has the advantage that it can fill liquid more accurately,suitable for filling small volume products like perfume,essential oil.it is widely used in beverage,cosmetics,food,and daily chemical
industries.
Technical Parameters
Machine Model LT-DMPF1HL
Voltage 220V/110V 185W
Machine Pump 316 Stainless Steel Magnetic Pump
Filling Range 10-600ml
Max Flow Rate 6L/min(based on water)
Filling Speed About 8-15bottles/min(depend on 110ml water)
Applicable Bottle Height 40mm-210mm
Applicable Bottle Diameter ≤80mm
Applicable Bottleneck Diameter >15mm
Filling Nozzle Diameter(OD) 10mm
Conveyor Size 1200mm*100mm(L*W)
Machine Weight About 13.5kg
Machine Size About 350*300*265mm
Package Weight About 9kg(Filling Machine)+10kg(Conveyor Part)
Package Size About 430*430*310mm(Filling Machine)
About 740*250*390mm(Conveyor Part)
Product Details
Through the digital control panel, it's easy to set or adjust parameters like filling speed. The quantity of filled bottles can show on panel, visual and accurate.
Equipped with diving nozzle, it can prevent liquid from splashing out during filling. And this kind of nozzle can decrease number of bubbles when filling foamy liquid. The lifting speed and distance of nozzle are adjustable.

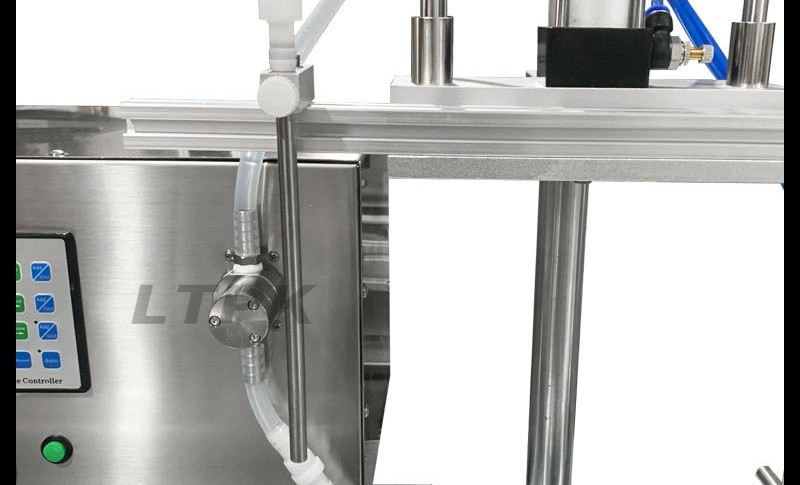

With stainless steel magnetic pump, it can fill liquid accurately. It also has the feature of high temperature resistance and corrosion resistance, suitable for 3≤PH≤9 liquid.
The electric eye is designed for detecting bottles and controlling the machine to run automatically. Intelligent and efficient.
The sensitivity of it can be adjusted according to production need.
The sensitivity of it can be adjusted according to production need.
The chain conveyor has larger weight capacity which is good for transport heavier products.The speed regulator is used to control working speed of conveyor belt.This makes sure the machine can work with other machine better and more convenient to adjust the
machine.
machine.
