Description
Description:

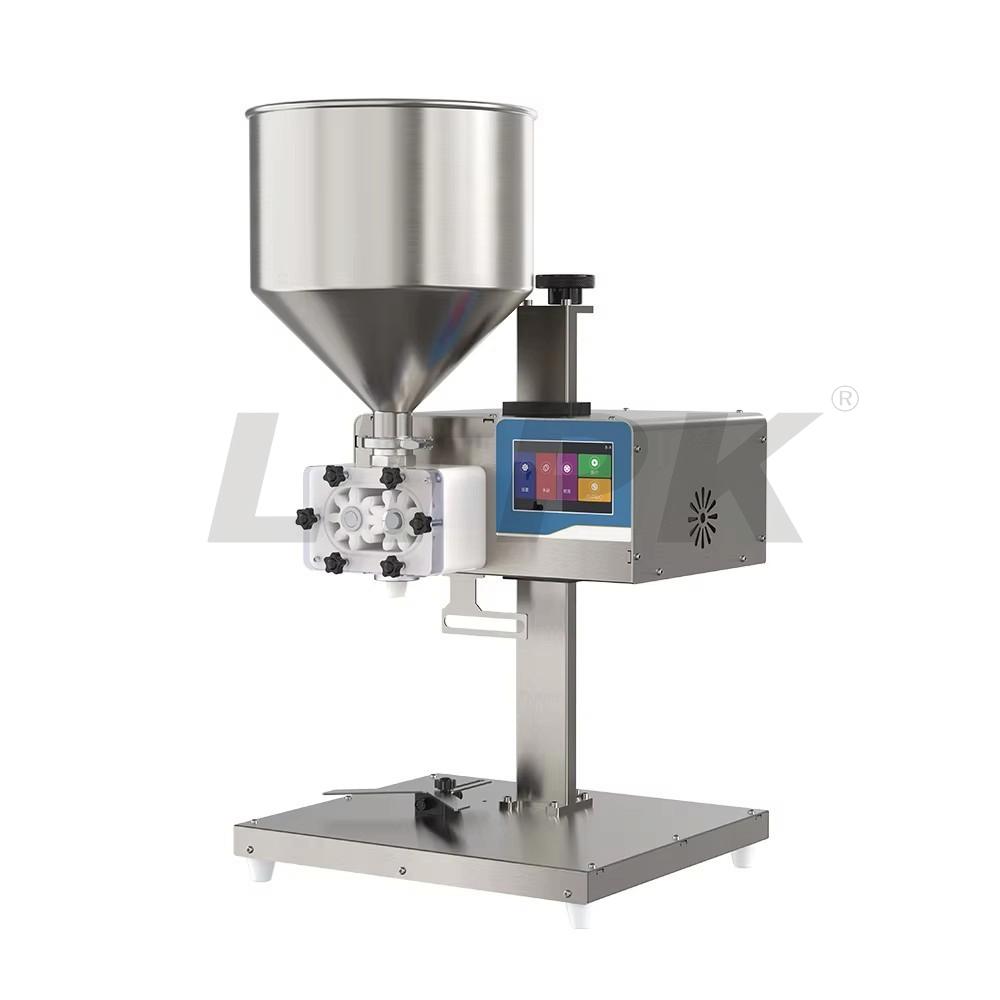

This filling machine features PLC servo control with ±0.1% precision, handling 5g-10kg containers (≤300mm height) at 10L/min flow rate.

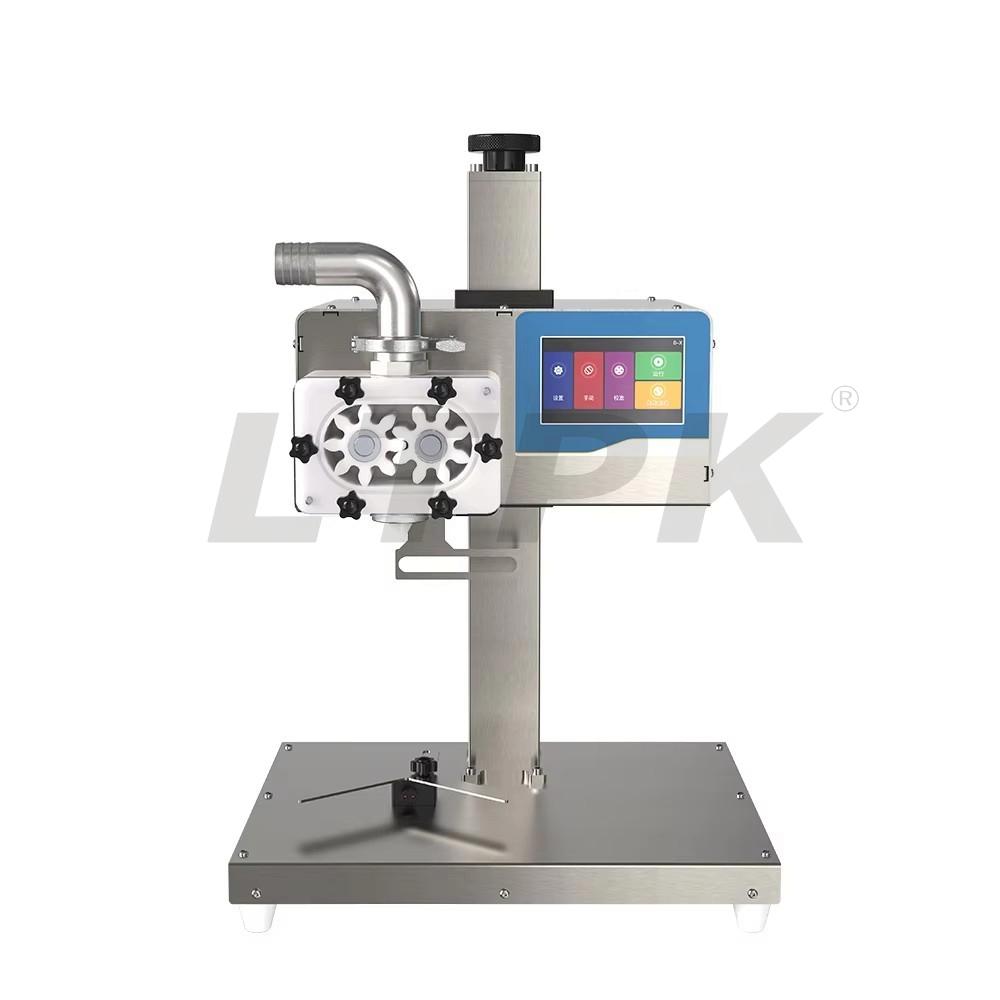

This gear pump system processes viscous liquids (1000-180000CP) like honey, peanut butter, and shampoo at ≤70℃.
With touch-free photoelectric operation and conveyor integration (386×435×586mm compact design), it achieves food-grade filling without air compressors (DC24V/AC100-240V dual power, ≤260W).Ideal for food, cosmetic and chemical industries requiring 50N.m torque performance
Applications:
-Honey, yogurt, salad, soy sauce, pear paste, peanut butter, tomato sauce, edible butter and other food products.
-Products in various fields such as shampoo, dish-washing detergent, resin,etc.
Note:
Performance may vary with liquid viscosity and ambient temperature. For optimal results, maintain product temperature below 70°C.
Technical Parameter
Model | 8-X-2 |
Pump | Gear Pump |
Control Way | PLC |
Machine size | 386*435*586mm(not include hopper) |
Start/Stop model | Photoelectric Sensor/Foot Pedal |
Filling speed | 10L/min |
Filling accuracy | 0.1%-0.5% |
Power | ≤260W/AC100-240V |
Gross weight | 32kg |
Suitable for raw material temperatures | ≤70℃ |
Apply Viscosity | 1000CP-180000CP |
Filling range | 5g-2000g |
Suitable height | 0-300mm adjustable |
Applicable honey Brix degree | Liquid 34 - 43 |
Suitable for environment temperature | ≤70%RH |
