Description
Description:

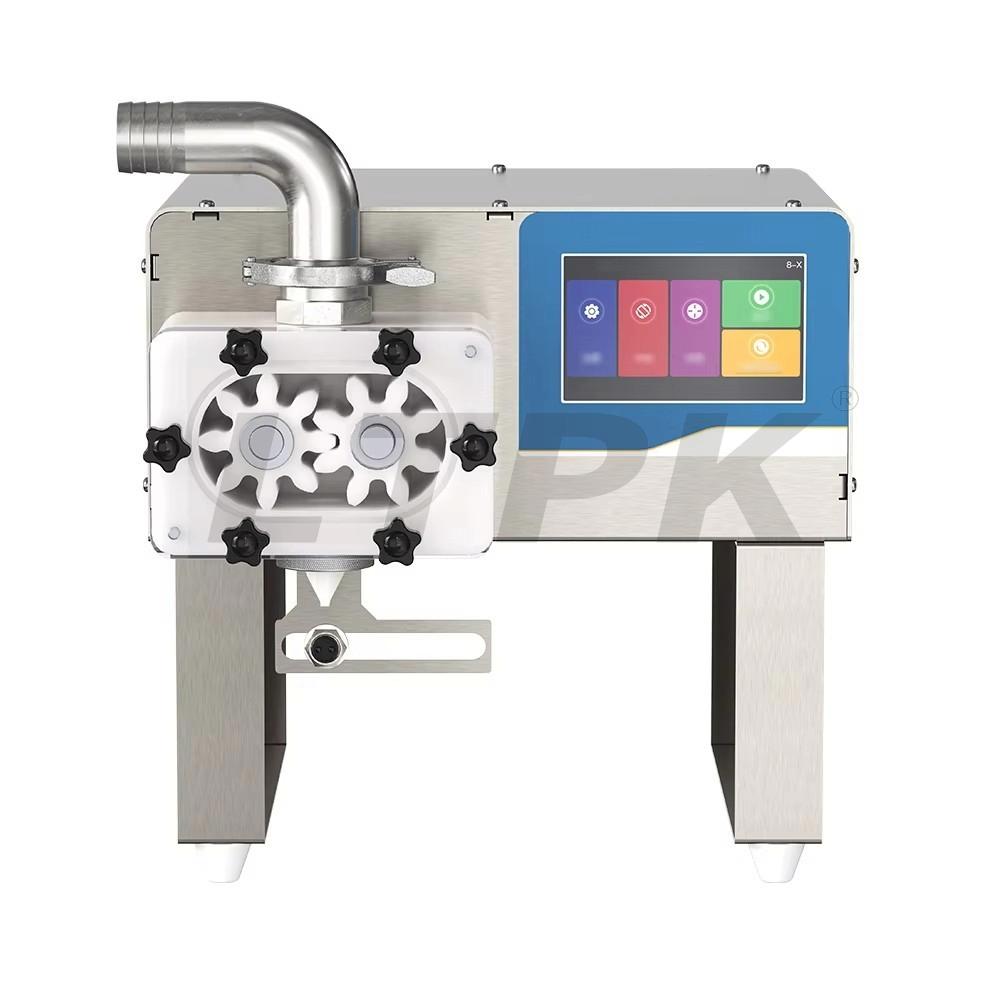

The 8-X-1 Filling Machine is a high-precision, PLC-controlled filling solution designed for versatile liquid and semi-liquid products across food, cosmetics, and industrial applications. Equipped with a gear pump system, it delivers a consistent flow rate of 10L/min with an exceptional filling accuracy of 0.1%-0.5%, ensuring minimal waste and optimal efficiency.
Key Features:
* Smart Control: 5-inch touchscreen interface with intuitive PLC programming for seamless operation.
* Flexible Design: Compatible with containers up to 135mm in height (extendable) and handles viscosities ranging from 1,000CP to 180,000CP.

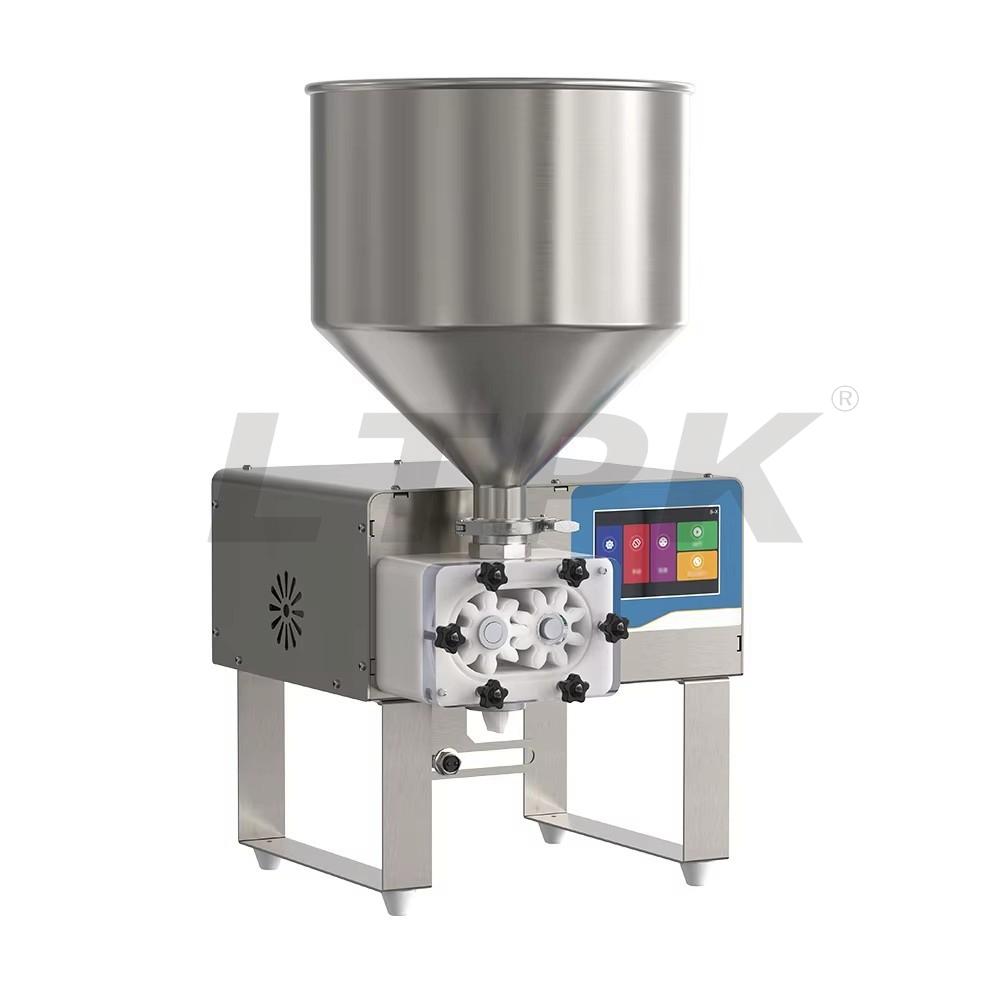

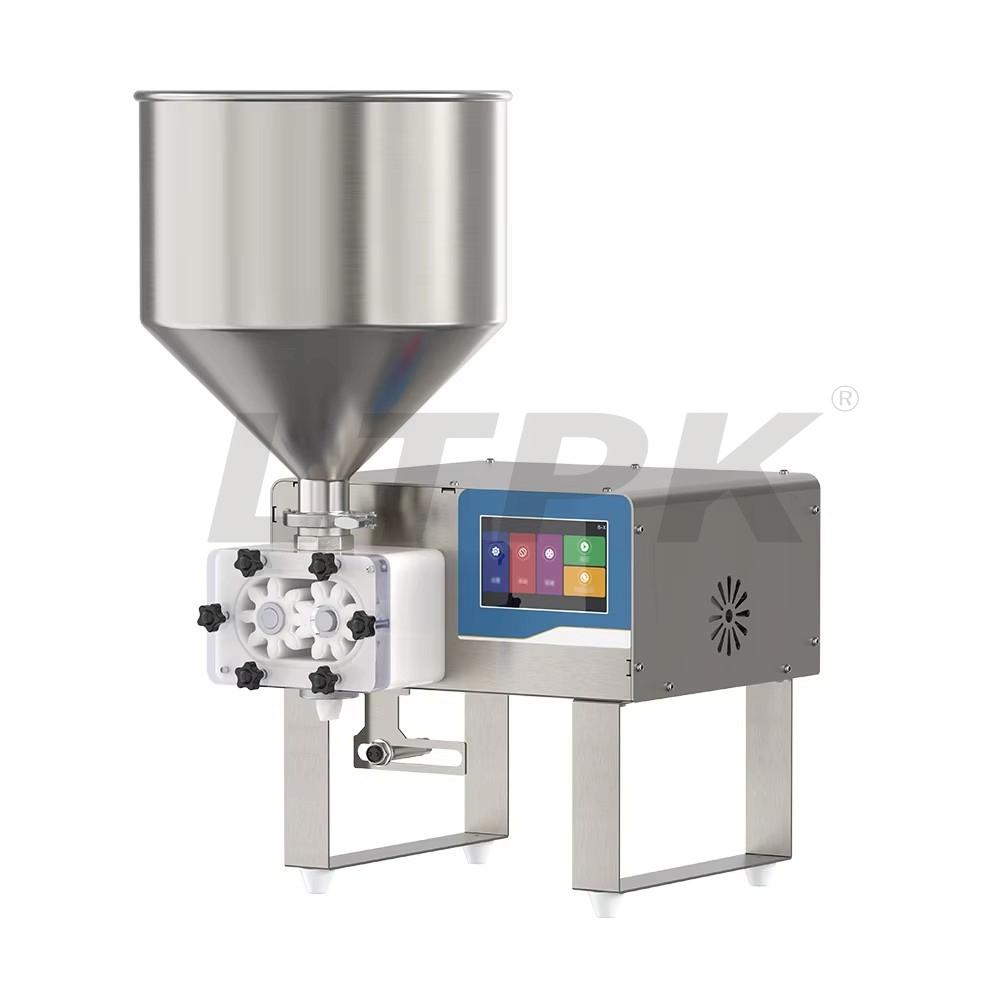

* Dual Feeding Options: Supports both suction and funnel-based liquid intake.
* Broad Compatibility: Ideal for products like honey, yogurt, peanut butter, shampoo, and resins, even at temperatures up to 70°C.
Applications:
Perfect for food (e.g., sauces, dairy), cosmetics (e.g., shampoos), and industrial fluids (e.g., adhesives). Compact dimensions ( 320×385×365mm) and low power consumption (≤260W) make it suitable for small to medium-scale production.
Note:
Performance may vary with liquid viscosity and ambient temperature. For optimal results, maintain product temperature below 70°C.
Technical Parameter
Model | 8-X-1 |
Pump | Gear Pump |
Control Way | PLC |
Machine size | 320*385*365mm(not include hopper) |
Start/Stop model | Photoelectric Sensor/Foot Pedal |
Filling speed | 10L/min |
Filling accuracy | 0.1%-0.5% |
Power | ≤260W/AC100-240V |
Gross weight | 20kg |
Suitable for raw material temperatures | ≤70℃ |
Apply Viscosity | 1000CP-180000CP |
Filling range | 5g-2000g |
Suitable height | 135mm（can be customized height） |
Applicable honey Brix degree | Liquid 34 - 43 |
Suitable for environment temperature | ≤70%RH |
