Description

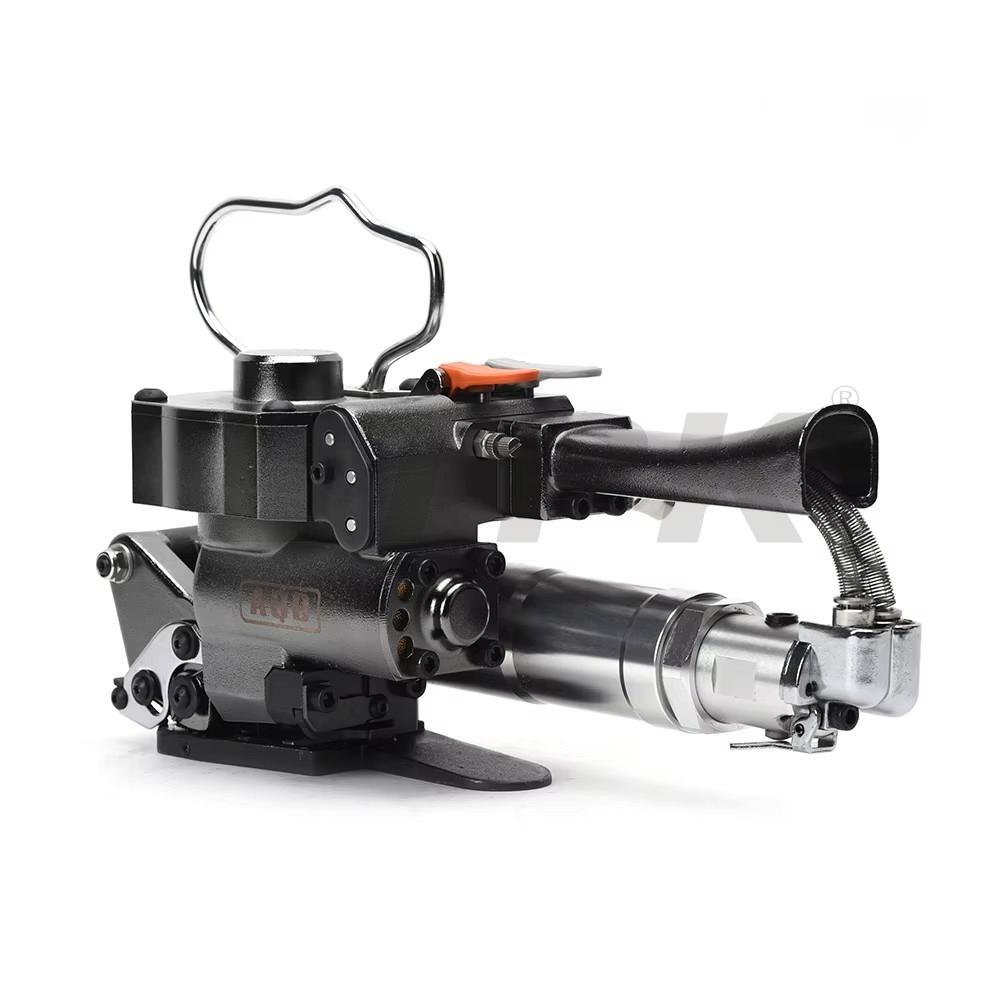

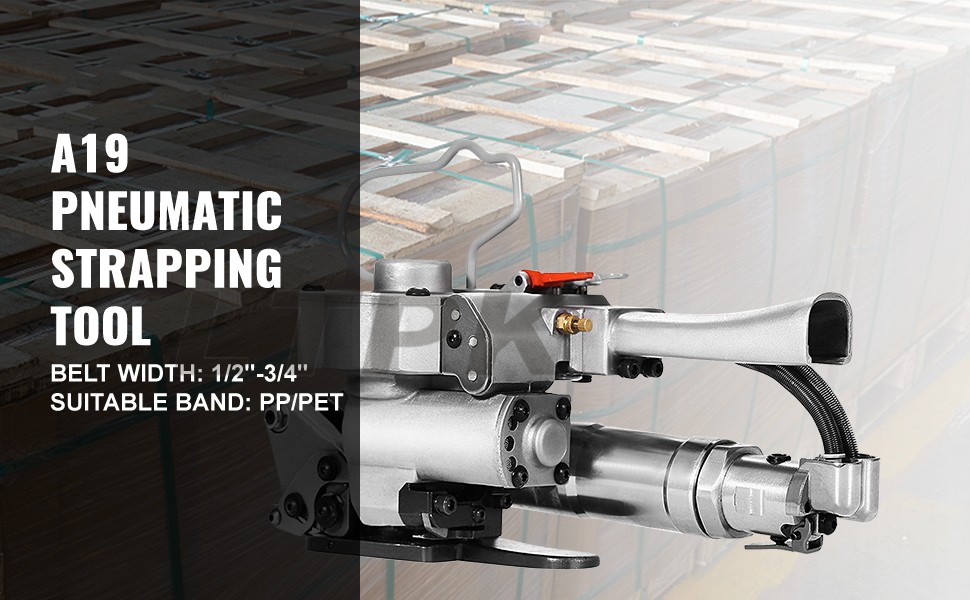

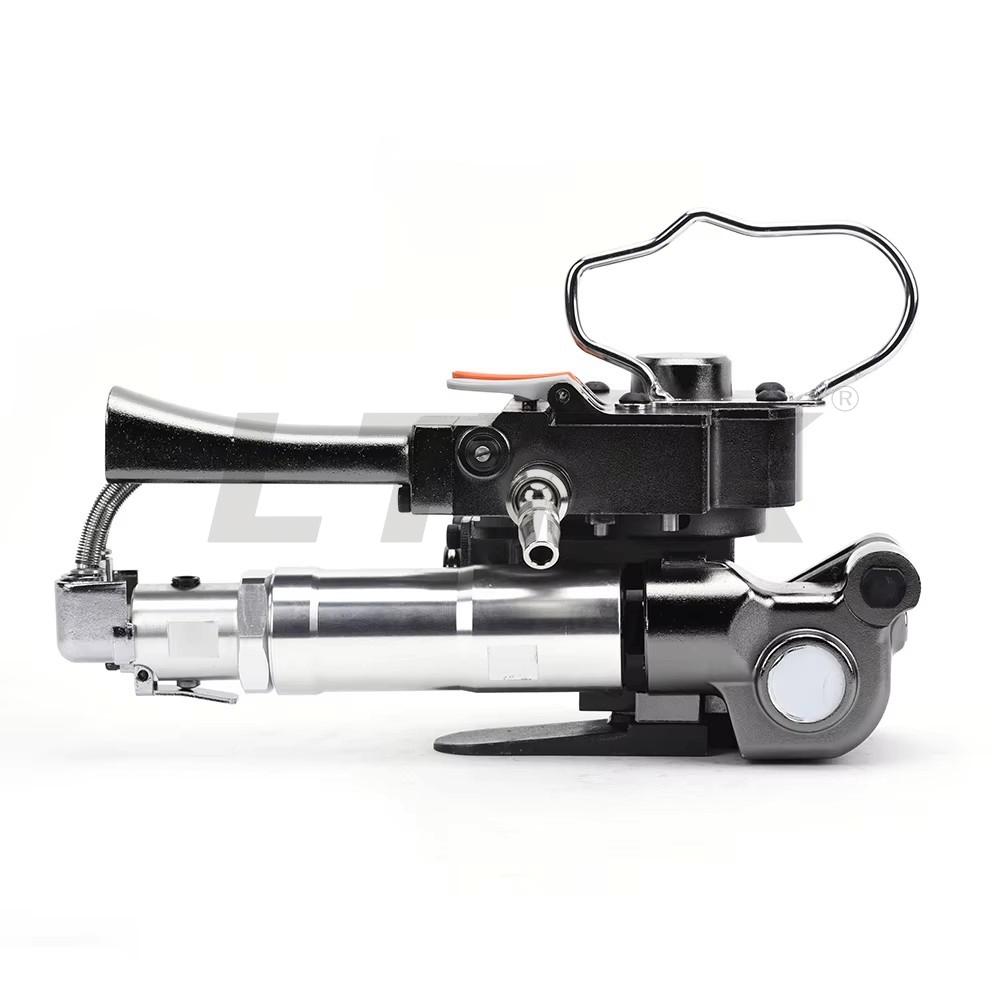

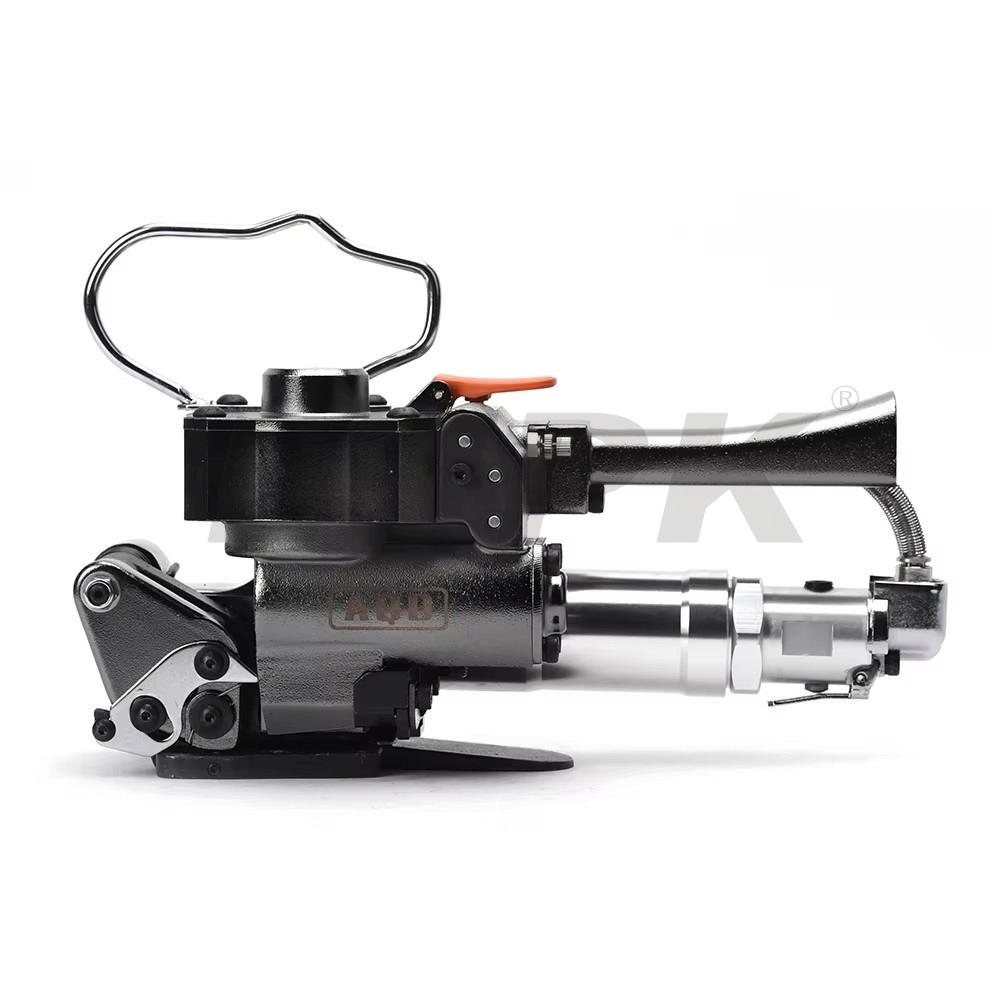

【4000N TIGHTENING FORCE】 - This AQD-19 handheld pneumatic strapping tool is driven by air cylinder, offering a large strain force: 4000N.

 Suitable for PP/PET bandwidth: 0.5-0.75in/13-19mm; band thickness: 0.5-1.5mm.

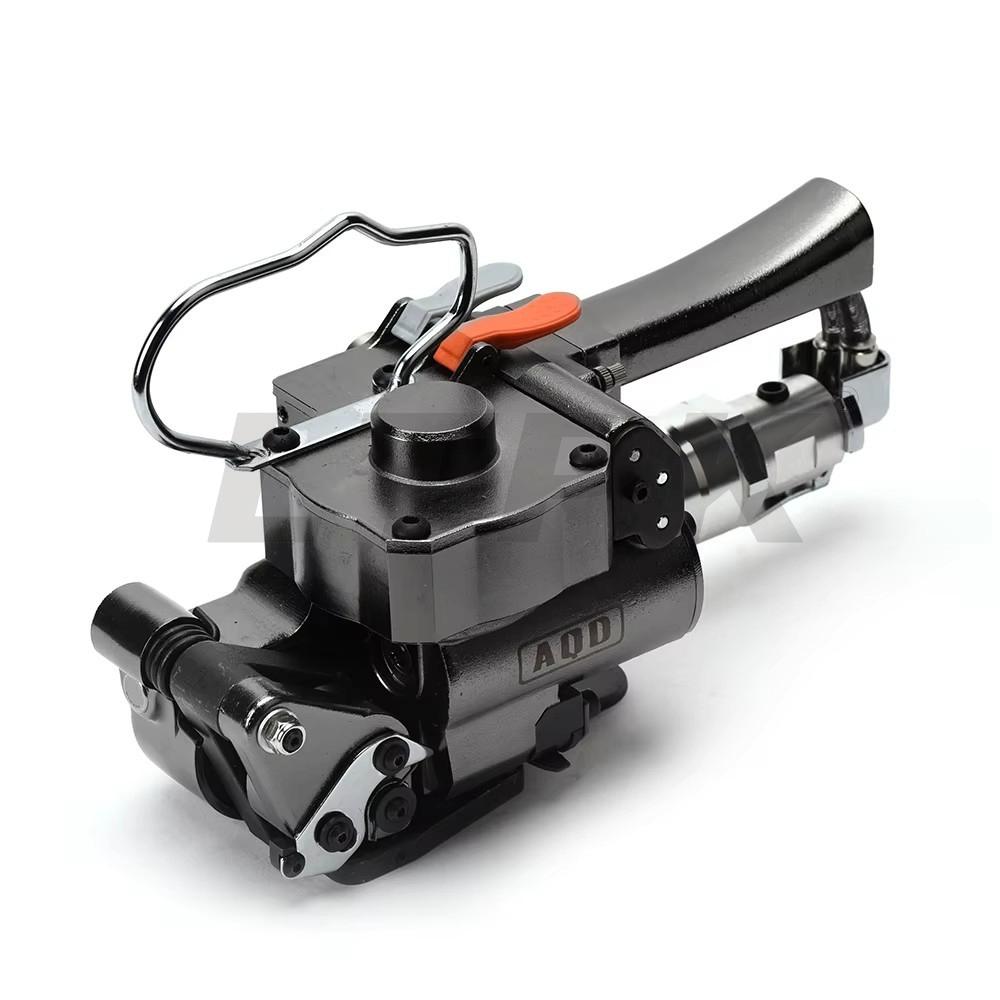

【EXCELLENT STRUCTURE】 - The main body of the automatic strapping tool is made of high strength alloy aluminum and steel, great resistance to heat and corrosion.

With advanced manufacturing technology, it is durable and can be used for a time.

【CONVENIENT OPERATION】 - This pneumatic strapping machine has three functions: sealing, tension, and cutting. With friction and hot welding principle,

this banding tool seals the band efficiently and firmly.

【NON-FATIGUE DESIGN】 - Two ergonomic handles, non-slip and solid. This design with small size and lightweight features makes

this pneumatic steel strapping machine easy to carry and work conveniently.

【VARIOUS APPLICATION】 - This pneumatic steel banding tool is suitable for packaging large-size products, widely used in small and medium-sized enterprises,

like aluminum, wooden packaging, cotton, chemicals, metal products industries.

Model: AQD-19

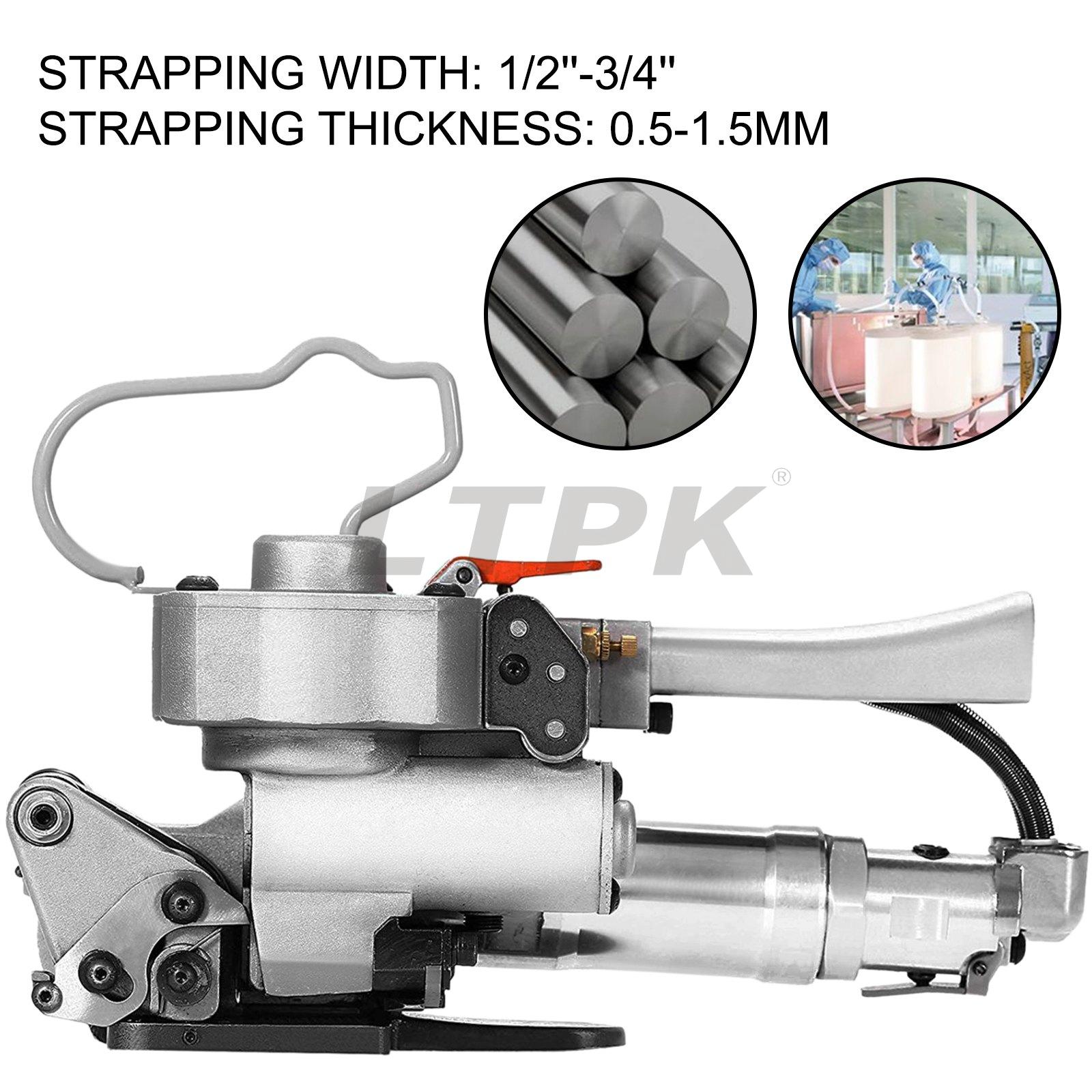

Strapping Width: 0.5-0.75 in/13-19 mm

Strapping Thickness: 0.0196-0.06 in/0.5-1.5 mm

Strapping Material: Polyester

Applications: PET Strap, PP Band

Function: Tensioning, Sealing, Cutting

Max Strap Tension: 4000 N

Air Pressure: 0.5-0.8 Mpa

Adjust Range Welding Time: 2-5 s

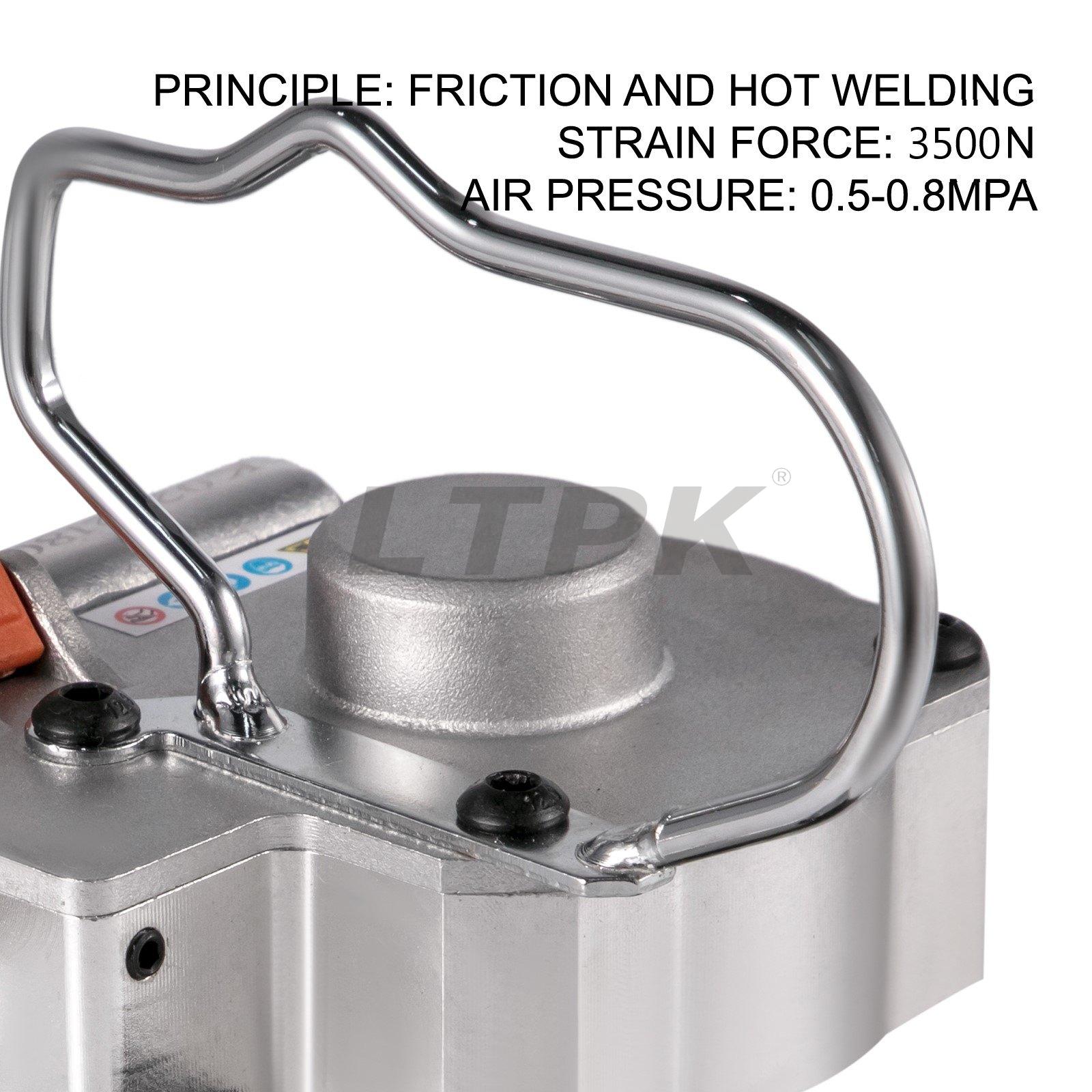

Seal Straps Form: Friction and hot welding

Lubricant Permitted: 51#

Tool weight: 3.8 kg/8.3 lbs

Size: 11x6.3x7 in/280 x 160 x 180 mm

The strapping tool’s main body and components are made of high strength aluminum alloy materials with advanced manufacturing technology. It is durable and solid.

Driven by a large power air cylinder, the poly strapping tensioner offers a 4000N(Max) tension. The lapped thermoplastic packaging belt is fused by the heat produced by friction motion.

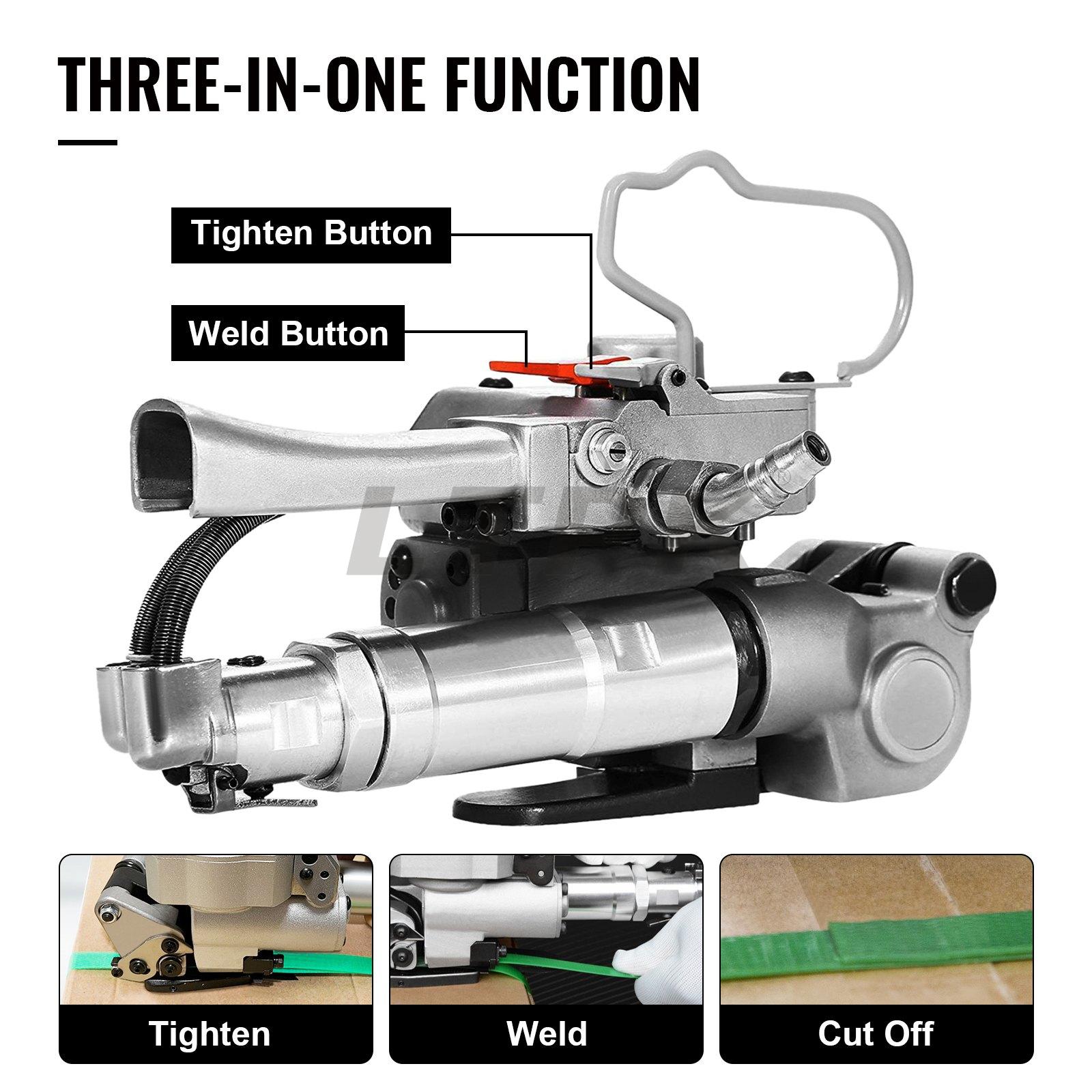

Tensioning, sealing, and cutting for one time. Strap button: to tighten the binding tape; Melt button: ends by heating molten. Then press the rewind button, move the strapping tool.

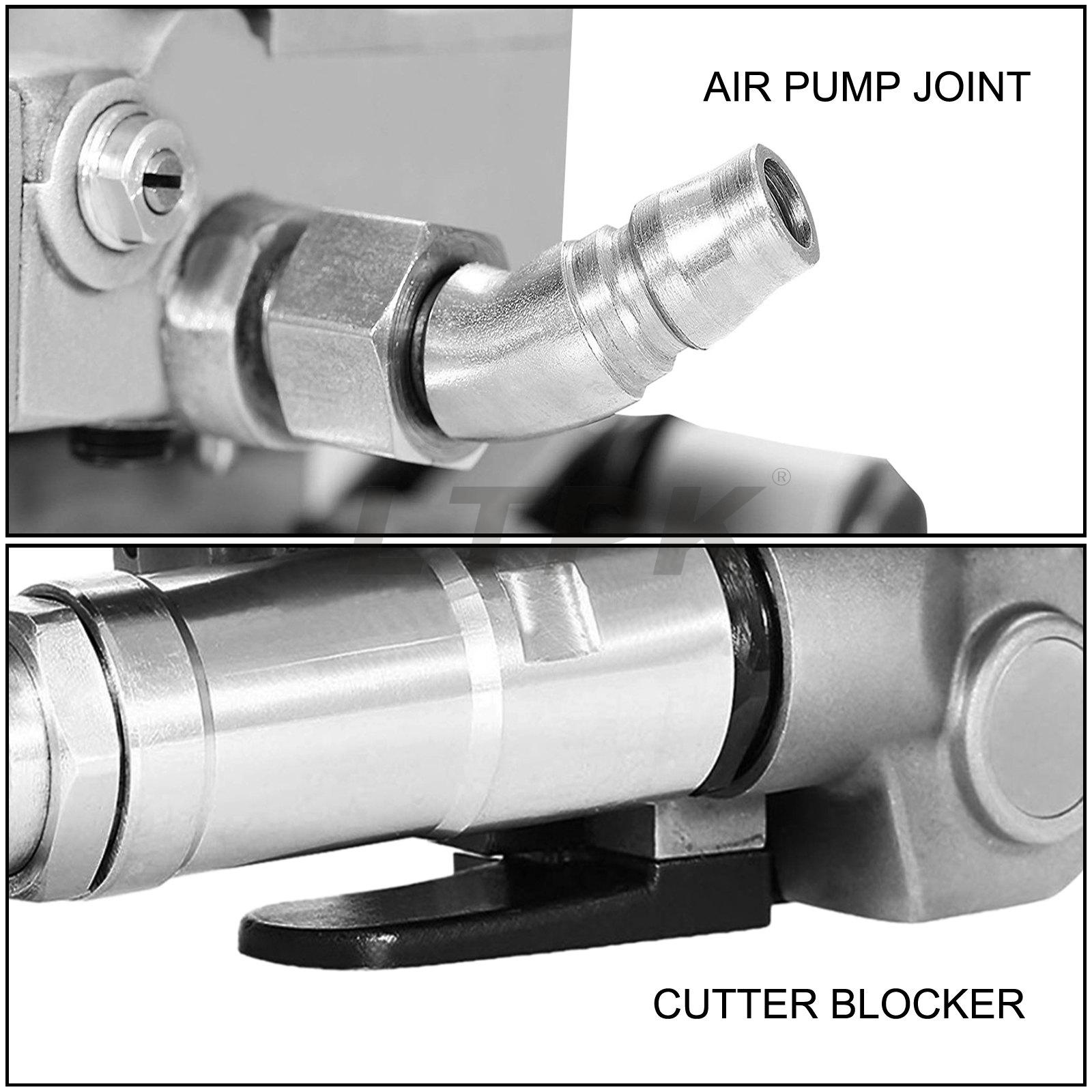

Anti-scratch galvanized air pump joint makes the pallet strapping kit more steady and durable. Joint diameter: 10mm. Cutter blocker helps fix the tape in place in case it falls off.

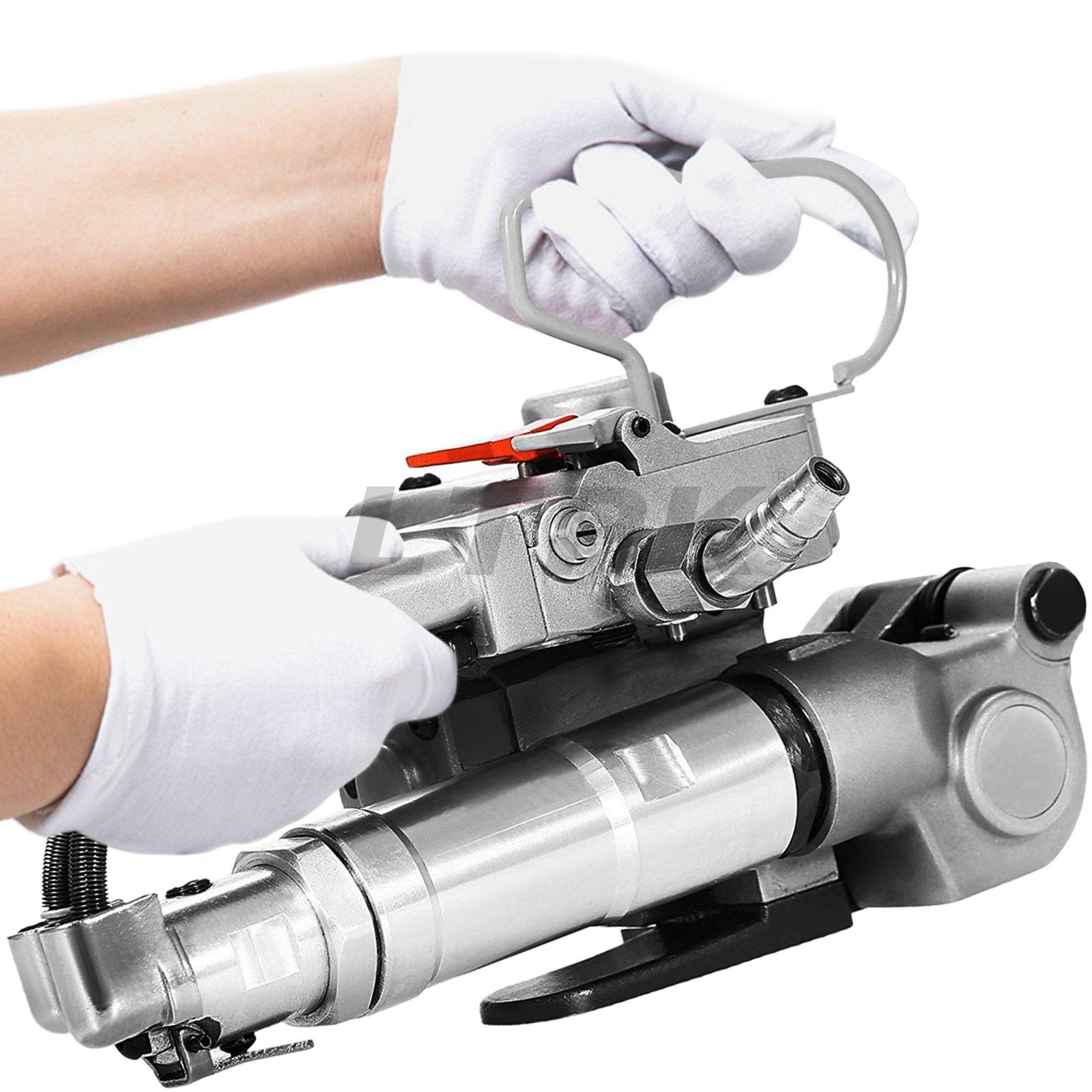

With ergonomic and non-slip handles, this pneumatic packaging baler is easy to carry with small size and lightweight features. Operating the machine is no fatigue.

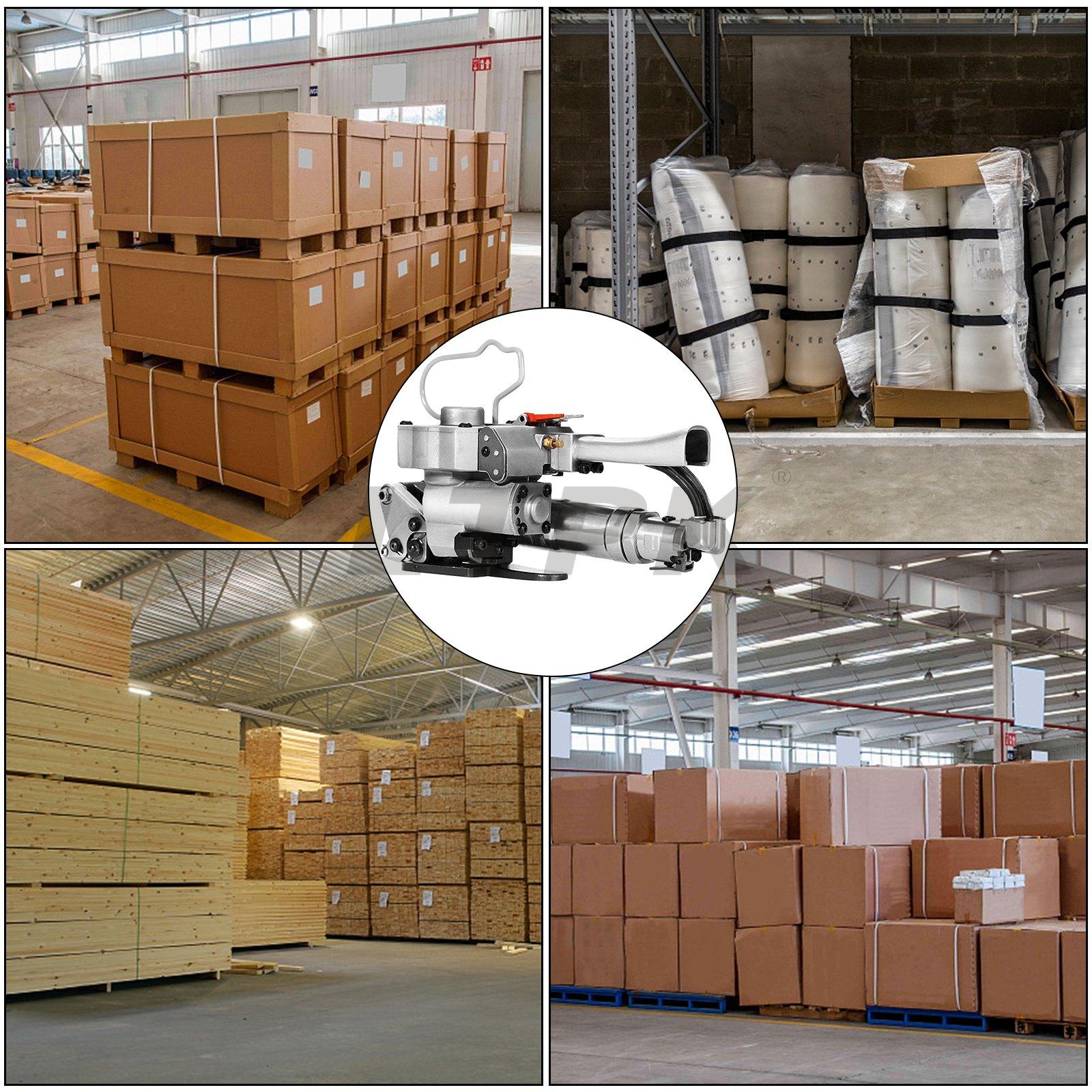

This banding tool for strapping is suitable for paper, aluminum, wood, wooden packaging, chemical fiber, cotton, tobacco, chemicals, metal products industries.

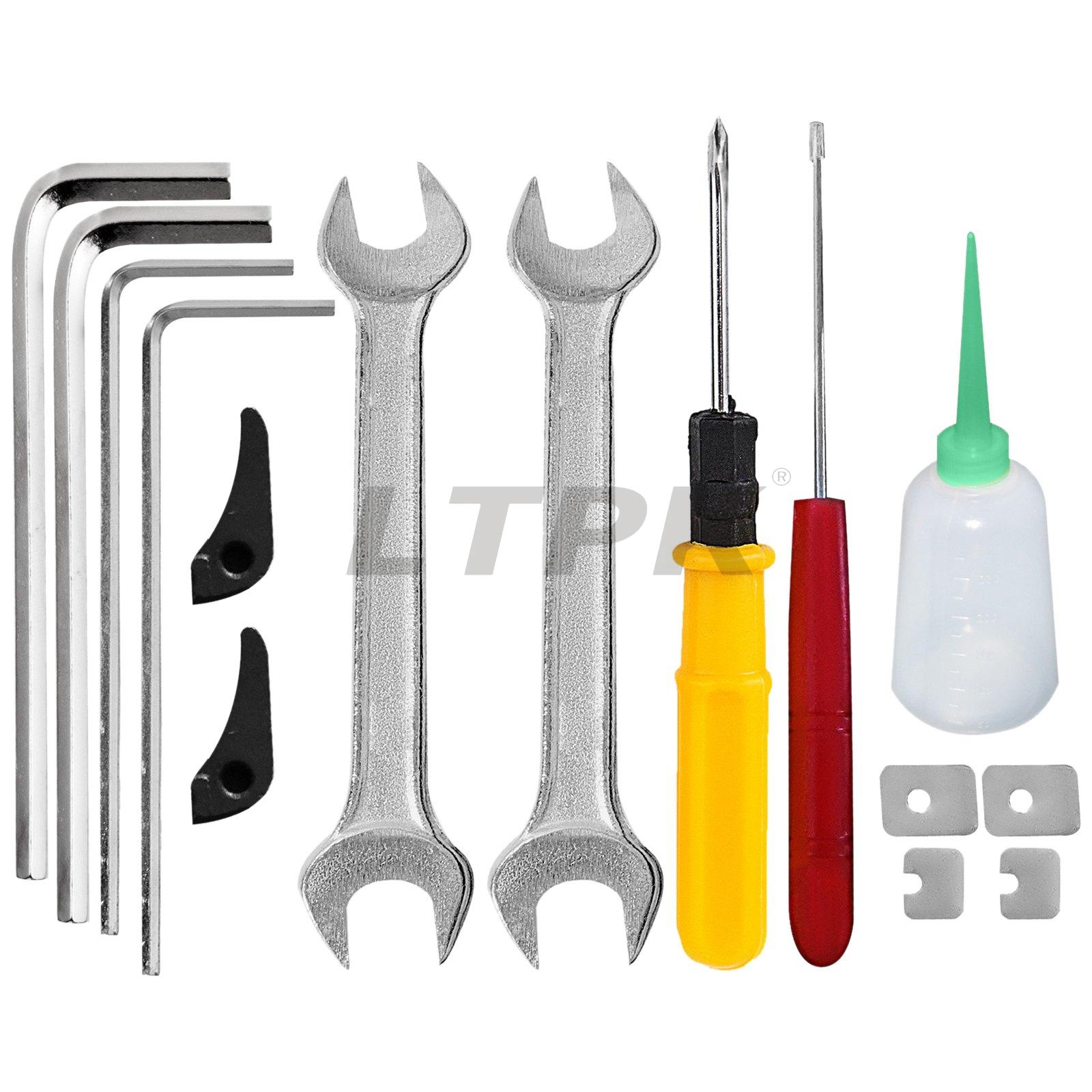

Package Content

1 × AQD-19 Pneumatic Strapping Tool

1 × Screwdriver

2 × Open-End Spanner

4 × Hex Wrench

1 × Bottle

1 × Cleaning cone

1 × User Manual

Other accessory as Shown
