Description
Description:

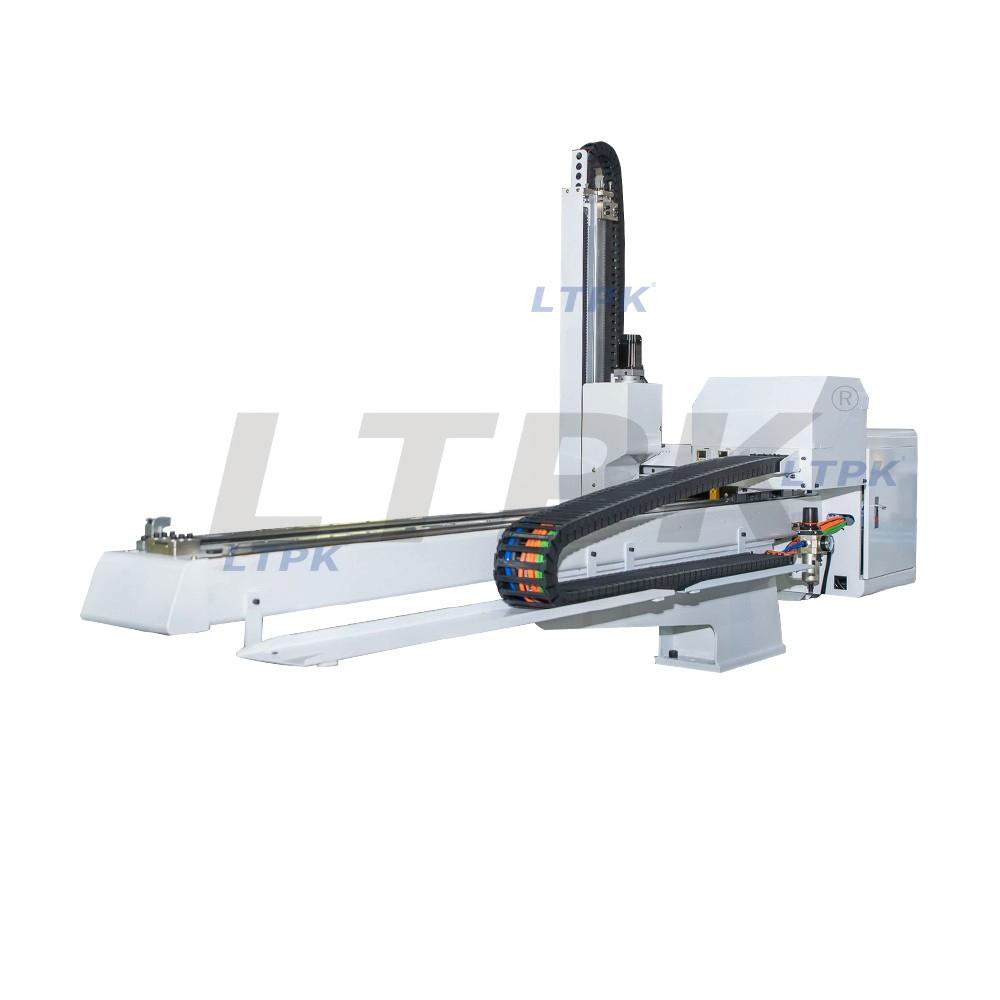

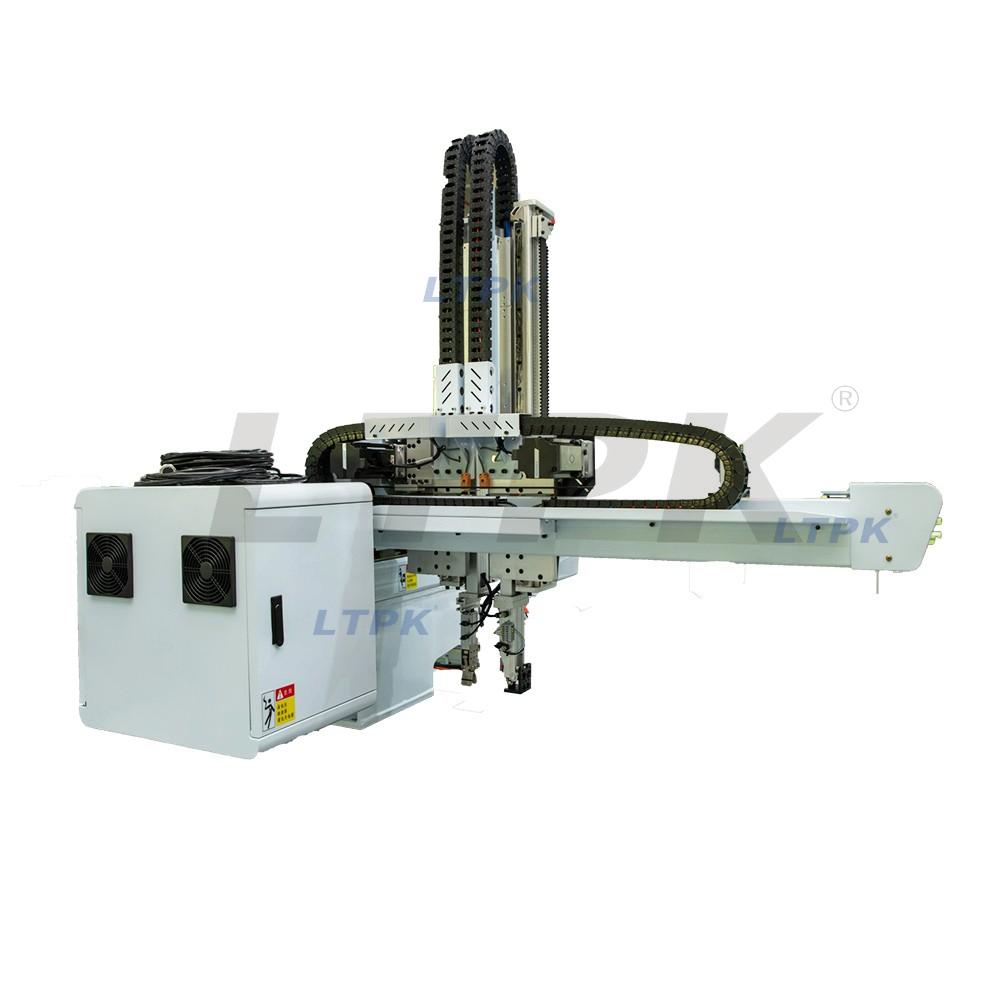

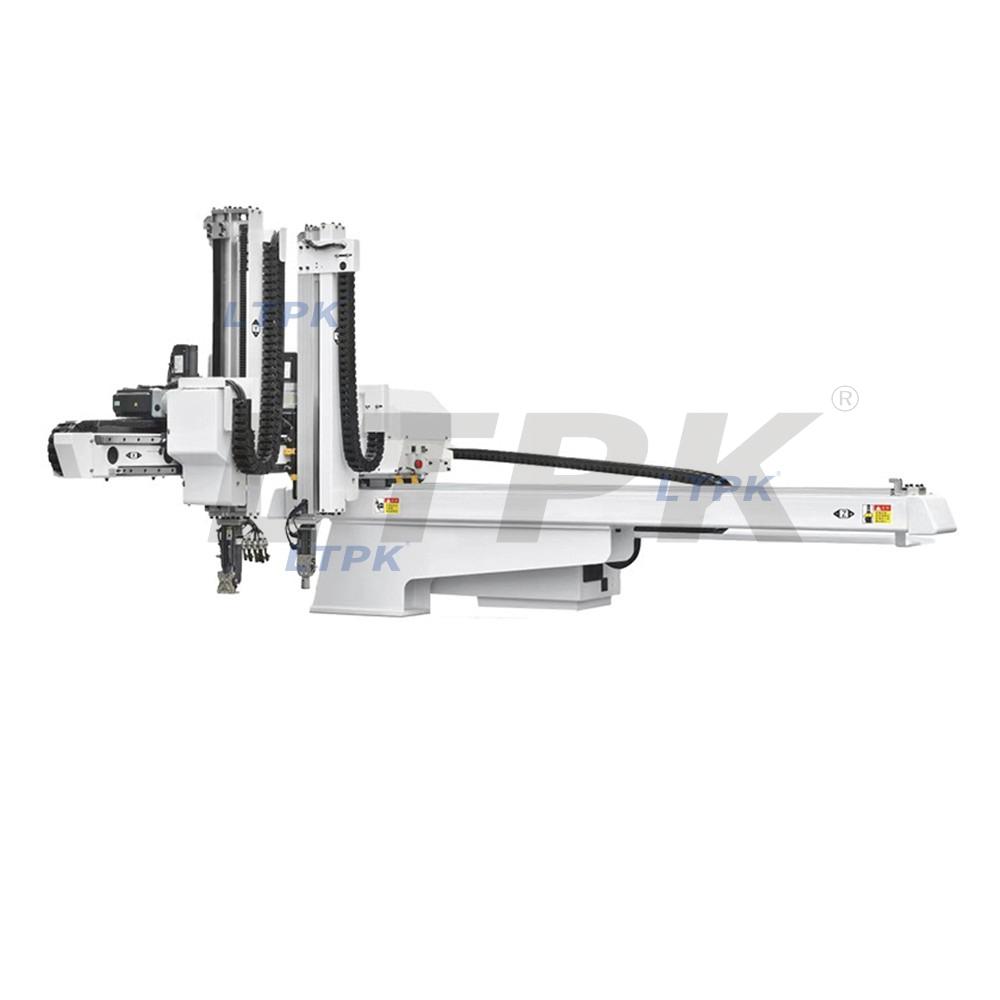

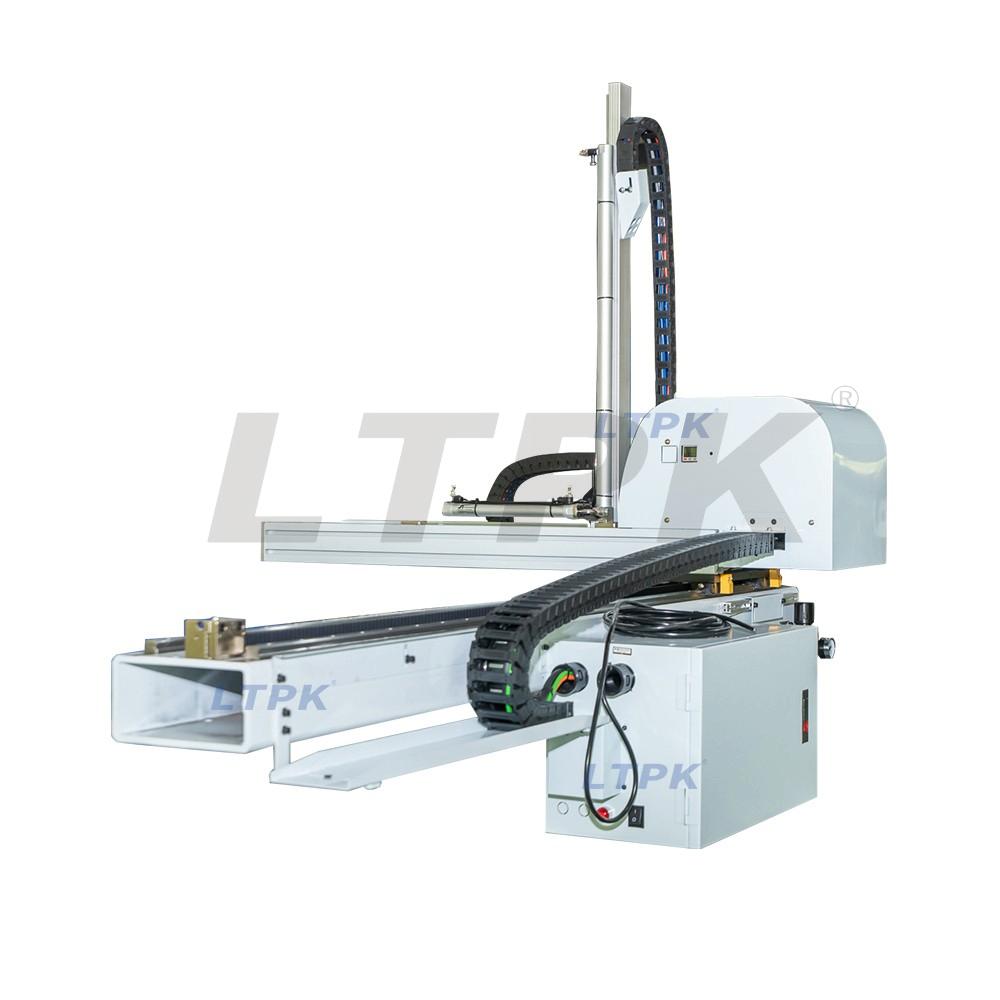

This series robots are used in the 80T-420T injection molding machines.The finished arm is for taking out the finished product. The arm adopts high-strength aluminum structural beams with precision linear side rails,low noise and long life.The upper and lower arms are single-section or double section structure,and one arm or two arms can be selected.
Application:
Automatic grabbing, loading, unloading, card loading, workpiece shifting and flipping, workpiece sequence conversion processing, etc
Model | S5-B700WD | S5-B900WD | S5-B1100WD |
Power supply | 220V,50/60hZ | ||
Max.allowed pressure | 8kgf/cm² 0.8Mpa | ||
Driven system | AC servo motor | ||
Swivel | 90⁰ fixed pneumatic | ||
Control system | Multi axis servo drive | ||
Applicable injection molding machine | 150-200T | 200-320T | 320-400T |
Effective travel up and down | 720 | 950 | 1100 |
Effective stroke | 1270 | 1500 | 1700 |
Arch length | 1840 | 2100 | 2280 |
Leading effective stroke | 590 | 650 | 820 |
Pull length | 1195 | 1320 | 1440 |
Machine size | 1950*1580*1250 | 2200*1700*1425 | 2400*1800*1500 |
Max.loading(include fixture) | 5kg | 5kg | 10kg |
Standard suction quantity | 2 | 2 | 2 |
Take out time | 2-5S | 2-5S | 2-5S |
Working pressure | 5-7kgf/m² | 5-7kgf/m² | 5-7kgf/m² |
Model | S5-B700ID | S5-B800ID | S5-B900ID |
Power supply | 220V,50/60hZ | ||
Max.allowed pressure | 8kgf/cm² 0.8Mpa | ||
Driven system | AC servo motor | ||
Swivel | 90⁰ fixed pneumatic | ||
Control system | Multi axis servo drive | ||
Applicable injection molding machine | 80-150T | 150-200T | 200-320T |
Effective travel up and down | 700 | 800 | 920 |
Effective stroke | 1270 | 1270 | 1510 |
Arch length | 1840 | 1840 | 2100 |
Leading effective stroke | 500 | 500 | 600 |
Pull length | 1195 | 1195 | 1320 |
Machine size | 1950*1550*1380 | 1950*1550*1500 | 2000*1670*1620 |
Max.loading(include fixture) | 5kg | 5kg | 5kg |
Standard suction quantity | 2 | 2 | 2 |
Take out time | 2-5S | 2-5S | 2-5S |
Working pressure | 5-7kgf/m² | 5-7kgf/m² | 5-7kgf/m² |
