Description

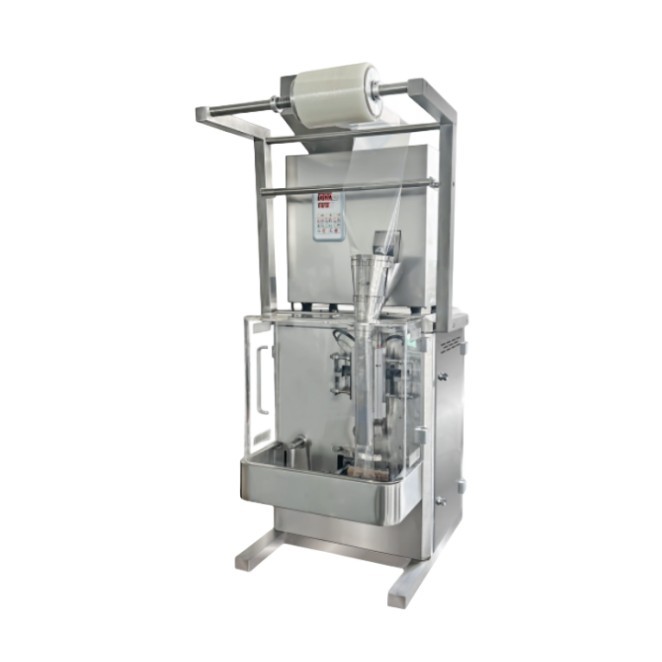

1、The machine is suitable for the measurement and packaging of particles, powders, liquids and sauces in food,medicine, chemical and cosmetics industries.
（See page 6 for details to select the blanking structure）
２、All the works of bag making,measuring,filling,sealing,cutting and counting can be done automatically,at the same time,it can also according to the demand of customers printing batch number and other functions.
３、Drive stepper motor to control the bag length,stable performance,easy to adjust and accurate detection.Choose the intelligent temperature controller and PID control to ensure the error range of temperature controlled within 1 degree Centigrade.
４、Packing material：BOPP/Polyethylene, Aluminium/Polyethylene, Paper/Polyethylene, Polyester/Aluminizer/Polyethylene, Nylon/CPP and so on.
Sealing Type
Back sealing
Technical Parameters
Measuring Scope：1 - 60 g
Bag Size：( L ) : 30 - 150 mm
( W ) : 30 - 90 mm
Packing Speed：20 bags/min
Dimension ( L * W * H )：496*545*1200 mm
Weight：80 kg
Total Power：220V / 50Hz / 0.4kw
