Description

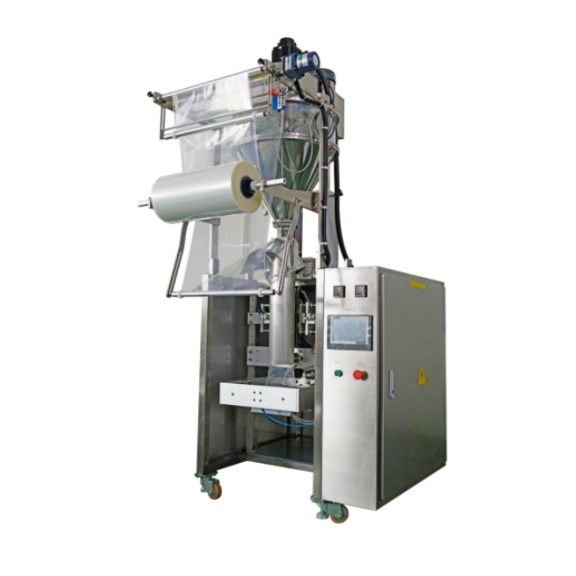

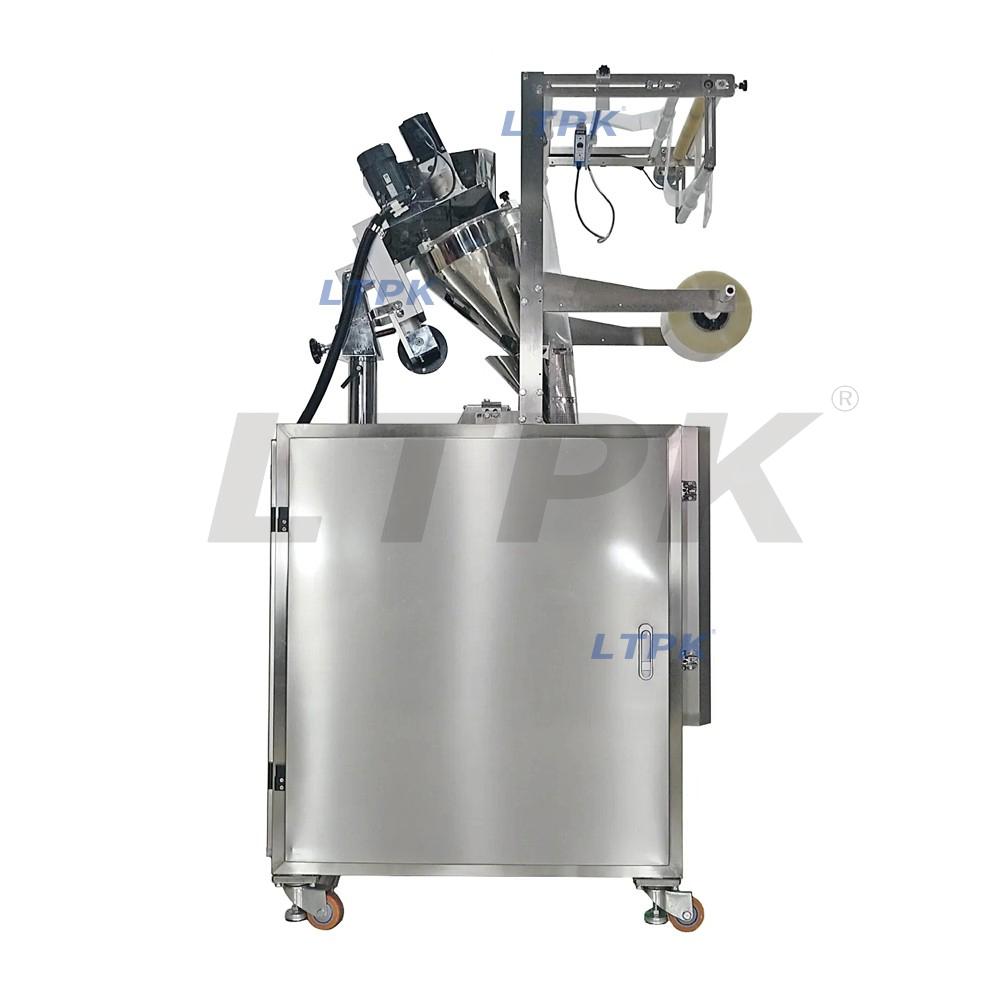

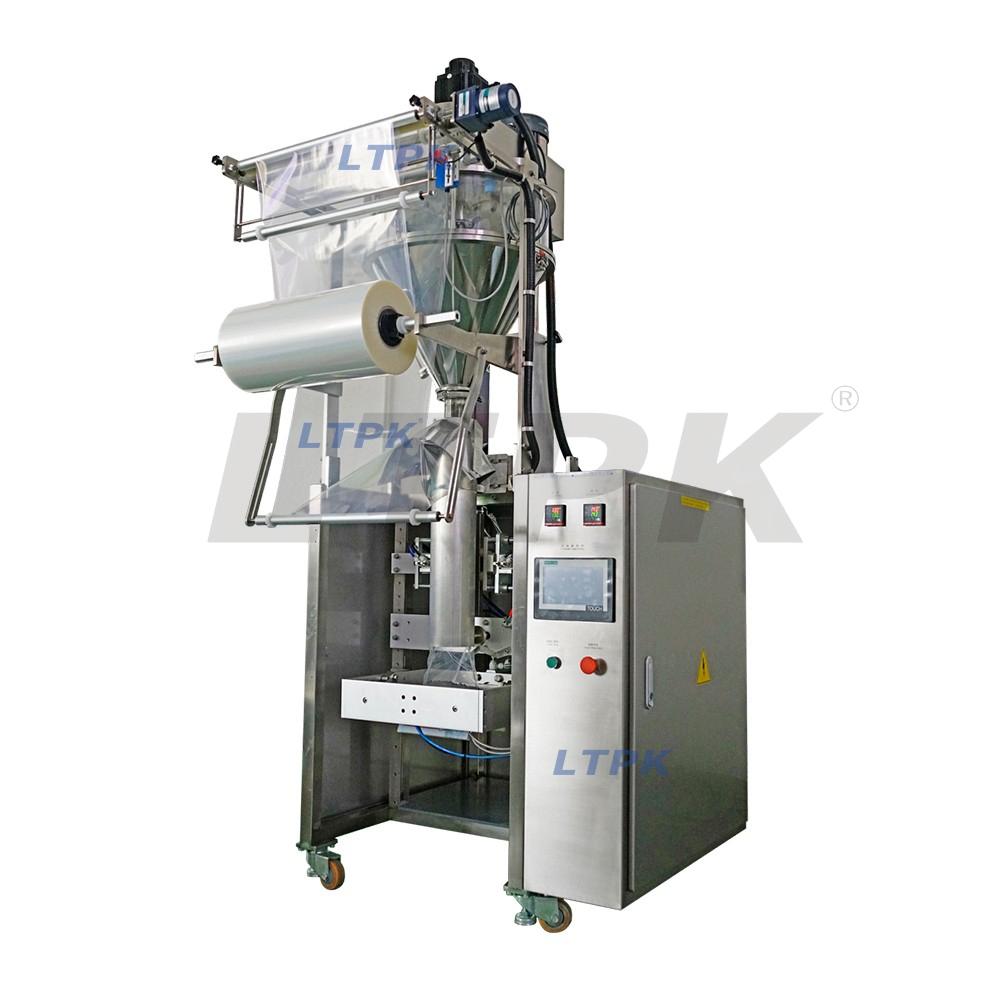

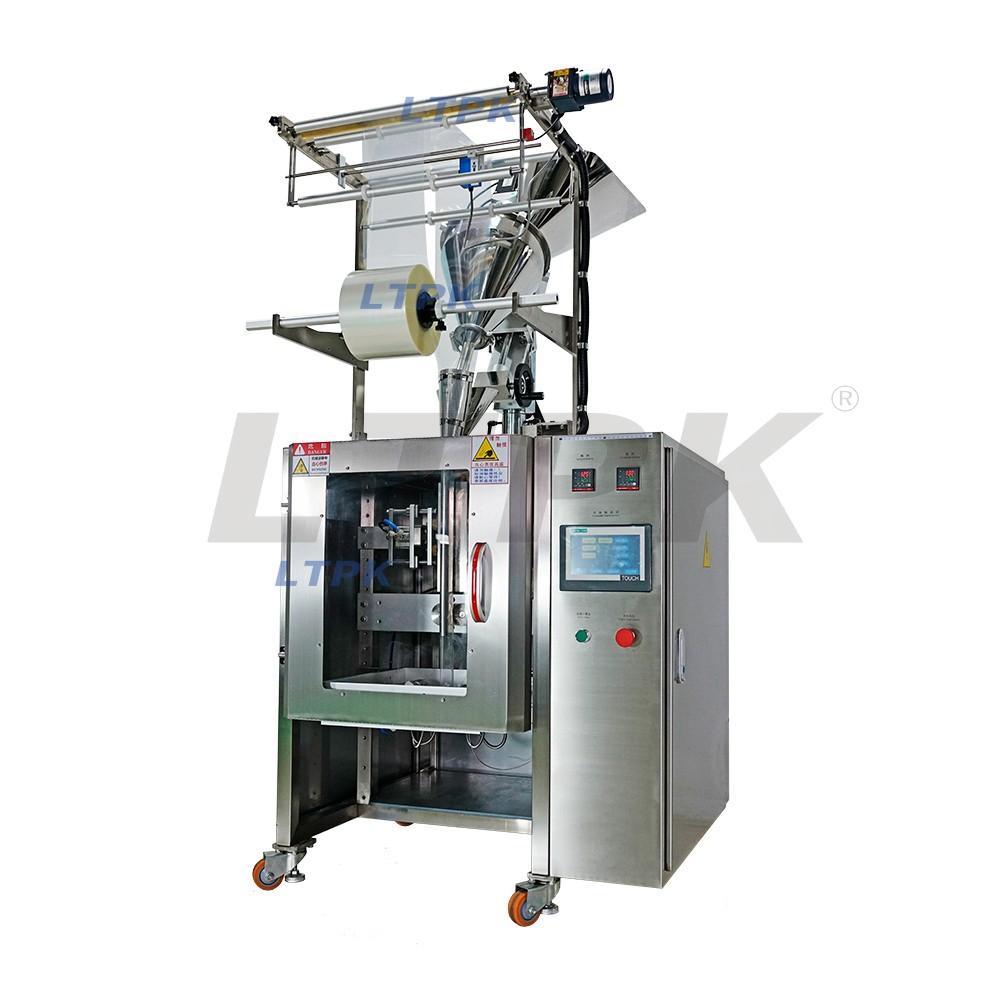

LT-80IIBF Straight screw powder packaging machine (aluminum plated, plastic film packaging)
1, suitable for food, medicine, chemical, cosmetics industry particles, powders, liquids, sauces and other items measurement and packaging.
2, can automatically complete bag making, measuring, blanking, sealing, cutting, counting, can be configured according to customer requirements to print batch number and other functions.

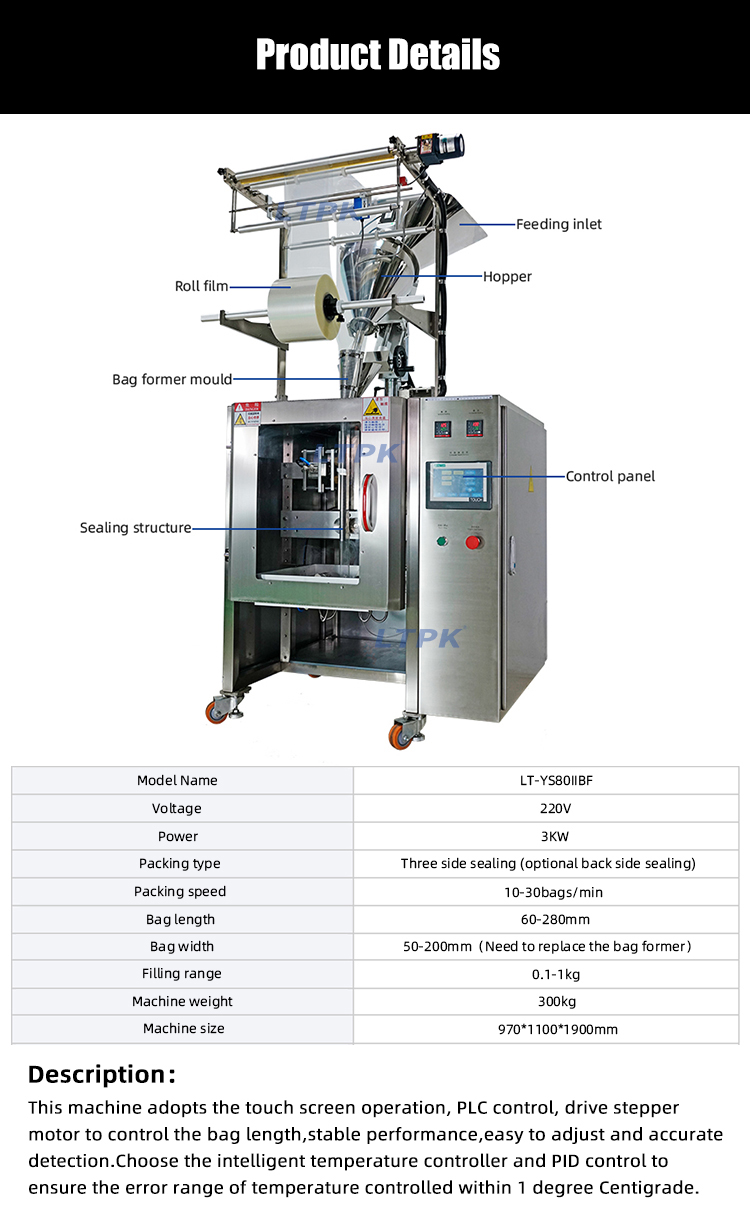

3, touch screen operation, PLC control, servo motor control bag length, stable performance, easy adjustment, accurate detection. Intelligent temperature controller, PID adjustment, to ensure that the temperature error is controlled within 1℃.

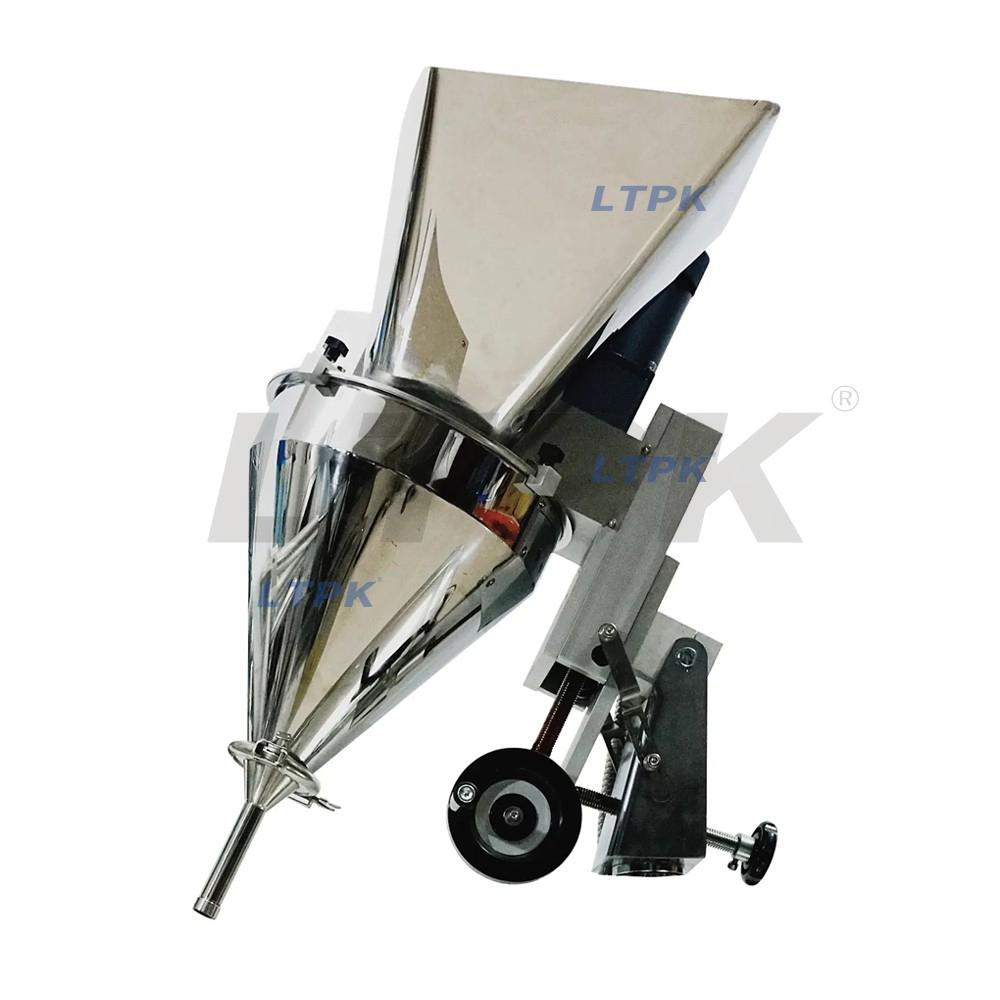

4. Blanking method: selected according to customer demand (attached with blanking structure diagram)
5, measuring range: 0.1-1kg.
6, packaging speed: 10-70 packages per minute (depending on the characteristics of the material).
7, sealing form: three-side sealing, back sealing.
8, outer bag size: length: 60-280 (mm) width: 50-200 (mm).
9, power source: 220V/ 50Hz / 3KW.
10, the whole weight: about 300 kg.
11, overall size: 700 * 1000 * 2200 (mm).
(Length * width * height)
Electrical equipment configuration:
Serial number Electrical parts Name brand
1 Mixing main motor Taibang
2 Servo feeding motor Leiser
3 Touch screen complexity
4 PLC Yu Ti Tong
5 Temperature control meter Huibang
6 Solid state relays Magel
7 Intermediate relay APT
8 Switching power supply Yu Tiantsu
9 Air switch Chint
10-button Chint
11 Film drawing motor Raycel
12 film motor flying
Pack Sample Type :
