Description：

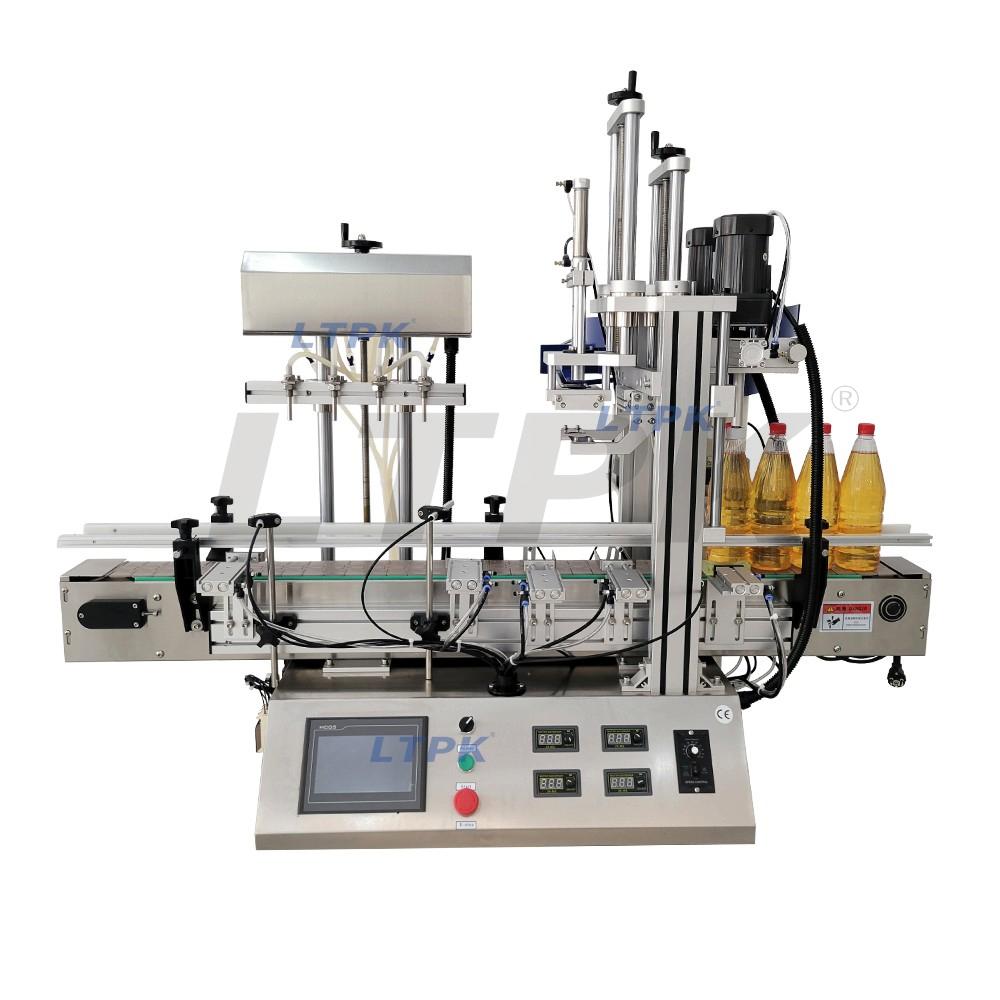

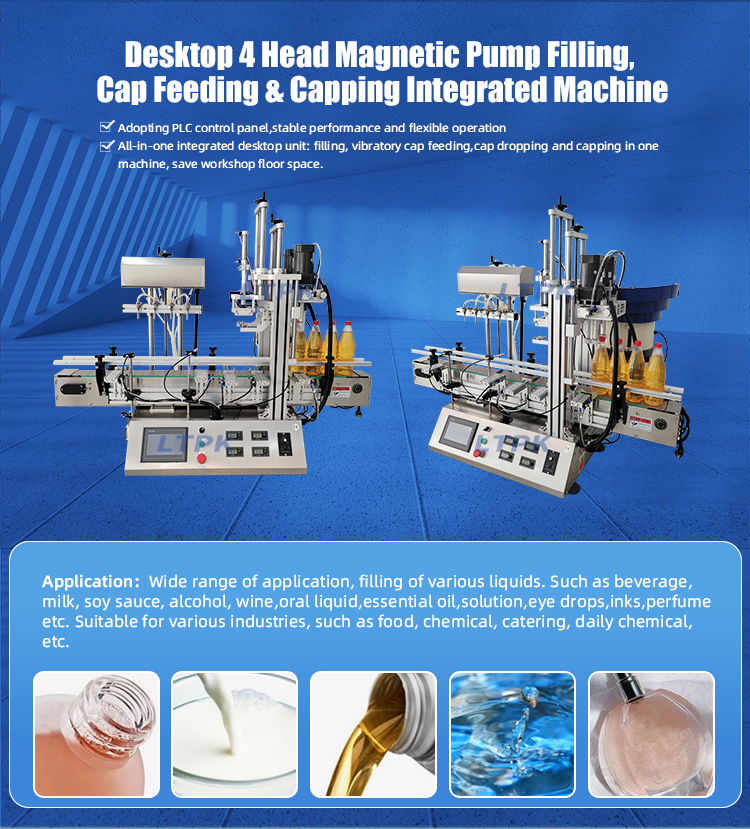

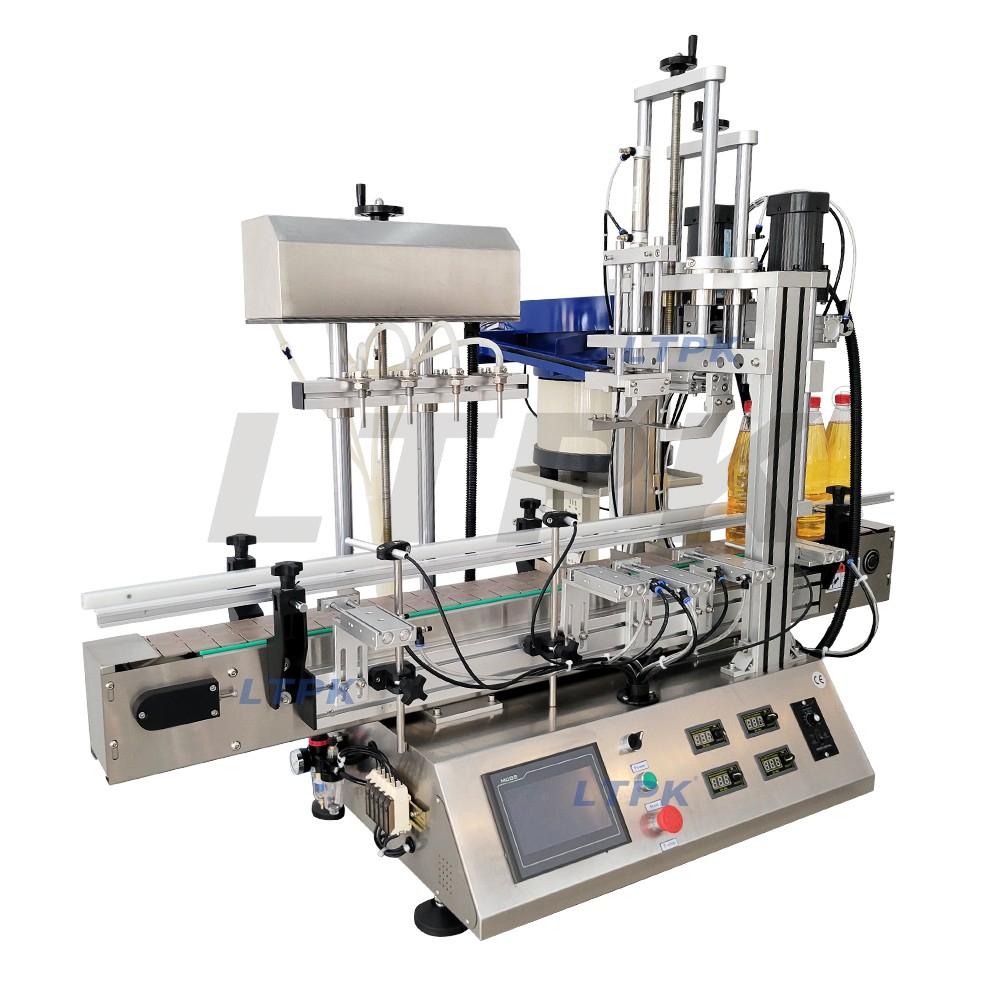

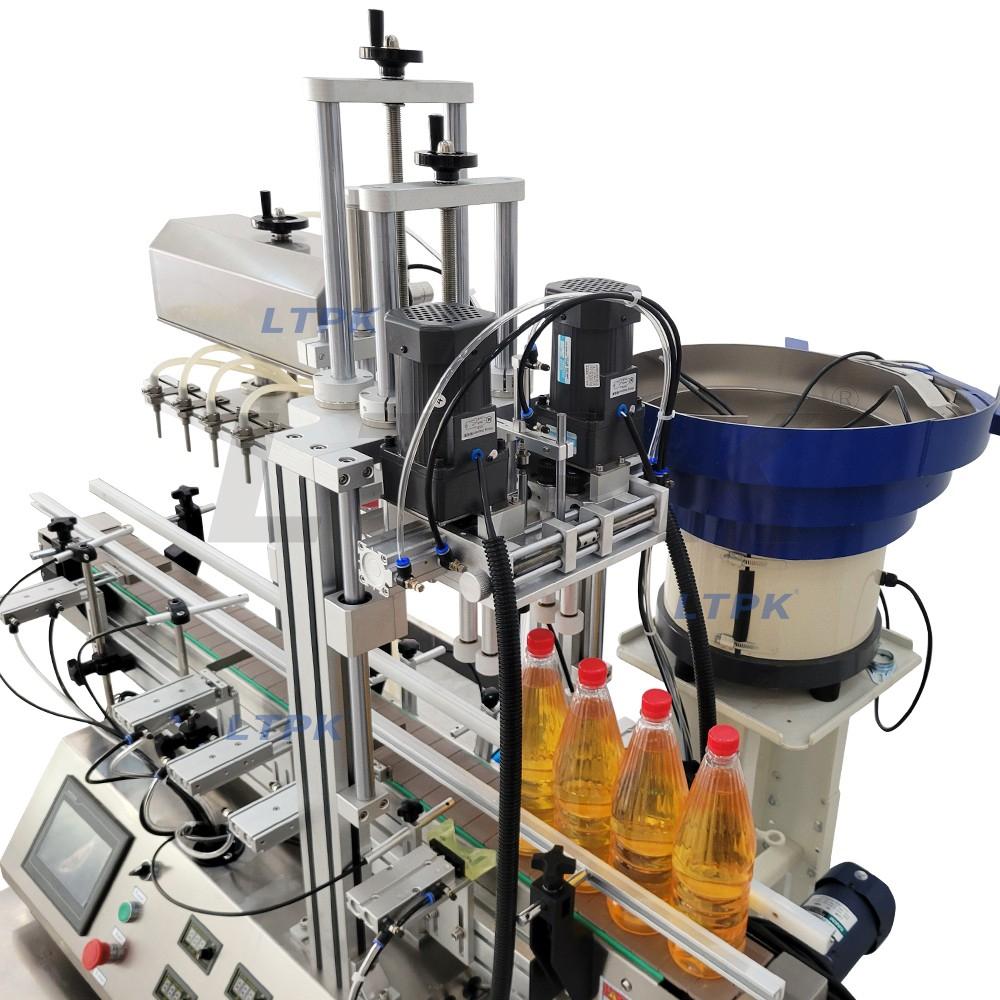

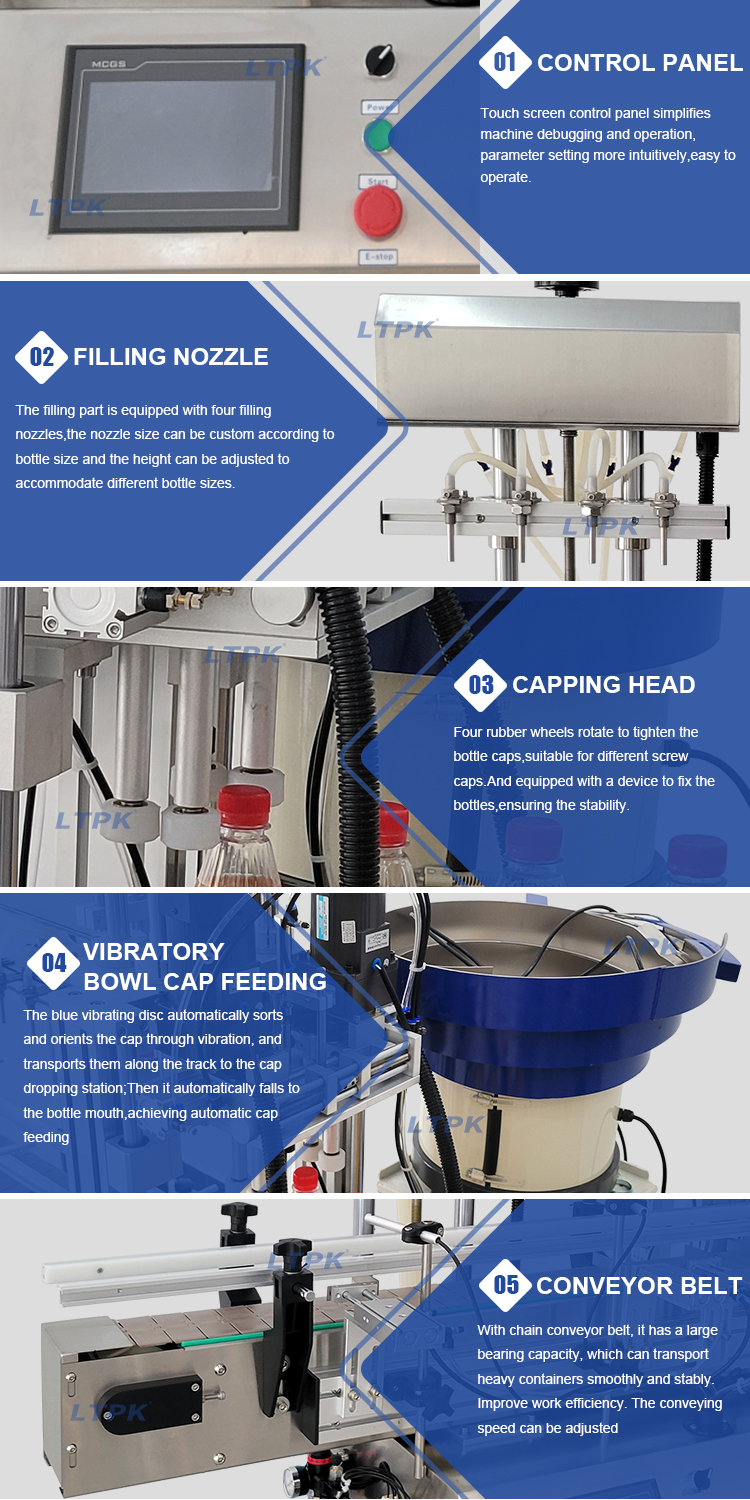

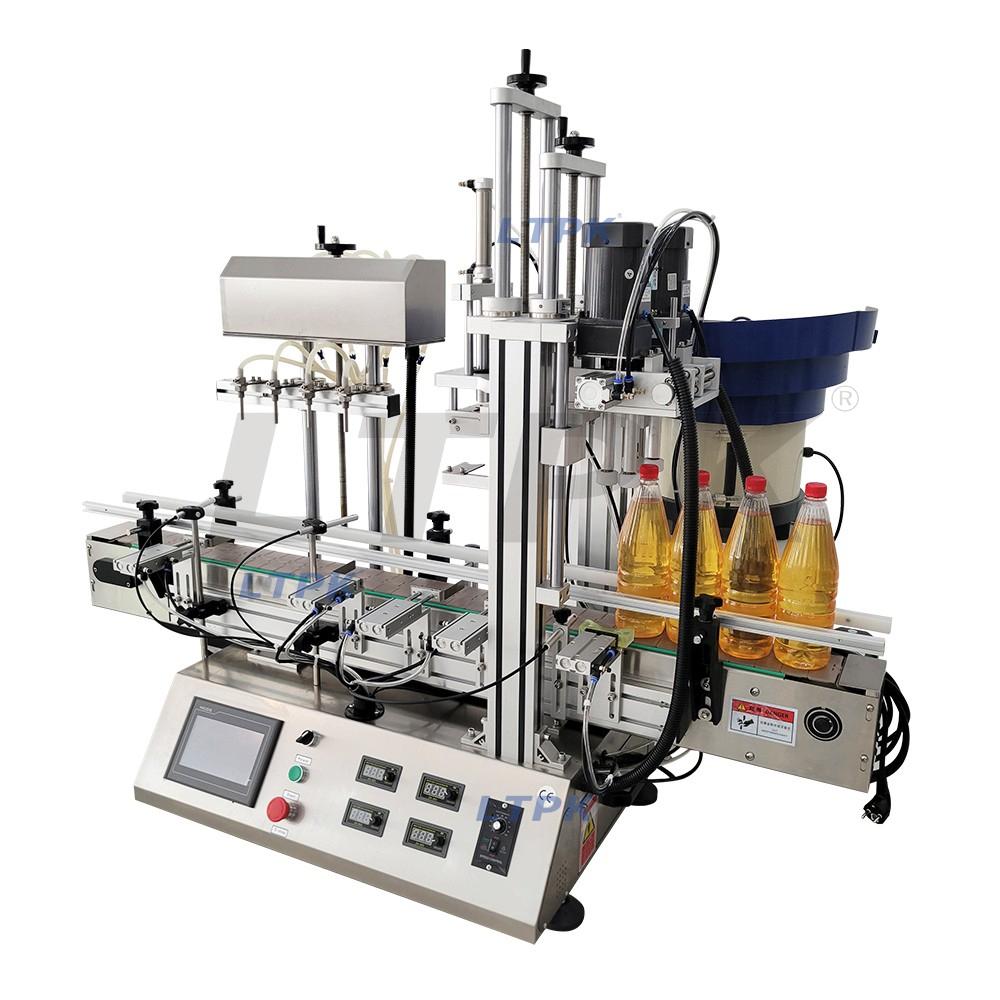

Desktop 4 head integrated machine for filling,automatic cap feeding and four wheel capping.Bottles are fed by conveyor line and go through magnetic pump filling, vibratory bowl cap sorting & feeding, automatic cap dropping and four wheel screw capping sequentially. It is suitable for small to medium batch automatic production of liquids and can be connected with labeling machine at the rear to form a complete packaging line.
Application:
Wide range of application, filling of various liquids. Such as beverage, milk, soy sauce, alcohol, wine,oral liquid,essential oil,solution,eye drops,inks,perfume etc. Suitable for various industries, such as food, chemical, catering, daily chemical, etc.

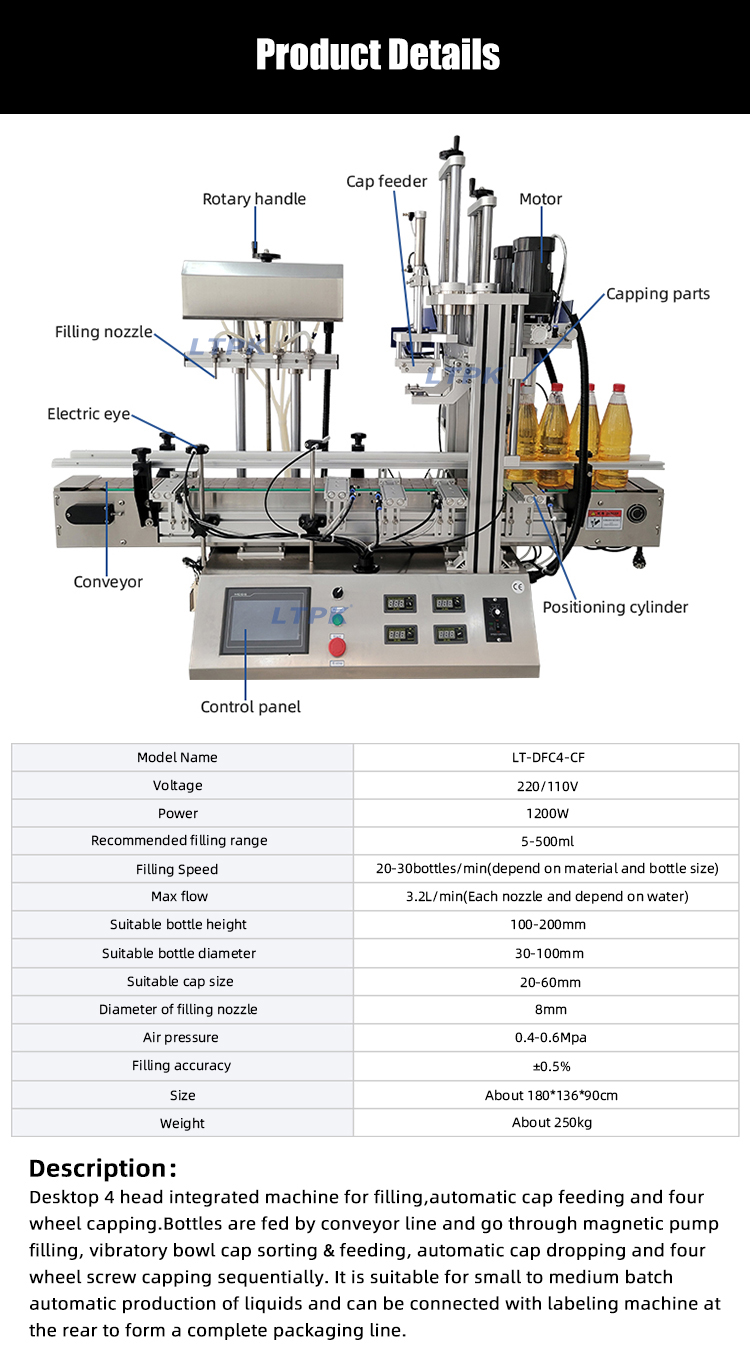

Technical parameters：
Model | LT-DFC4-CF |
Voltage | 220V/110V |
Power | 1200W |
Recommended filling range | 5-500ml |
Filling Speed | 20-30bottles/min(depend on material and bottle size) |
Max flow | 3.2L/min(Each nozzle and depend on water) |
Suitable bottle height | 100-200mm |
Suitable bottle diameter | 30-100mm |
Suitable cap size | 20-60mm |
Diameter of filling nozzle | 8mm |
Air pressure | 0.4-0.6Mpa |
Filling accuracy | ±0.5% |
Size | About 180*136*90cm |
Weight | About 250kg |
