Description

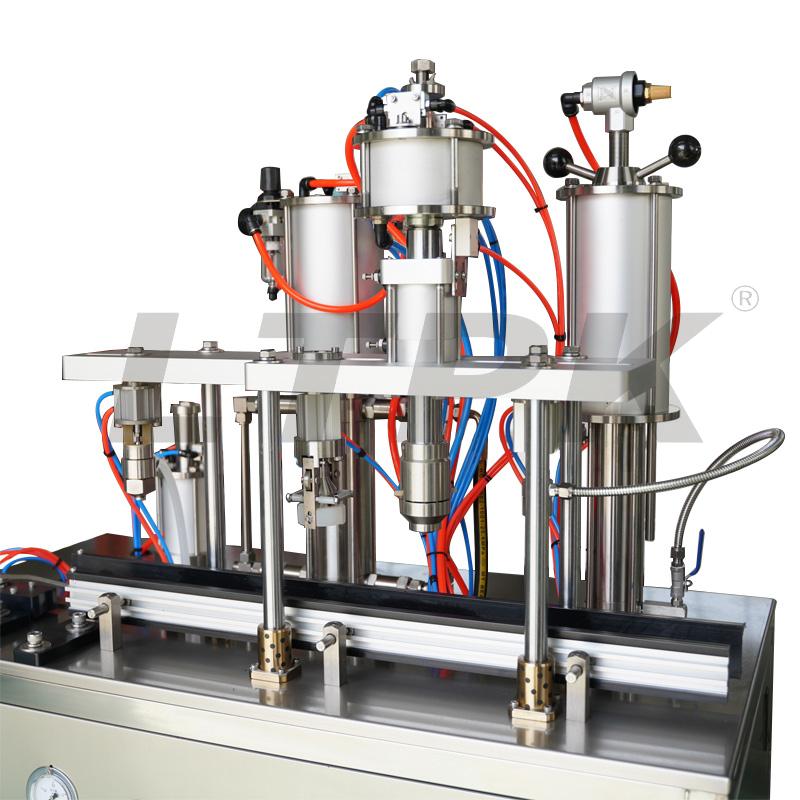

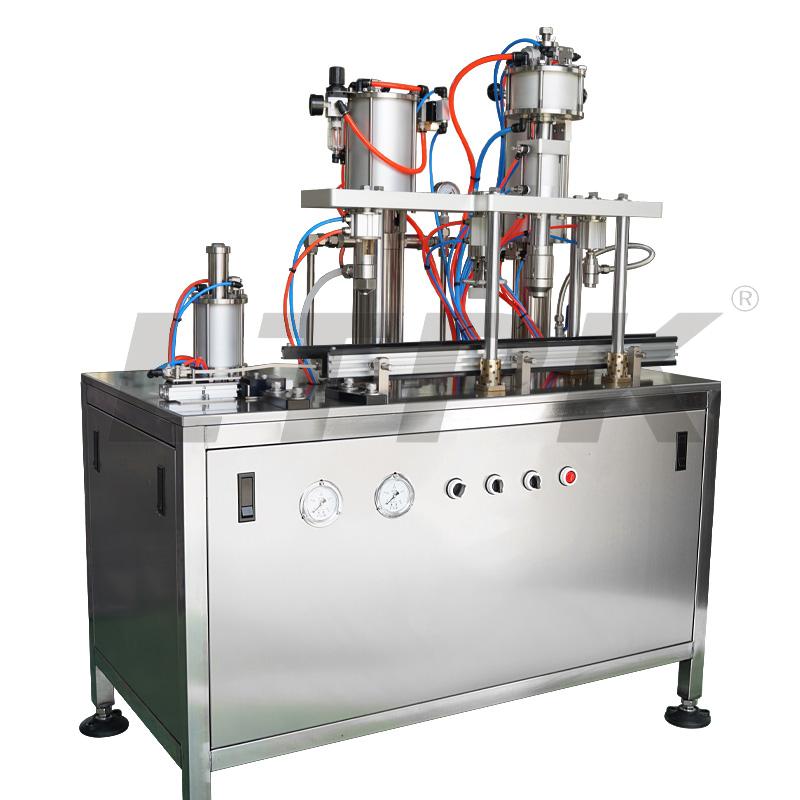

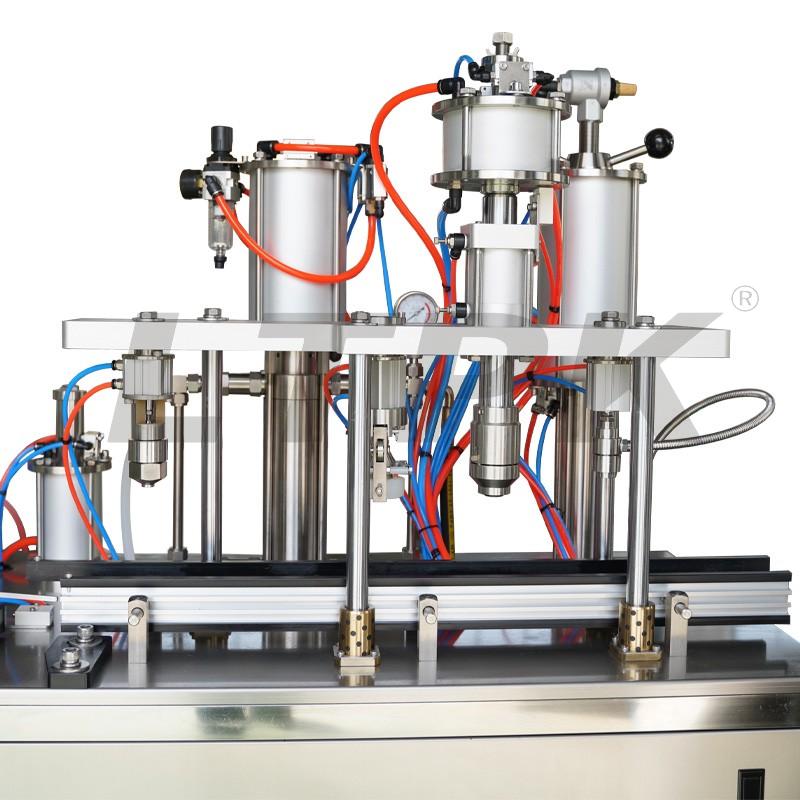

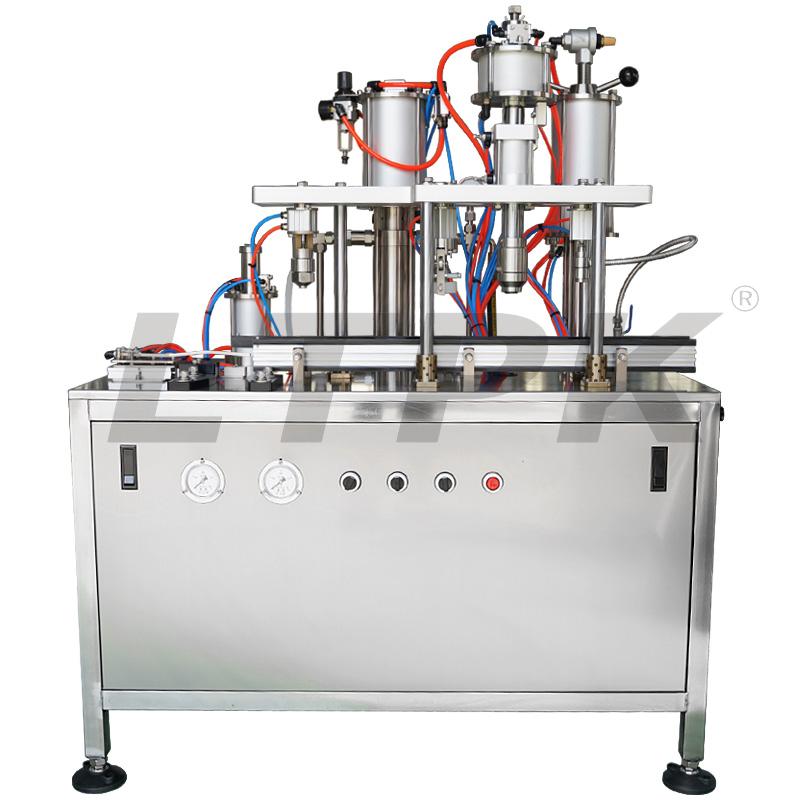

1,QGB900E aerosol filling machine 5 in 1, is with five functions :
Aerosol cans pushing forward automatically ,liquid filling ,valve correcting, valve crimping ,
propellant gas filling QGB900E aerosol filling machine 5 in 1 includes a booster pump, which is separated from this machine.
2,The liquid filling system has the function of automatically inhaling liquid, which can fill high viscosity medium ,
and we can adjust the volume of filling. (high viscosity medium such as paints, polyurethane foam sealant for black and white material);

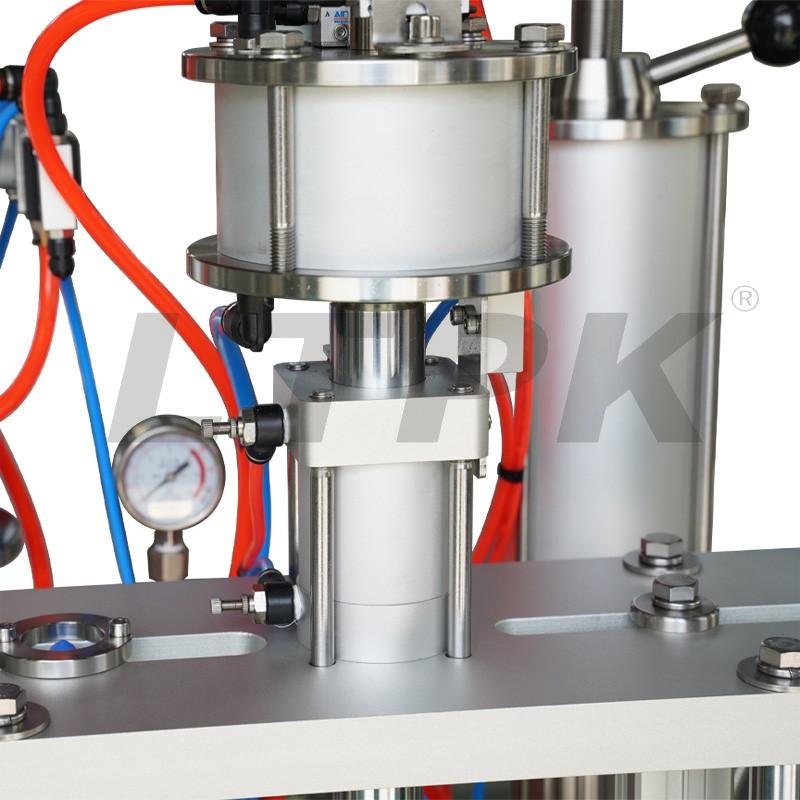

3,The valve sealing system has a high precision sealing head, large capacity cylinder, even if low air pressure 0.25-0.3MPa,
can also have a high quality sealing effect.
4,The propellant gas filling system mainly used for propellant such as (CO2 ,butane gas,nitrogen ,
Freon, dimethyl ether and 134a, etc.) ,Corrosion resistance.Main seals are imported. Applicable to all kinds of aerosol filling valve.
5, Booster pump with large capacity two-way booster,So filling fast, accurate.and can effectively remove
the gas from the liquid raw material.
6,Widely used in the field :Mousse, Hair spray, Air fresheners, Insecticides, Disinfectants, Fire extinguishing agents,
Carburetor cleaner,Sunscreen Spray ,Nasal spray, Cosmetic Spray Evian ,Perfume Spray,shaving foam ,Spray paint....
Technical Parameters
Usage Aerosol can filling
Product process Aerosol can pushing forward→liquid filling→valve correcting→valve crimping→propellant gas filling
Application Chemical, Food, Medical,Beverage
Automatic Grade Semi-Automatic
Driven Type Pneumatic (Driven by compressed air)
Voltage 220V/380V (Used for air compressor)
Power 5.5KW (Used for air compressor)
Dimension (L*W*H) L1600*W590*H1500mm
Weight 300KG
Filling capacity 0-1000ml (can be customized )
Applicable Aerosol Can diameter 35-70mm
Applicable Aerosol Can Height 70-330mm
Productivity 800-1200 cans/hr
Applicable spray can valve 1 inch (25.4mm)
Working pressure : 0.5-1.0 MPa
Maximum Air Consumption: 0.6 m3/min
Machine Material Stainless Steel 304
Warranty 18 Months
