Description
Description：
1.Application:The machine is suitable for food, chemical industry, cosmetics industry of liquids, sauce of Special-shaped bag measurement packing.

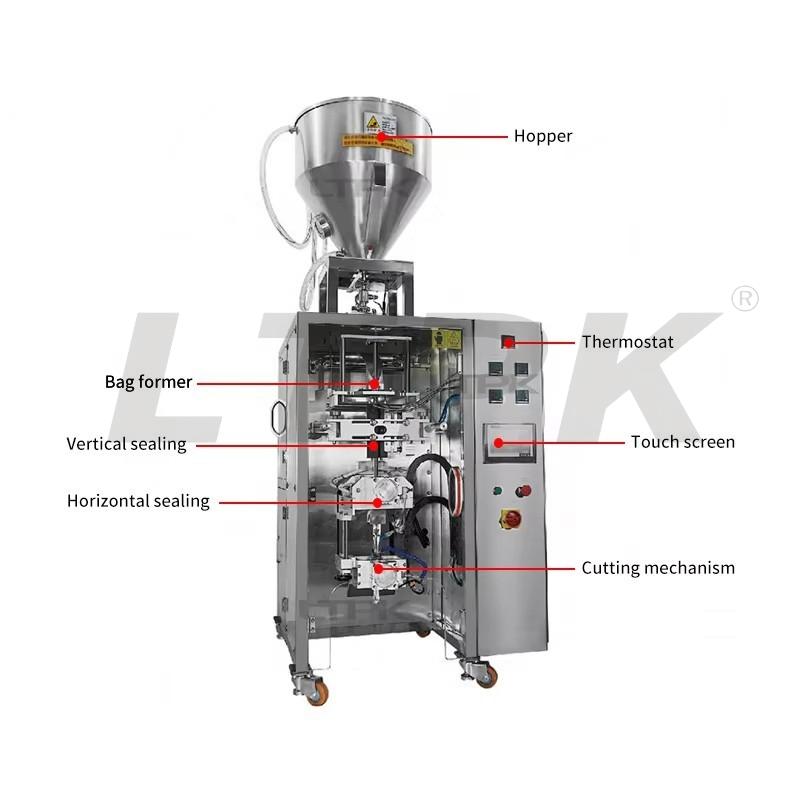

2. All the works of bag making, measuring, filling, sealing, cutting and counting can be done automatically, at the same time, it can also customize the printing batch number and other functions.
3.The touch screen operation, PLC control, drive stepper motor to control the bag length, stable performance, easy to adjust and accurate detection. Choose the intelligent temperature controller and PID control to ensure the error range of temperature controlled within 1 degree Centigrade.e.
4.Packing material：PE composite film, such as: pure aluminum, aluminum plating, nylon, etc.
Technical Parameters
Filling range :1-20ml
Bag size :L:30-180mm
W:20-80mm
Packing speed :20-35bags/min
Machine size :958*1300*2417mm
Weight :720kg
Total power:AC220v/50Hz/3kw
Gas souce :0.6mpa
