Description
Description：

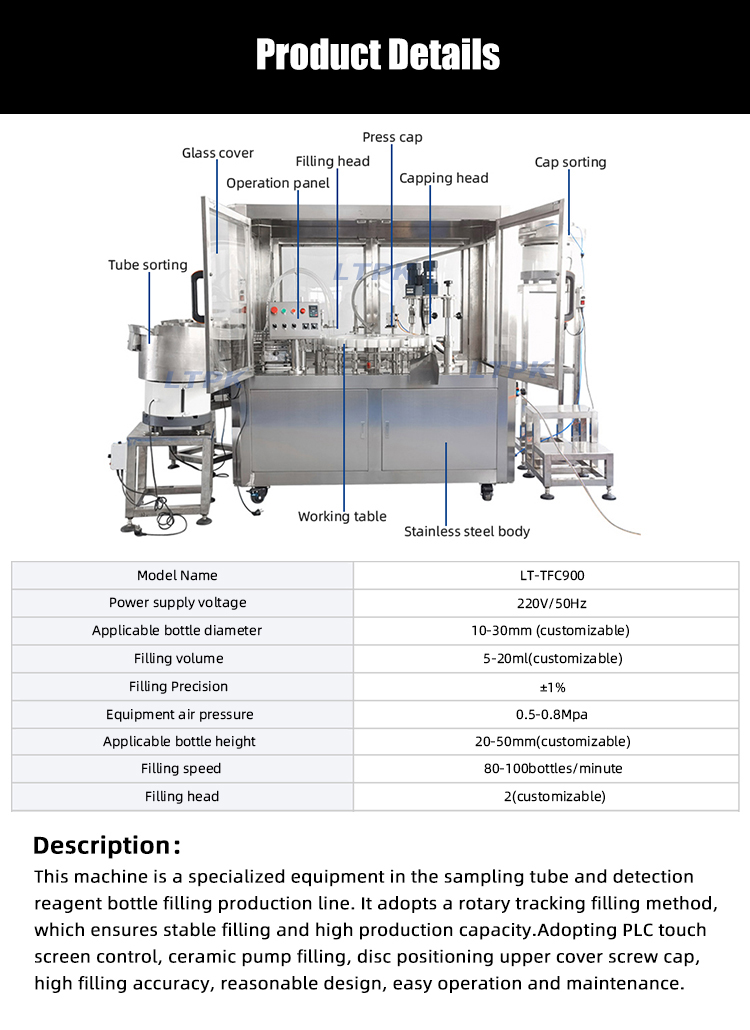

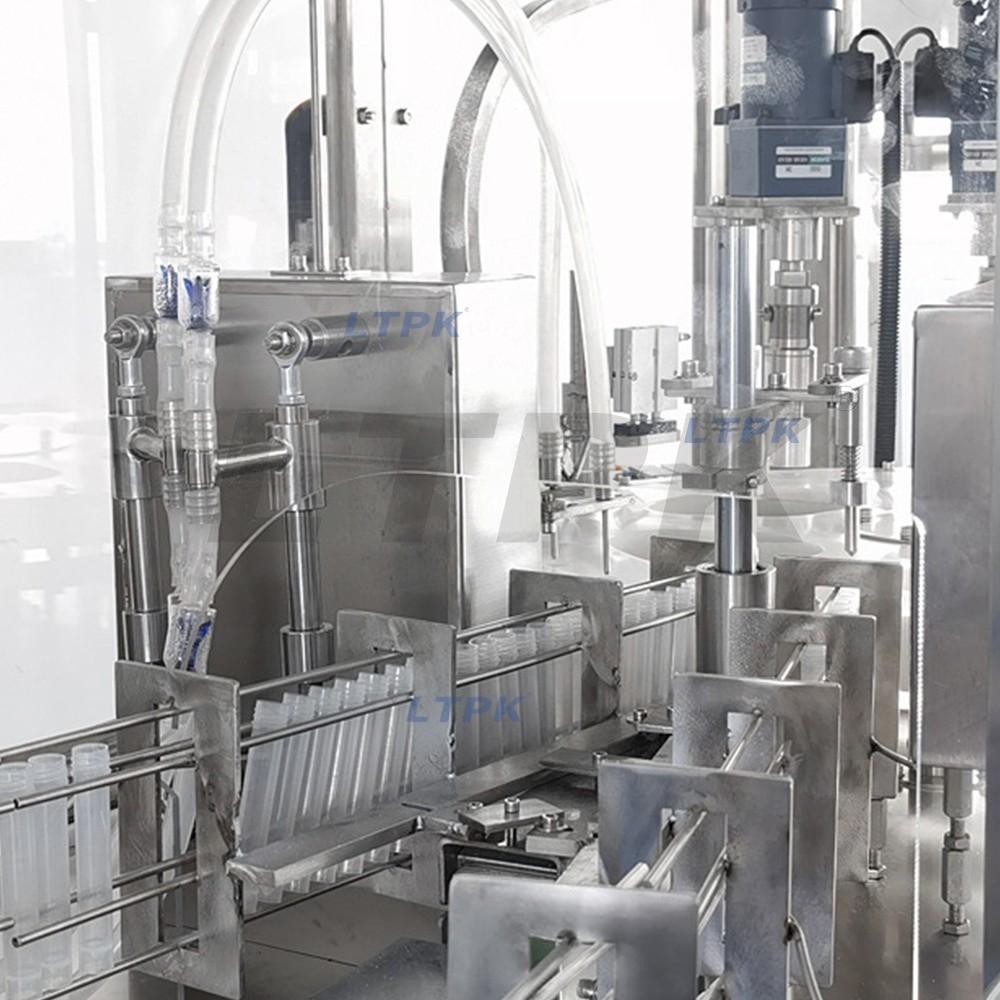

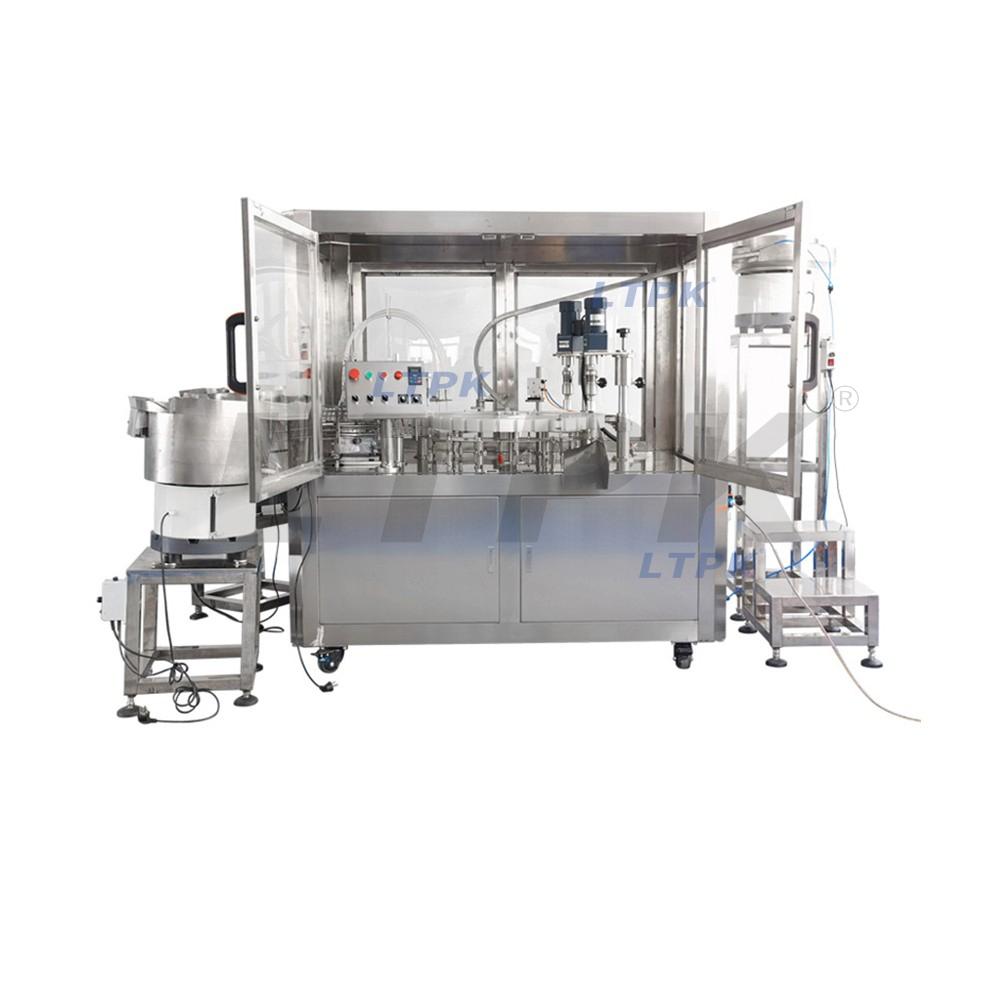

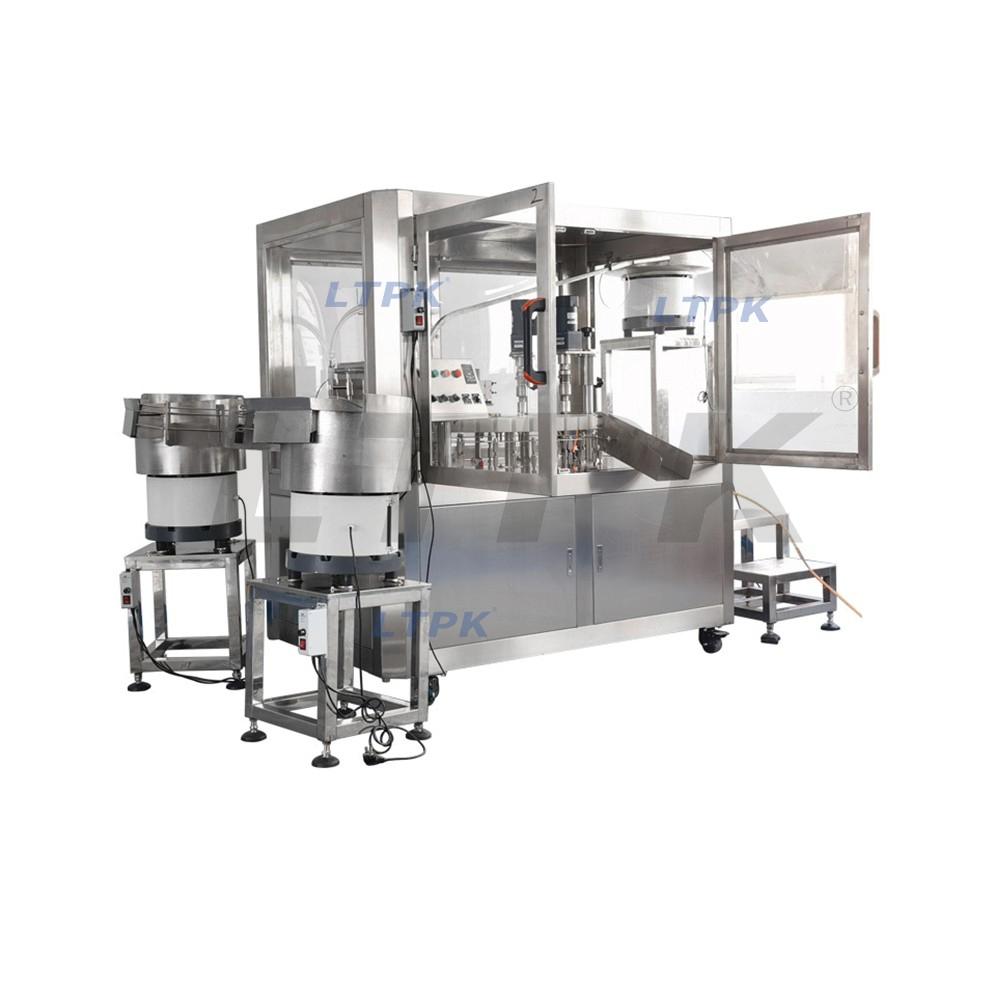

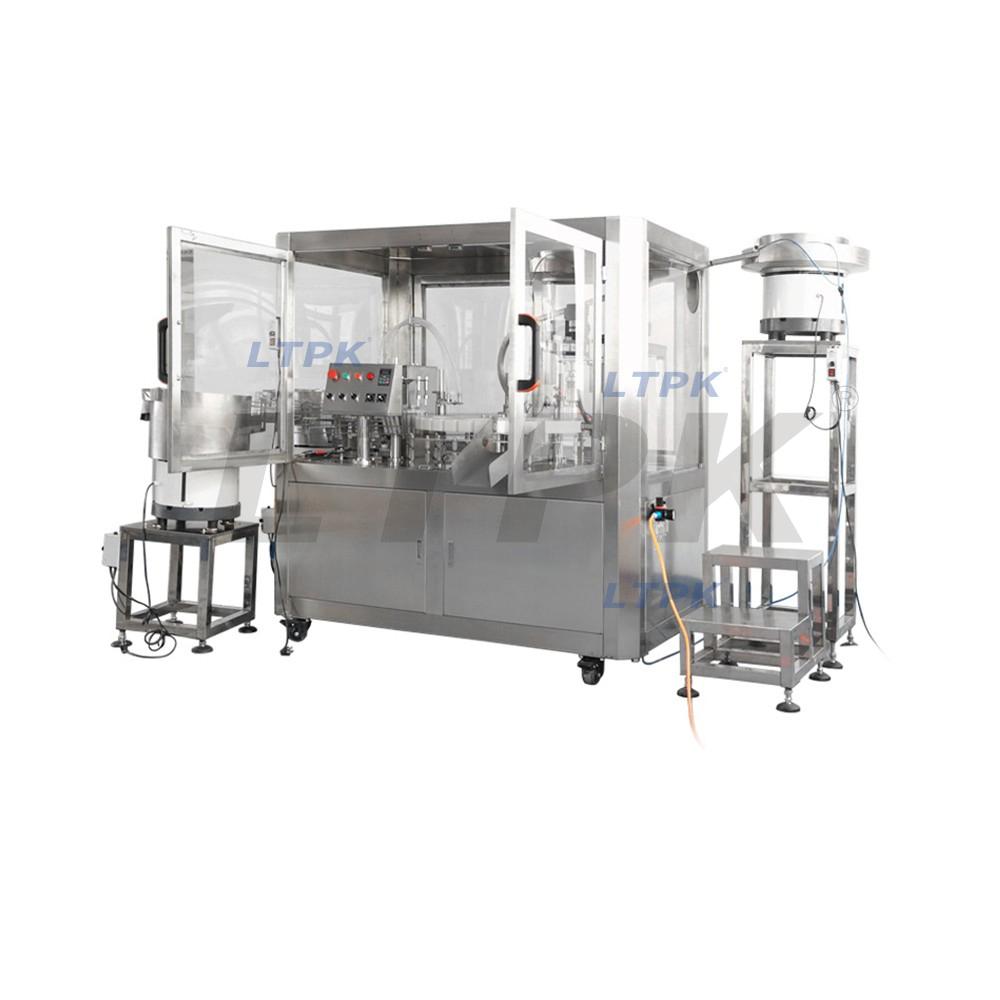

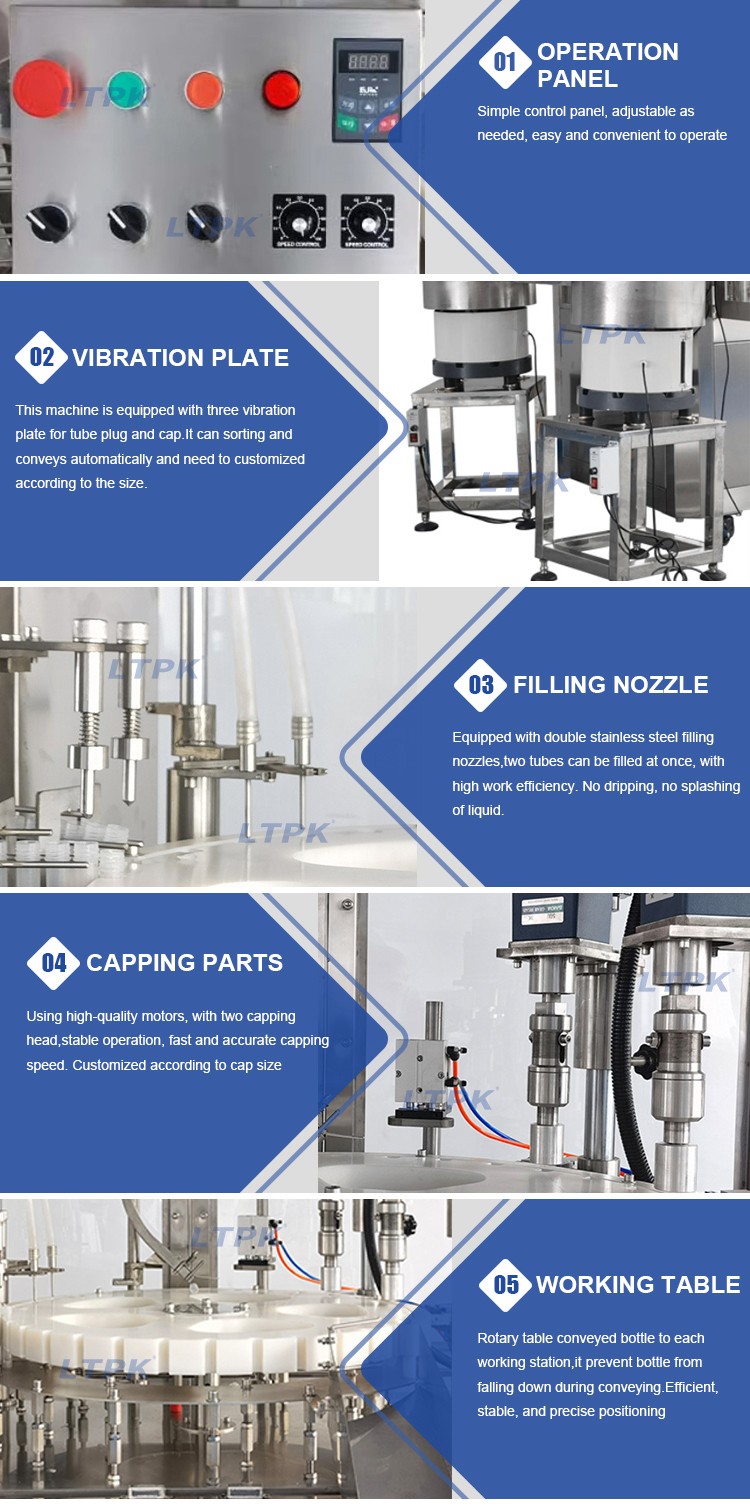

This machine is a specialized equipment in the sampling tube and detection reagent bottle filling production line. It adopts a rotary tracking filling method, which ensures stable filling and high production capacity.Adopting PLC touch screen control, ceramic pump filling, disc positioning upper cover screw cap, high filling accuracy, reasonable design, easy operation and maintenance.
Application:

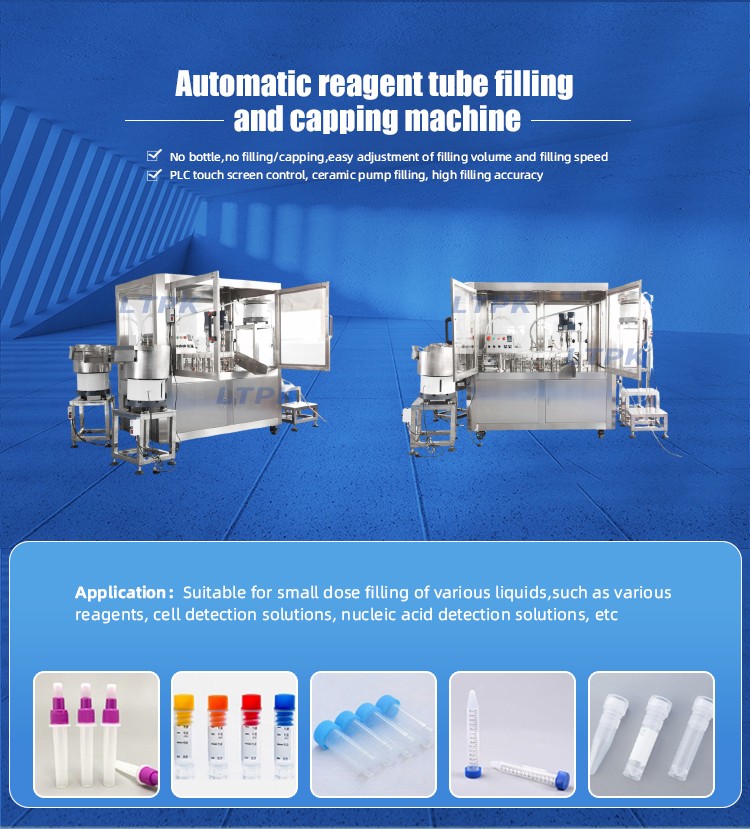

Suitable for small dose filling of various liquids,such as various reagents, cell detection solutions, nucleic acid detection solutions, etc
Technical parameters：
Model | LT-TFC900 |
Power supply voltage | 220V/50Hz |
Applicable bottle diameter | 10-30mm (customizable) |
Filling volume | 5-20ml(customizable) |
Filling Precision | ±1% |
Equipment air pressure | 0.5-0.8Mpa |
Applicable bottle height | 20-50mm(customizable) |
Filling speed | 80-100bottles/minute |
Filling head | 2(customizable) |
