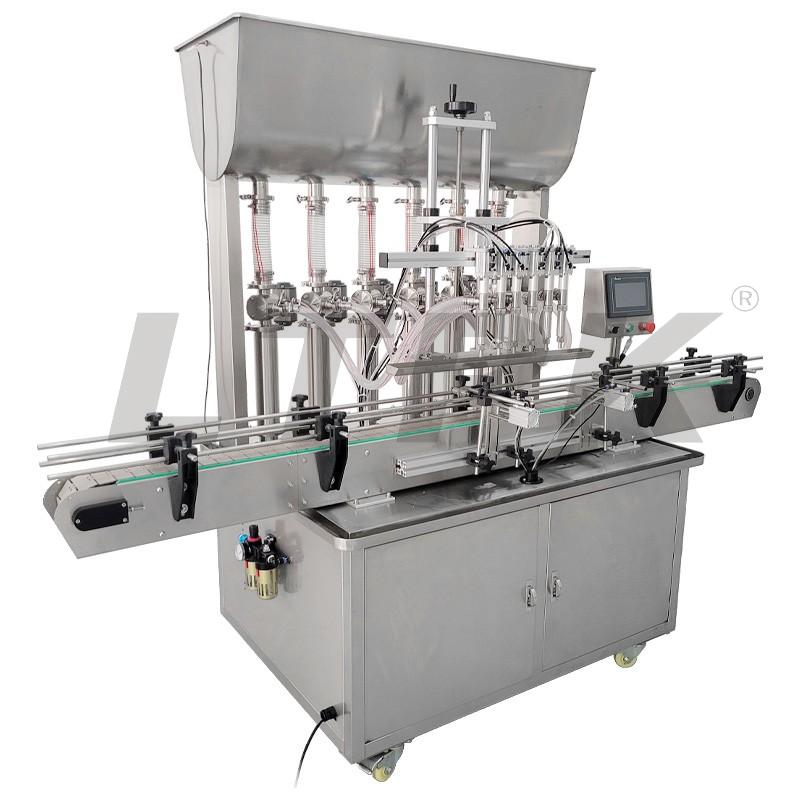

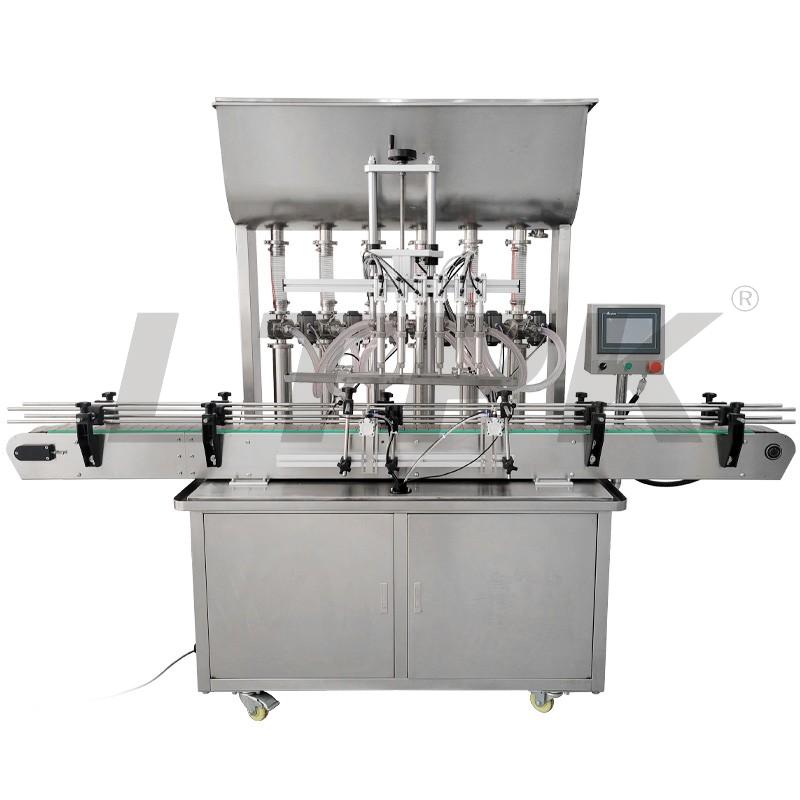

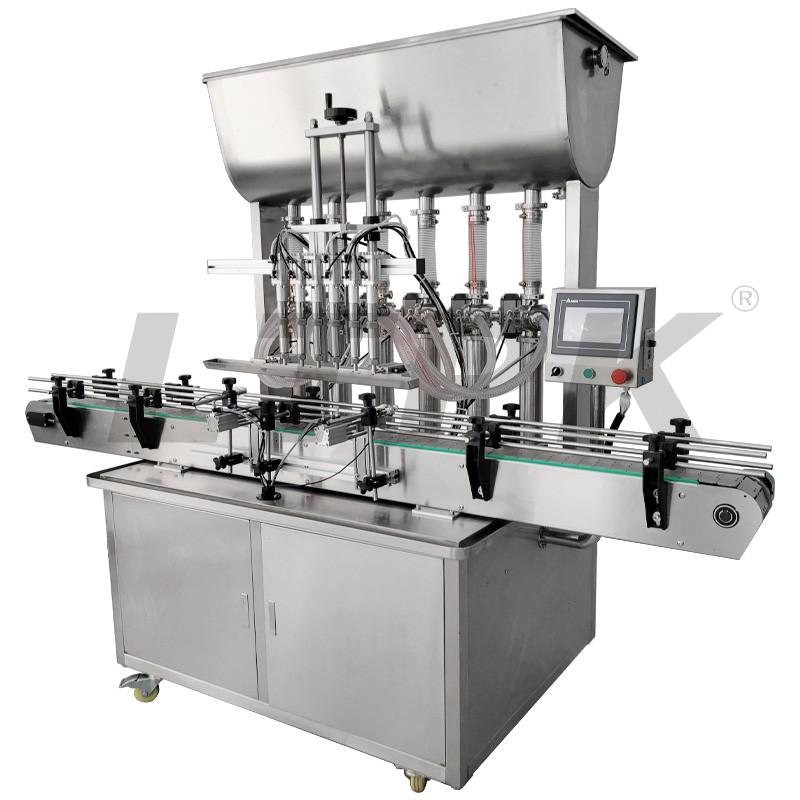

LT-QZDG6 Automatic 6 heads paste cream filling machine

Home Products Filling Machines Full Automatic Filling Machines LT-QZDG6 Automatic 6 heads paste cream f
LT-QZDG6 Automatic 6 heads paste cream filling machine LT-QZDG6 Automatic 6 heads paste cream filling machine LT-QZDG6 Automatic 6 heads paste cream filling machine LT-QZDG6 Automatic 6 heads paste cream filling machine

LT-QZDG6 Automatic 6 heads paste cream filling machine

  • Product Item:LT-QZDG6
  • Voltage 110/220V 50-60HZ 800W
  • Working Speed(base on water) About 30-70bottles/min
  • Filling Accuracy ≤+1%
  • Conveyor Size About 1990*100mm(L*W)
  • Category:Full Automatic Filling Machines
  • Inquiry Send Email

    Description

    Products Description
    Description:
    This automatic vertical paste filling machine can fill a series of thick liquid or paste into bottles,which is driven by a piston and turning the cylinder valve,can use the magnetic reed switch to control cylinder stroke,and then the operator can adjust the filling amount.This automatic filling Machine has simple, reasonable structure, and easy to understand,and can fill material accurately.
    Application:
    This filling machine is most commonly applicable for daily chemicals,foodstuffs, cosmetics,pesticides and other industries.It is good for filling liquid and paste material,such as mineral water,cooking oils,juice,detergent,sauce,salad, butter&margarine,ketchup,jams,cream,honey,shampoos etc.
    Technical Parameters
    Model
    LT-QZDG6
    Voltage
    110/220V 50-60HZ 800W
    Filling Range
    5-100ml/10-300ml/50-500ml/100-1000ml/500-3000ml/1000-5000ml
    Working Speed(base on water)
    About 30-70bottles/min
    Filling Accuracy
    ≤+1%
    Conveyor Size
    About 1990*100mm(L*W)
    Size of filling nozzle
    φ10mm
    Size of air compressor connector
    φ10mm
    Machine size
    About 245*102*198cm(50-500ml)
    Package size
    About 261*126.5*214.5cm(50-500ml)
    Net weight/Gross weight
    About 357.5kg/474.5kg(50-500ml)
    Product Details
    This machine is installed with touch screen control panelit is more intuitive and no need to train for operators.We can Customize
    different languages of control panel according to your needs.Please contact us if you need this.

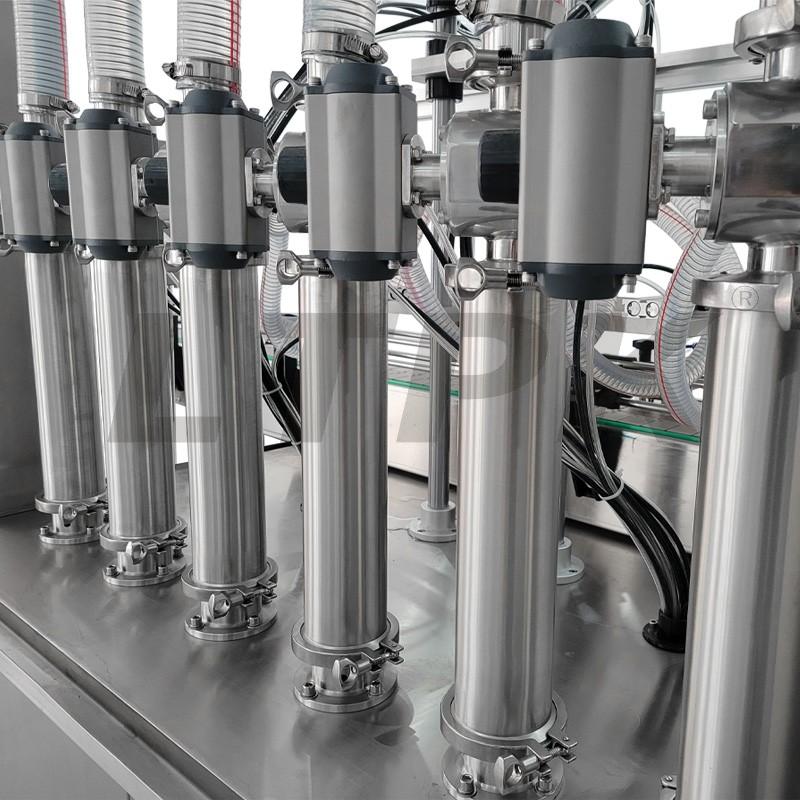

    The number of flling nozzle can be customized according to production needs.Each nozzle is with anti-dripping design,ensure the
    cleanliness of the machine and products.Each nozzle can be controlled separately,different kinds of filling materials can be flled
    at the same time.
    The bottle sensor can be used to detect bottles and prevent from missing or wasting bottles,this ensures the filling accuracy.

    High quality conveyor belt makes it smoother when transferring bottles,the size of it is 1990mm*100mm(L*W),we can customize the
    size according to your production needs.
