Description
Product Description

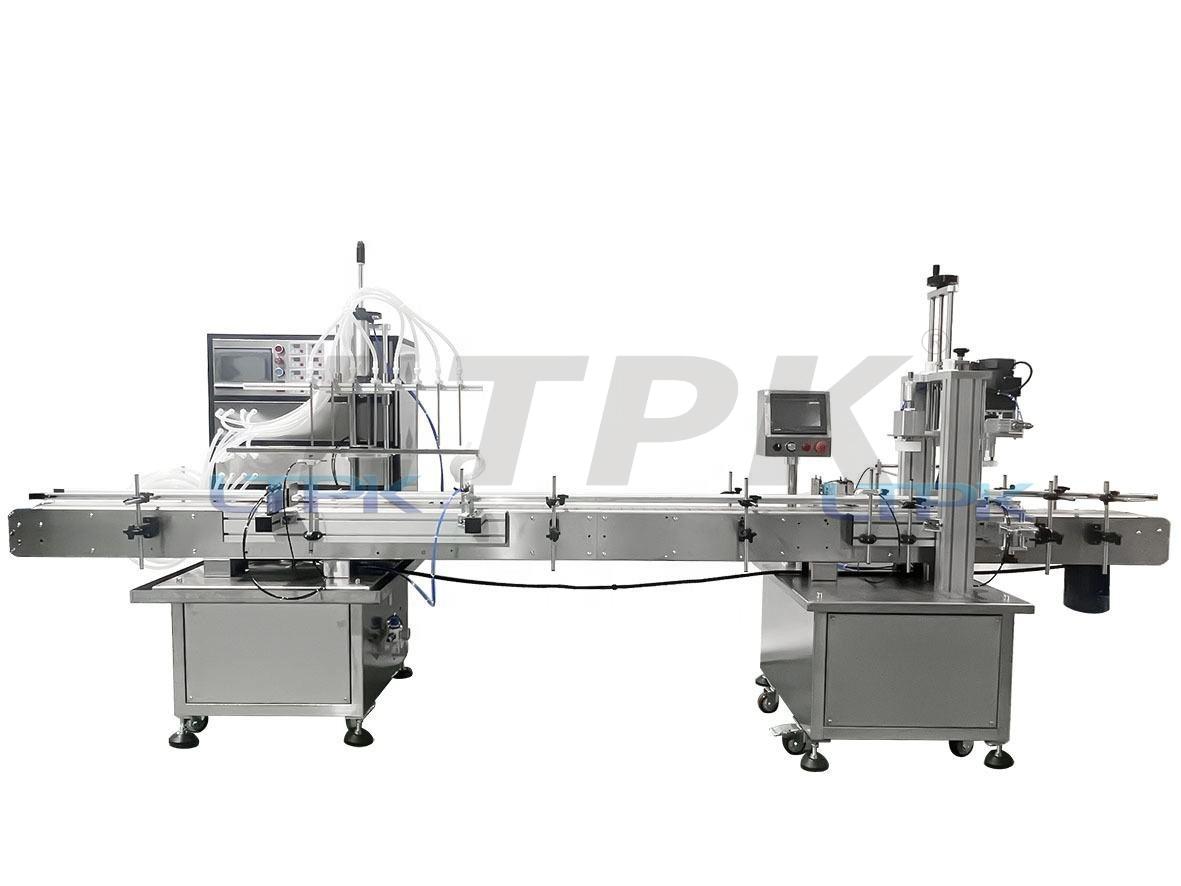

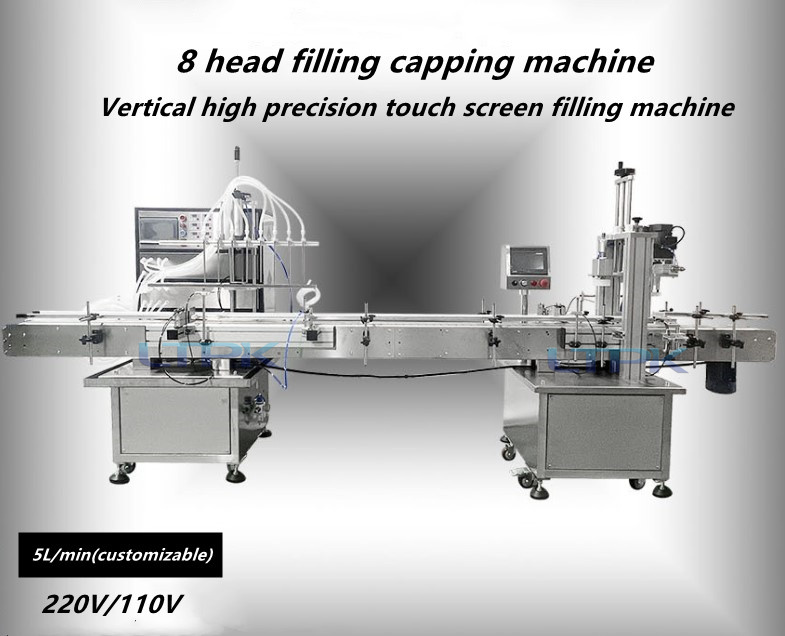

This LTPK 8 heads magnetic pump liquid filling and capping machine production line can automatically arrange bottles,fill liquid and cap bottle,it helps to save production process and improve working efficiency.We can offer custom service for different kinds of materials,make these machines can match your material better. It is widely used in food,beverage,cosmetics and pharmaceutical industries.
Technical Parameters

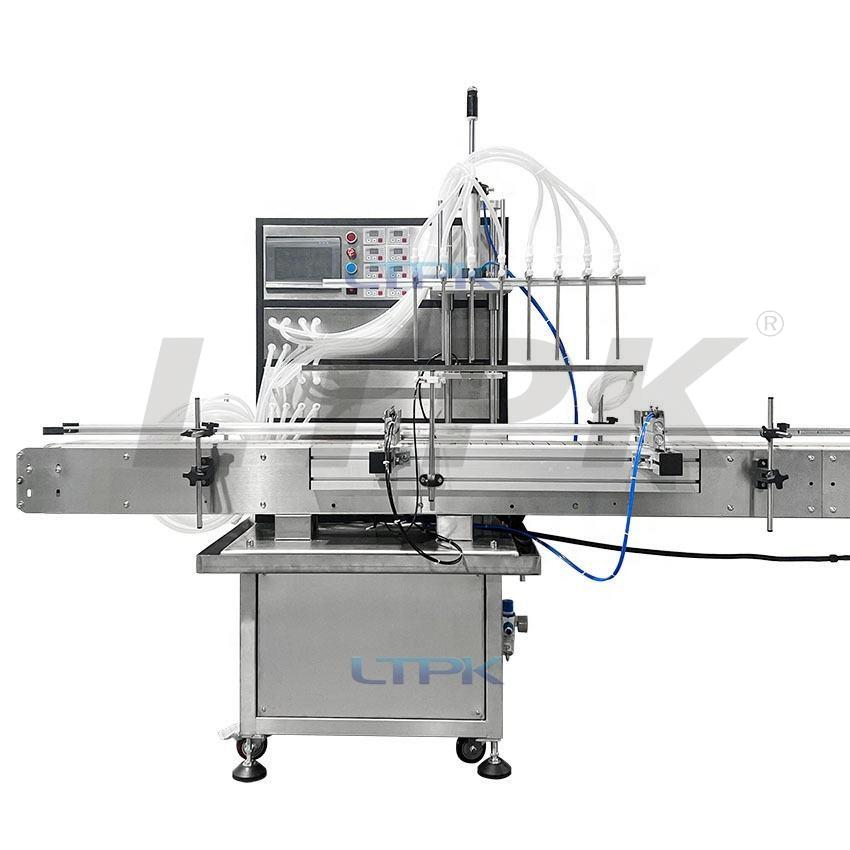

Product name 8 head 5L diaphragm pump filling machine
Voltage 220/110V
Power 3KW
Filling range 10-2000ml
Filling accuracy ±1%
Maximum suction lift capability 2m
PW cut memory YES
Discharge leak proof YES
Filling flow 5L/min
Size 150kg
Weight 2000*820*1580mm

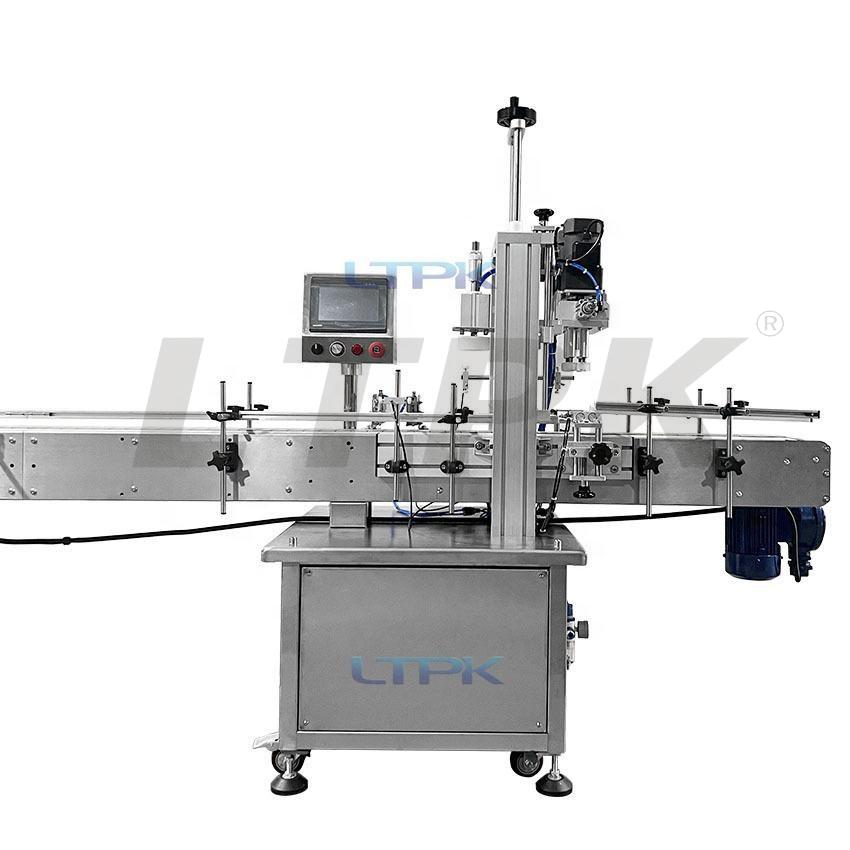

Product name Vertical capping machine
Voltage 220/110V
Power 1KW
PW cut memory YES
Size 150kg
Weight 1950*750*1600mm
Product Details
Touch screen panel, visual parameters, easy to set.
With drip proof function, each filling head can be controlled separately with high filling accuracy.
Equipped with emergency stop button to ensure the safety in the production process. convenience and reliability

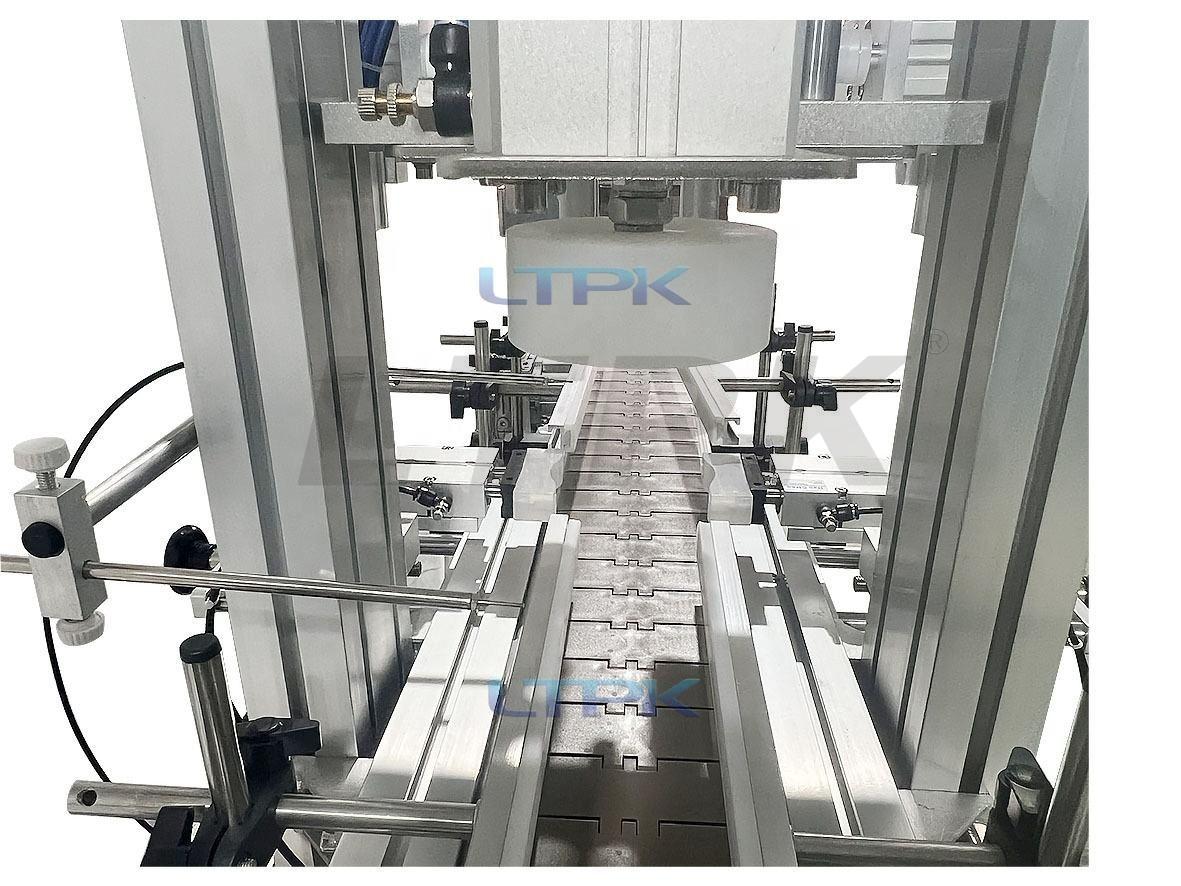

High quality capping head, suitable for screwing caps of different shapes, with a wide range of applications. The working height of the machine can be adjusted by hand, which is easy to operate.
Chain plate conveyor belt, stable transportation and high efficiency.
Silicone tube filter is used to filter impurities in liquid.
