Description

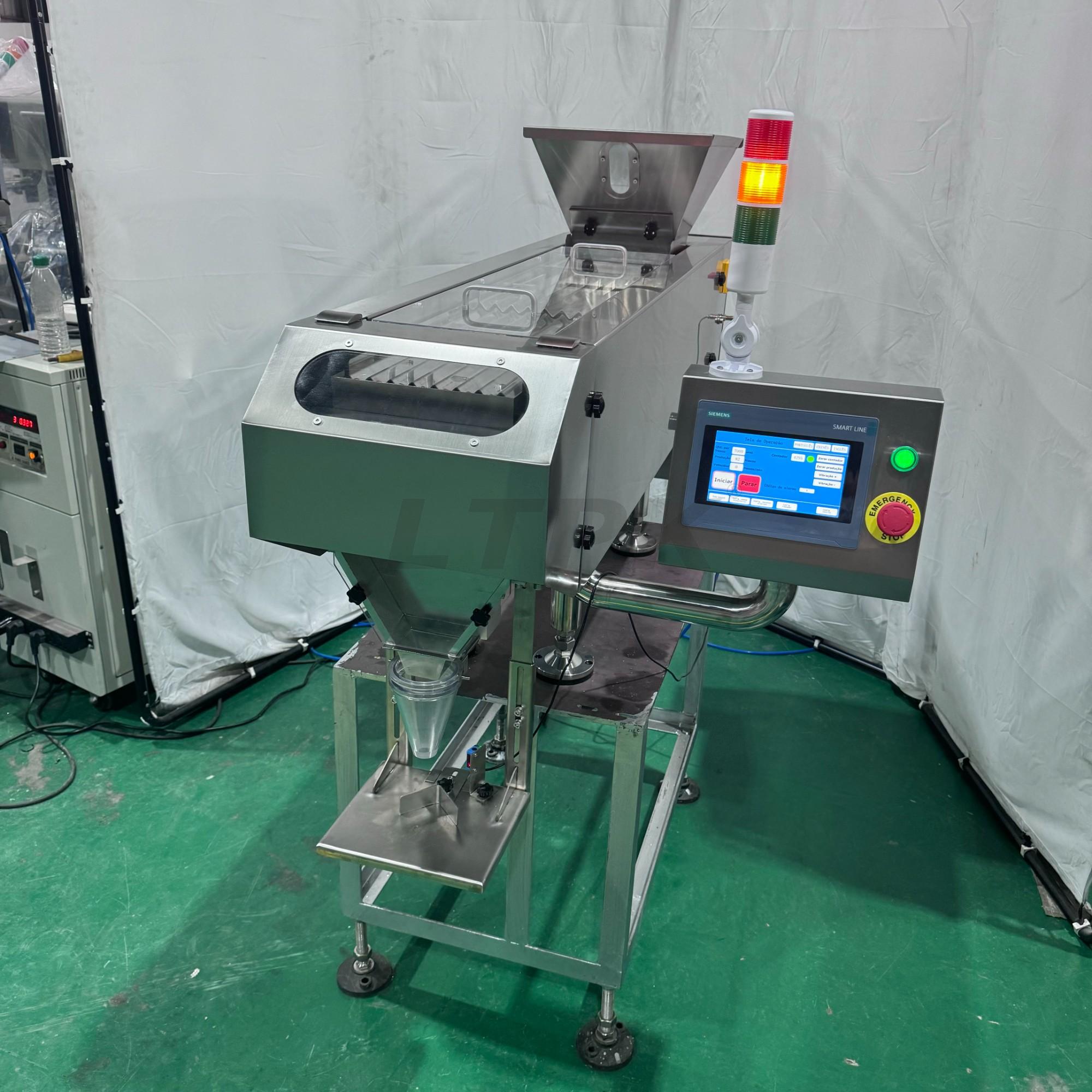

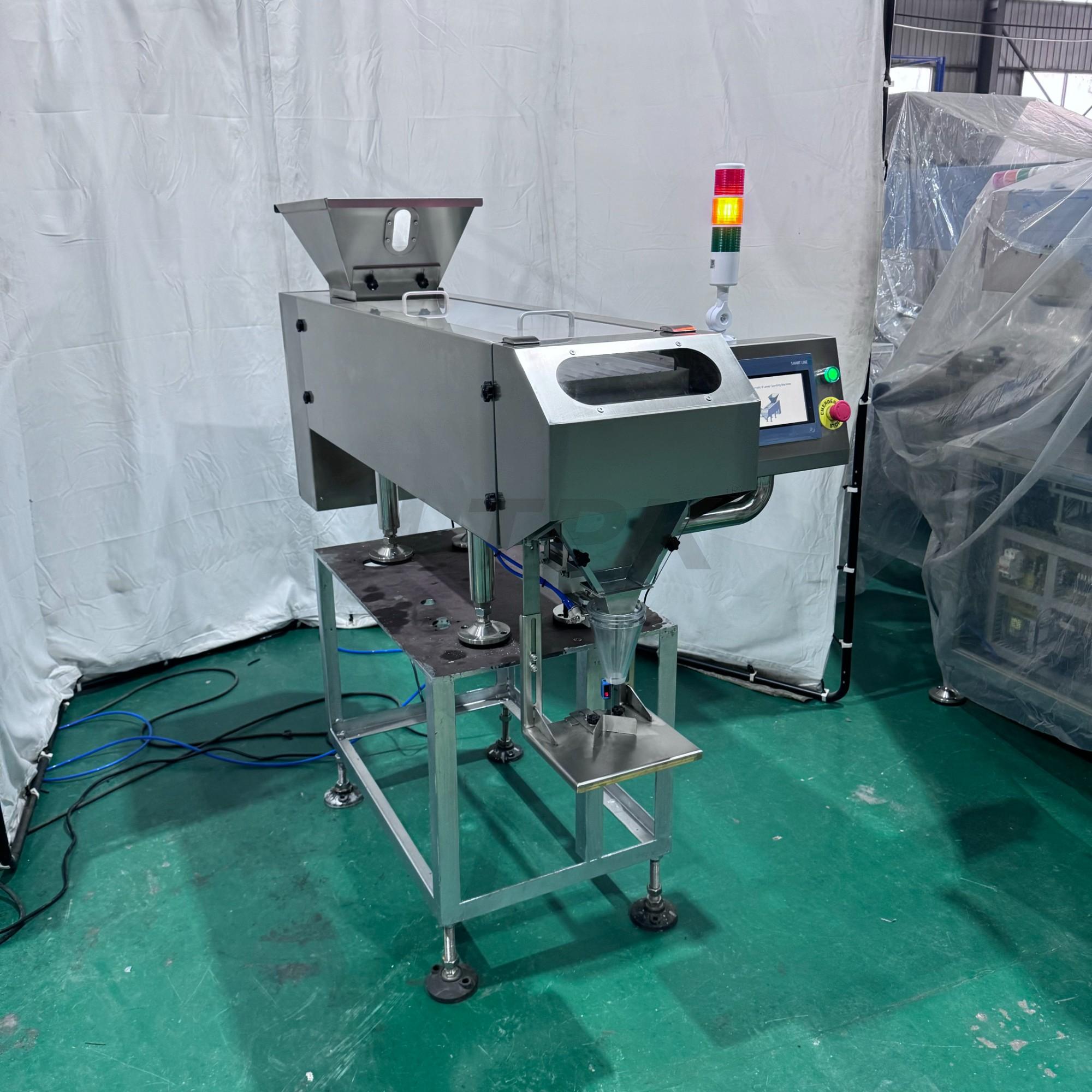

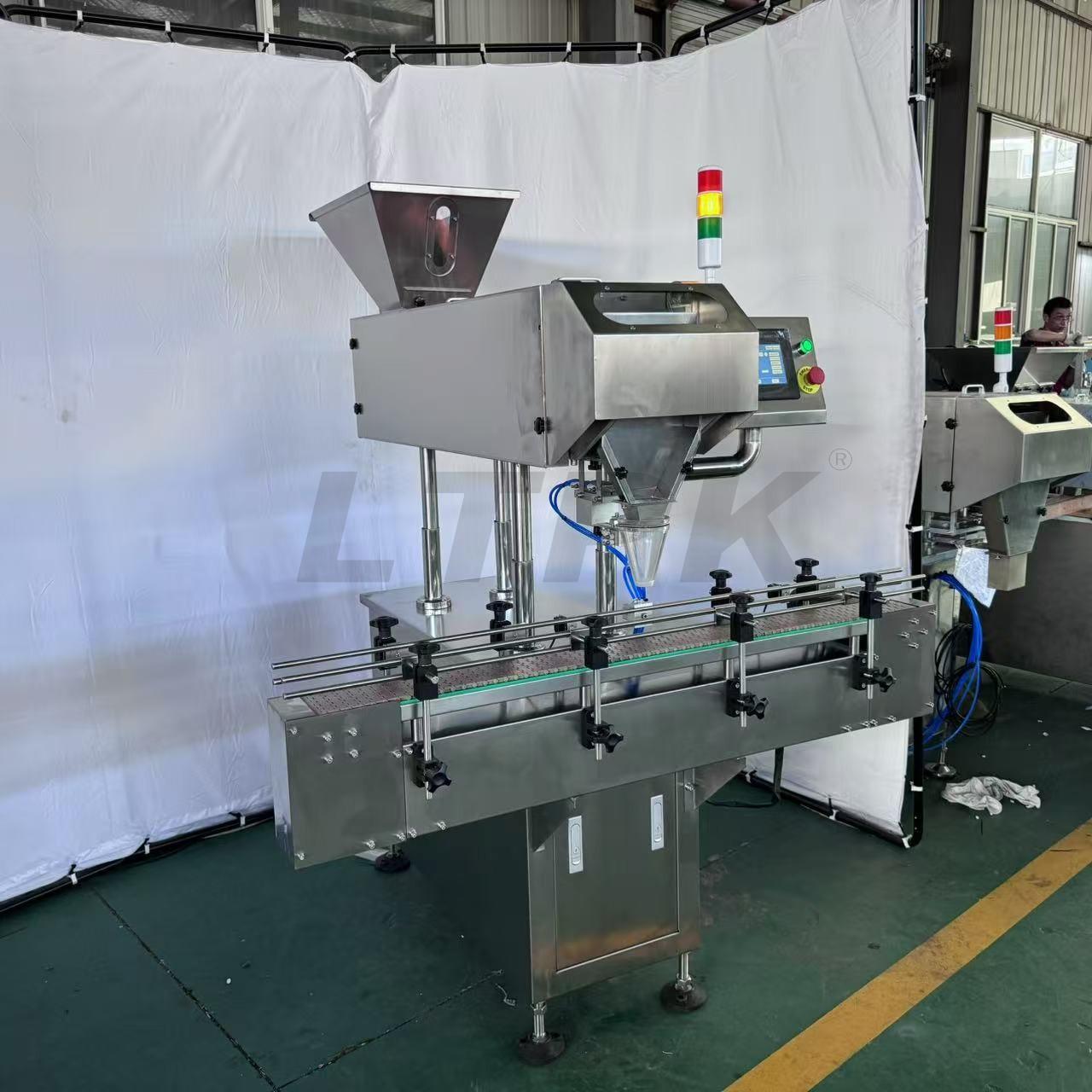

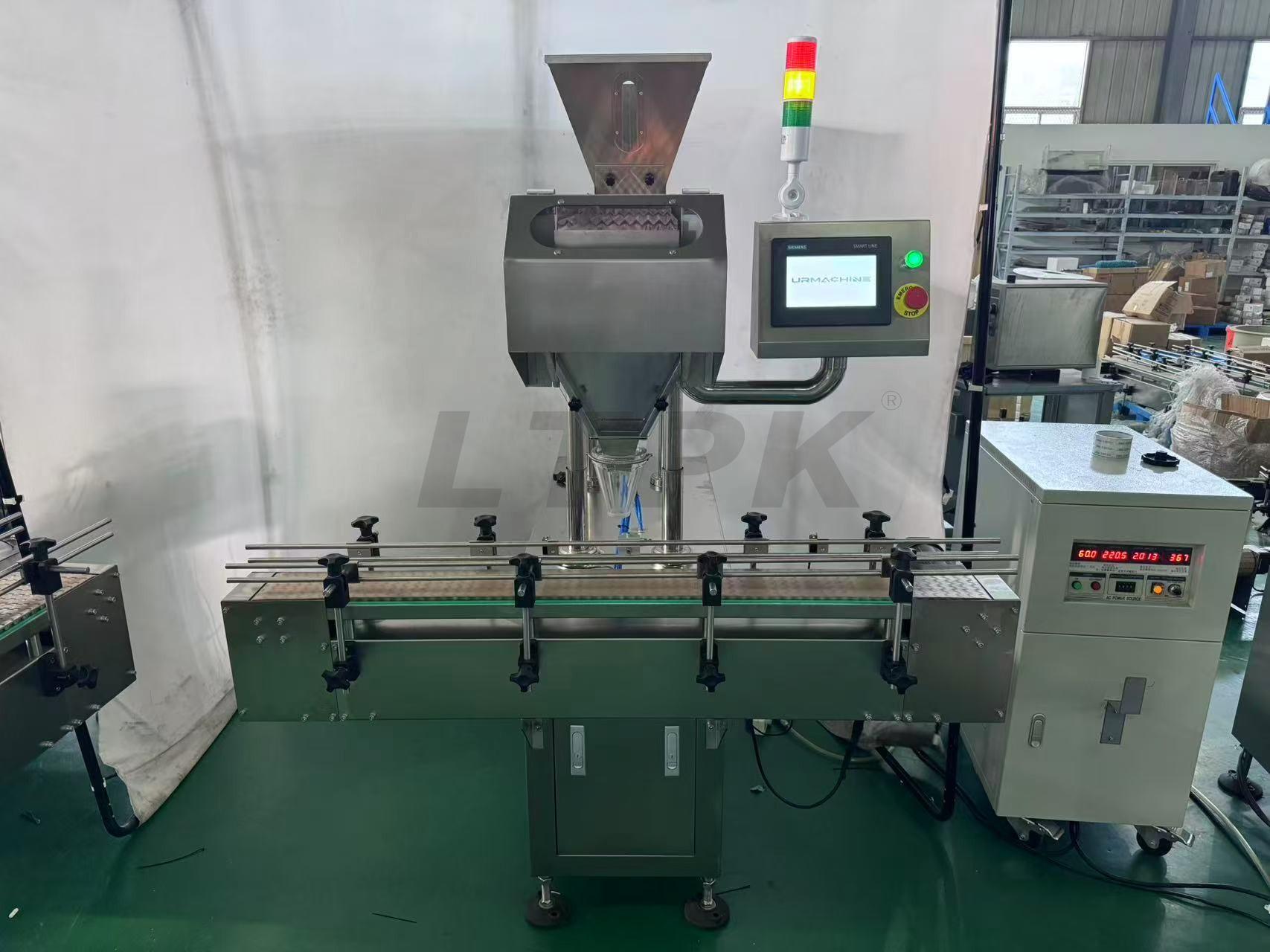

8-Lane Single-Head Electronic Counting Machine SLJ-8A

Product Overview

Pour the pills into the hopper. The pills slide continuously to the medicine bin through the vibration of the feeding corrugated plate, then fall into the detection channel one by one. The medicines falling into the bin are quantitatively counted by the photoelectric counting sensor and then filled into the bottles.

Equipment Parameter

· Filling Objects: 00-5# capsules, soft capsules, Φ5.5-22 plain tablets, Φ3-22 pills, etc.

· Production Capacity: 10-60 bottles/min (related to bottle specifications, filling volume, and drug specifications)

· Filling Range: 1-9999 capsules/bottles (arbitrary)

· Counting Accuracy: ≥99.5% (better than industry standards)

· Bottle Specifications: Bottle body diameter: <120mm (less than conveyor belt width), bottle height: 30mm-120mm, 10-300ml round/square plastic bottles

· Power Supply: AC220V 50Hz

· Power: 0.5kw

· Air Source: 0.6Mpa

· Equipment Size: 1360mm1360mm1500mm

· Packaging Weight: 460kg

· Conveyor Belt Height from Ground: 850±50mm

· Hopper Volume: 30L

Equipment Configuration
