Description

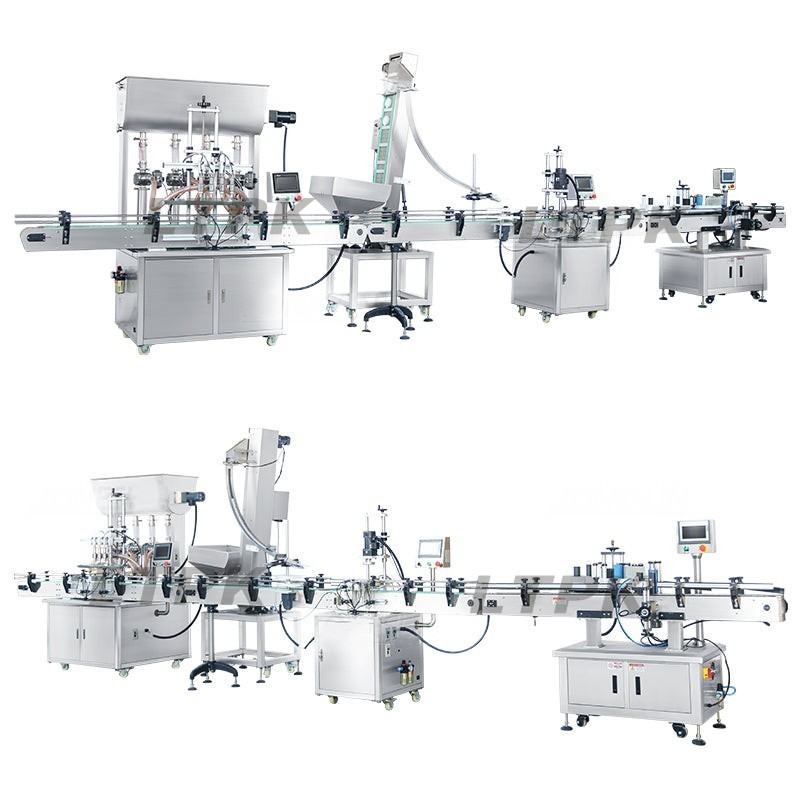

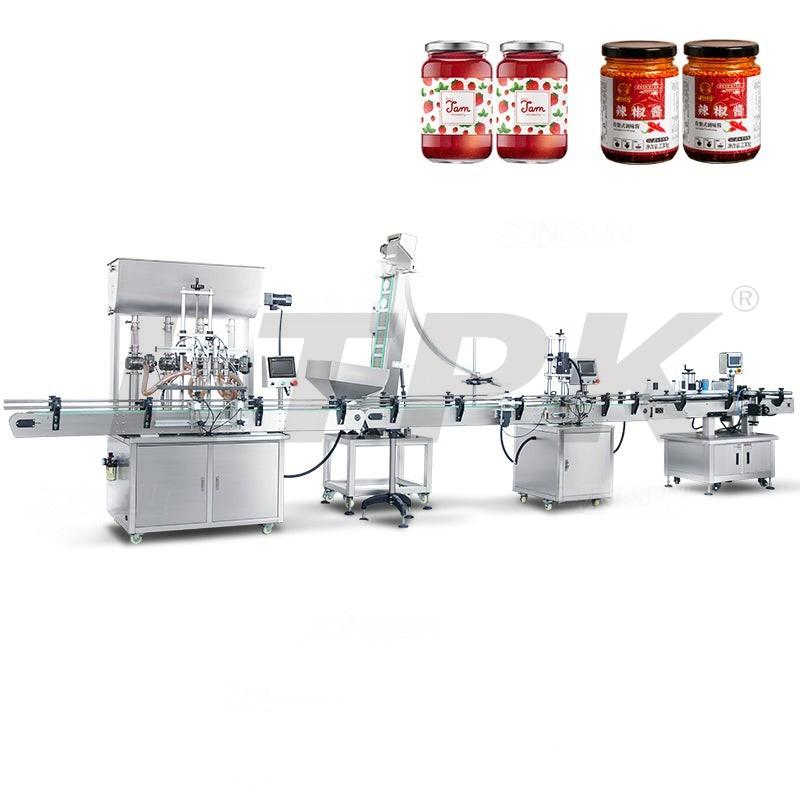

This LTPK Automatic paste filling capping round bottle labeling machine with cap feeder production line is consist of bottle turntable,filling machine,cap feeding machine capping machine,labeling machine and bottle sorting machine.It has a high degree of automation,good stability,and convenient adjustment.It is equipped with a cap feeding machine,can automatically feed bottle caps which can save labor greatly.This machine is suitable for food,daily chemical,agriculture and cosmetics industries.

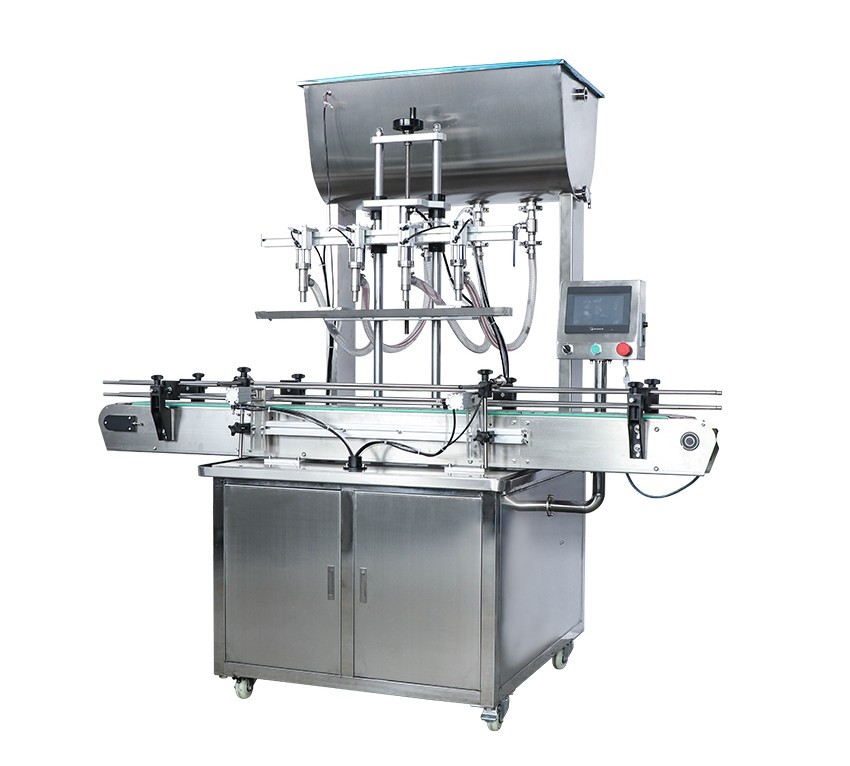

Filling Machine

Model : LT-QZDG4

Voltage :110/220V 50-60HZ 800W

Filling Range :5-100ml/10-300ml/50-500ml/100-1000ml/500-3000ml/1000-5000ml

Working Speed(base on water) : 20-50bottles/min

Filling Accuracy: ≤±1%

Air Pressure :0.5-0.7Mpa

Machine Weight:  260kg

Package Weight: About 380kg   (100-1000ml 4Heads)

Machine Size : 2000*1200*2300mm

Package Size: About 1410*1220*2130mm   (100-1000ml 4Heads)

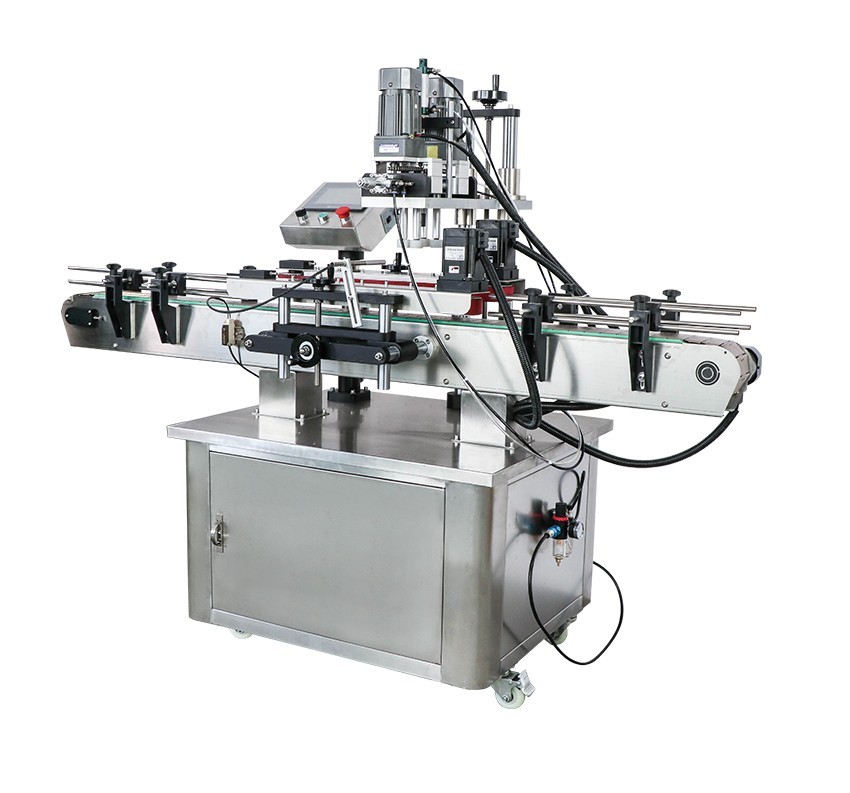

Capping Machine

Machine Model :LT-SC440

Working voltage :AC220V/110V 50-60HZ

Bottle height :≤200mm

Bottle caps diameter: customize

Working speed :20-30 bottles/minute(depending on bottle and caps)

Working pressure: 0.4-0.6 MPa

Conveyor size :100mm(W)*1950mm(L)

Package size :About 2000*820*1800mm

Net weight/Gross weight: About 211kg/272kg

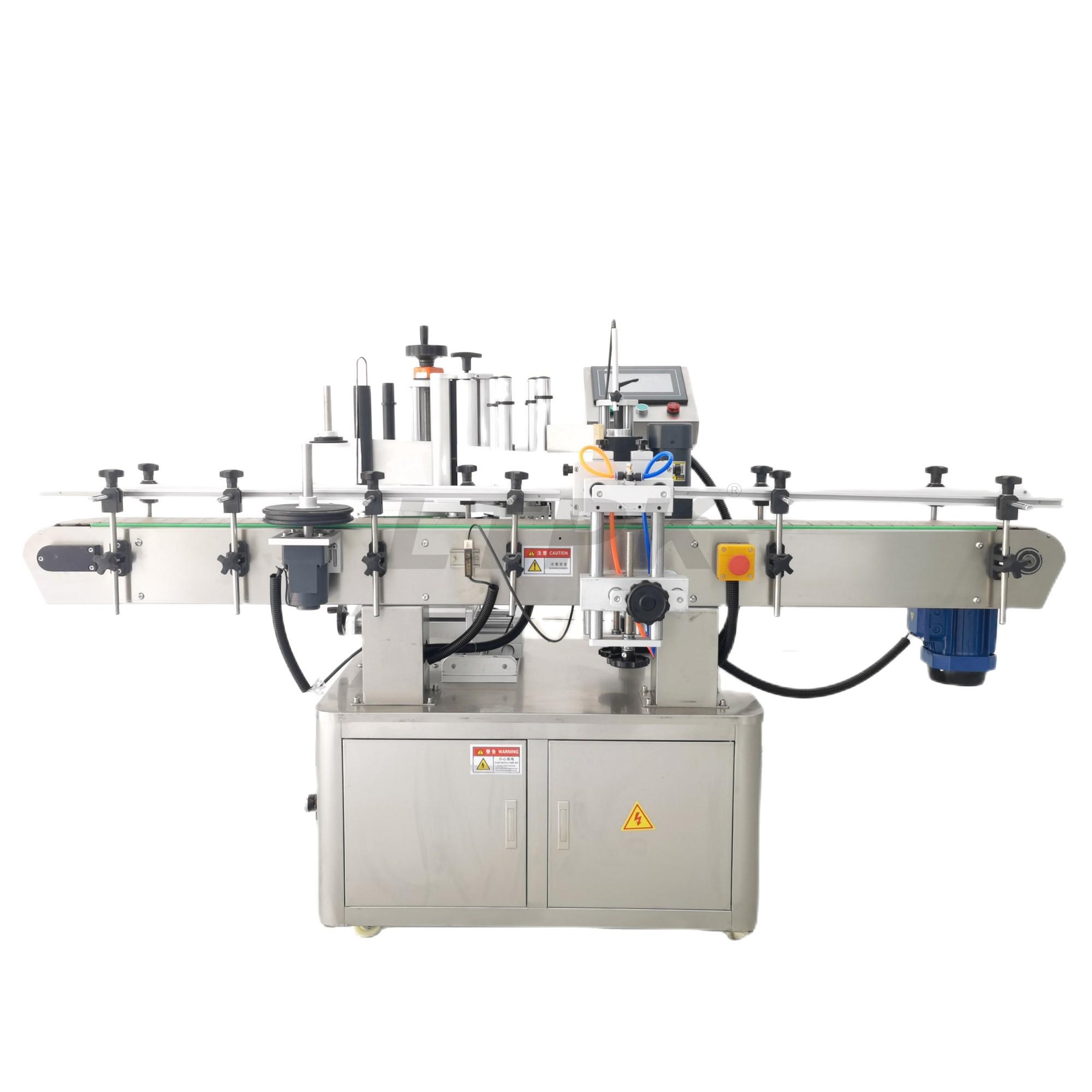

Labeling machine

Model:LT-260 Labeling Machine

Power supply: AC220V 50Hz/60Hz 1000W

Labeling capacity(bottles/min) :25-50 bottles/min(depends on bottle size)

Labeling accuracy(mm) :±1.0mm

Suitable Bottle Diameter :Φ12-100mm

Label size(mm) :(L)20-300mm (H)15-150mm

Roll inside diameter(mm): Φ76mm

Roll outside diameter(mm): Φ350mm

Conveyor Size :112*2000mm(W)

Machine size About: (L)2000*(W)820*(H)1380(mm)

Machine weight About :180kg

Packing Size :About (L)2100*(W)890*(H)1520(mm)

Package weight :About 250kg
