Description
Product Description
Description：

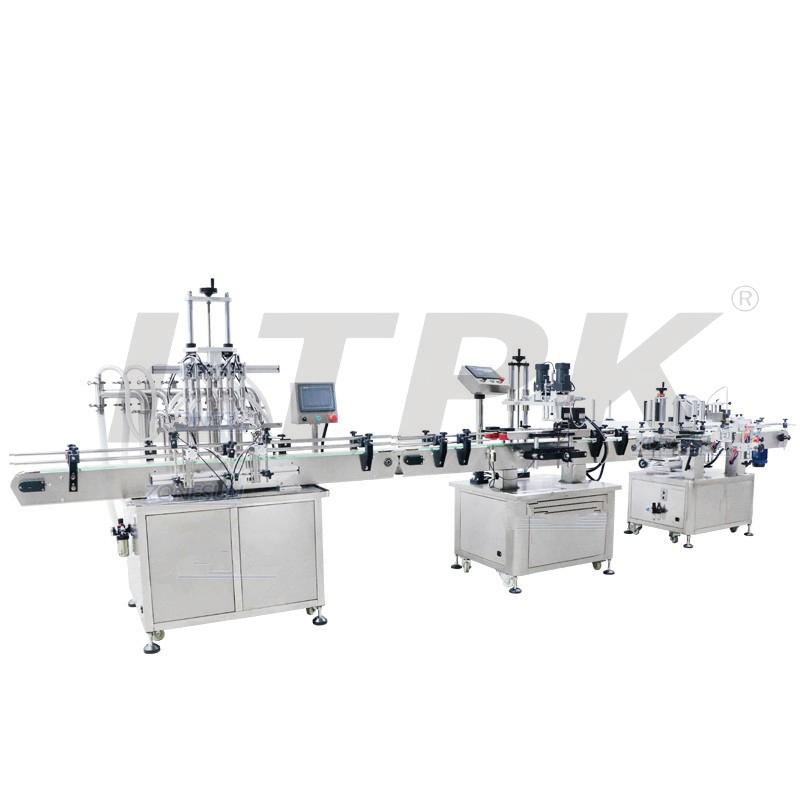

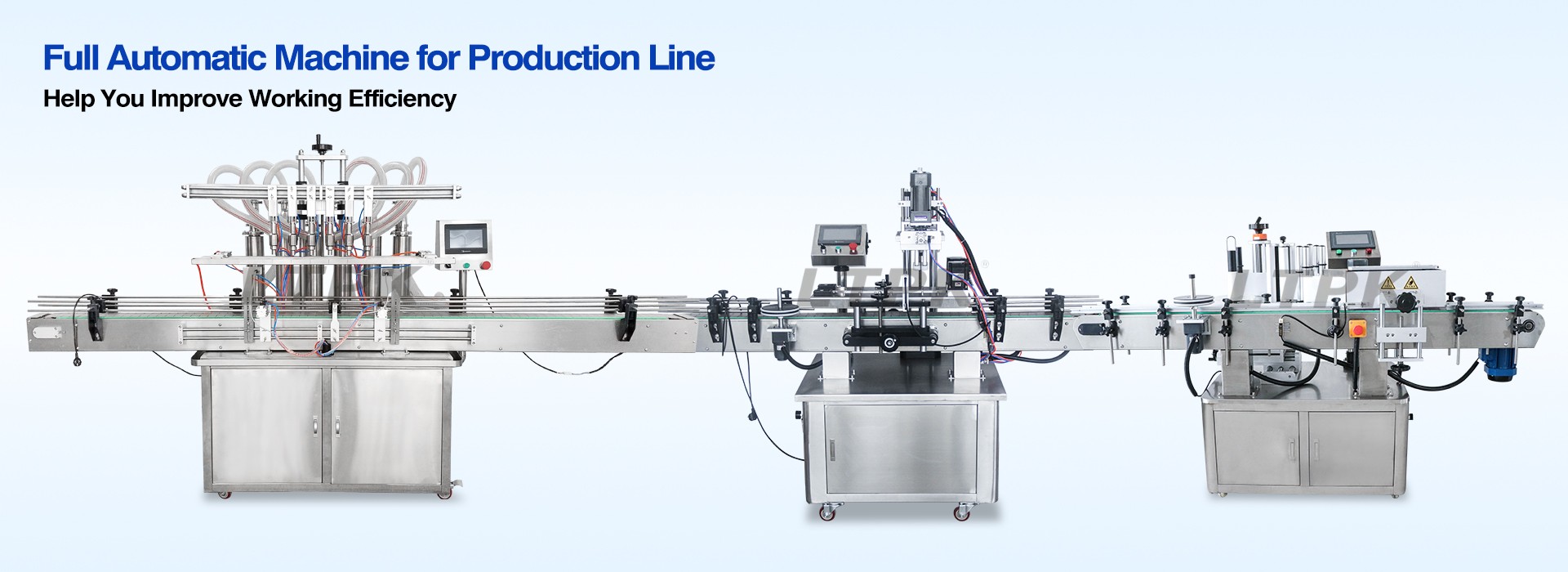

This round bottle 6 heads liquid filling capping and labeling machine production line can automatically arrange bottles,fill liquid and cap bottle,it helps to save production process and improve working efficiency.We can offer custom service for different kinds of materials,make these machines can match your material better. It is widely used in food,beverage,cosmetics and pharmaceutical industries.
Technical Parameters

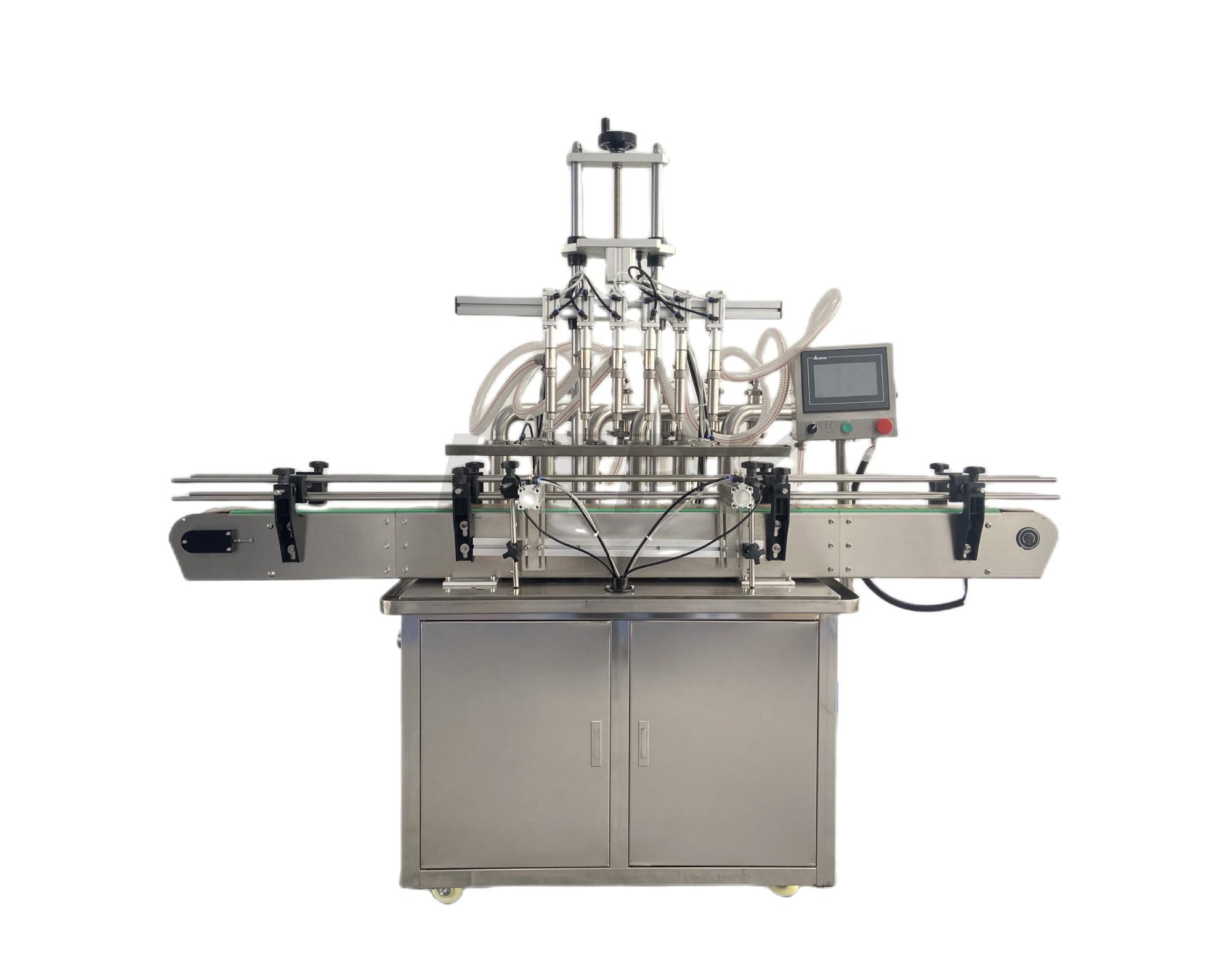

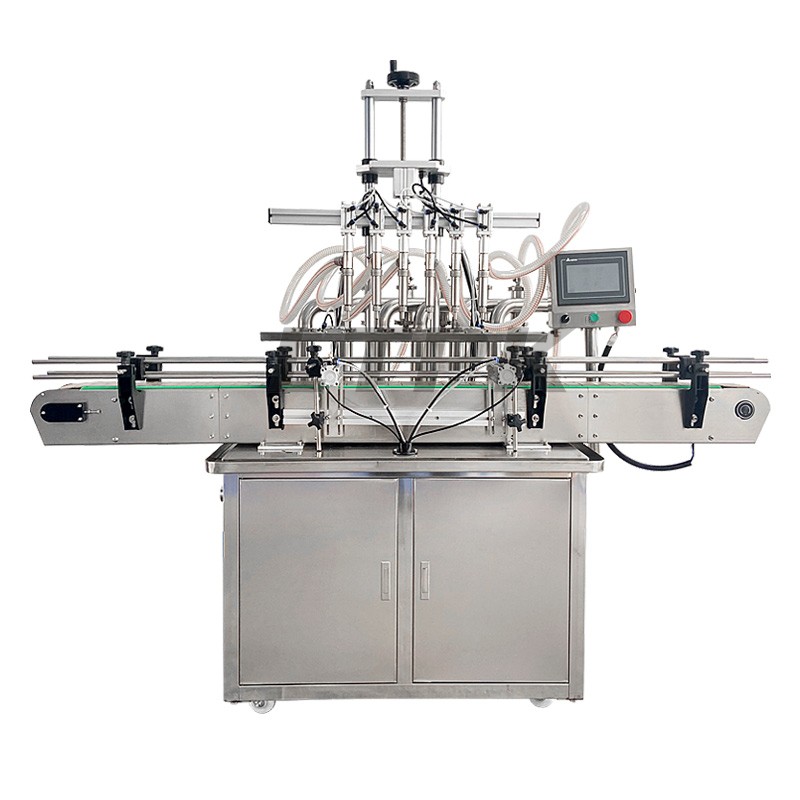

Filling machine
Model:LT-QZDY6
Voltage:110/220V 50-60HZ 800W
Filling Range:5-100ml/10-300m/50-500ml/100-1000ml/500-3000ml/1000-5000ml
Working Speed: 30-40bottles/min
Filling Accuracy:≤±1%
Air Pressure:0.5-0.7MPa
Size Of Air Compressor Connector:φ10mm
Conveyor length :2050mm(standard ) / 3050mm(wider version)
Conveyor material:Plastic(standard) / stainless steel(custom version)
Machine weight:300kg
Machine size:3200x860x1460mm

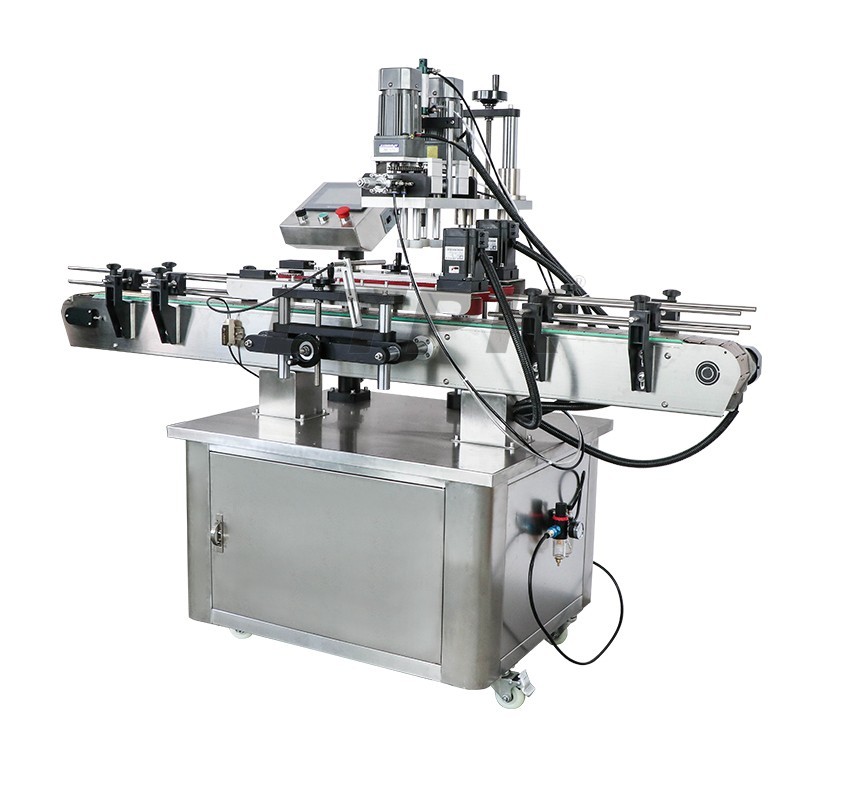

Capping machine
Bottle Height 50-350mm
Bottle Caps Diameter 20-50mm
Working Speed 0-40 bottles/minute (depending on bottle and caps)
Working Voltage AC220V/110V 50-60HZ 300W
Working Pressure 0.4-0.6 MPa
Capping Torsion 4-9kgf/cm
Packing Size 2100*470*1240mm

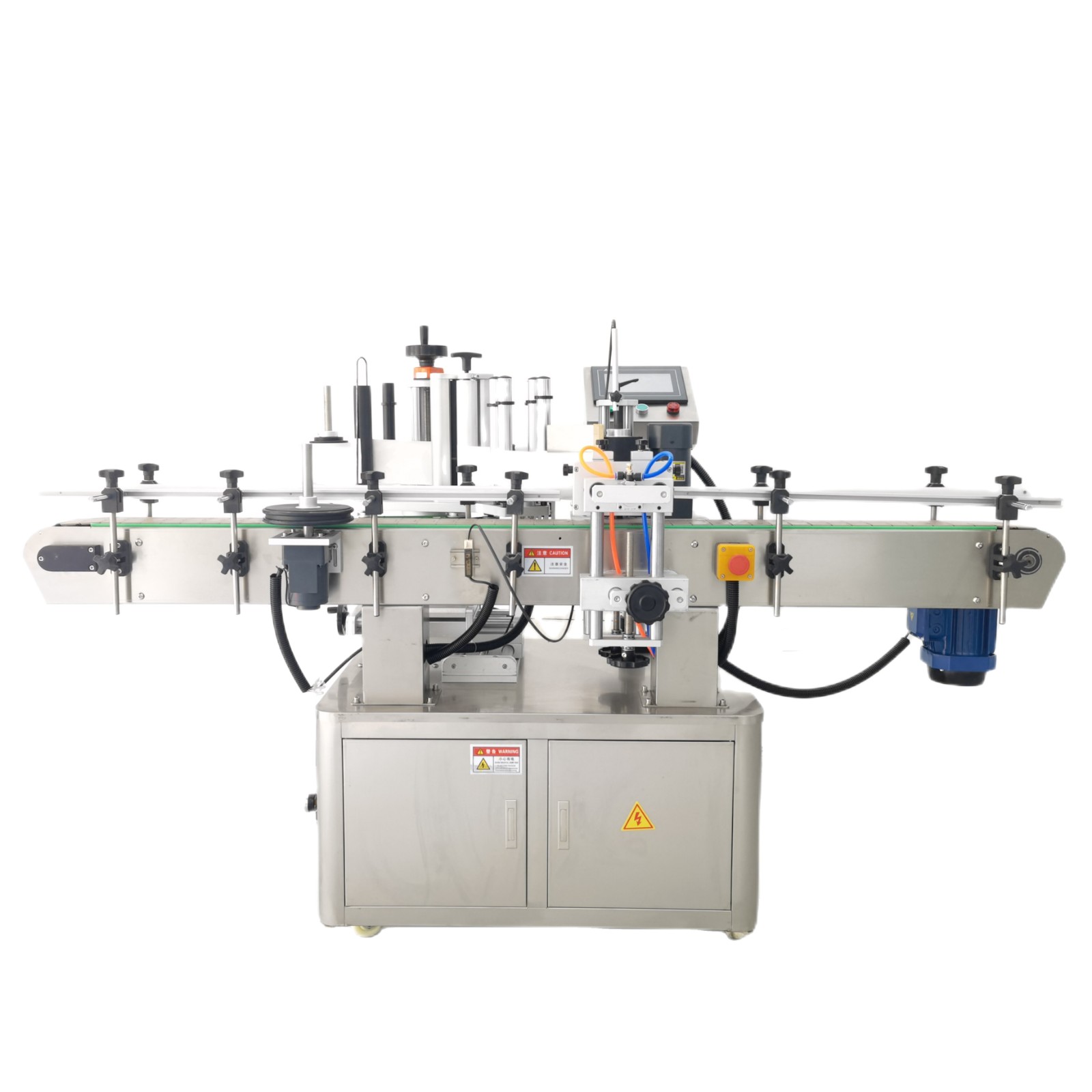

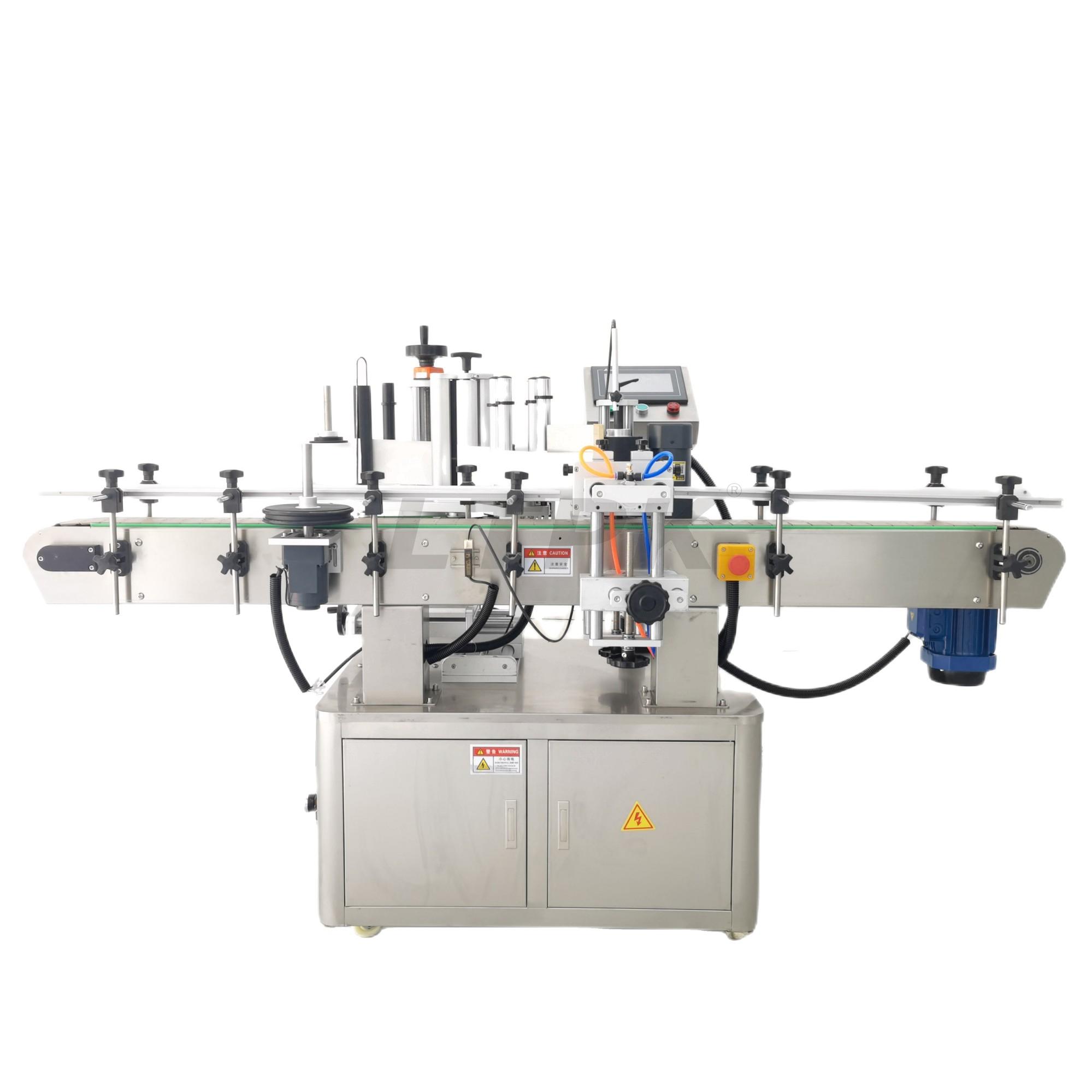

Labeling machine
Model ：LT-260
Power supply :AC220V 50Hz/60Hz 1500W
Labeling capacity :25- 50PCS /min(depends on bottle size)
Labeling accuracy :±1.0mm
Suitable Botle Diameter :φ30-100mm
Label size :(L)15-200mm (H)15-150mm
Roll inside diameter :φ76mm
Roll outside diameter:φ350mm
Conveyor Size :1950(L)*100mm(W)
Machine size :(L)2000*(W)1400*(H)1300(mm)
Packing Size:2120*940*1500mm
