LTPK LT-DFC4 Automatic Tabletop Magnetic Pump Small Volume Bottle Skin Toner Massage Oil Liquid Filling Capping Machine

LTPK LT-DFC4 Automatic Tabletop Magnetic Pump Small Volume Bottle Skin Toner Massage Oil Liquid Filling Capping Machine

Product Item：LT-DFC4

Suitable bottle height 100-200mm

Suitable cap size 20-60mm

Diameter of filling nozzle 8mm

Filling accuracy ±0.5%

Category：Full automatic production Line

Description

Description：

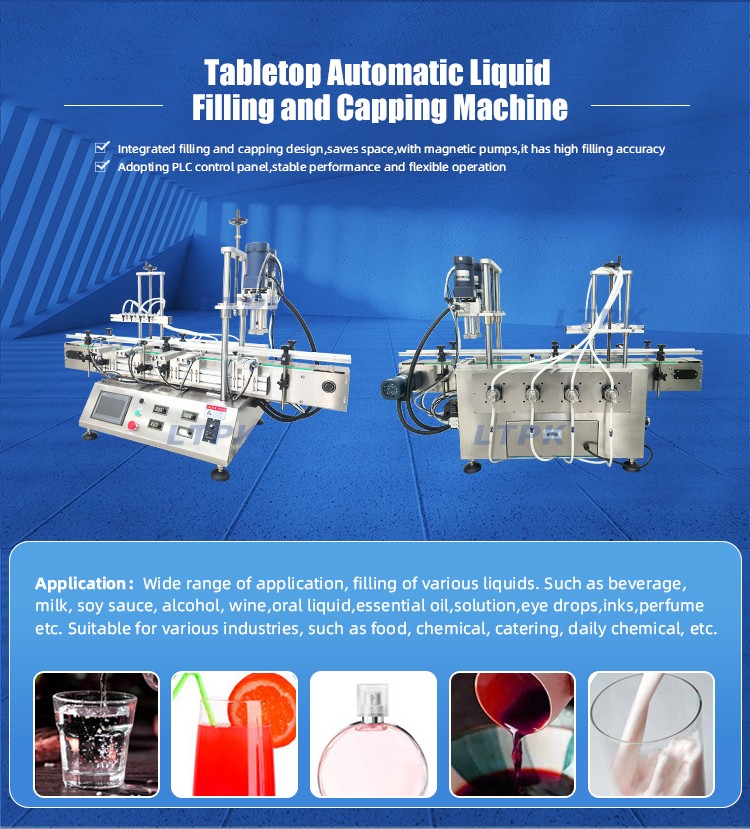

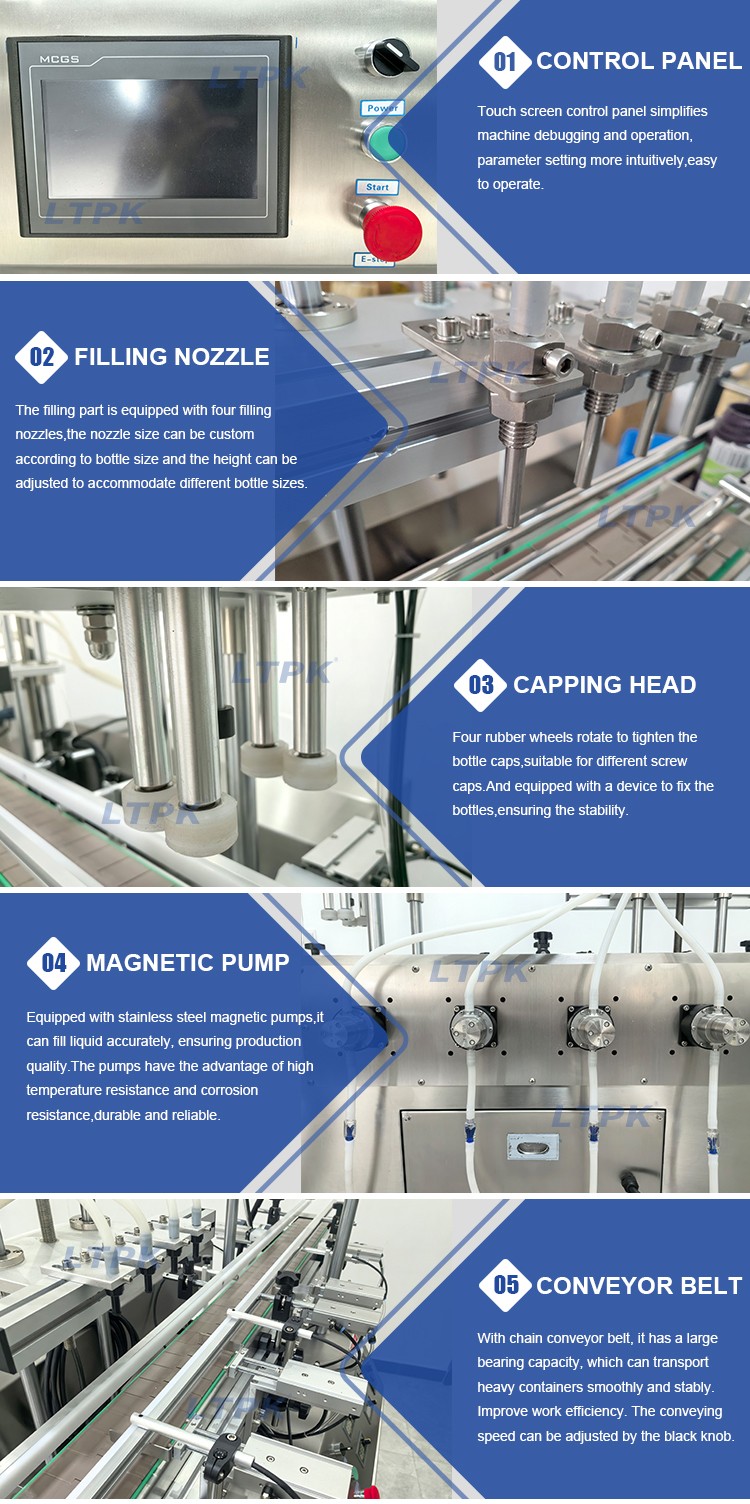

This machine adopt stainless steel magnetic pump,corrosion resistance,the machine combines the filling station and the capping station together to realize inline filling and capping work, compact machine body saves working space.It can work with tabletop labeling machine to realize automated packaging work.

Application:
Wide range of application, filling of various liquids. Such as beverage, milk, soy sauce, alcohol, wine,oral liquid,essential oil,solution,eye drops,inks,perfume etc. Suitable for various industries, such as food, chemical, catering, daily chemical, etc.

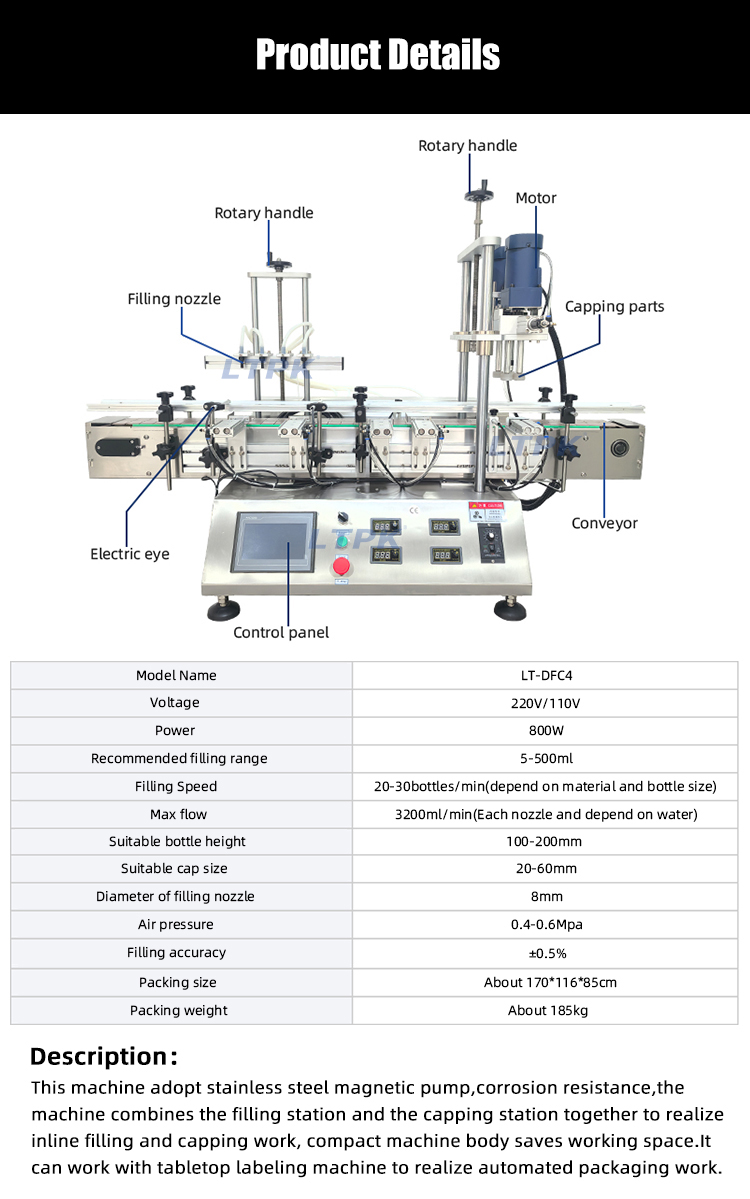

Technical parameters：

Model	LT-DFC4
Voltage	220V/110V
Power	800W
Recommended filling range	5-500ml
Filling Speed	20-30bottles/min(depend on material and bottle size)
Max flow	3200ml/min(Each nozzle and depend on water)
Suitable bottle height	100-200mm
Suitable cap size	20-60mm
Diameter of filling nozzle	8mm
Air pressure	0.4-0.6Mpa
Filling accuracy	±0.5%
Packing size	About 17011685cm
Packing weight	About 185kg
