Description
Description

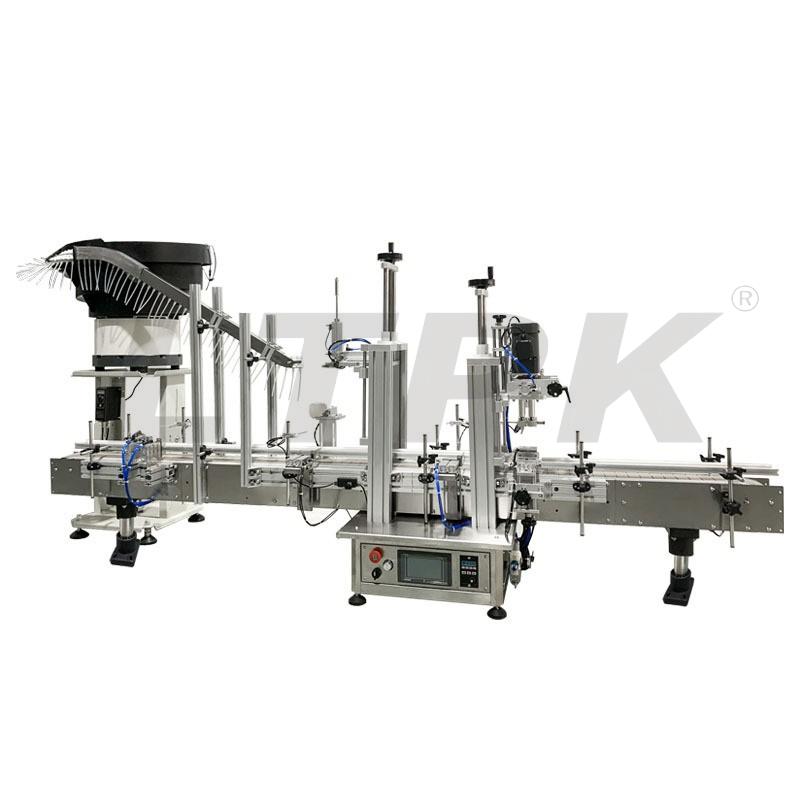

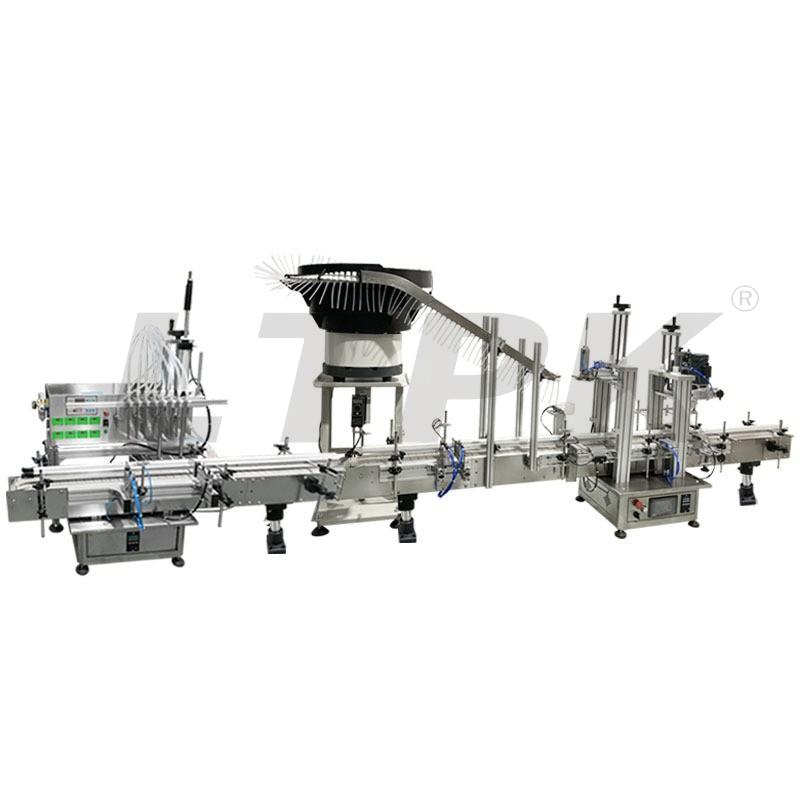

This full automatic production line can do automatic liquid filling, cap feeding, automatic cap pressing procedure,
and these machine can be applied to round and oval round bottle or container that usually be used on daily cleaning supplies such as wine,juice,milk etc.

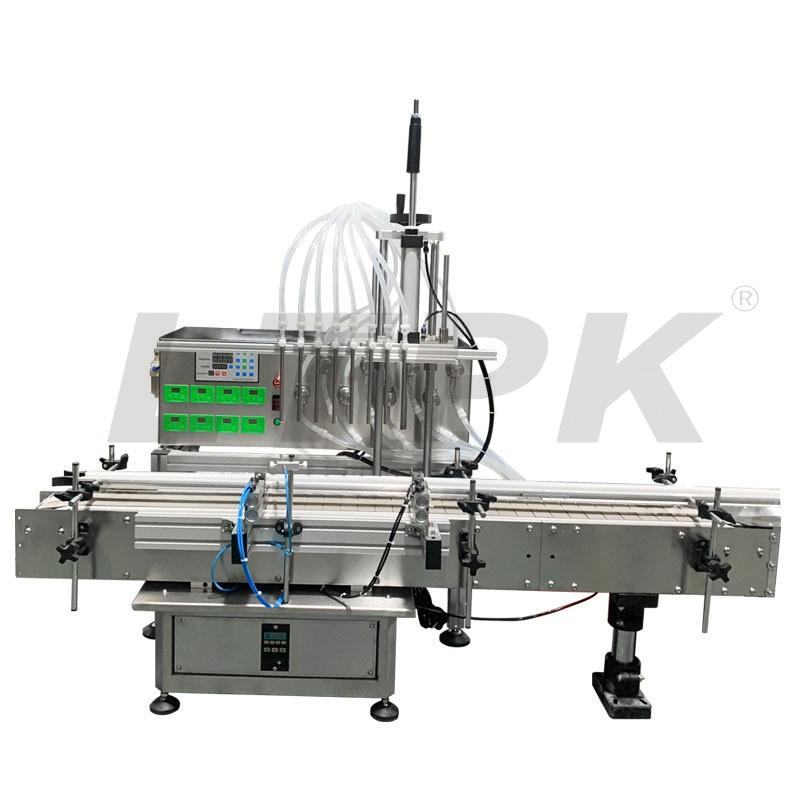

Filling Machine
Machine model LT-MPF4H
Power supply 110/220V 50-60HZ
Maximum flow velocity 5500ml/min (Each nozzle and base on water)
Working speed 20-30 bottles/min
Air pressure 0.3-0.4MPa
Filling accuracy ≤±1% (For water)
Diameter of filling nozzle 6/8mm
Delay range 0.01-999.9s
Count range 1-99999 Times
Filling volume 3-1000ml
Size of air compressor connector OD8mm
Bottle height ＜220mm(Can be customized,max height 300mm)
CappingMachine
Machine Model LT-CZJ60C
Working voltage AC220V/110V 50-60HZ
Bottle height 60-270mm
Bottle caps diameter customize(≤130mm)
Working speed 20-40 bottles/minute(depending on bottle and caps)
Working pressure 0.4-0.6 MPa
Size of Air Compressor Connector OD 8mm
Conveyor length 115mm(W)*1020mm(L)
Machine size 1020*580*1220mm
Machine weight 52kg
Package size 1130*600*1120mm
Package weight About 83.5kg
