Description
Description:

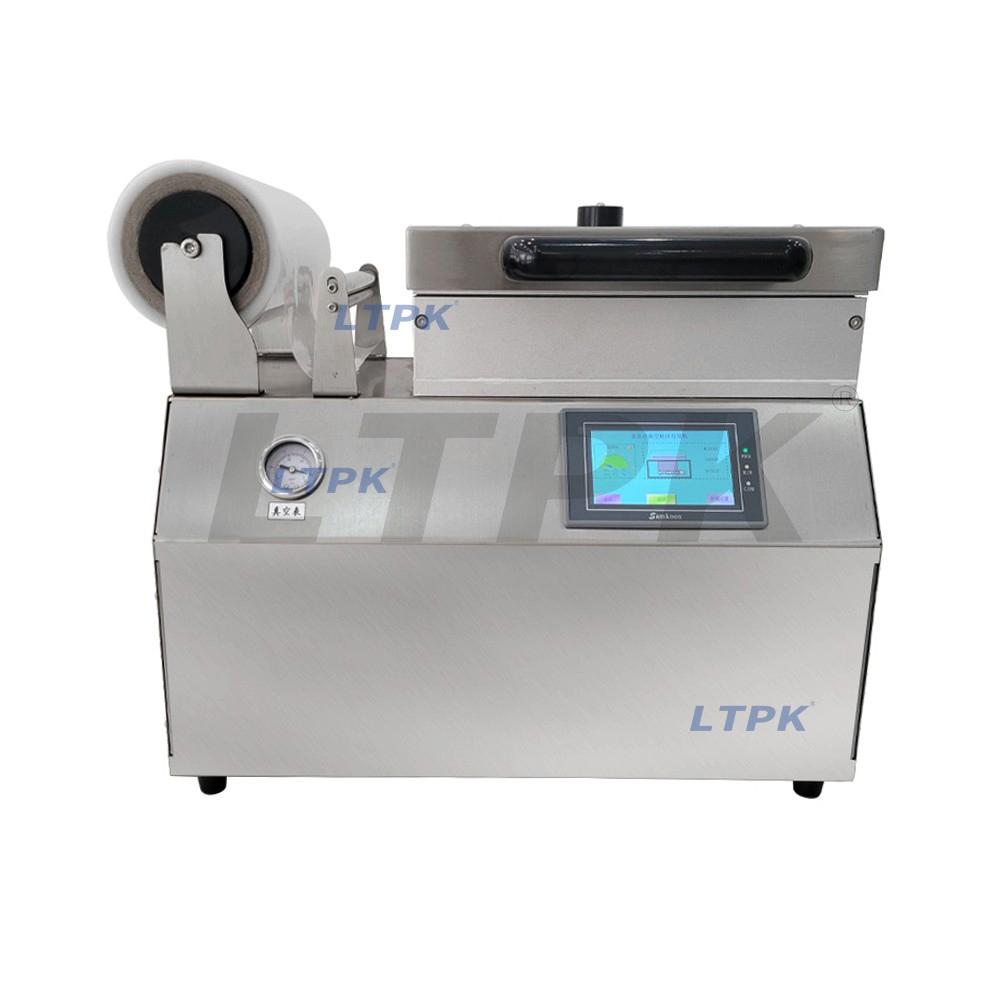

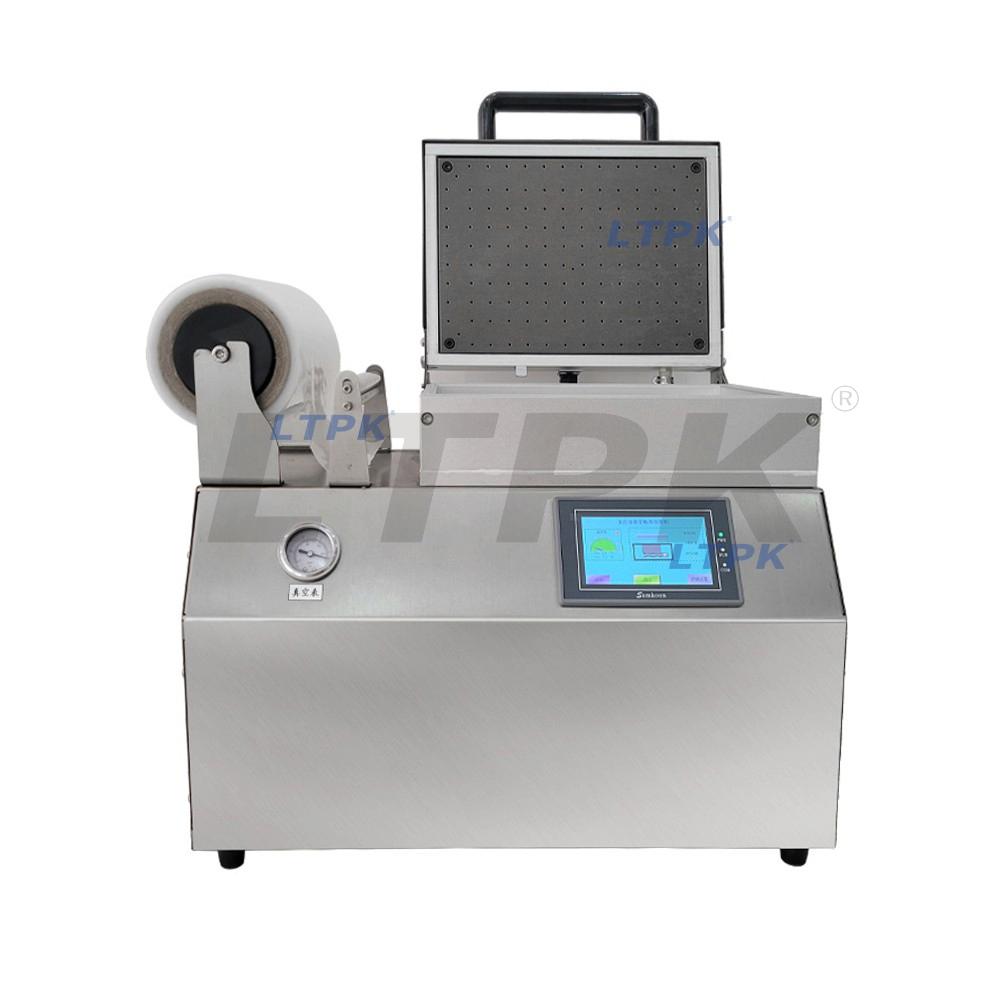

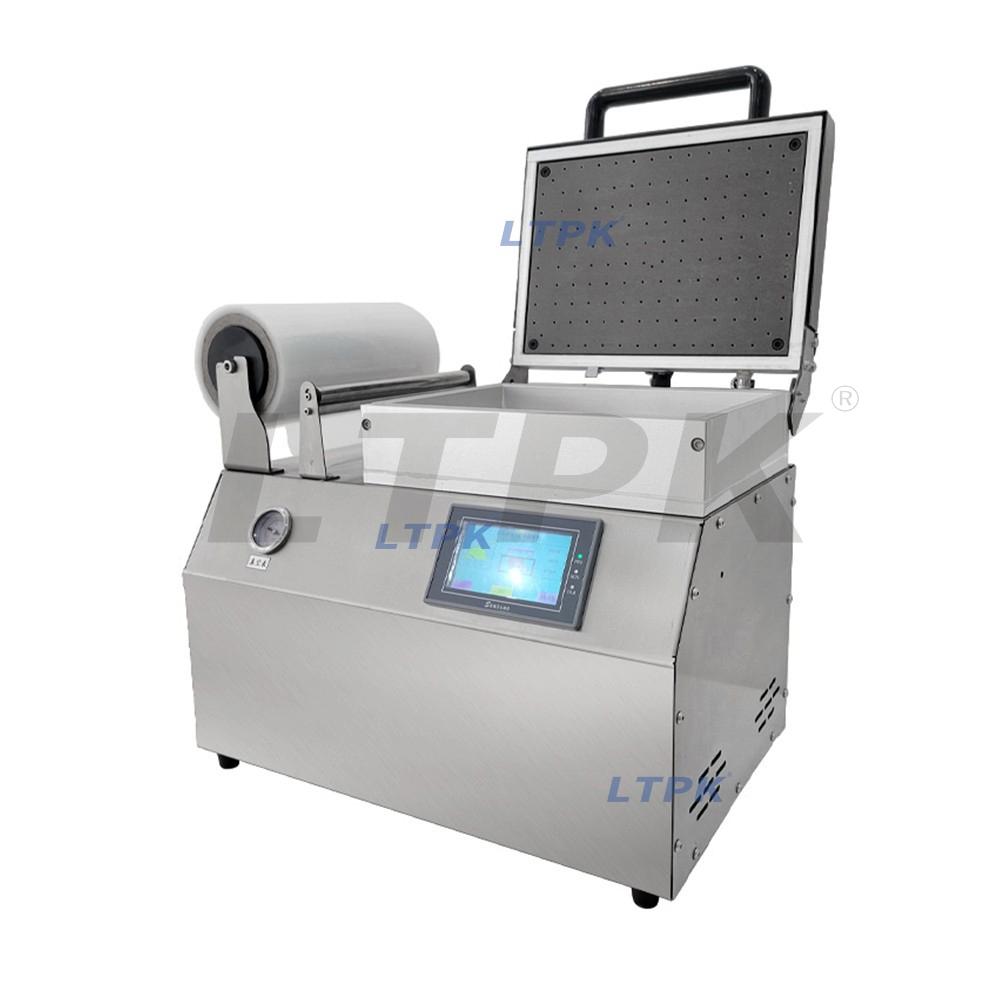

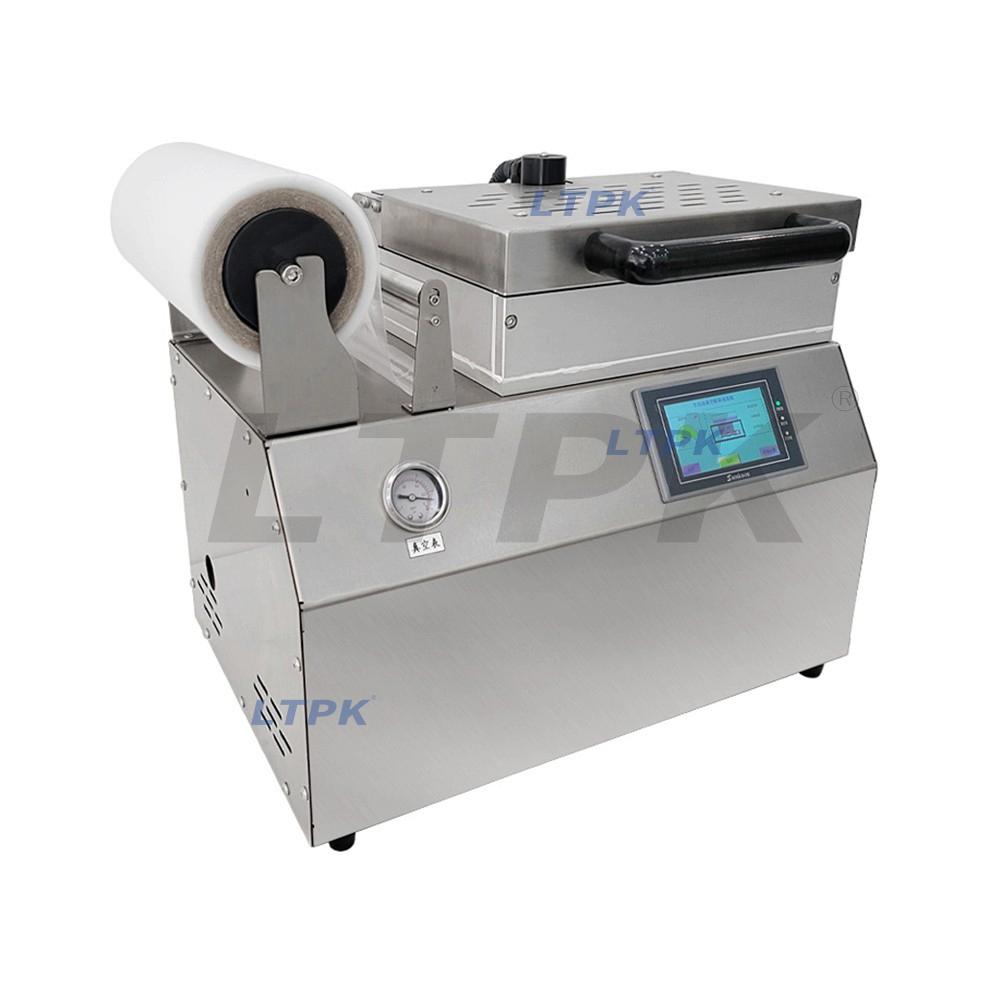

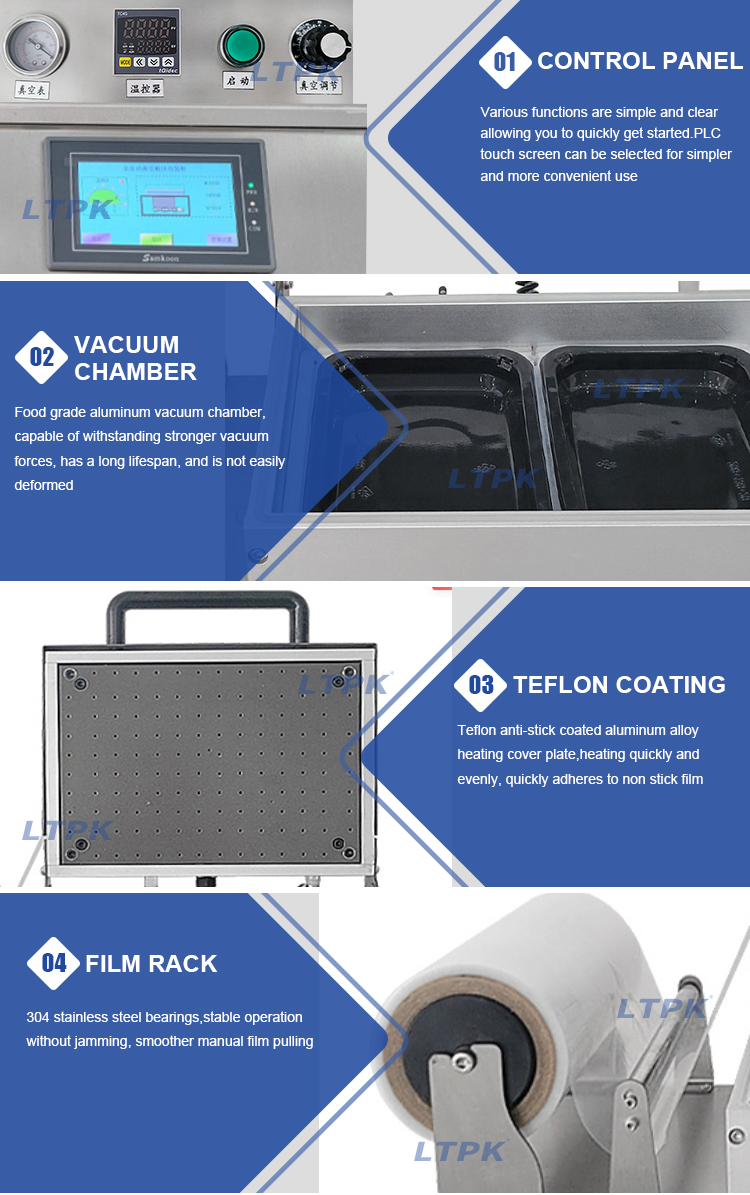

This equipment is a packaging machine specially designed for vacuum fitting of food boxes. It is mainly composed of chassis, film release mechanism (composed of film rack, film rolling roller and film walking roller), upper and lower vacuum chambers, molds, heating and temperature control system and electrical automatic control system.
Application:
This machine is widely used for fresh-keeping packaging of fresh meat,aquatic products,seafood,fruits, vegetables, snacks, toys and other foods.

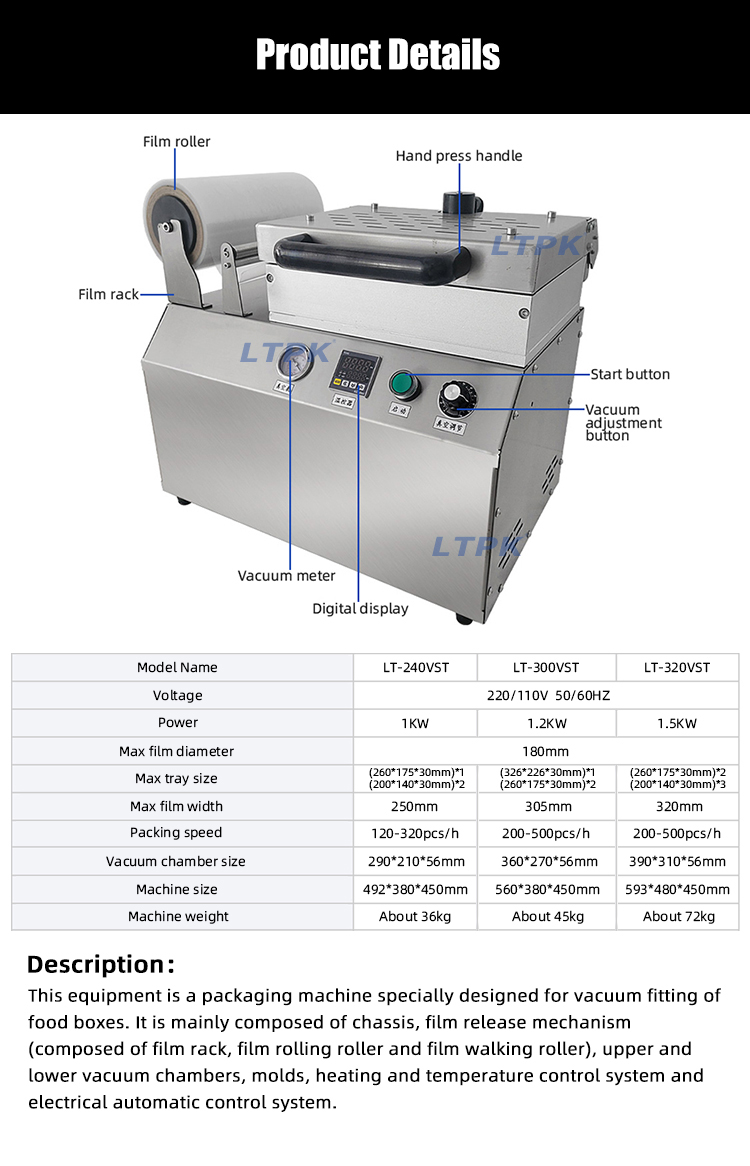

Model | LT-240VST | LT-300VST | LT-320VST |
Voltage | 220/110V 50/60HZ | ||
Power | 1KW | 1.2KW | 1.5KW |
Max film diameter | 180mm | ||
Max tray size | (260*175*30mm)*1 (200*140*30mm)*2 | (326*226*30mm)*1 (260*175*30mm)*2 | (260*175*30mm)*2 (200*140*30mm)*3 |
Max film width | 250mm | 305mm | 320mm |
Packing speed | 120-320pcs/h | 200-500pcs/h | 200-500pcs/h |
Vacuum chamber size | 290*210*56mm | 360*270*56mm | 390*310*56mm |
Machine size | 492*380*450mm | 560*380*450mm | 593*480*450mm |
Machine weight | About 36kg | About 45kg | About 72kg |
