Description

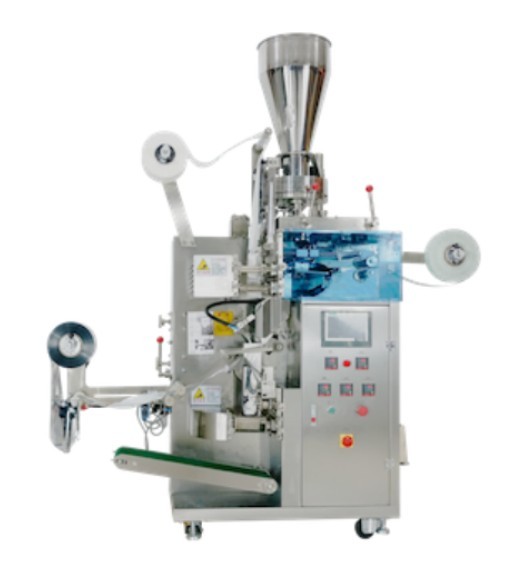

LT-YS169 New Generation Tea bag packing machine with outer envelope

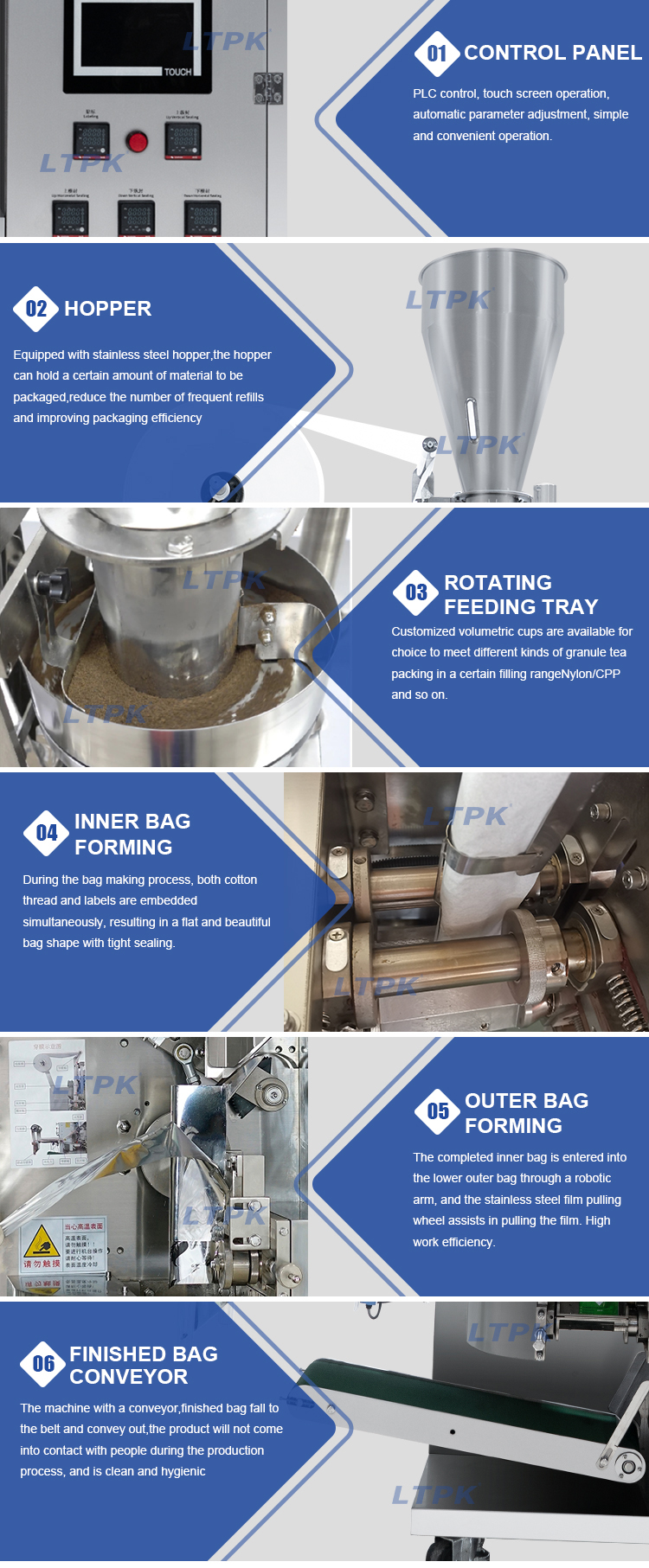

Characteristic
1、The machine is suitable for the non-returnable packaging of the inner and outer bag of small particulate materials such as: tea, herbal tea, health tea grass-root type and so on.
2、Inner and outer bag's film drawing is controlled by the stepper motor, stable bag length and accurate positioning.
3、The temperature controller is adjusted by PID to make the temperature control more accurate.
4、Overall machine movement is controlled by PLC, with human-machine interface display, ensure health of products
5、Packing material：filter paper, thread, composite membrane and labels.
Sealing Type:Three Side Sealing

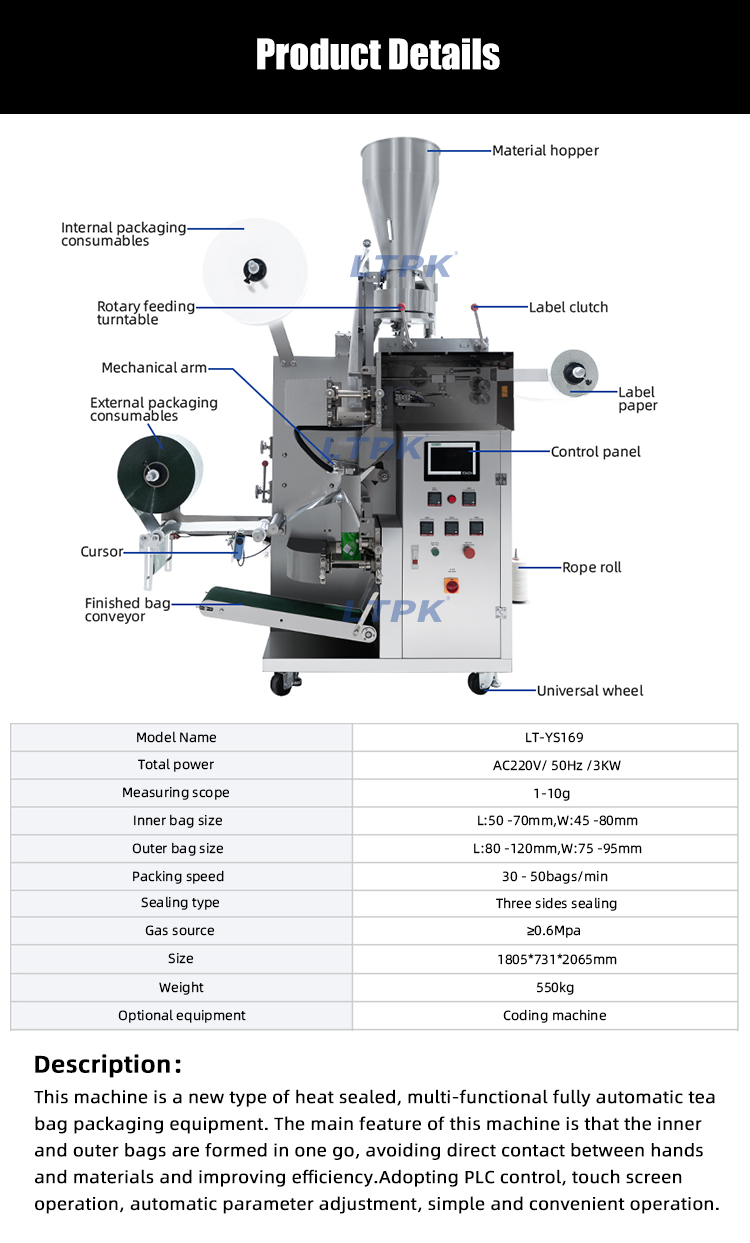

Technical Parameters
Measuring Scope：3 - 10 g（ 1.6 ~ 26 ml ）
Inner bag size：长 ( L ) ：50 - 70 mm 宽 ( W ) ：45 - 80 mm
Outer bag size：长 ( L ) ：80 - 120mm 宽 ( W ) ：75 - 95 mm
Packing Speed：30-40 bags / min
Dimension ( L*W*H )：1750*740*1950mm
Weight：550 kg
Total Power：AC220V/ 50Hz /3.7kw
Gas source：≥0.4m³/min
Optional Equipments
Coding machine
