Description

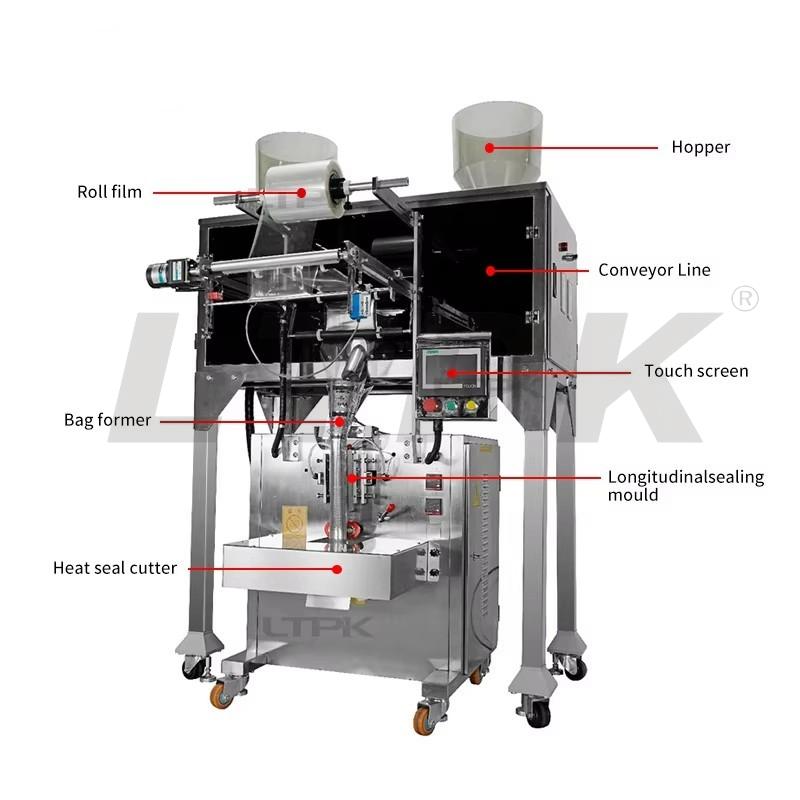

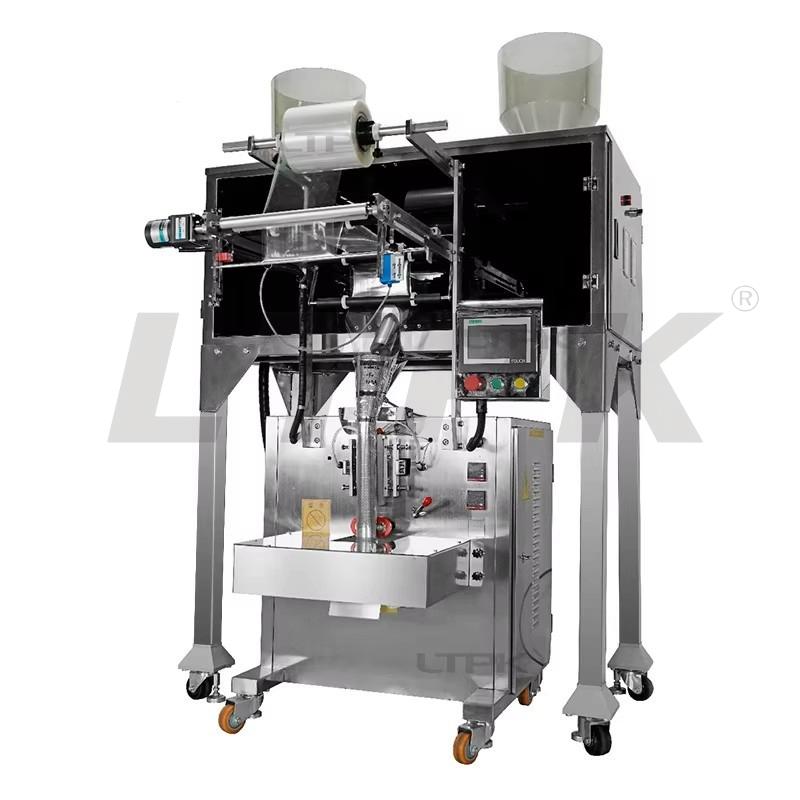

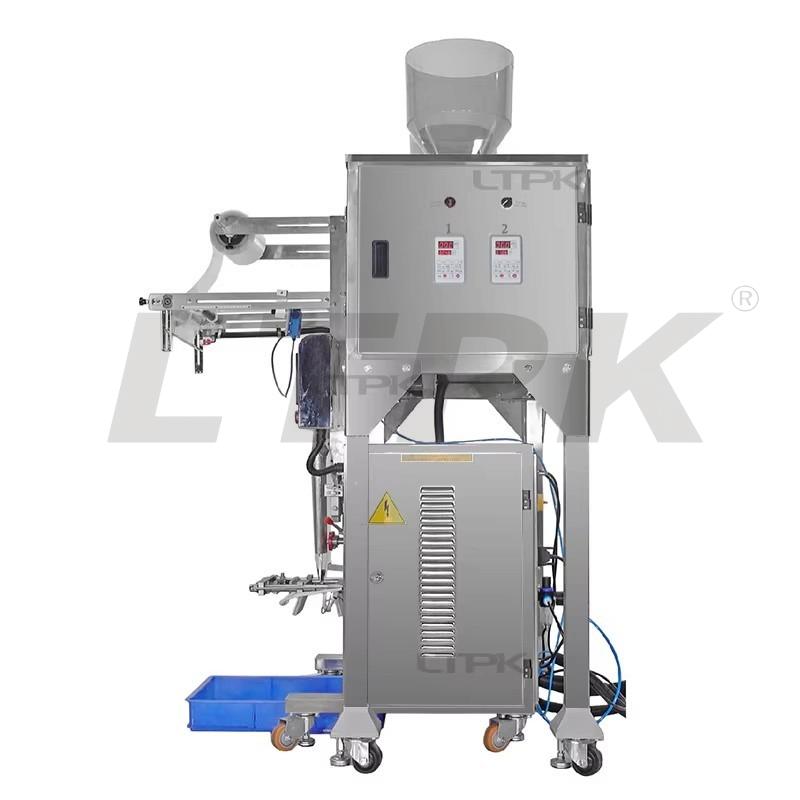

YS-60II02-06 New Ver Tea packing machine(Electronic scale)
YS-60II02-06 新一代 茶叶包装机(电子称)
特 点 Characteristic
1、食品、医药、化工等产品中的颗粒状、短条状、片状固形物如：膨化食品、虾条、花生、爆米花、麦片、瓜子、白糖等多种物料。
The machine is suitable for food,medicine,chemical products of granule,short strip,flake solid type such as: puffed food,shrimp,peanut,opcorn,oatmeal melon seeds,sugar and various material.
2、可自动完成制袋、计量、下料、封合、分切、计数、且可根据客户要求配置打印批号等功能。
All the works of bag making,measuring,filling,sealing,cutting,and counting can be done automatically,at the same time,it can also according to the demand of customers printing batch number and other functions.
3、触摸屏操作，PLC 控制，驱动步进电机控制袋长，性能稳定、调整方便、检测准确。
The touch screen operation, PLC control, drive stepper motor to control the bag length,stable
performance,easy to adjust and accurate detection.
4、包装材料：复合膜。
Packaging materials：composite film.
封口方式 Sealing Type
三边封口three sides sealing
背封封口back sealing
技术参数
Technical Parameters
计量范围：1- 100g
Measuring Scope
包装速度：20 - 80 bags/min
Packing Speed
制袋尺寸： 宽( W ) : 30 - 130 mm
Bag Size： 长( L ) : 30 - 170 mm
整机重量：250 kg
Weight
总 功 率：220V/ 50Hz /1.5kw
Total Power
外型尺寸：1284*1387*2099 mm
Dimension ( L*W*H )
气 源：≥ 0.6Mpa
Gas source
