Description
Product Description
Automatic ultrasonic filling sealing machine is high-performance liquid and paste filling sealing machine. The machine adopts a series of functions such as automatic tube feeding, hose color code detection, filling, tail sealing, cutting, and automatic output of finished products.
Product Advantage
1. Fully servo motor, stable machine operation
2. Servo gear pump metering, easy adjustment of filling range
3. Ultrasonic sealing, does not damage the hose, and the seal is firm.
4. Automatic tail cutting, good packaging effect
5. The machine body structure is compact and occupies small area.
2. Servo gear pump metering, easy adjustment of filling range
3. Ultrasonic sealing, does not damage the hose, and the seal is firm.
4. Automatic tail cutting, good packaging effect
5. The machine body structure is compact and occupies small area.
Product Application
Fluid filling sealing of various plastic hoses or aluminum-plastic hoses in the food, cosmetics, chemical and other industries.
Equipment name

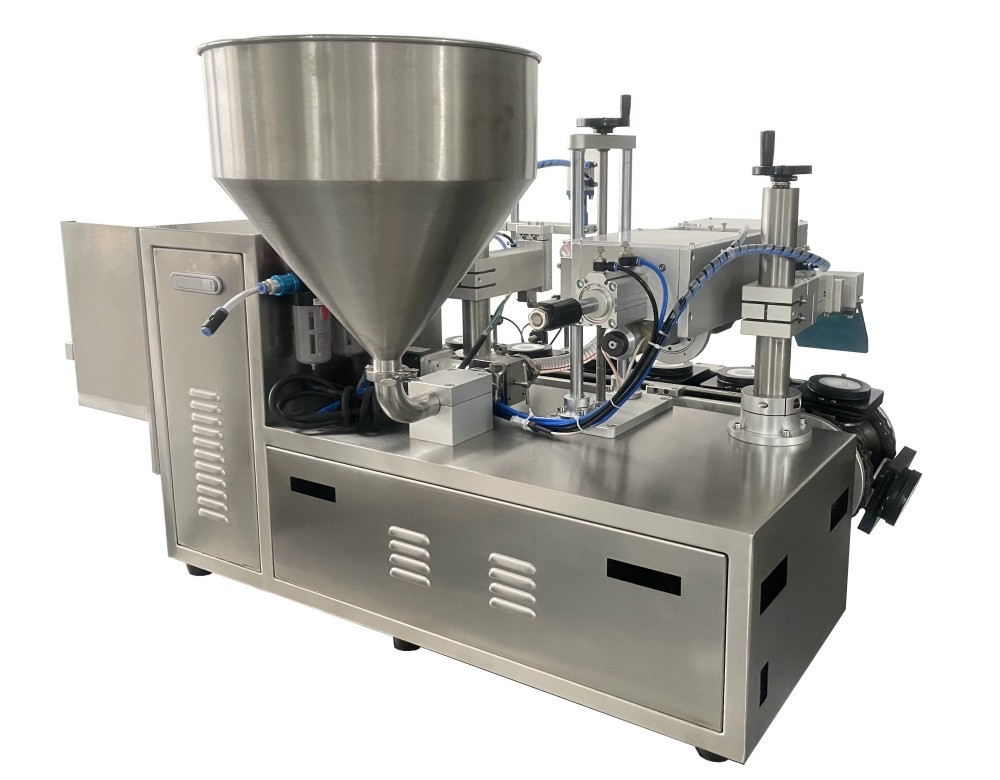

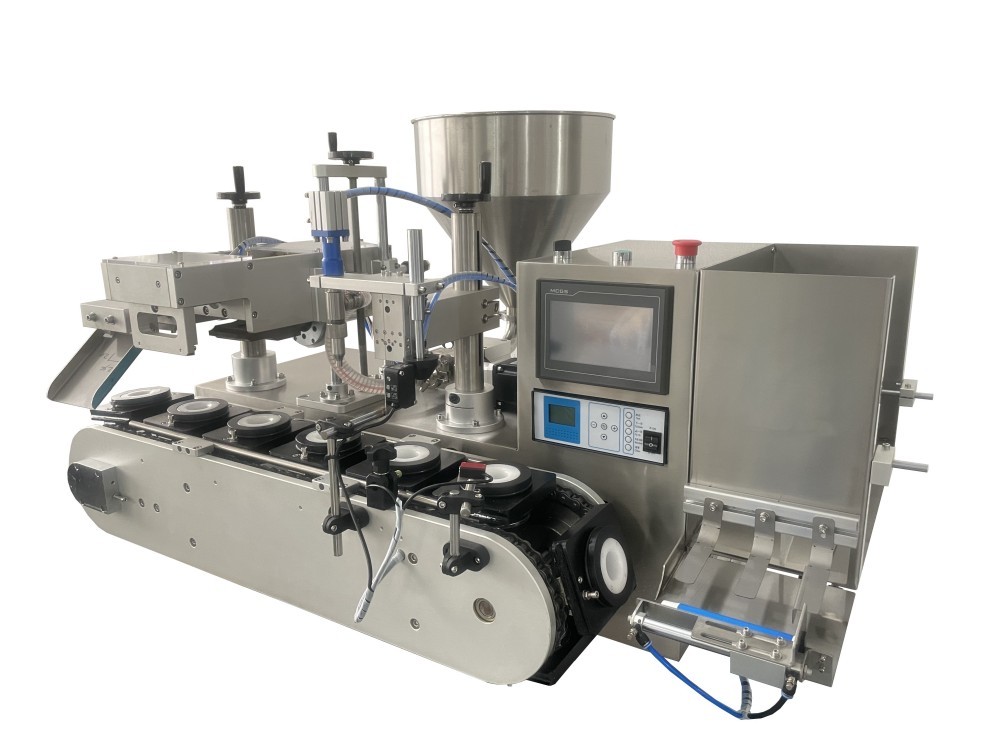

Desktop Linear Automatic Ultrasonic Filling Sealing Machine
Mode:LT-580T
Voltage:220V 50hz/60hz
Power :2600W
Filling pump type:Servo gear pump
Filling range:5-100ML
Filling accuracy:±1%
Hopper volume:30L
Hose diameter range:15-50mm
Hose height range:70-200mm
Working speed:15-23pcs/min
Ultrasonic frequency:20KHZ
Air Pressure:0.6Mpa
Size:1270*933*1823mm
Weight:350KG
