LTPK LT-DPF2H DESKTOP 2 HEADS DIAPHRAGM PUMP LIQUID FILLING MACHINE

Home Products Filling Machines Small Automatic Filling Machine LTPK LT-DPF2H DESKTOP 2 HEADS DIAPHRAGM
LTPK LT-DPF2H DESKTOP 2 HEADS DIAPHRAGM PUMP LIQUID FILLING MACHINELTPK LT-DPF2H DESKTOP 2 HEADS DIAPHRAGM PUMP LIQUID FILLING MACHINELTPK LT-DPF2H DESKTOP 2 HEADS DIAPHRAGM PUMP LIQUID FILLING MACHINELTPK LT-DPF2H DESKTOP 2 HEADS DIAPHRAGM PUMP LIQUID FILLING MACHINE

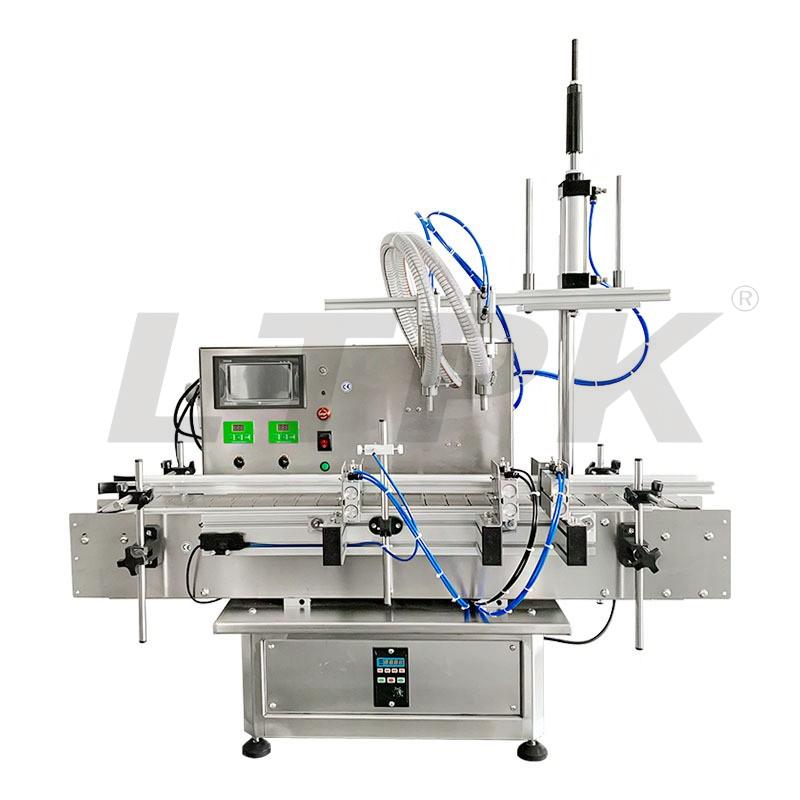

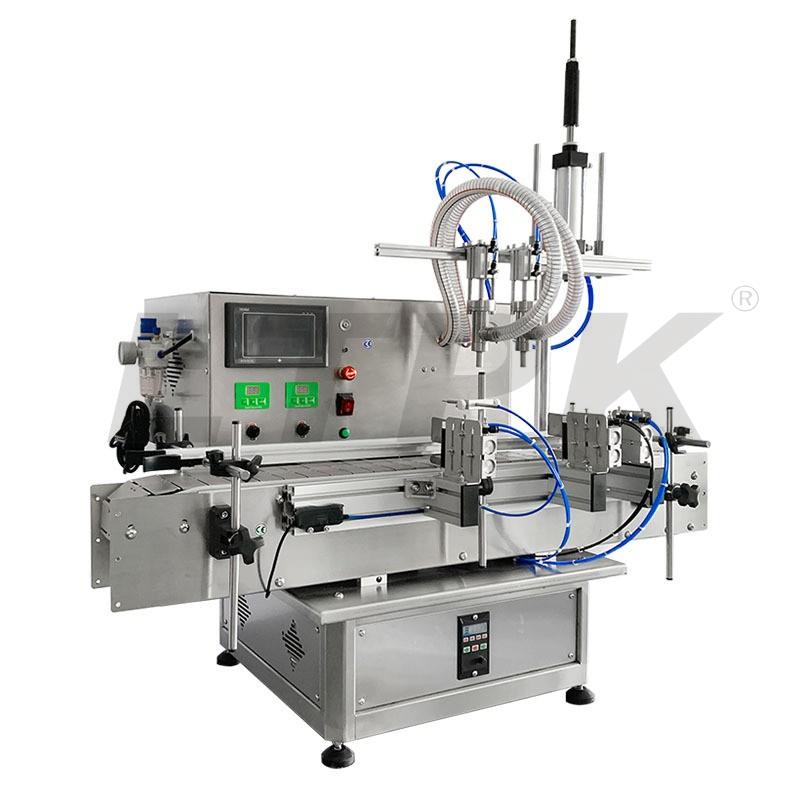

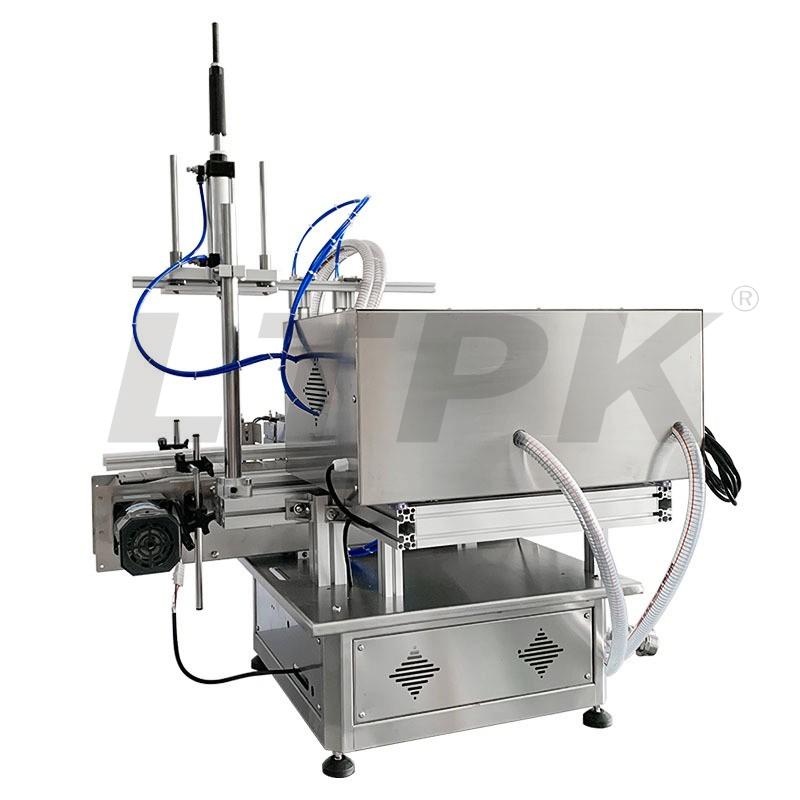

LTPK LT-DPF2H DESKTOP 2 HEADS DIAPHRAGM PUMP LIQUID FILLING MACHINE

  • Product Item:LT-DPF2H
  • Voltage 110/220V 50-60HZ
  • Power 500W*2
  • Air pressure 0.3-0.4MPa
  • Filling accuracy ≤±1% (For water)
  • Category:Small Automatic Filling Machine
  • Inquiry Send Email

    Description


    Description

    This desktop automatic filling machine is suitable for filling liquid like juice, perfume, milk. Equipped with two pneumatic filling heads, it can also be used for thicker liquid like gel, shampoo, etc. With chain conveyor, it can transport heavy containers smoothly and stably. The machine can be widely used in pharmaceutical, cosmetic, catering, daily chemical industries. Help to improve work efficiency.

    Notice

    This machine can be used with desktop automatic capping machine and labeling machine, realizing automatic production. If you need, please contact us. Thank you!

    Technical Parameters
    Machine model
    LT-DPF2H
    Voltage
    110/220V 50-60HZ
    Power
    500W*2
    Maximum flow velocity
    20000ml/min(Each nozzle and base on water)
    Working speed
    20-25 bottles/min * 2 (depends on bottle size and liquid)
    Air pressure
    0.3-0.4MPa
    Filling accuracy
    ≤±1% (For water)
    Bottle height
    <220mm(Can be customized,max height 300mm)
    Diameter of filling nozzle
    10mm
    Conveyor size
    1130mm*115mm(L*W)
    Size of air compressor connector
    OD 8mm
    Machine size
    About 1130*710*1070mm
    Package size
    About 1150*730*830mm
    Net weight/Gross weight
    About 74kg/103.5kg
    Product Details
    Simple operation panel,the filling time and speed can be controlled accurately and simply.It is designed with an emergency stop
    button, which can avert or reduce hazards that could damage machinery.

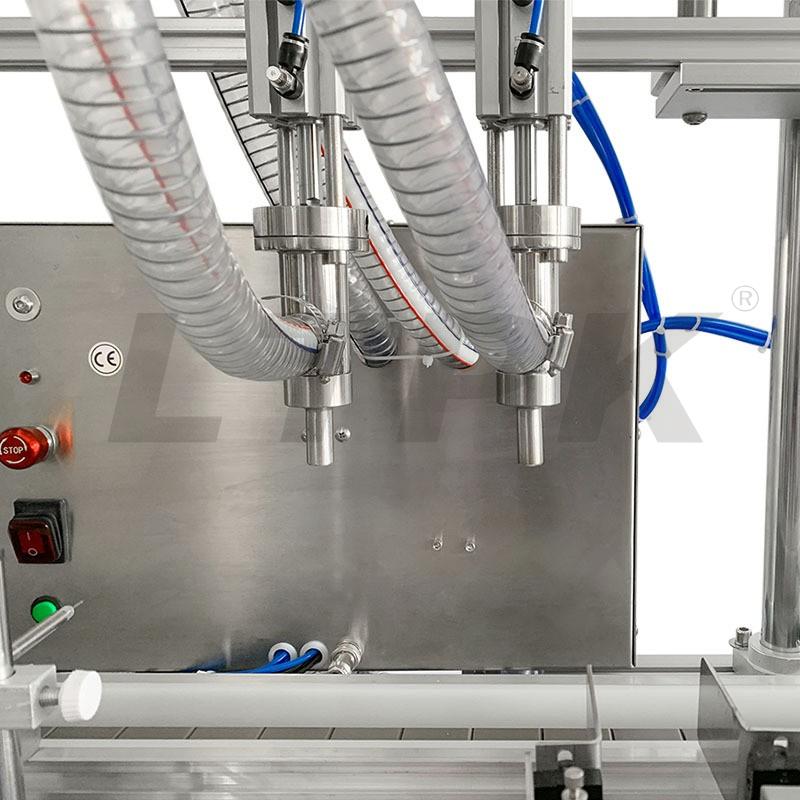

    Each pneumatic filling nozzle can be controlled separately,the greater power of filling nozzle makes it can fill thicker liquid faster and the filling material will not drip from the filling hose.Ensure the filling accuracy and product cleanliness.
    The electric eye is used to detect bottles when they pass by,this ensure the machine can automated production and filling
    accuracy.
    The chain conveyor has larger weight capacity which is good for transport heavier products. Compared with belt conveyor,it is more
    suitable for large volume products.The conveyor speed can be controlled separately by the below operation panel.

    Larger filling hose and filter,ensure the liquid can be pumped smoothly,improve working efficiency.
