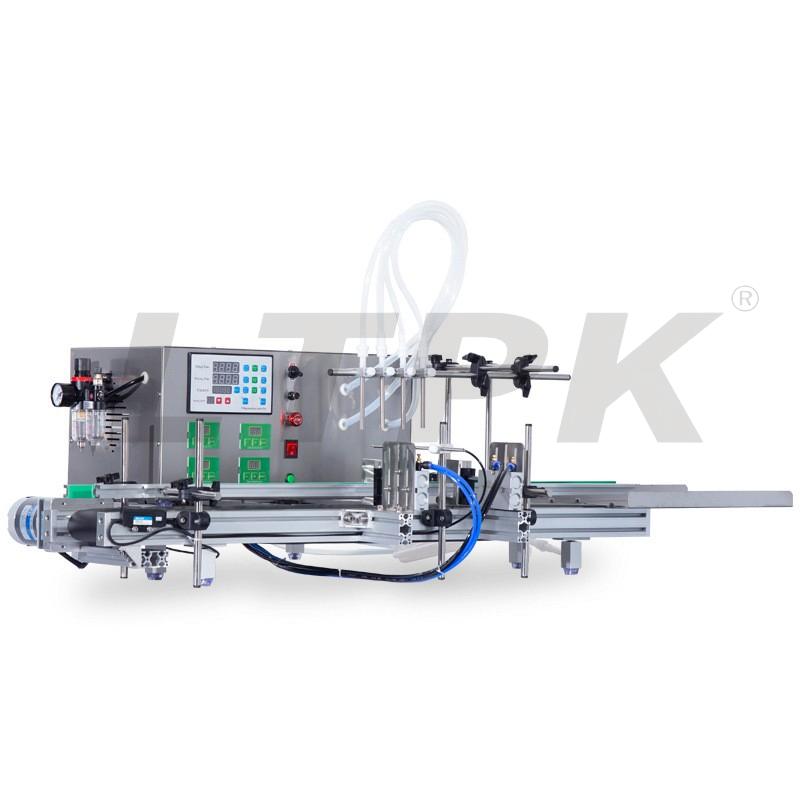

LTPK LT-DPF4HP DESKTOP CNC DIAPHRAGM PUMP LIQUID FILLING MACHINE WITH CONVEYOR

Home Products Filling Machines Small Automatic Filling Machine LTPK LT-DPF4HP DESKTOP CNC DIAPHRAGM PUM
LTPK LT-DPF4HP DESKTOP CNC DIAPHRAGM PUMP LIQUID FILLING MACHINE WITH CONVEYORLTPK LT-DPF4HP DESKTOP CNC DIAPHRAGM PUMP LIQUID FILLING MACHINE WITH CONVEYORLTPK LT-DPF4HP DESKTOP CNC DIAPHRAGM PUMP LIQUID FILLING MACHINE WITH CONVEYORLTPK LT-DPF4HP DESKTOP CNC DIAPHRAGM PUMP LIQUID FILLING MACHINE WITH CONVEYOR

LTPK LT-DPF4HP DESKTOP CNC DIAPHRAGM PUMP LIQUID FILLING MACHINE WITH CONVEYOR

  • Product Item:LT-DPF4HP
  • Power 250W
  • Air pressure 0.3-0.4MPa
  • Diameter of filling nozzle 6/8mm
  • Delay Range 0.01-999.9s
  • Category:Small Automatic Filling Machine
  • Inquiry Send Email

    Description

    Feature:



    1.This machine is with a conveyor,it can fill the liquid automatically and stop to work because of the  infrared sensor.The working seed of the conveyor is adjustable,what you need to do is just placing bottles
    2.It has the advantages of smooth bottom bottle, uniform filling speed, accurate metering, simple operation and high-speed dispensing.
    3. All components of the device are high-quality, the machine body is all stainless steel, the model is small, and with reasonable design.It is economical and practical.
    4.This machine is easy to operate,and really convenient for short run production.It will not work if there is no bottles because of the  infrared sensor.It fills accurately and can be quantitative filling
    5.It can be used for production line.You can  customize multiple nozzles according to output
    6.Digital conrtol panel,and it can eliminate failure intelligently which help you save a lot of time.
    7.The machine is esy to operate and test,you don't need the professional technicist,which improves your working efficiency

    8.The machine is lightweight and saving space,which is suitable for short run production.


    Technical Parameters
    Power Supply Voltage
    110/220V 50-60HZ
    Power
    250W
    Maximum flow velocity
    4000ml/min(Each nozzle and base on water)
    Working speed
    1500-3000 bottles/hour(depends on bottle size and liquid)
    Air pressure
    0.3-0.4MPa
    Filling accuracy
    ≤+1% (For water)
    Diameter of filling nozzle
    6/8mm
    Delay Range
    0.01-999.9s
    Count Range
    1-99999 Times
    Package size
    About 1110*650*420mm
    Gross weight
    About 46.5kg
    Filling Volume
    3-1000ml(220V)3- 500ml(110V)since the power of 110v machine is not large, so we recommend 3-500ml for each nozzle
    Size of air compressor connector
    OD 8mm
    Bottle height
    <220mm(Can be customized,max height 300mm)
    Product Details
    Simple operation panel,can show the detailed setting parameter like the filling time and filling speed,these can be simply
    controlled according to production need during work.

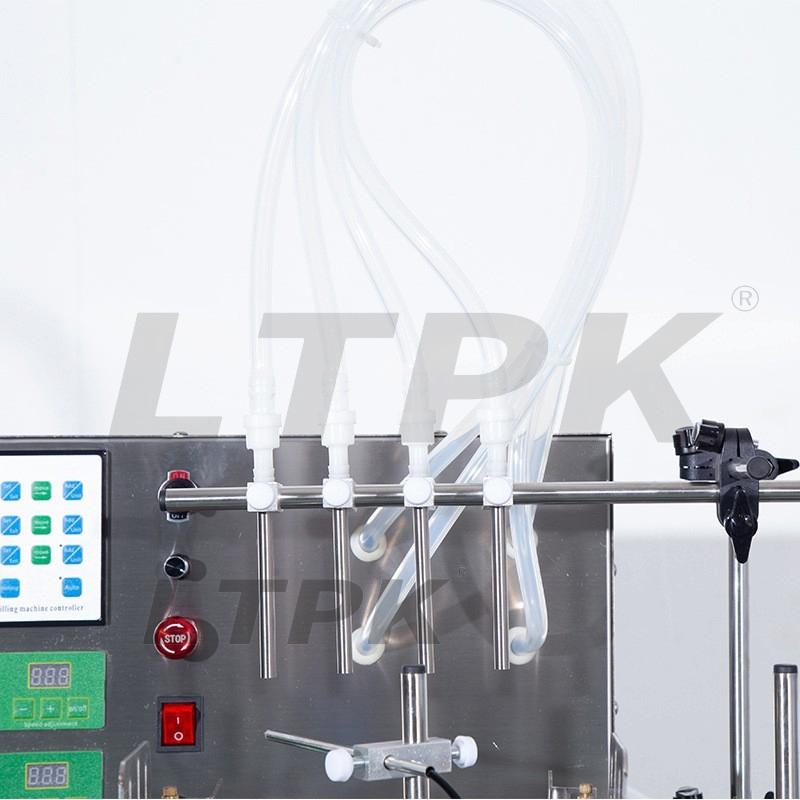

    This machine is designed with 4 filling nozzles,the filling speed and time of each nozzle can be controlled separately We can
    customize 6 filling nozzle of this machine to achieve efficient production if you need this please contact us.

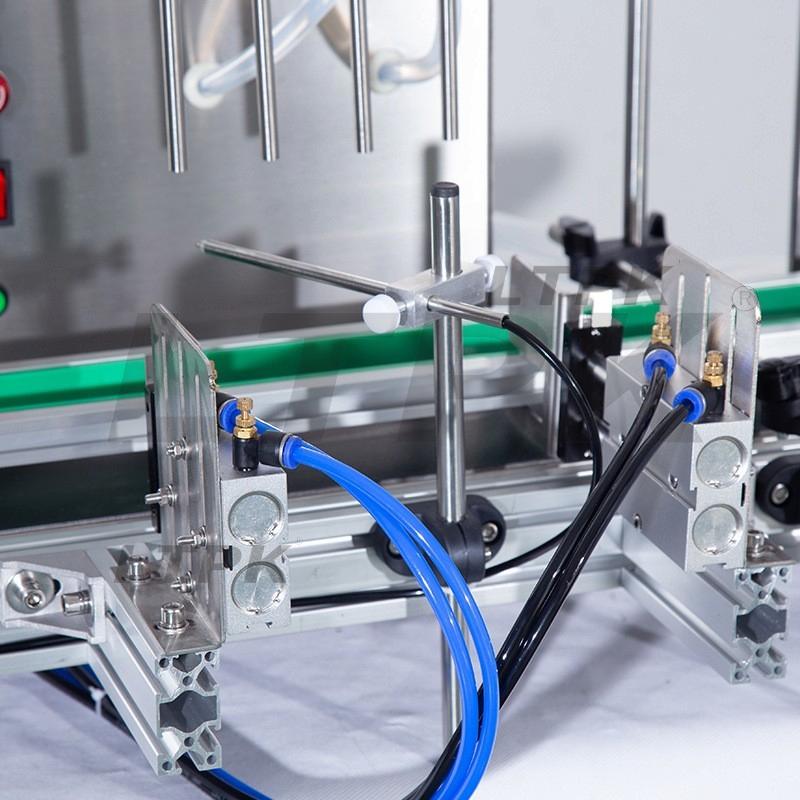

    The electric eye will detect passing by containers and send the signal to the system which will control the machine to fill liquid,and achieve automated production.This can reduce the production error.

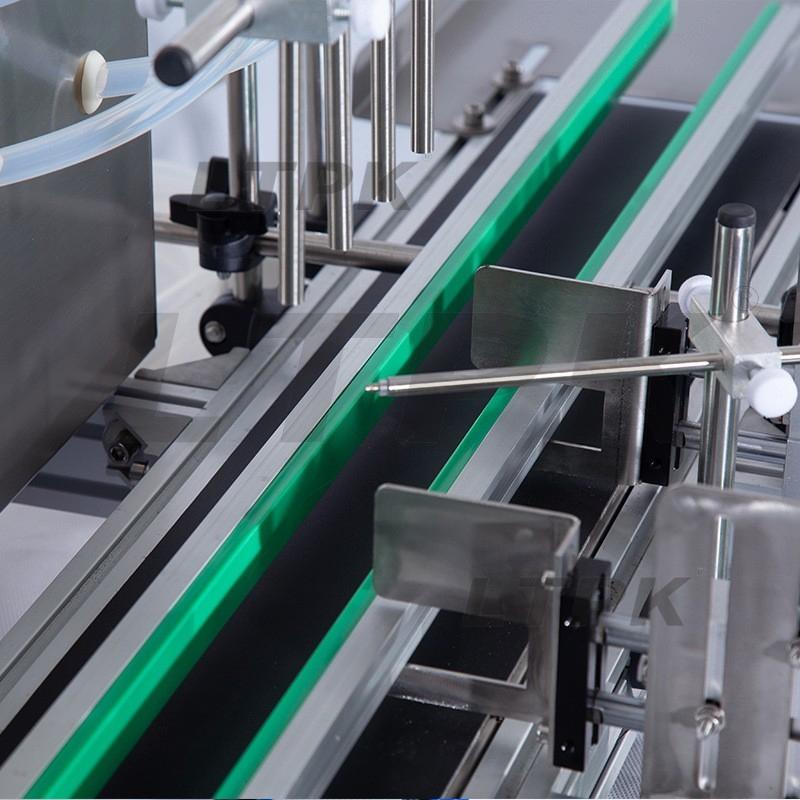

    The chain conveyor has larger weight capacity which is good for transport heavier products.Compared with belt conveyor,it is more suitable for large volume products.The conveyor speed can be controlled separately by the below operation panel.
