Description
Description：

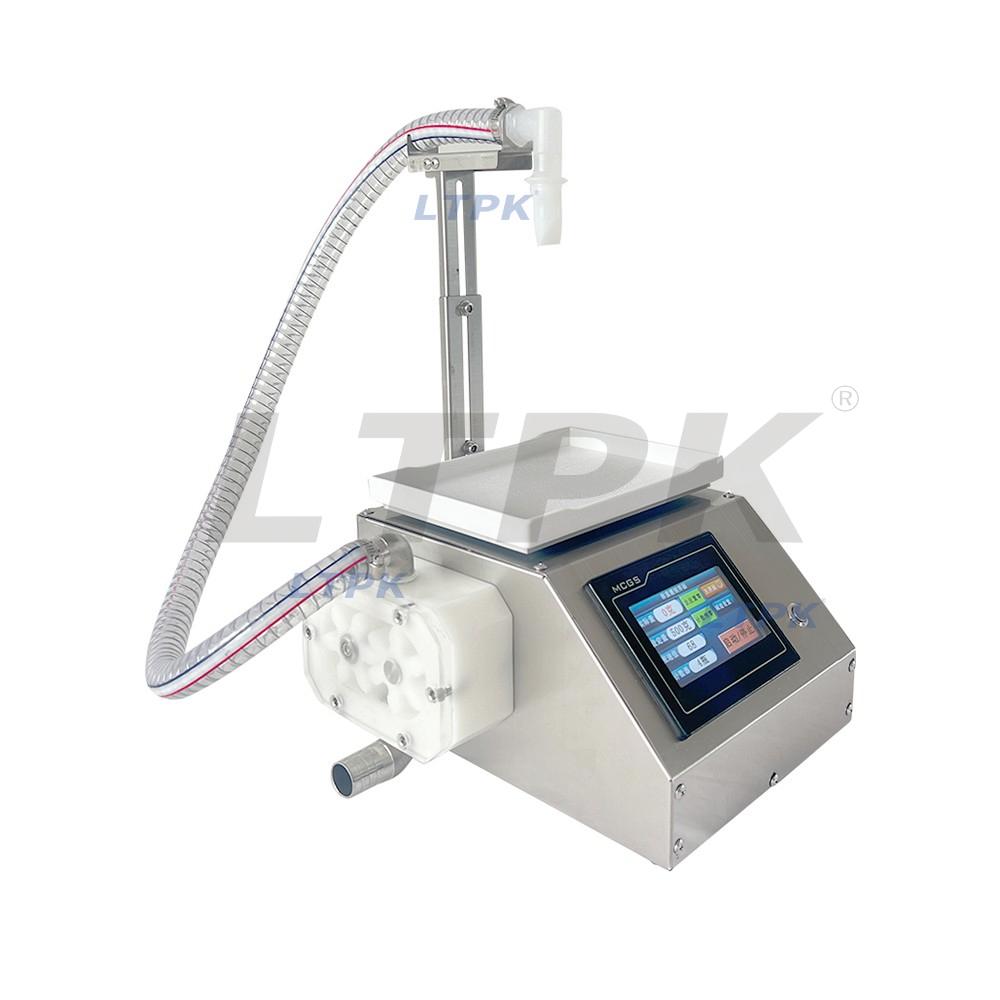

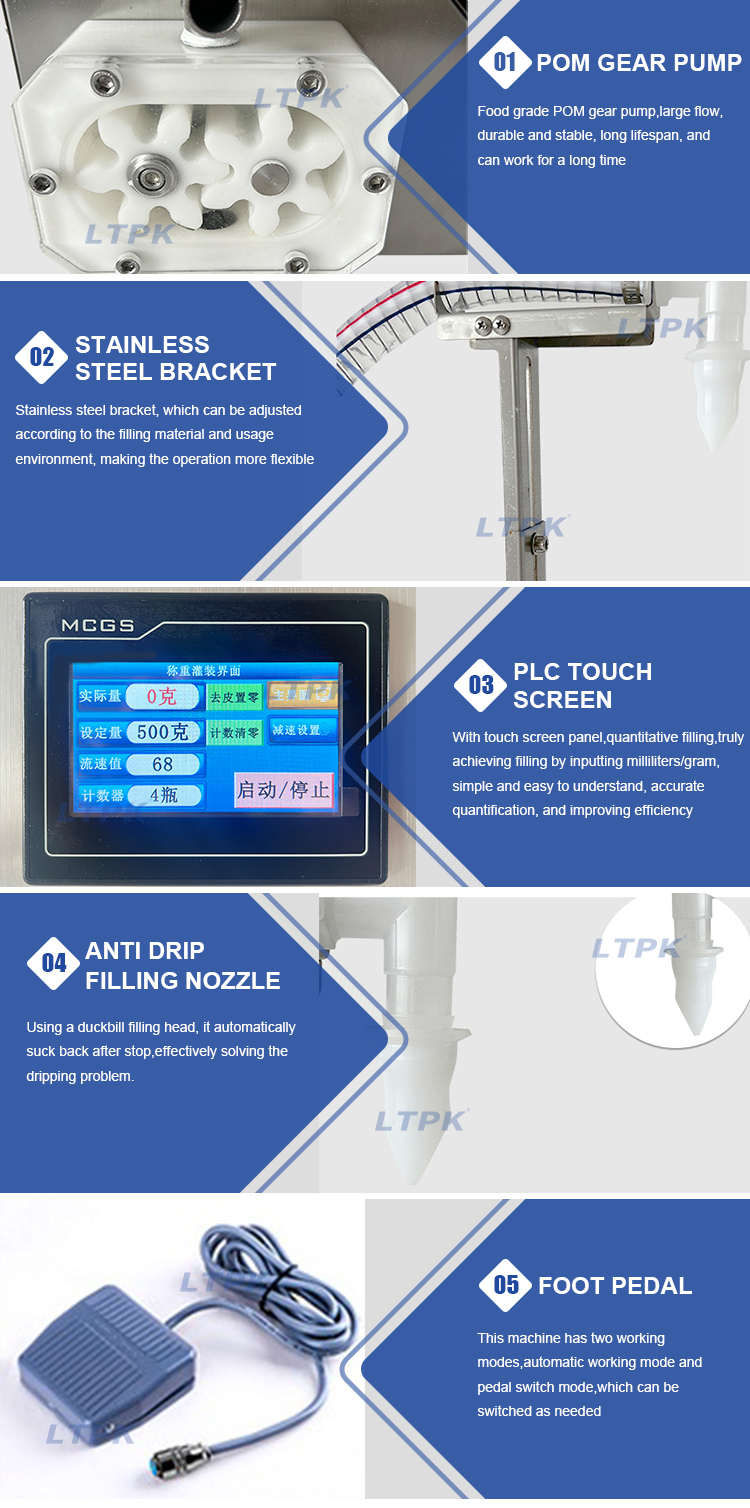

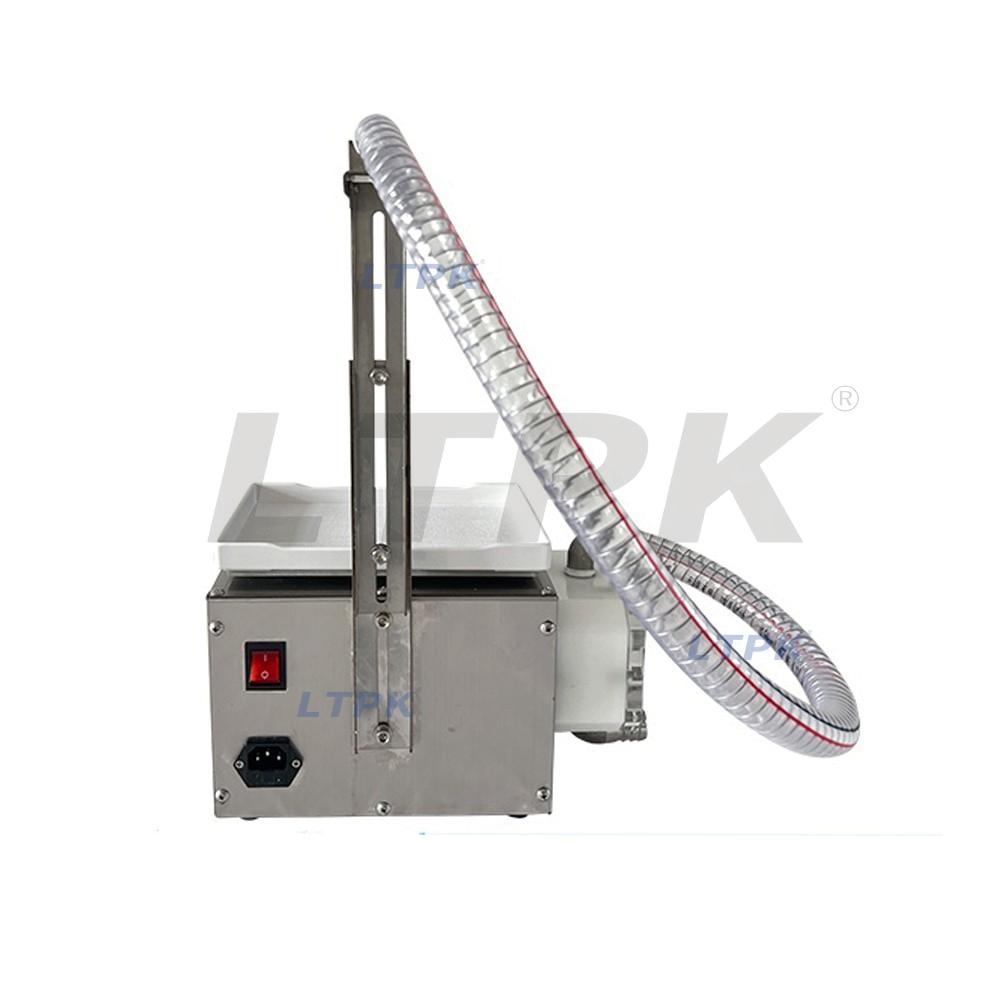

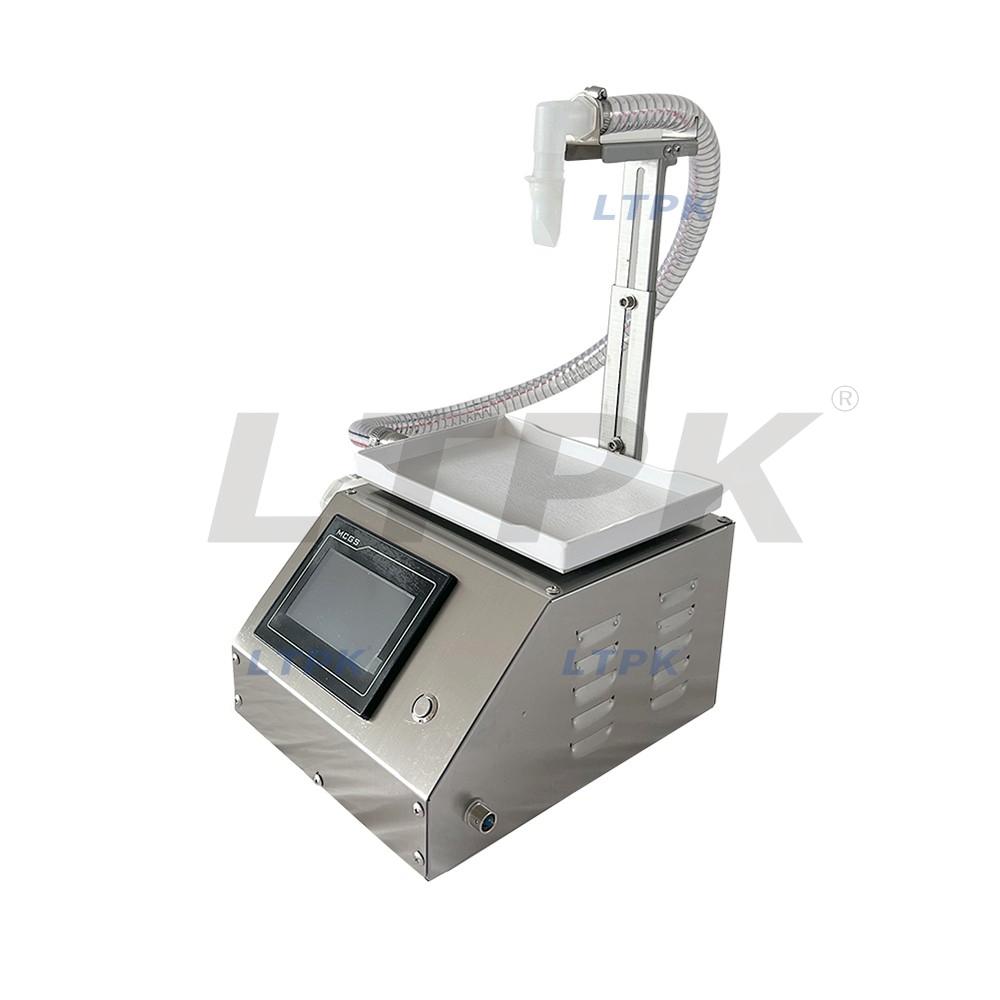

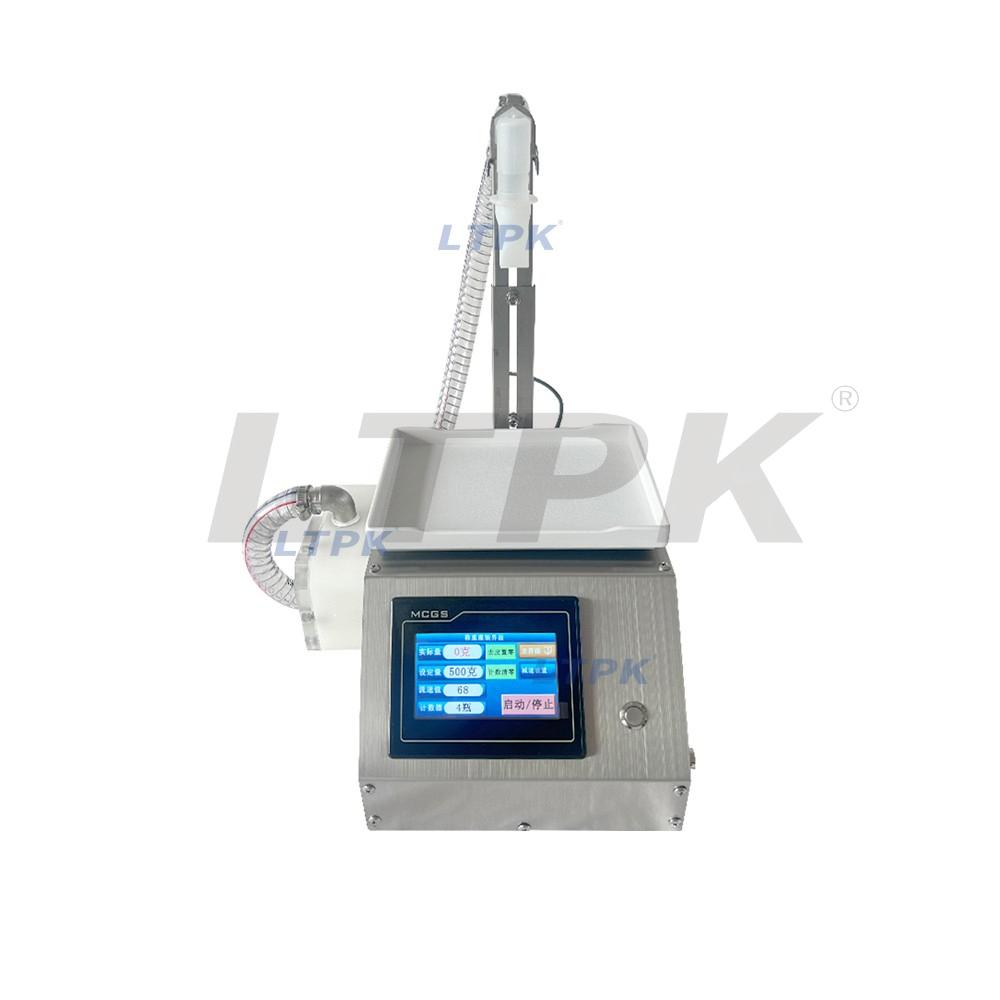

Semi automatic single head gear pump filling machine,adopting food grade POM gear pump with high strength and wear resistance, especially suitable for honey.PLC touch screen, intelligent control, precise quantification.
Application:

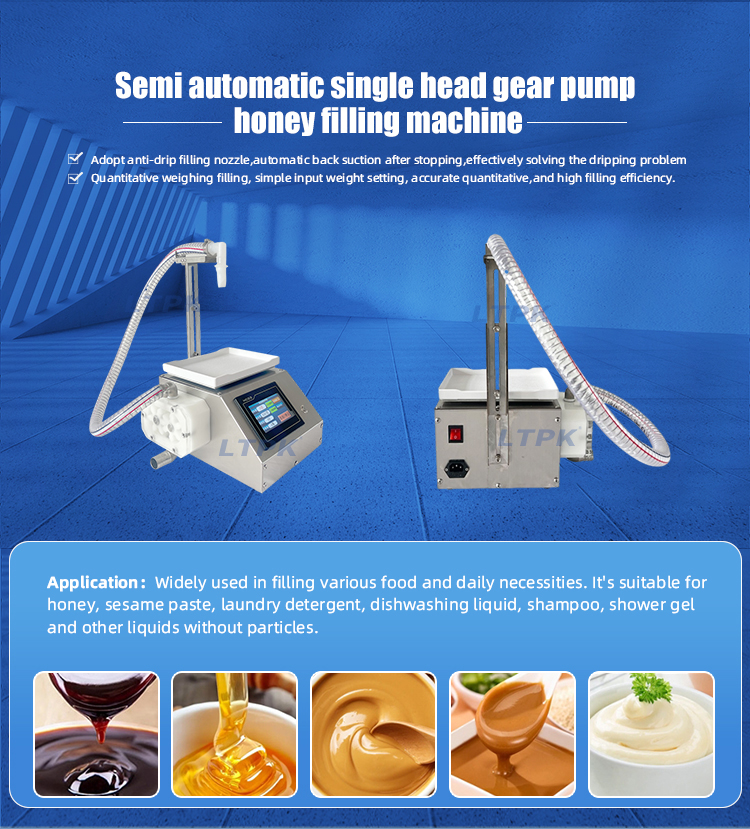

Widely used in filling various food and daily necessities. It's suitable for honey, sesame paste, laundry detergent, dishwashing liquid, shampoo, shower gel and other liquids without particles.
Technical parameters：

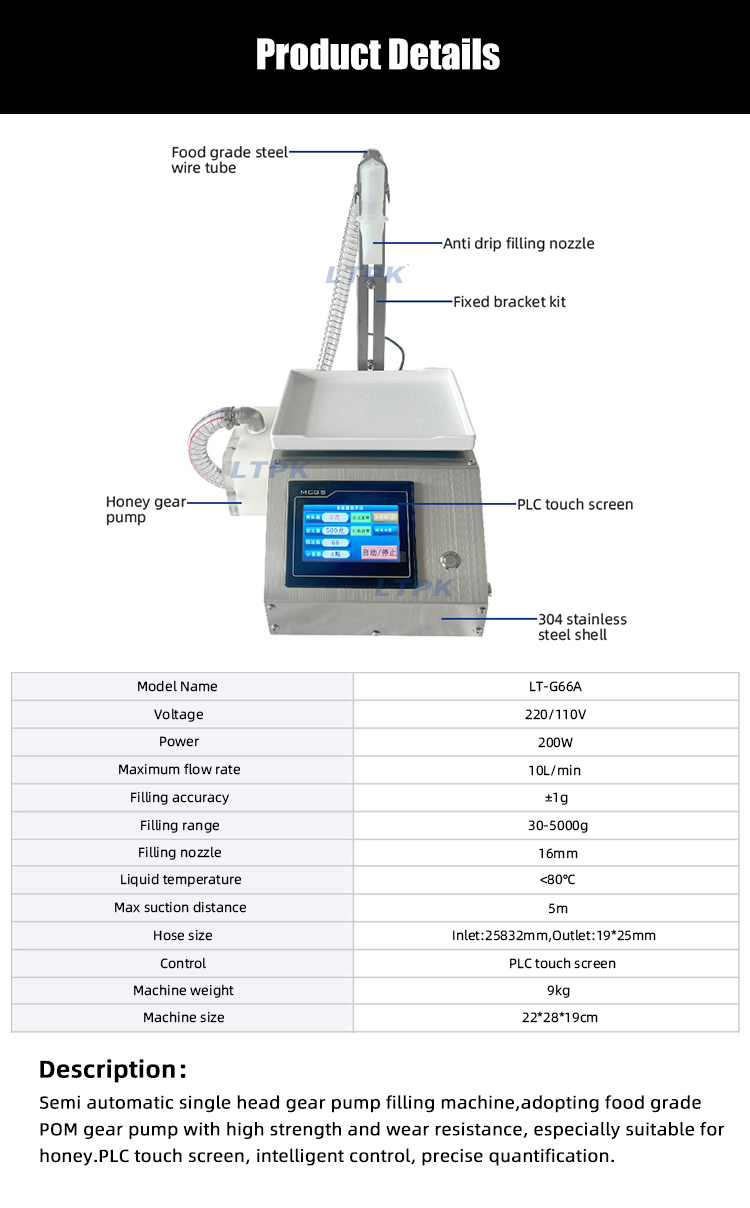

Model | LT-G66A |
Voltage | 220/110V |
Power | 200W |
Maximum flow rate | 10L/min |
Filling accuracy | ±1g |
Filling range | 30-5000g |
Filling nozzle | 16mm |
Liquid temperature | <80℃ |
Max suction distance | 5m |
Hose size | Inlet:25832mm,Outlet:19*25mm |
Control | PLC touch screen |
Machine weight | 9kg |
Machine size | 22*28*19cm |
