Description

Feature

1.The filling speed of two nozzles can be controlled separately, easy to operate.

2.The conveyor belt is lengthened, whose length is 1200mm, greatly improving work efficiecy. It is also with waterproof function.

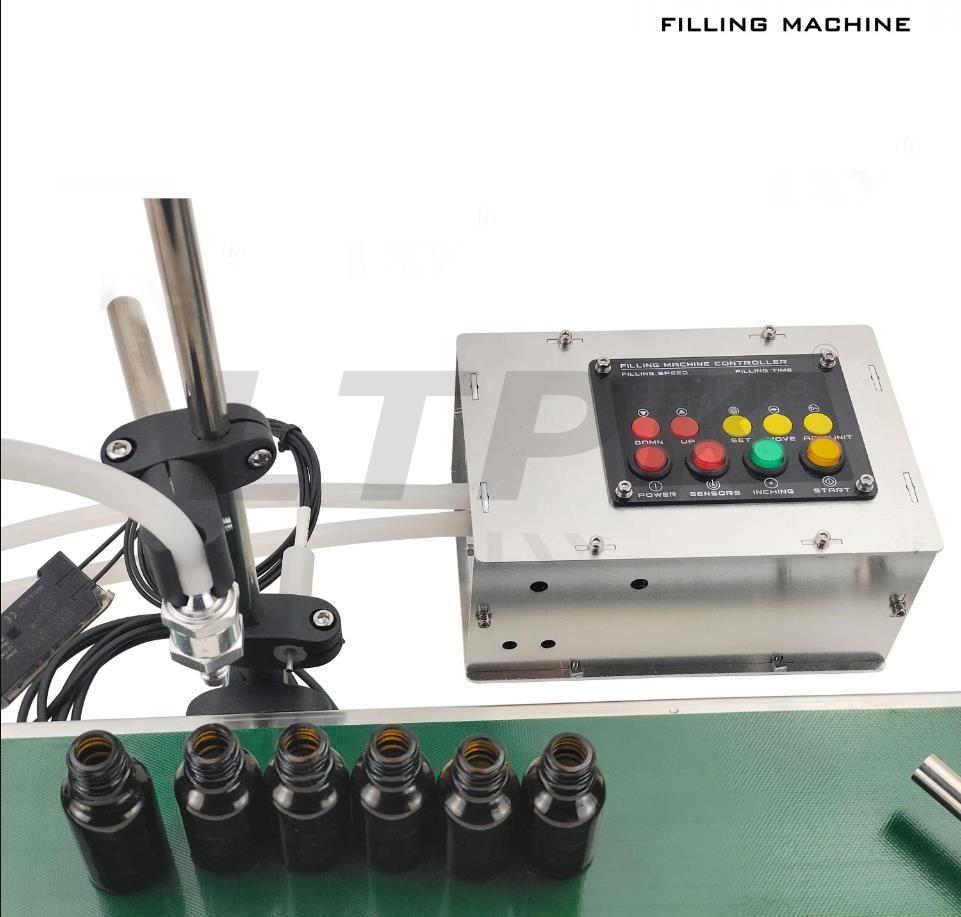

3.With digital control panel, it is easy to set parameters like filling time.

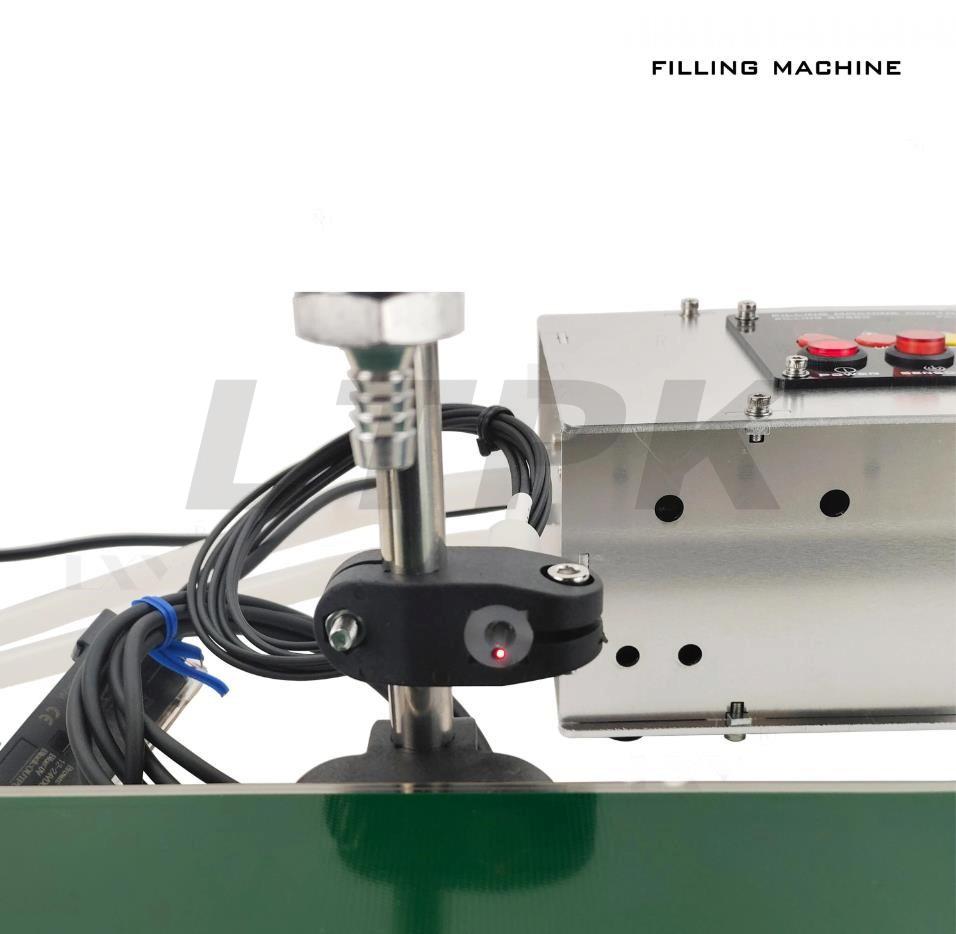

4.With intelligent electric eye, it can detect bottles accurately.

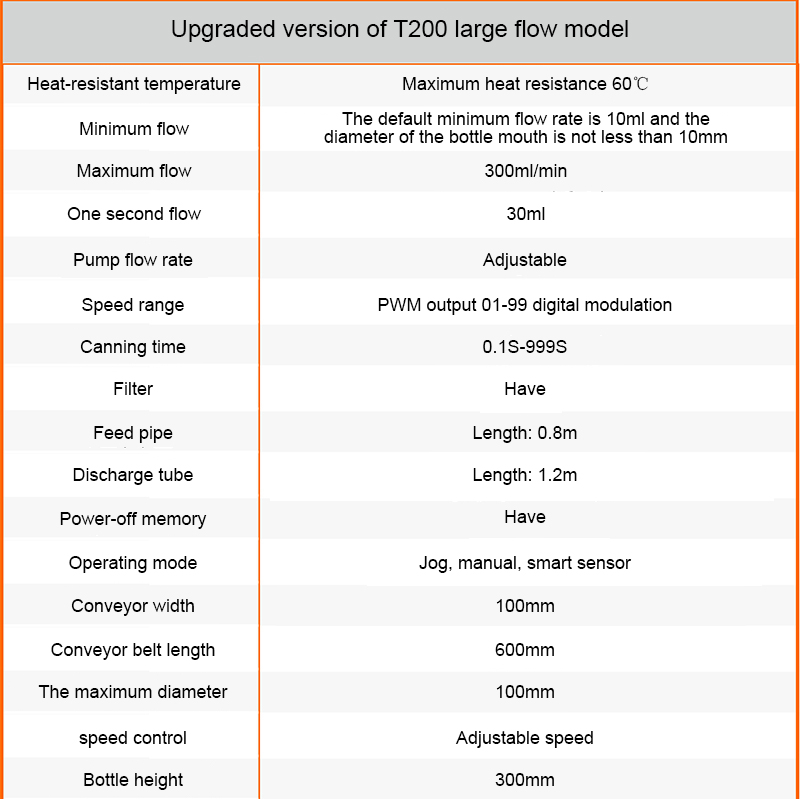

Technical Parameters

Machine Model LT-T200L

Voltage 110V/220V 50-60Hz

Filling Range 5-500mL

Max Flow Rate 3L/min (based on water)

Filling Speed 1-99 (Adjustable)

Filling Time 0.1-999s

Applicable Bottle Size Diameter: 0-100mm   Height: 0-300mm

Diameter of Filling Nozzle OD 9mm(Can choose 6mm or 3.4mm)

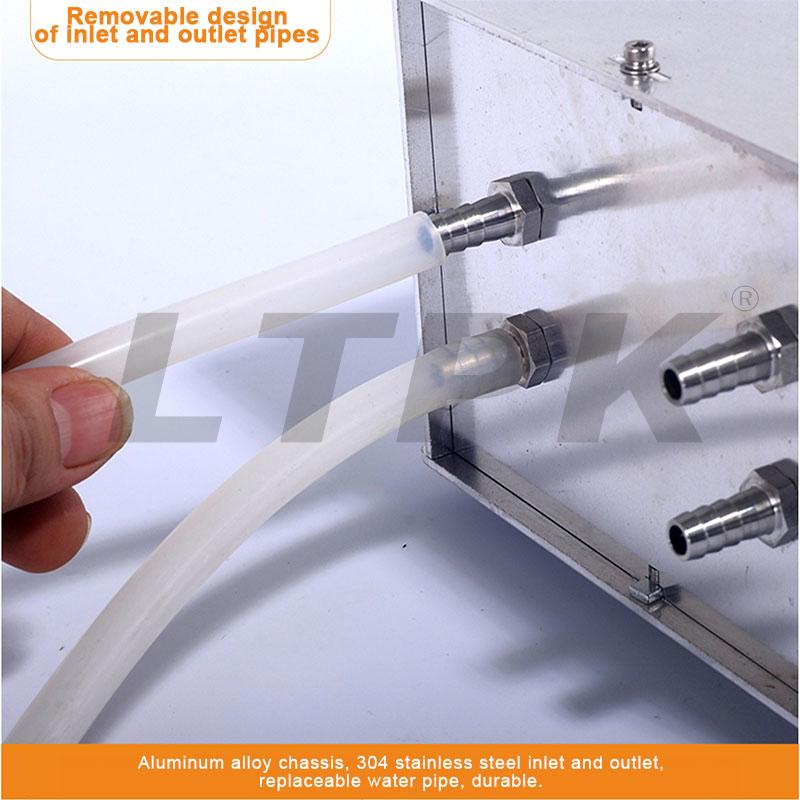

Hose Length 0.8m(inlet)/1.2m(outlet)

Hose Diameter 7mm(ID)/10mm(OD)

Conveyor Size 1200mm(L)*100mm(W)

Liquid Temperature Max 60℃

Conveyor Belt Waterproof

Memory Function out of power Available

Machine Size About 295mm*155mm*105mm

Net Weight 7.3kg

Package Size 670*200*170mm(conveyor belt)350*200*160mm(host machine)

Gross Weight 8kg
