Description
DESCRIPTION

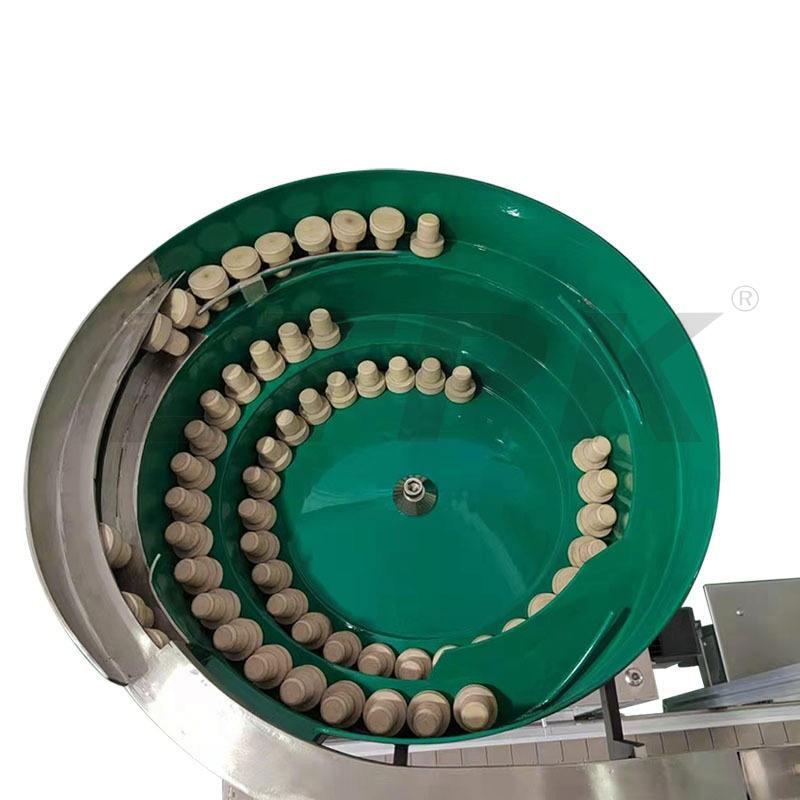

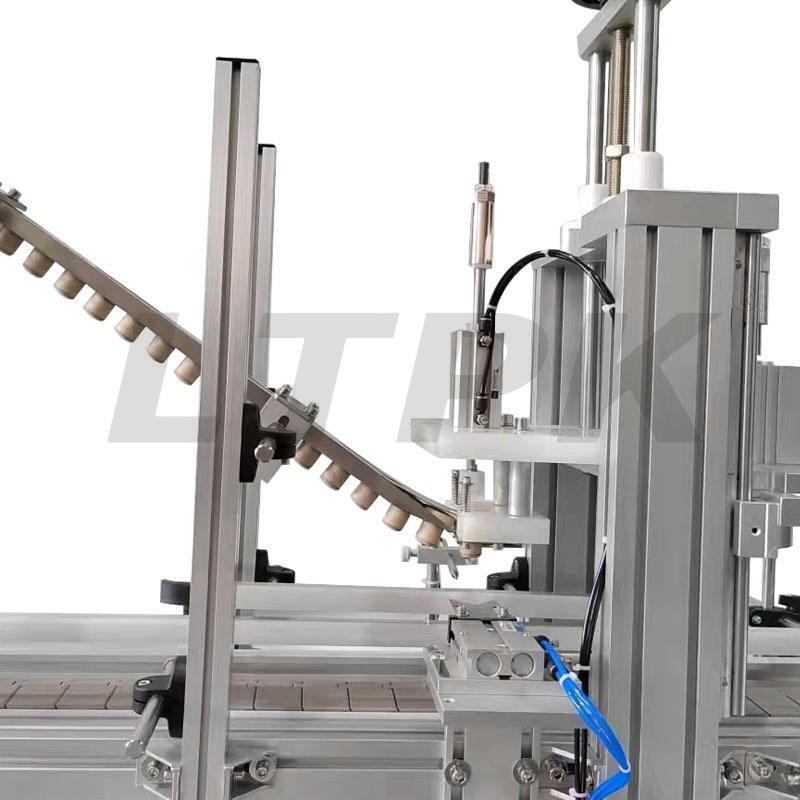

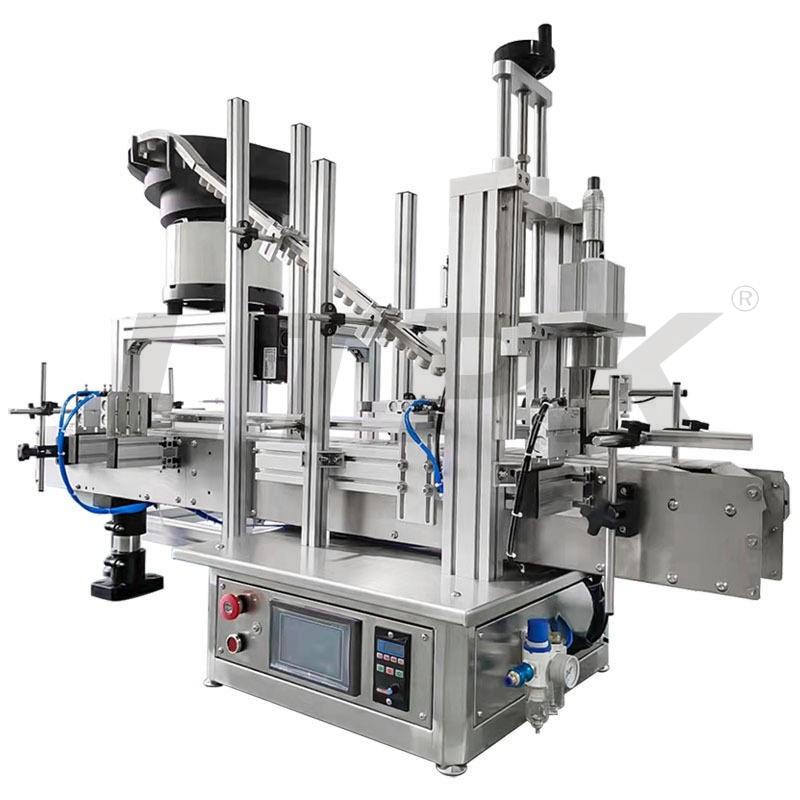

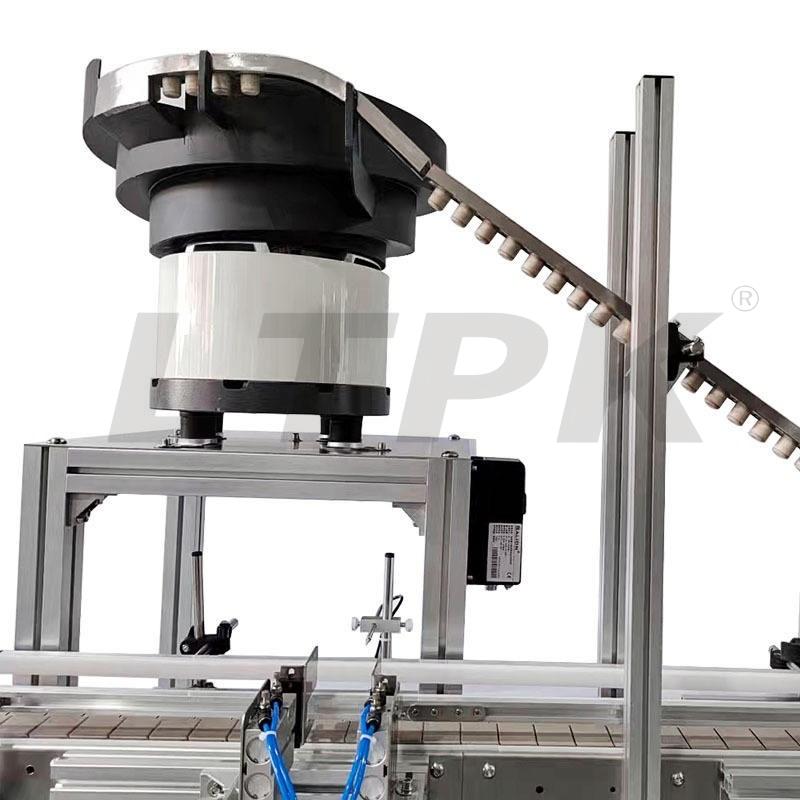

With a cap vibratory bowl, the machine can automatically sort and feed the caps. There is a rubber head for anchoring the cap. It applies 4 spinning heads to screw the cap, which makes it multipurpose. Also, it can be assembled with a filling machine and a labeling machine to form an automated production line.
APPLICATION
This machine is suitable for many different kinds of screw caps, such as plastic screw cap, dispensing closure for salad dressing(with inner seal), break-away closure for syrup, dispensing pump closure, dispensing closure (with inner seal), spray pump, metal closure on glass jar, child resistant closure, cap on toothpaste, measuring cap, etc.
PARAMETER
Model | LT-XG1870P |
Voltage | AC220V/110V 50-60HZ |
Power | 200W |
Bottle Height | 60-270mm |
Cap Diameter | 18-70mm |
Working | 20-40 bottles/min (depending on bottle and caps) |
Conveyor | 1117mm |
Working | 0.4-0.6 MPa |
Size of Air | OD 8mm |
Dimension | About 2100*580*1200mm (Machine) About 500*500*1180mm (Vibratory Bowl) |
Packing Size | About 1140*615*1105mm (Machine) About 1165*680*710mm (Vibratory Bowl) |
Net Weight | About 85kg (Machine)+ About 88kg(Vibratory Bowl) |
Gross Weight | About 114kg (Machine)+ About 116kg(Vibratory Bowl) |
