Description
Description：
This machine adopts the touch screen operation, PLC control, drive stepper motor to control the bag length,stable performance,easy to adjust and accurate detection.Choose the intelligent temperature controller and PID control to ensure the error range of temperature controlled within 1 degree Centigrade.
Application:

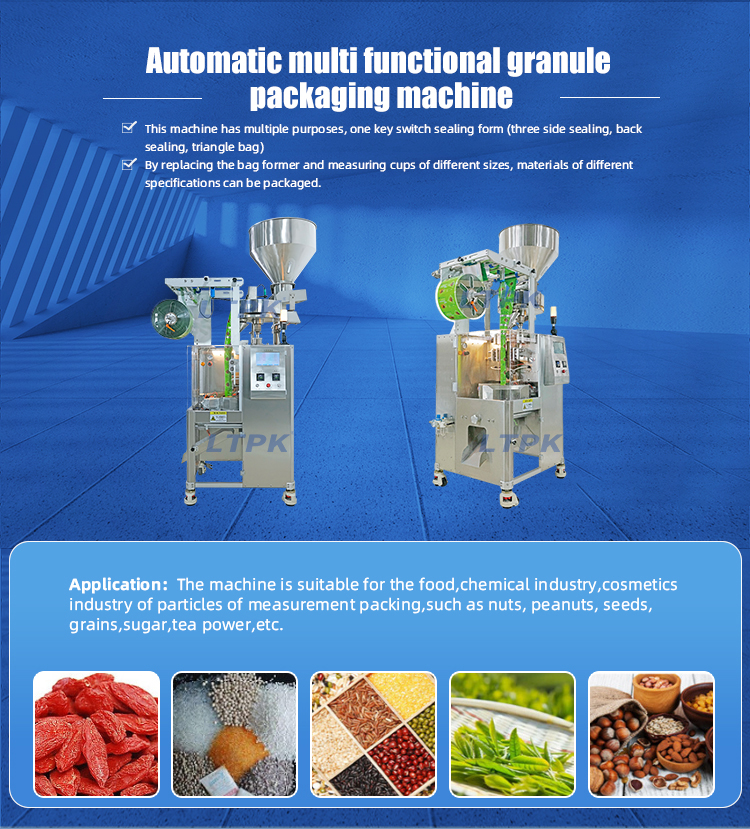

The machine is suitable for the food,chemical industry,cosmetics industry of particles of measurement packing,such as nuts, peanuts, seeds, grains,sugar,tea power,etc.
Technical parameters：

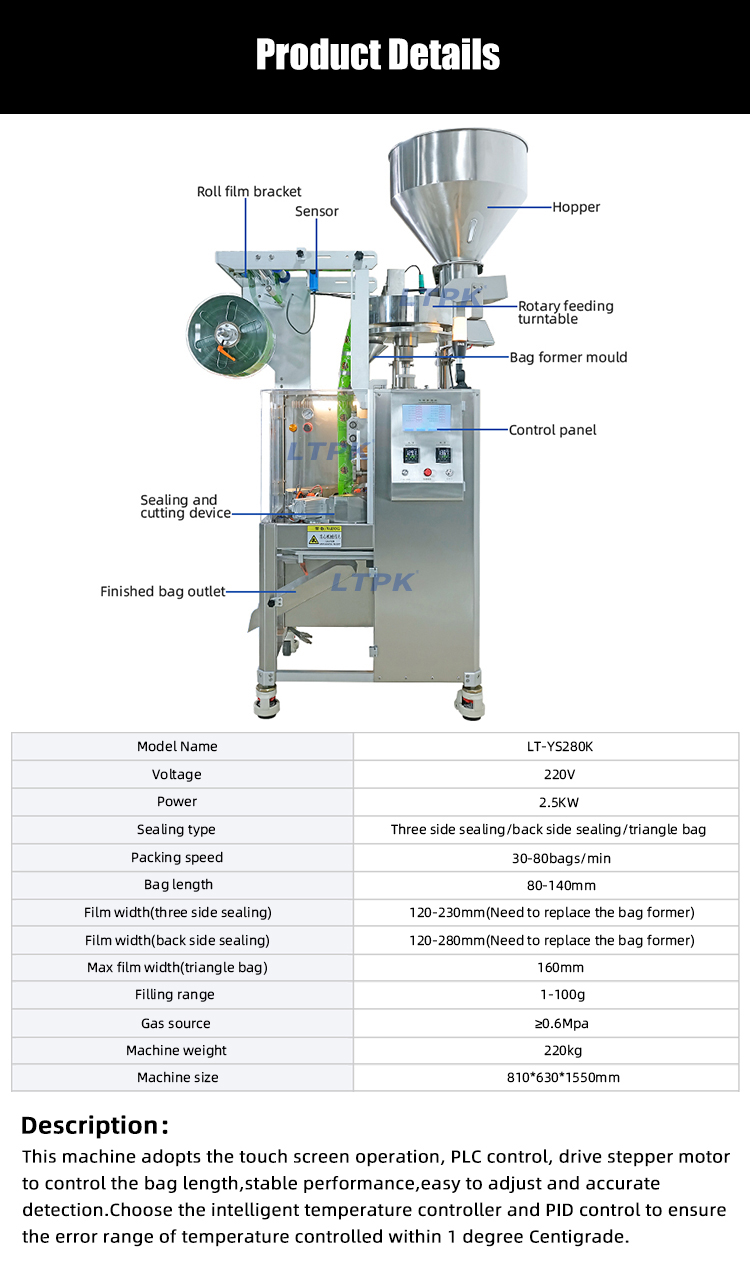

Model | LT-YS-GHF280K |
Voltage | 220V |
Power | 2.5KW |
Sealing type | Three side sealing/back side sealing/triangle bag |
Packing speed | 30-80bags/min |
Bag length | 80-140mm |
Film width(three side sealing) | 120-230mm(Need to replace the bag former) |
Film width(back side sealing) | 120-280mm(Need to replace the bag former) |
Max film width(triangle bag) | 160mm |
Filling range | 1-100g |
Gas source | ≥0.6Mpa |
Machine weight | 220kg |
Machine size | 810*630*1550mm |
