Description
Feature
1.The working height of the machine can be adjusted as needed, making it suitable for bottles of different heights.
2.The conveyoring speed can be adjusted according to production need.

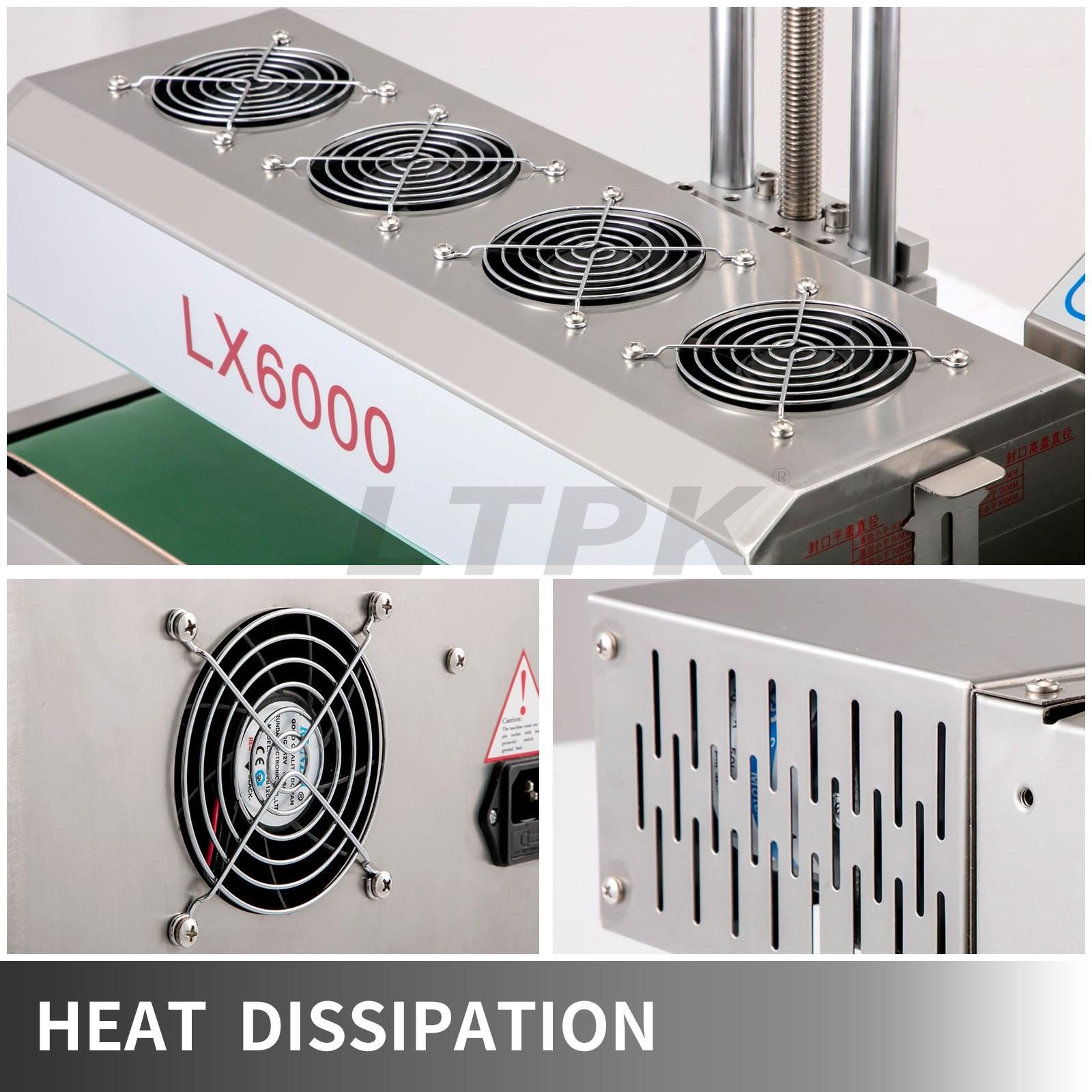

3.With the function of dissipating heat, the machine can keep cool during working, safe and reliable.

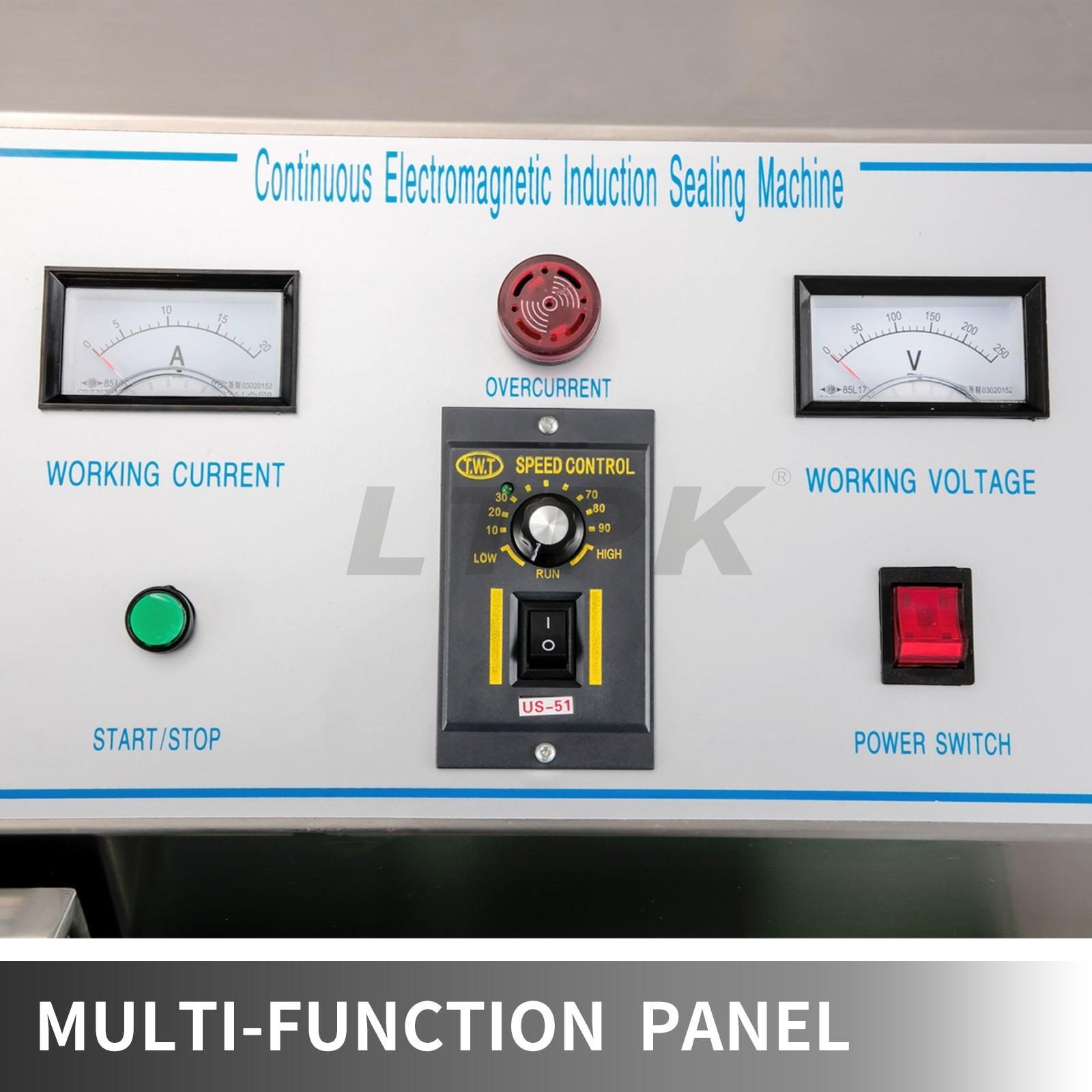

4.With Ammeter and voltmeter, the machine data is visual and accurate.

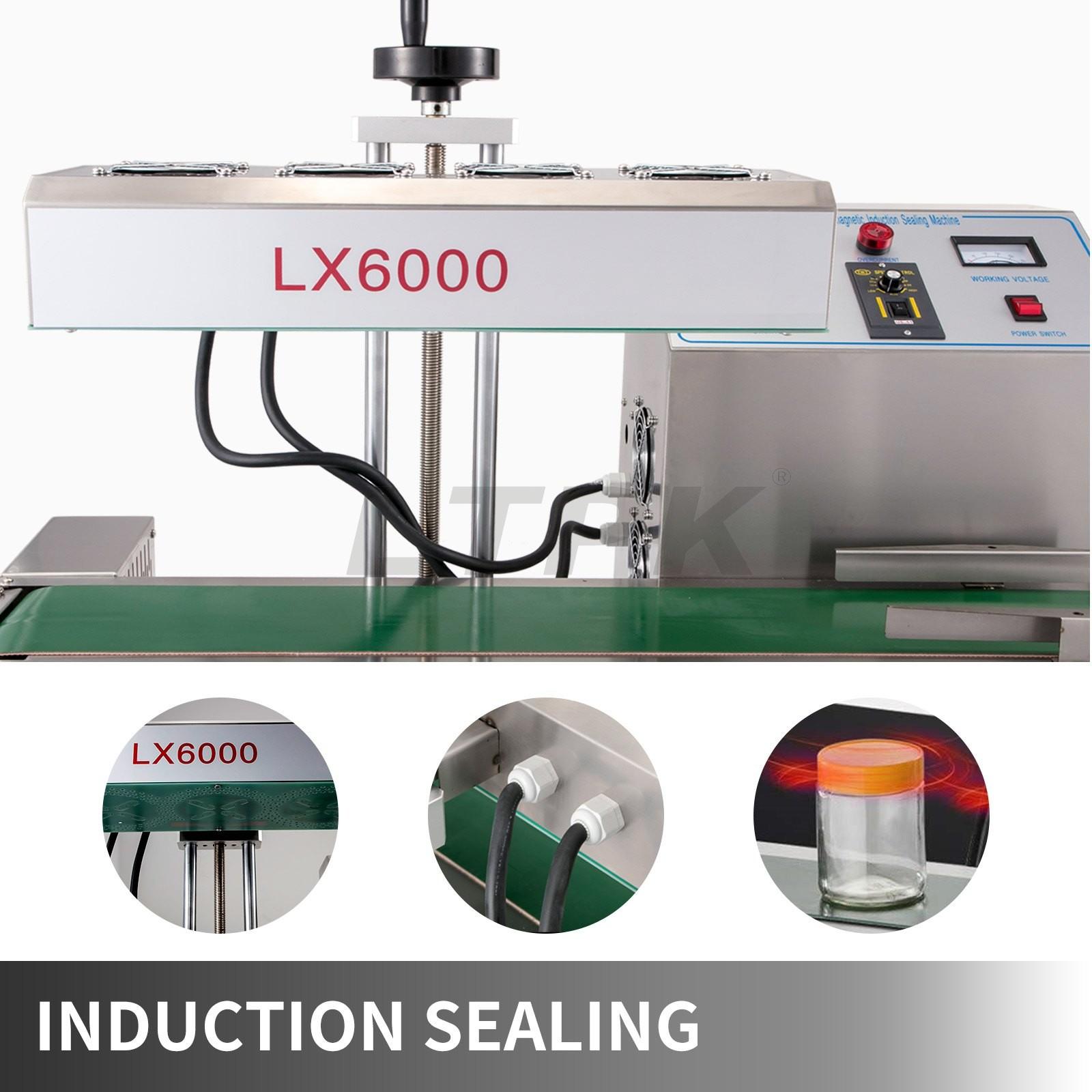

5.Adopting the sealing way of electromagnetic induction, the sealing position is firm and beautiful. Ensure product quality.
Parameter
Input power | AC220V/110V,50/60Hz |
Input current | <10A |
Output current | static＜2A,dynamic＜7A |
Operating frequency | 75-85KHZ |
Output power | Less than 1200W |
Shell protection class | 1P21 |
Seal diameter | Phi 20-Phi 80mm |
Bottle height | 20-280mm |
Sealing speed | 0-10m/min |
Conveying platform bearing load | ≤20kg |
Package size | About 950*500*460mm |
Net weight/Gross weight | About 32.5kg/37.5kg |
Application

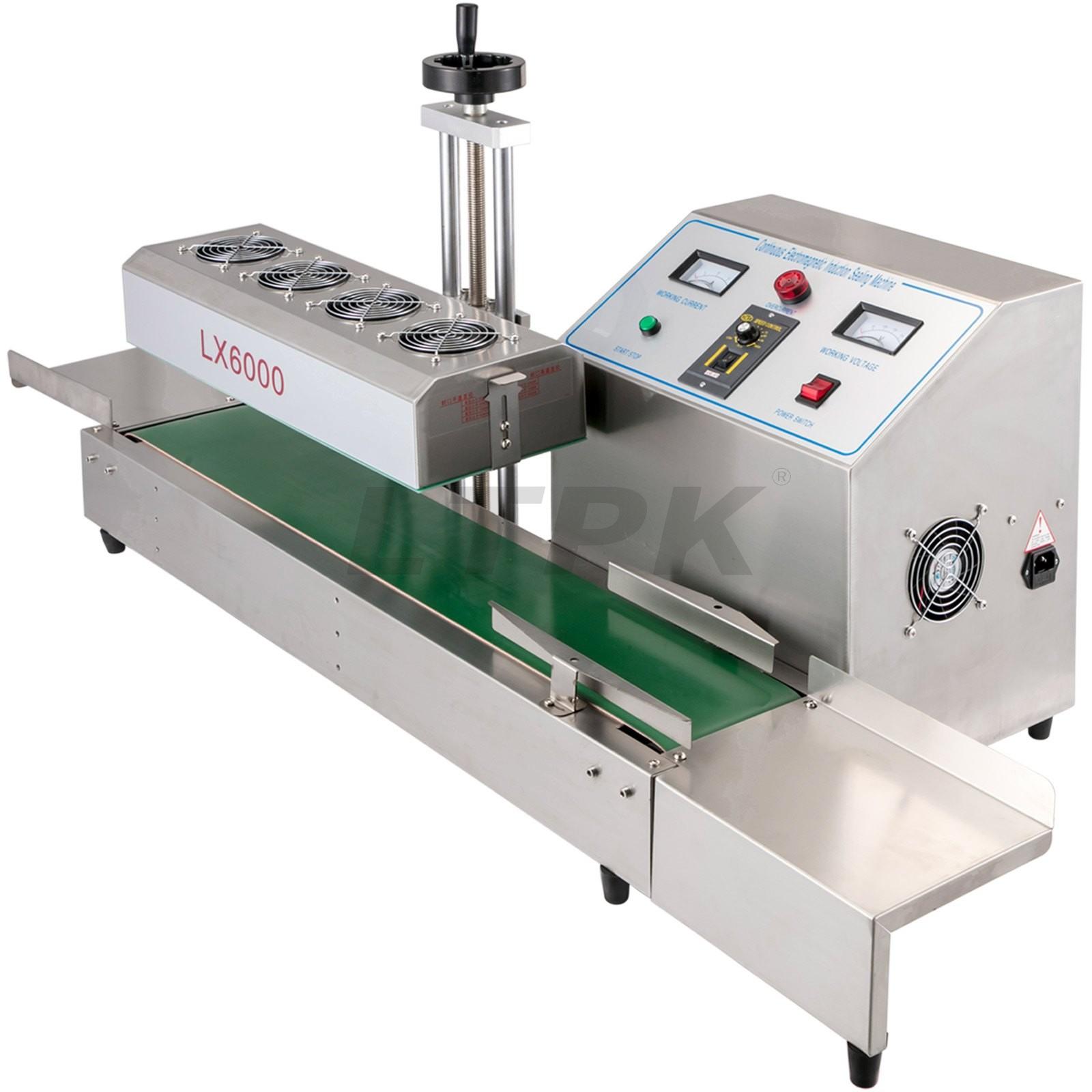

This machine is suitable for sealing aluminum foil lids of plastic bottles. It is in small size and can work automatically, saving working space and improving work efficiency. It is an ideal choice for indivisual workshop.
