LTPK 100-1000ml Full Pneumatic Liquid Filling Double Heads

Home Products Filling Machines For Liquid LTPK 100-1000ml Full Pneumatic Liquid Fi
LTPK 100-1000ml Full Pneumatic Liquid Filling Double HeadsLTPK 100-1000ml Full Pneumatic Liquid Filling Double HeadsLTPK 100-1000ml Full Pneumatic Liquid Filling Double HeadsLTPK 100-1000ml Full Pneumatic Liquid Filling Double Heads

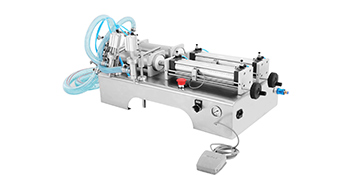

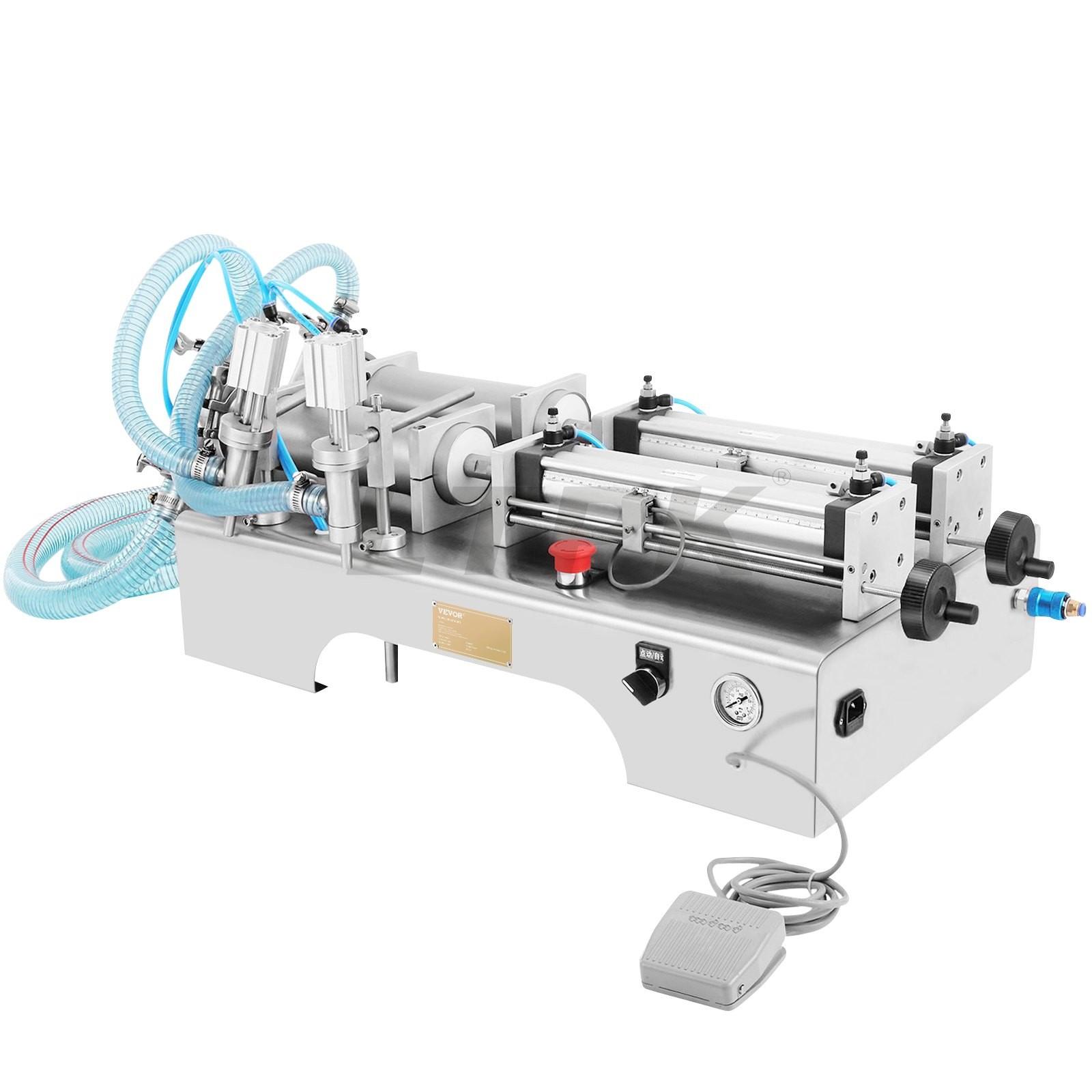

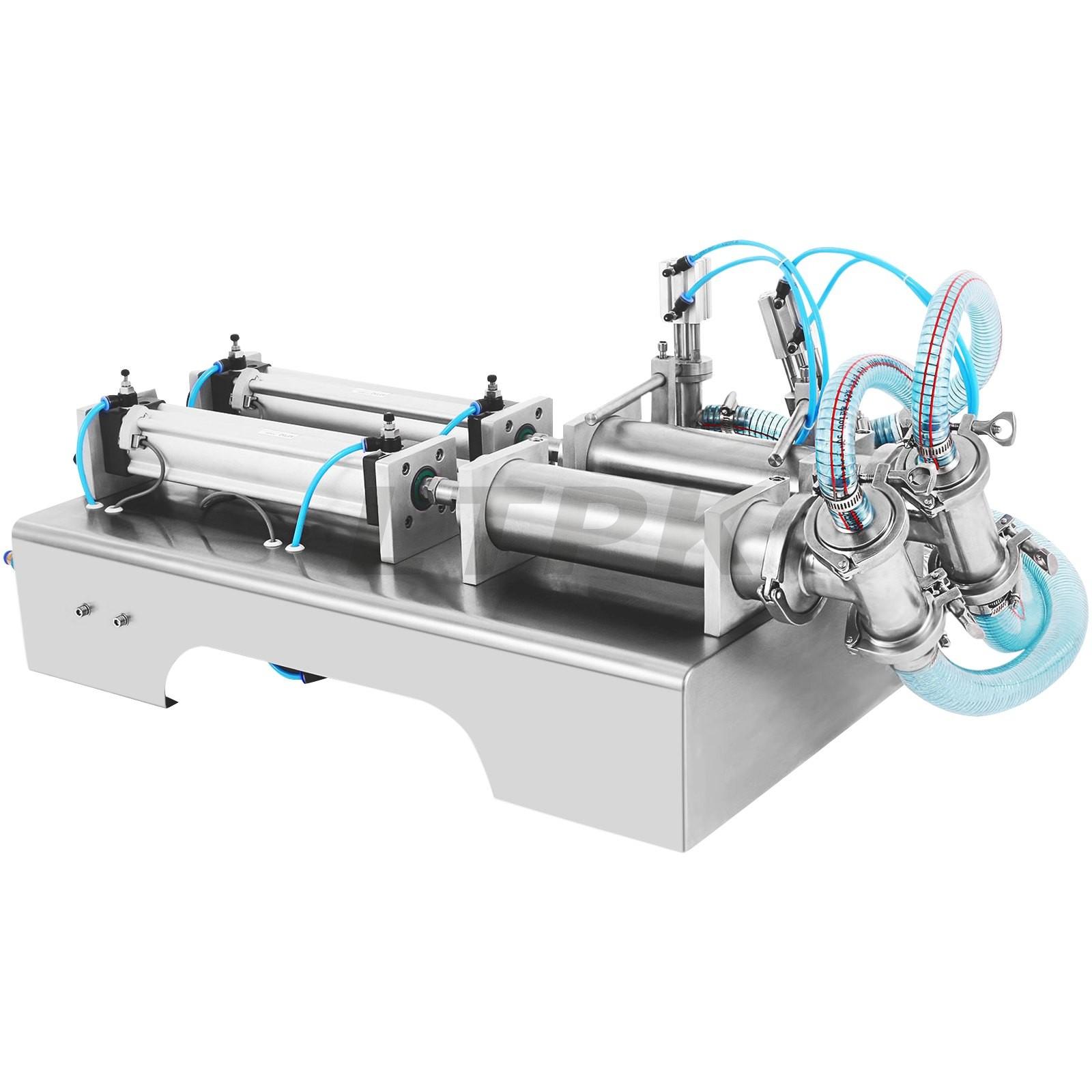

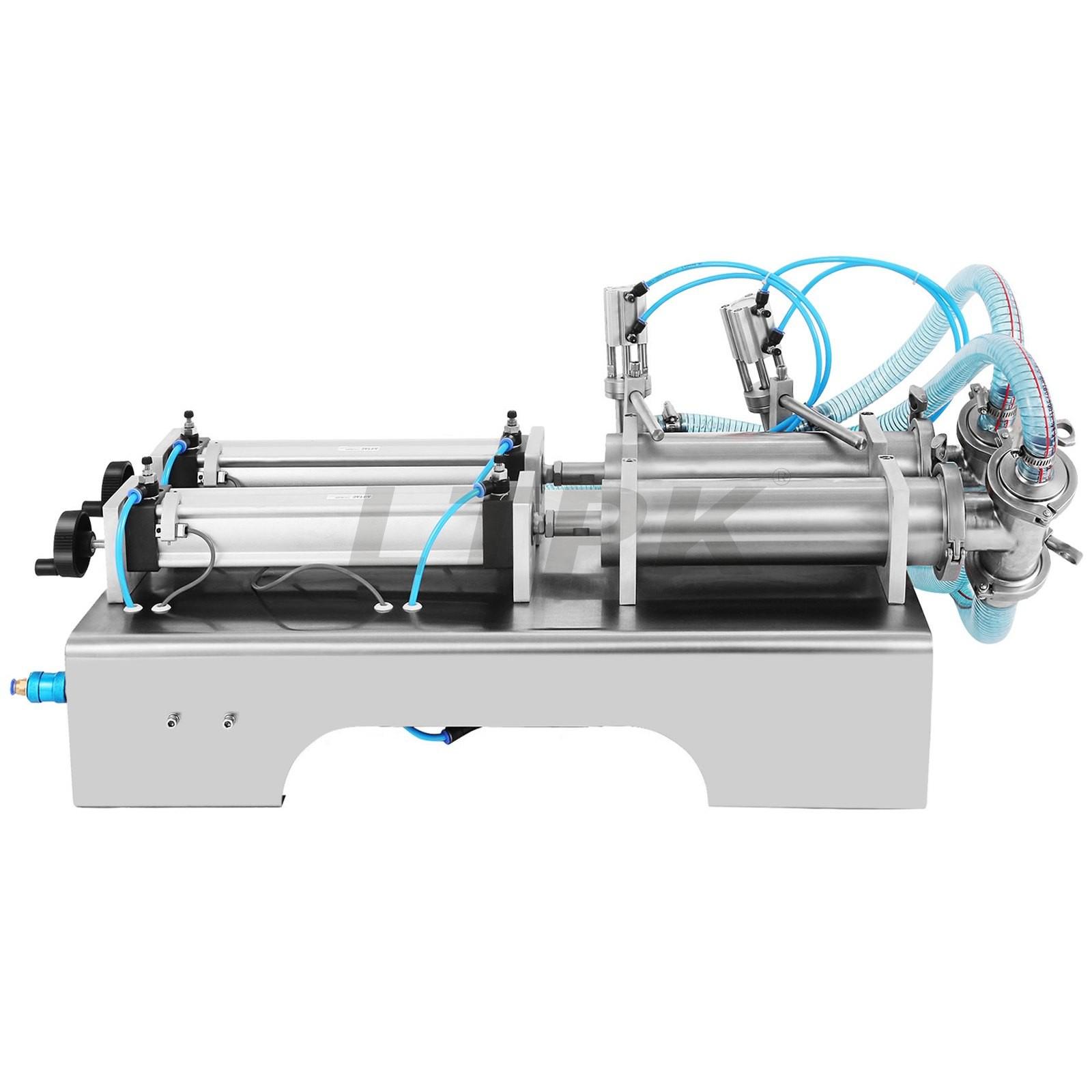

LTPK 100-1000ml Full Pneumatic Liquid Filling Double Heads

  • Product Item:G2WY-100-1000ML(Full Pneumatic)
  • Filling Volume: 3.4-33.8 oz / 100-1000 ml
  • Filling Accuracy: ±1%
  • Air Pressure: 0.4-0.6Mpa / 58-87Psi
  • Product Size(L x W x H): 39.4 x 15 x 17.7 in / 100 x 38 x 45 cm
  • Category:For Liquid
  • Inquiry Send Email

    Description


    About this item

    • Accurate Pneumatic Filling: Our liquid filling machine is equipped with an excellent air cylinder, ensuring the precision of filling, Filling accuracy:≤±1%. In order to meet your various filling needs, adjustable speed and volume are necessary for this machine. Filling volume: 3.4-33.8 oz/100-1000 ml; Filling speed: 0-80 bottles/min.

    • Auto & Manual Control: Two control modes help you operate the machine efficiently. Pedal once and discharge once in manual mode while filling continuously in auto mode. With the advanced air pressure gauge, you can observe the pressure changes at any time and stop the machine if something goes wrong.

    • Stainless Steel Structure: Pneumatic filling machine is made of 304 stainless steel food-grade materials, which can endure corrosion, rust, acid, and alkali. The anti-drip nozzle is designed to avoid leakage and save more liquid during operation.

    • Well-Designed Details: Pneumatic filling with a delicate filling device, including conveying pipe and non-return valve. The soft valve has an excellent non-return effect; make sure the liquid can be transferred to the pipe without blocking and filling successfully in the end.

    • Extensive Uses: This lip gloss filler machine is widely used in pharmaceutical, cosmetic, food, pesticides, and particular industries and is suitable for low-viscosity fluid and liquid filling. This product needs to work with an air compressor(not offered). Therefore, you need to prepare it in advance.


    Technical Parameters


    • Model: G2WY-100-1000ML(Full Pneumatic )
    • Voltage: 110V ± 5V
    • Power: 10W
    • Material: Stainless Steel
    • Filling Volume: 3.4-33.8 oz / 100-1000 ml
    • Filling Head: Double-Nozzle
    • Filling Speed: 0-80 bottles/min
    • Filling Accuracy: ±1%
    • Air Pressure: 0.4-0.6Mpa / 58-87Psi
    • Product Size(L x W x H): 39.4 x 15 x 17.7 in / 100 x 38 x 45 cm
    • Net Weight: 97 lbs / 44 kg
    Machine Details

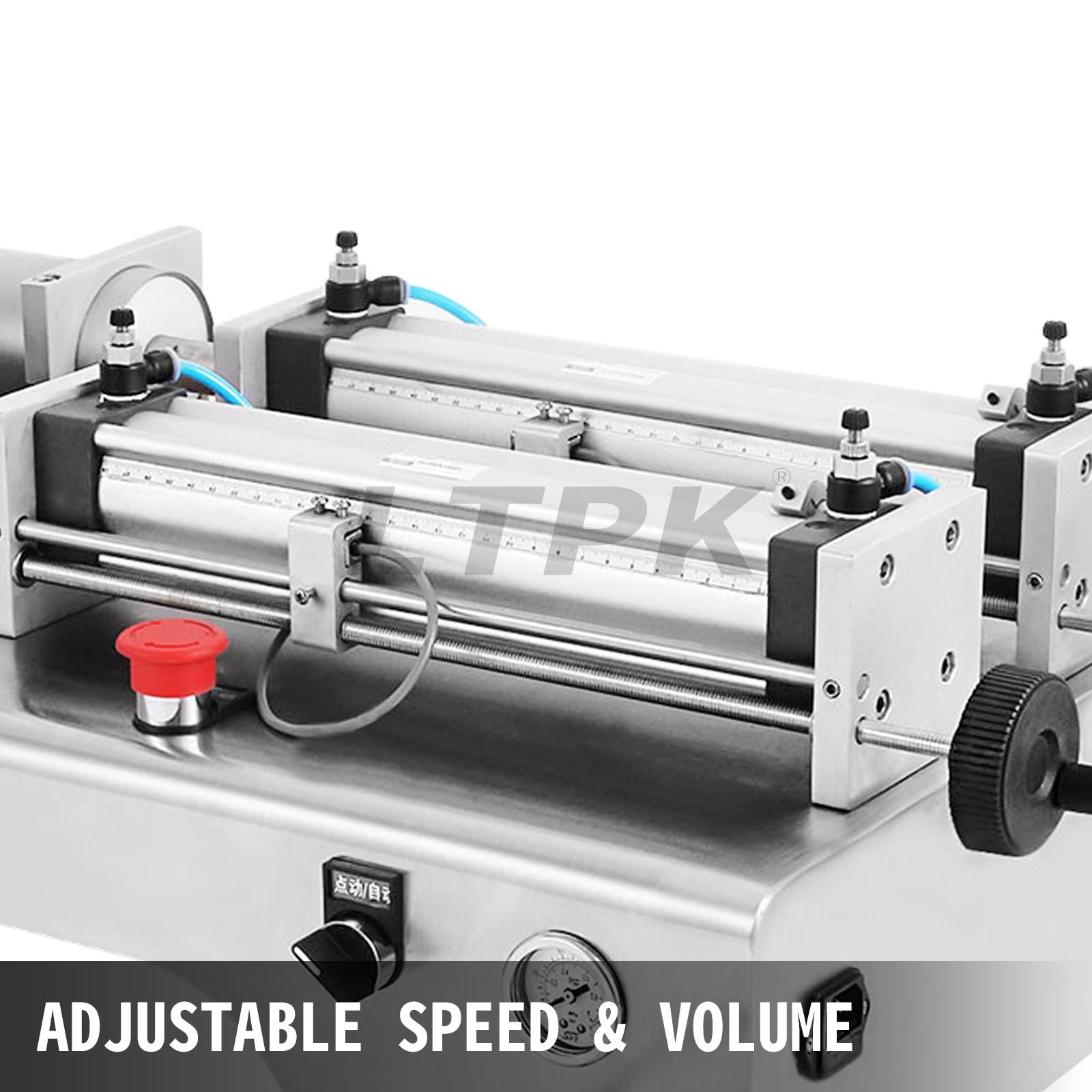

    Adjustable Speed & Volume
    This liquid and paste filling machine adopts a premium gas cylinder, having immense power and stable air pressure. Filling volume and speed can be arbitrarily regulated. The filling range is 3.4-33.8 oz/100-1000 ml, and the filling rate is 80 bottles/min in maximum.

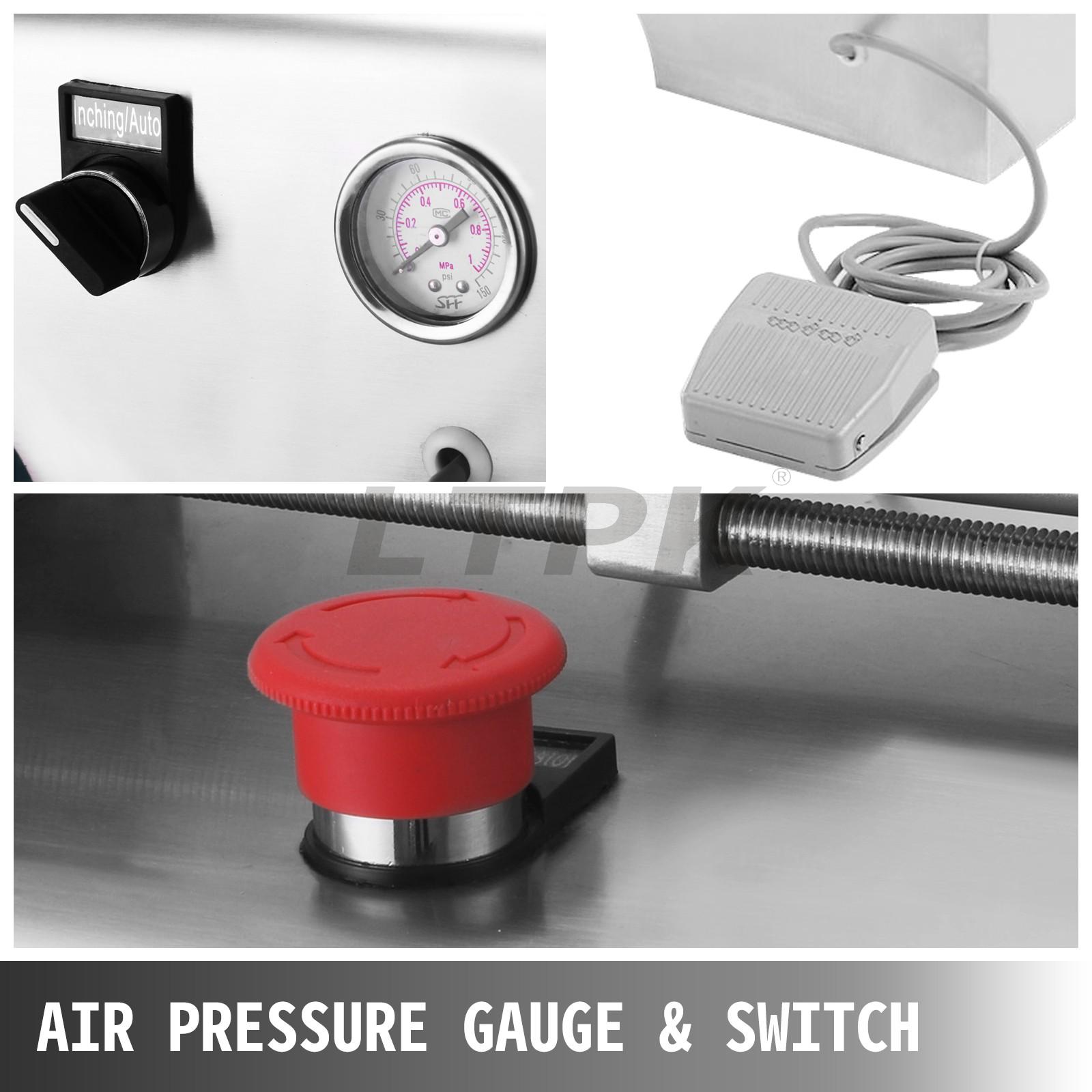

    Two Control Modes
    Two control modes can be chosen in our pneumatic filling machine. Manual and auto mode are switchable. Adjust the cylinder housing speed knob, switch to auto mode, and the filling machine will automatically fill. Or switch to manual mode and press the pedal to fill. The device can stop and start at any time because of the emergency stop switch.

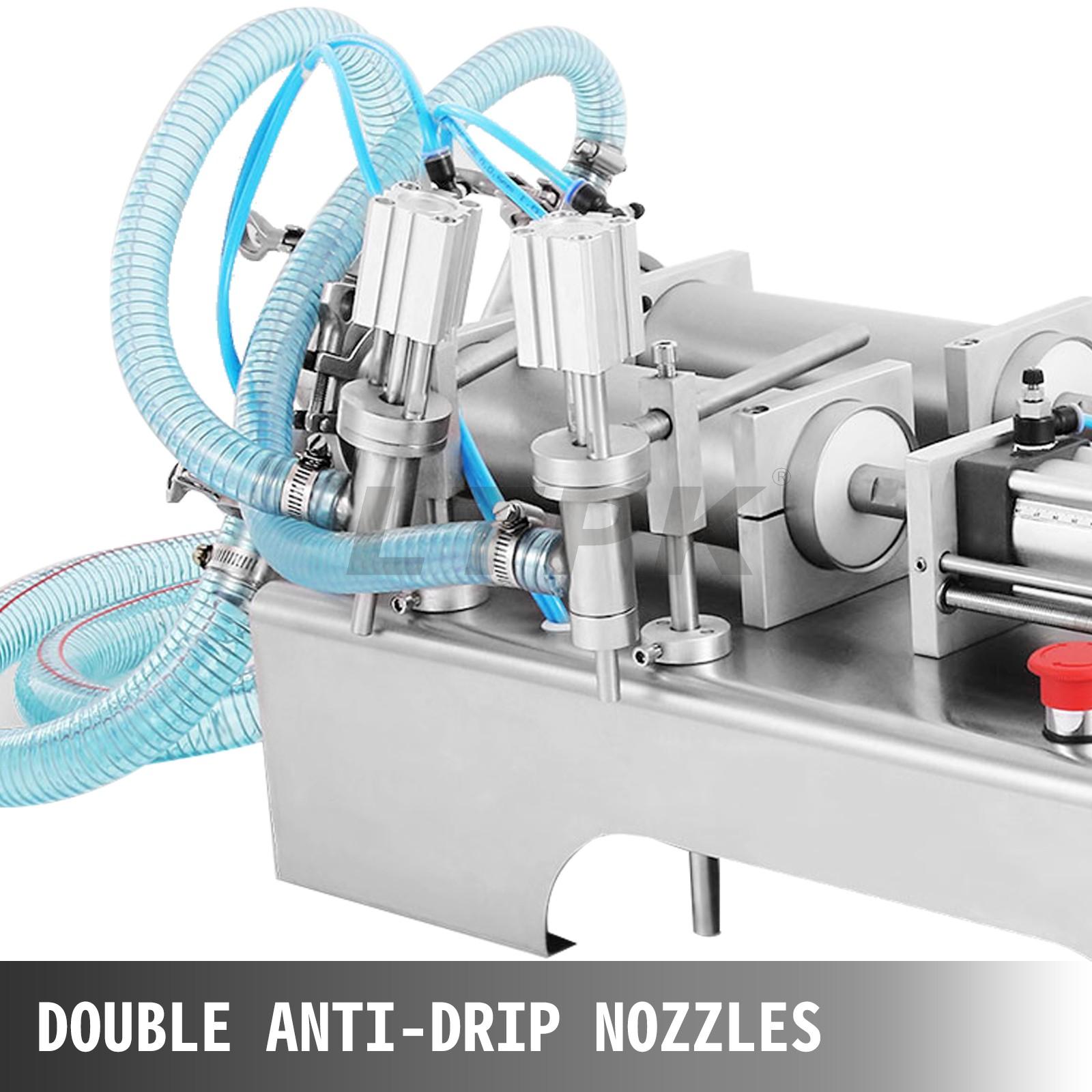

    Anti-Drip Nozzle
    The outlet nozzle can be easily removed and replaced. Raising and filling device with an anti-drip nozzle, not easily plugged, the filling process is efficient and accurate. They are filling accuracy:≤±1%.

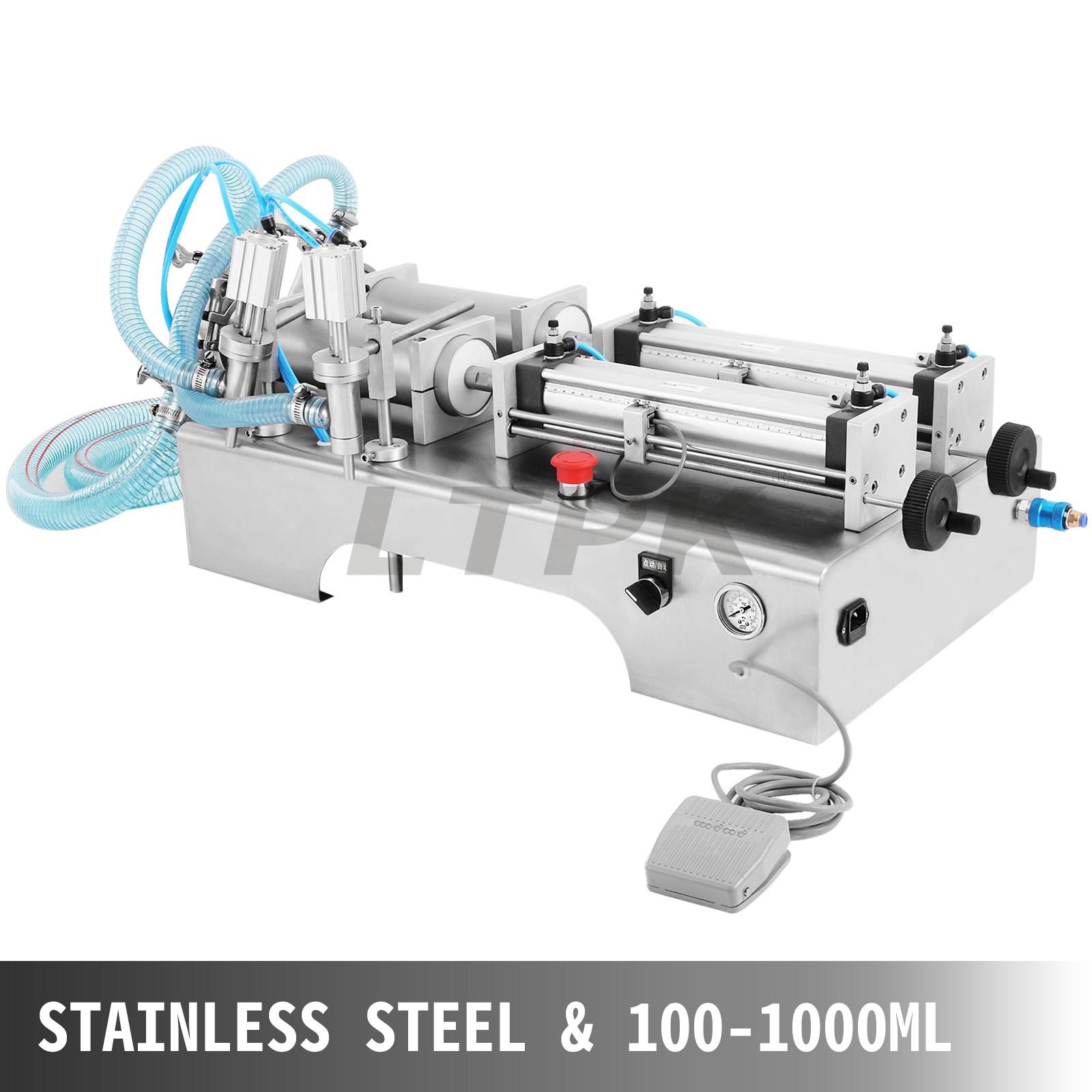

    304 Stainless Steel
    All parts in contact with the product are 304 food-grade stainless steel. Extremely easy to operate, clean, and maintain. It's endure to corrosion, acid, and alkali. Thickened base and Teflon plunger have a high quality.

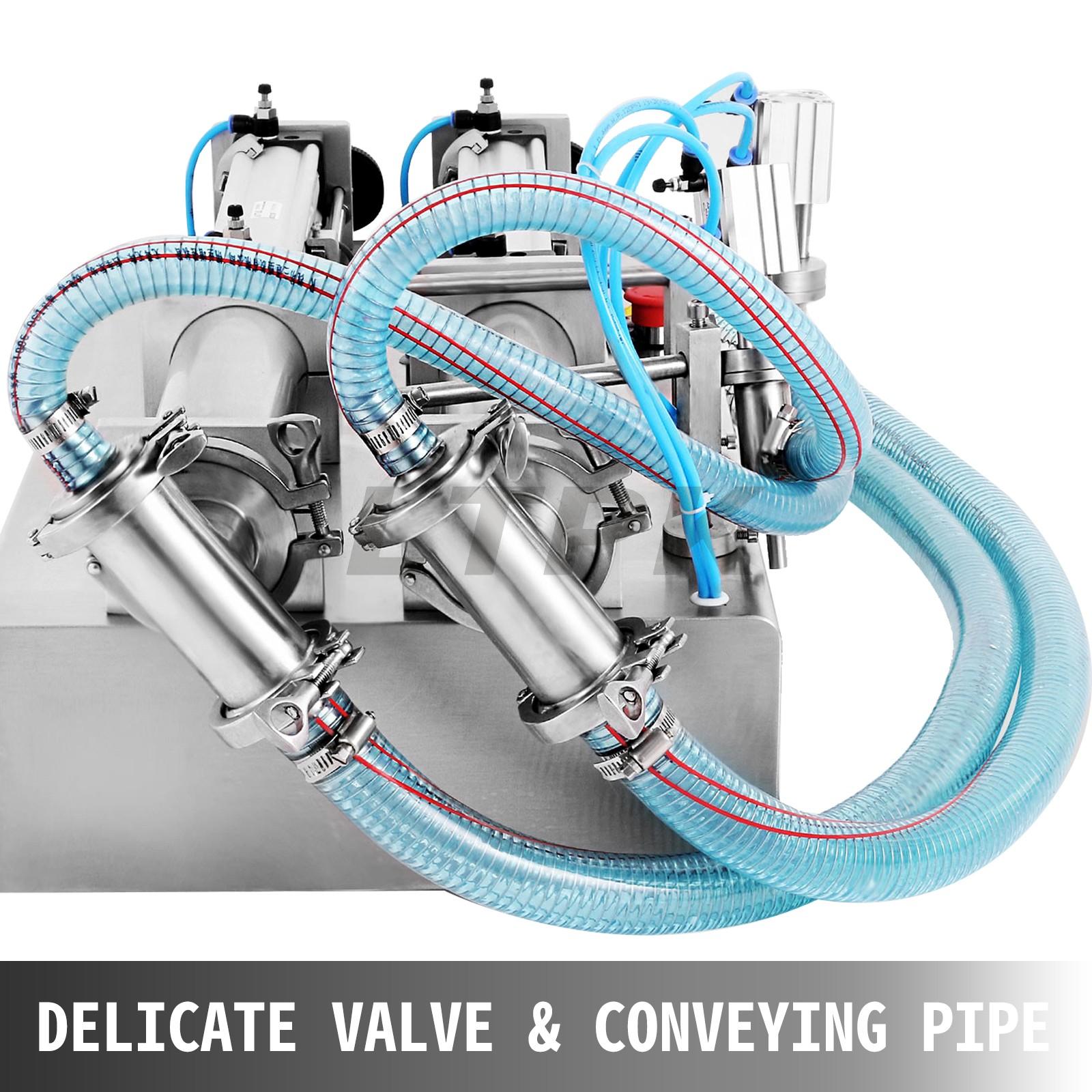

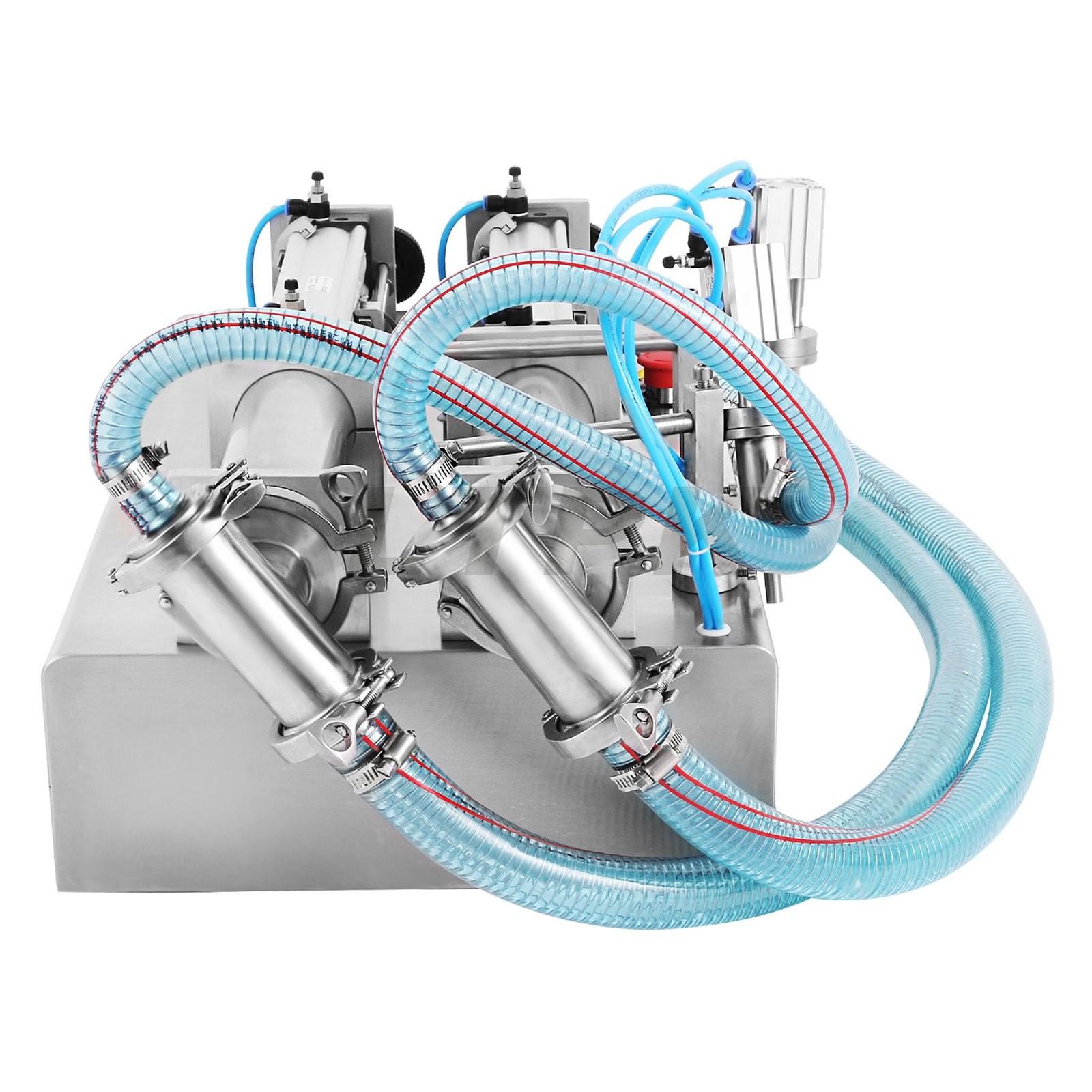

    Delicate Valve & Conveying Pipe
    Delicate non-return valve has an excellent non-return effect. The inner part is made of Teflon material. It is easy to dismantle and maintain. A premium conveying pipe is durable for long service life.


    Wide Application
    Our filler is extensively used in the food and beverage, cosmetics, personal care, agricultural, pharmaceutical, and chemical fields. An ideal device for low viscosity fluid and liquid filling. The machine should connect the air compressor for working.


    Package Content

    1 x Liquid Filling Machine

    • 1 x Kit of Accessories
    • 20.jpg
