Description
Description：

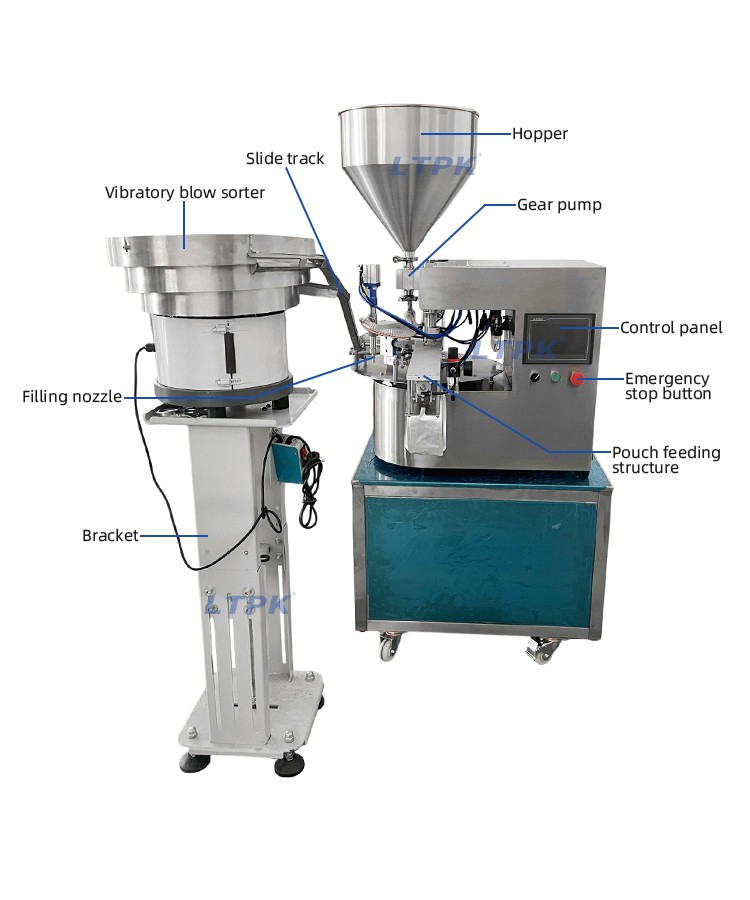

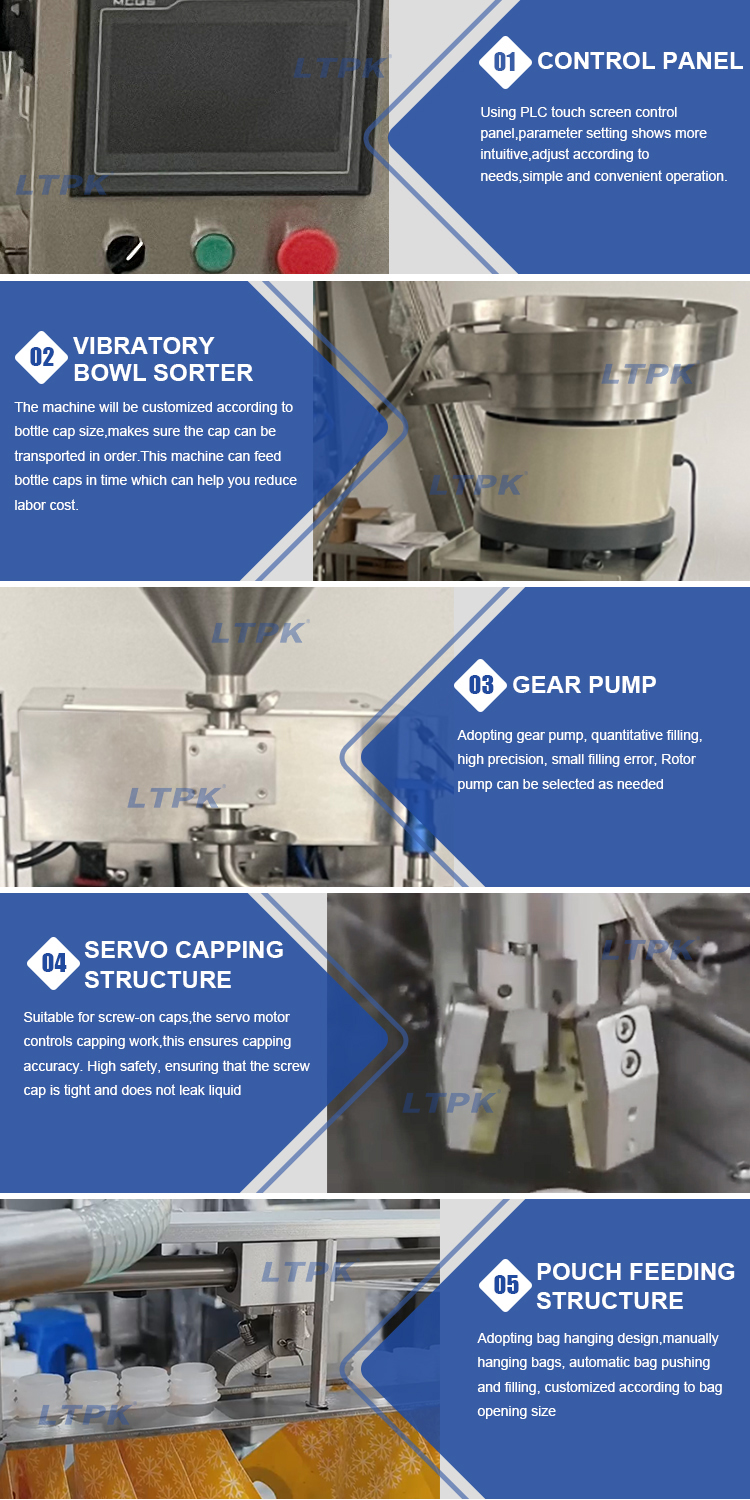

The self-supporting bag filling and capping machine consists of a bag pushing mechanism, a bag blowing mechanism, a filling mechanism, a cap hanging mechanism, a cap twisting mechanism, etc. It is mainly used as an automated equipment for filling and capping soft bags.The machine adopts a PLC control system, human-machine interface, and more intuitive operation. Production, installation, and debugging are very simple,and the work is stable and reliable.
Application:
Suitable for filling liquids, pastes, sauces and other materials;Such as honey, jelly, milk,soybean milk, drinks, etc.

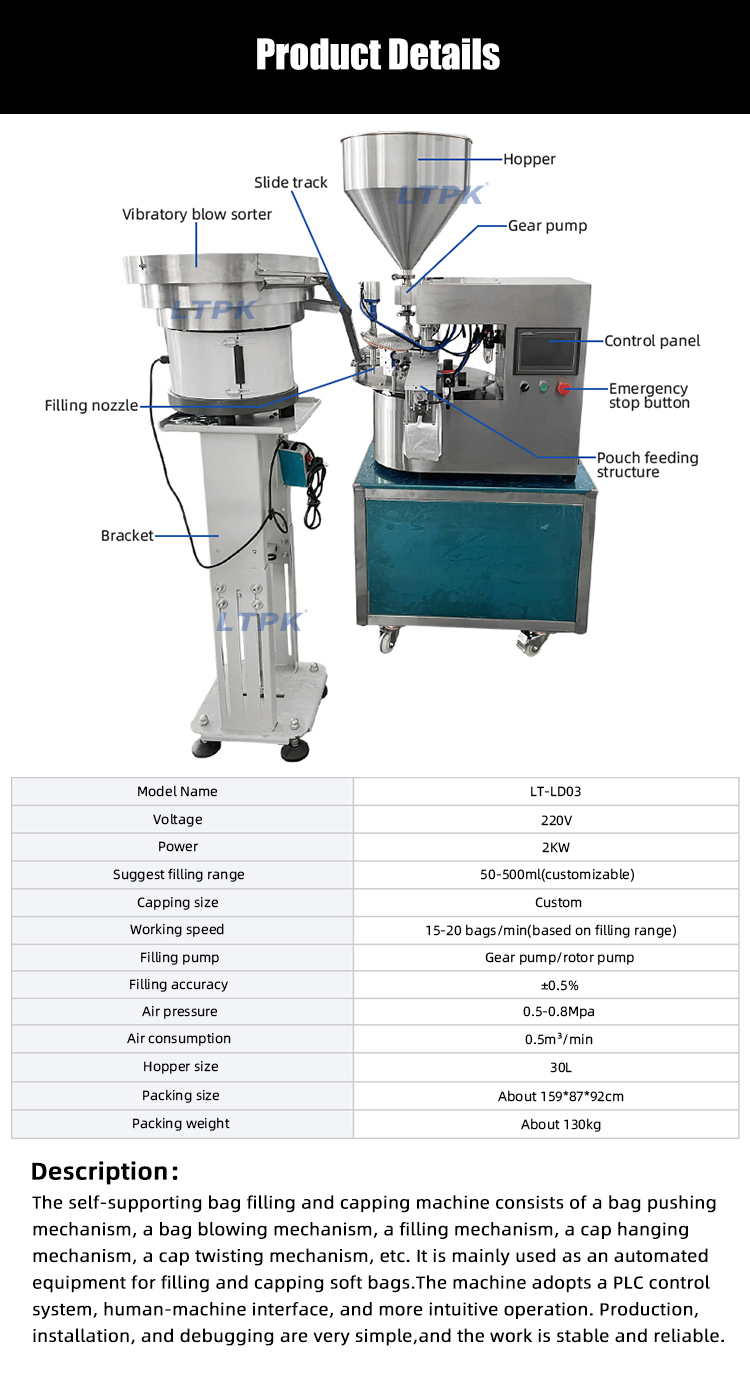

Technical parameters：
Model | LT-LD03 |
Voltage | 220V |
Power | 2KW |
Suggest filling range | 50-500ml(customizable) |
Capping size | custom |
Working speed | 15-20 bags/min(based on filling range) |
Filling pump | Gear pump/rotor pump |
Filling accuracy | ±0.5% |
Air pressure | 0.5-0.8Mpa |
Air consumption | 0.5 m³/min |
Hopper size | 30L |
Packing size | About 159*87*92cm |
Packing weight | About 130kg |
