Description

Description:

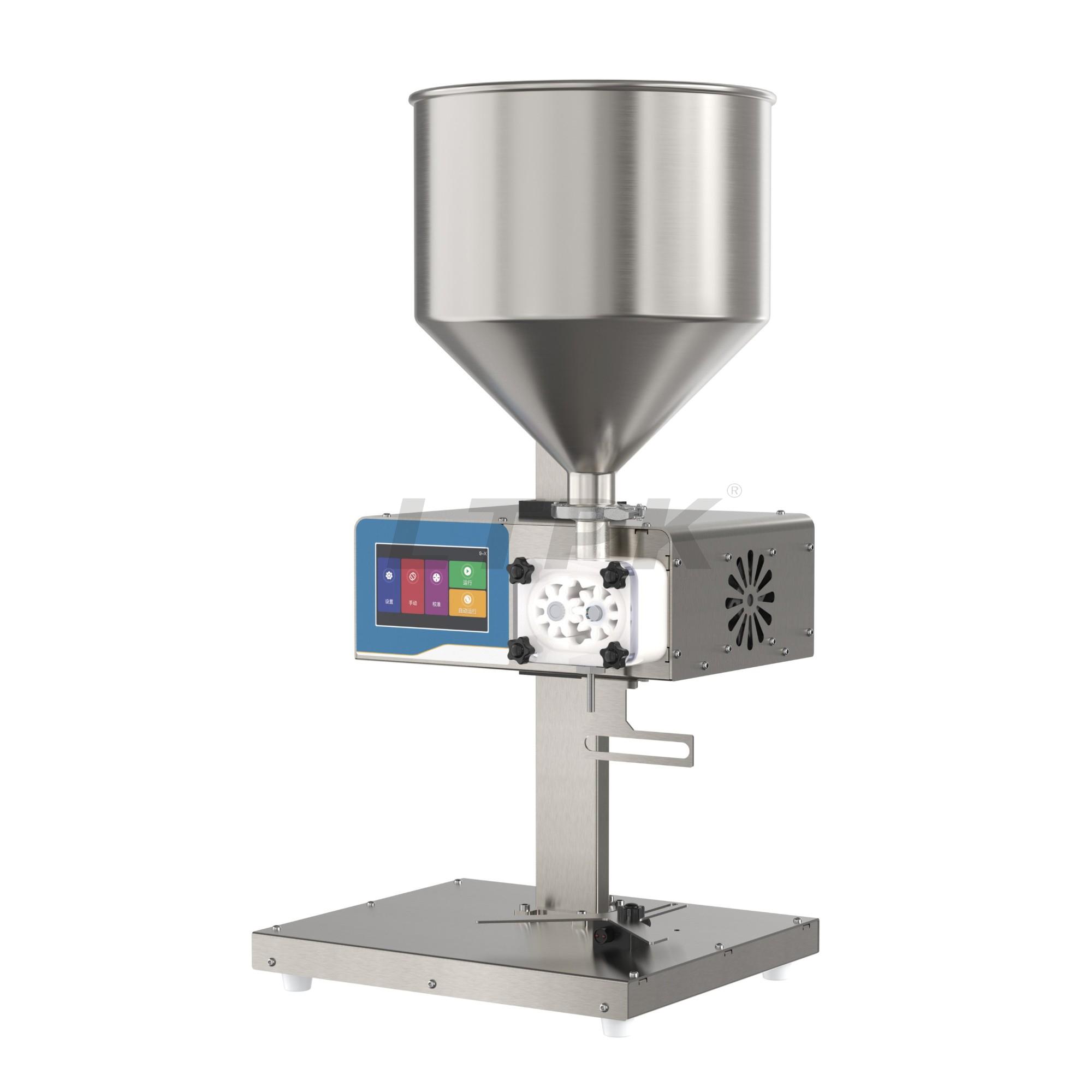

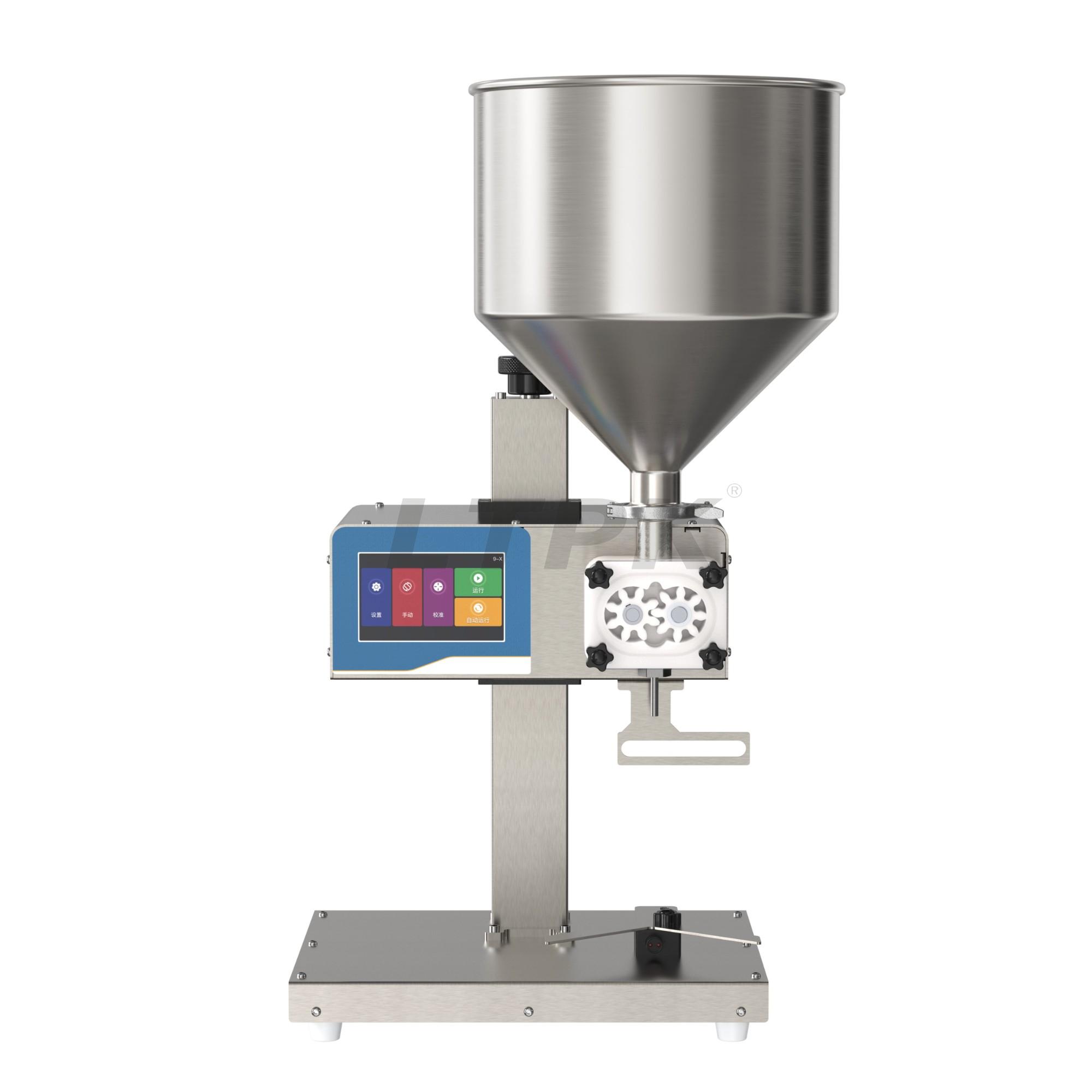

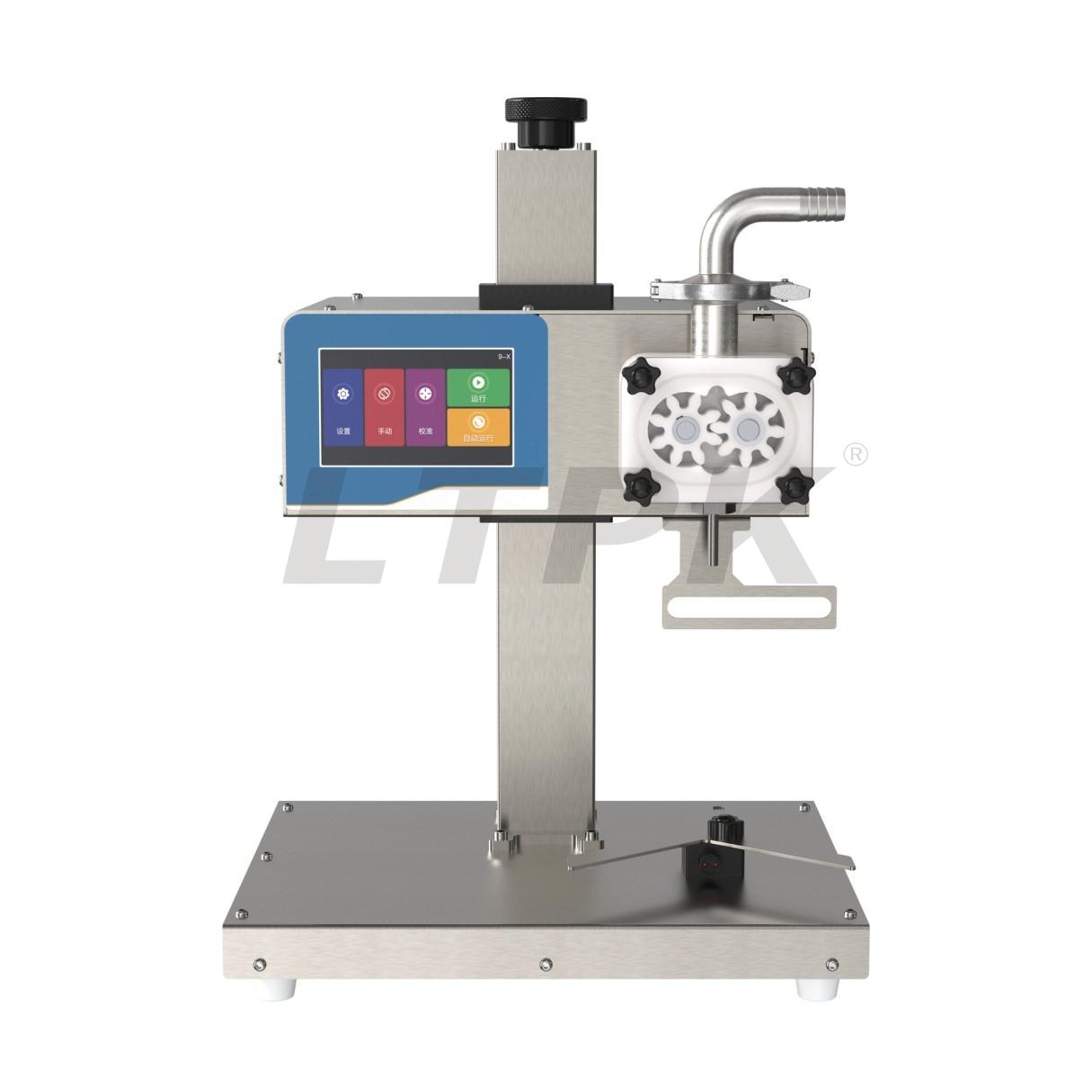

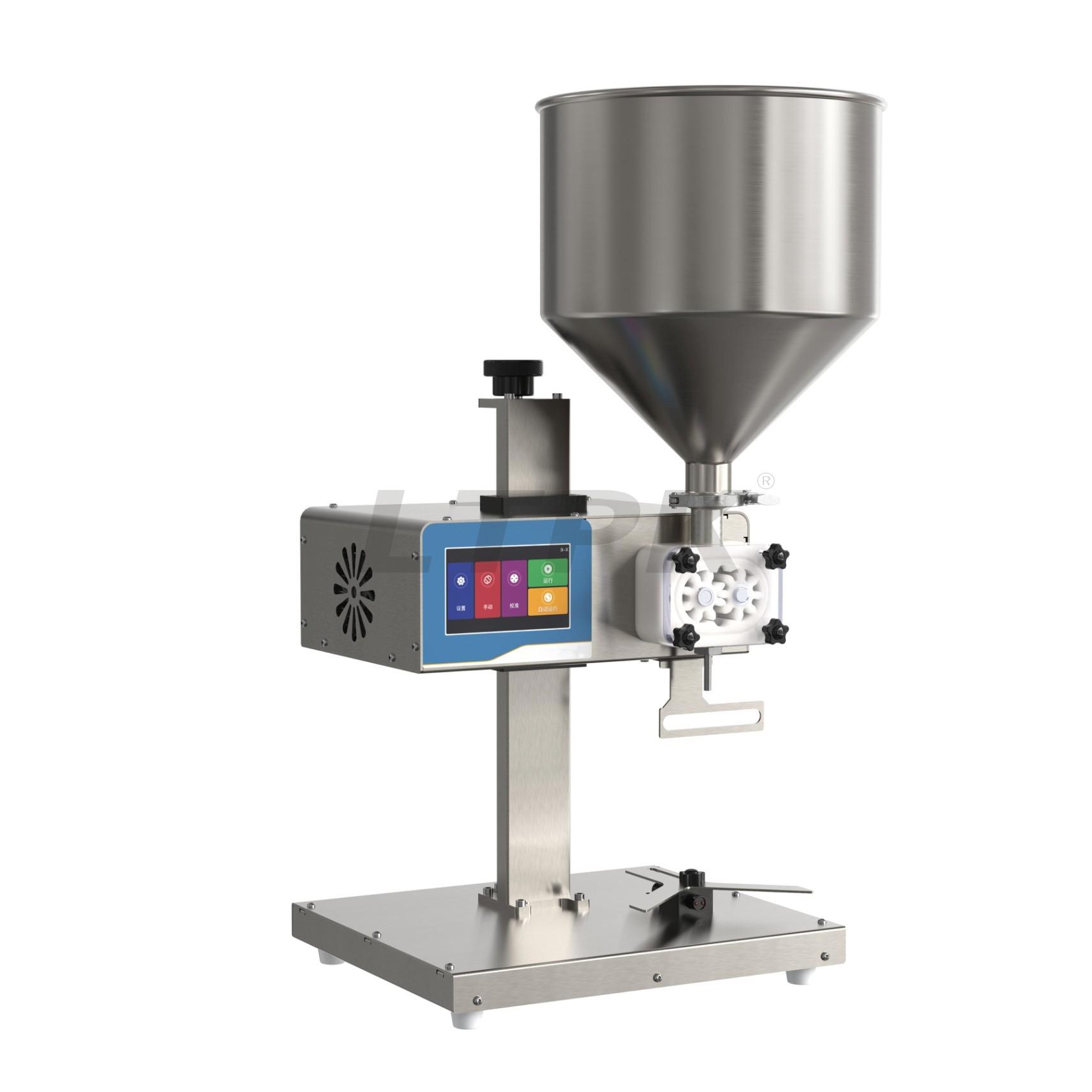

The 9-X-2 Filling Machine is a high-precision, PLC-controlled filling solution designed for versatile liquid and semi-liquid products across food, cosmetics, and industrial applications. Equipped with a gear pump system, it delivers a consistent flow rate of 11L/min with an exceptional filling accuracy of 0.1%-0.5%, ensuring minimal waste and optimal efficiency.

Key Features:

 * Smart Control: 5-inch touchscreen interface with intuitive PLC programming for seamless operation.

 * Flexible Design: Compatible with containers up to 250mm height(adjustable) and handles viscosities ranging from 1,000CP to 180,000CP.

 * Dual Feeding Options: Supports both suction and funnel-based liquid intake.

 * Broad Compatibility: Ideal for products like honey, yogurt, peanut butter, shampoo, and resins, even at temperatures up to 70°C.

Applications:

Perfect for food (e.g., sauces, dairy), cosmetics (e.g., shampoos), and industrial fluids (e.g., adhesives). Compact dimensions ( 350×350×510mm) and low power consumption (≤260W) make it suitable for small to medium-scale production.

Note:

Performance may vary with liquid viscosity and ambient temperature. For optimal results, maintain product temperature below 70°C.
