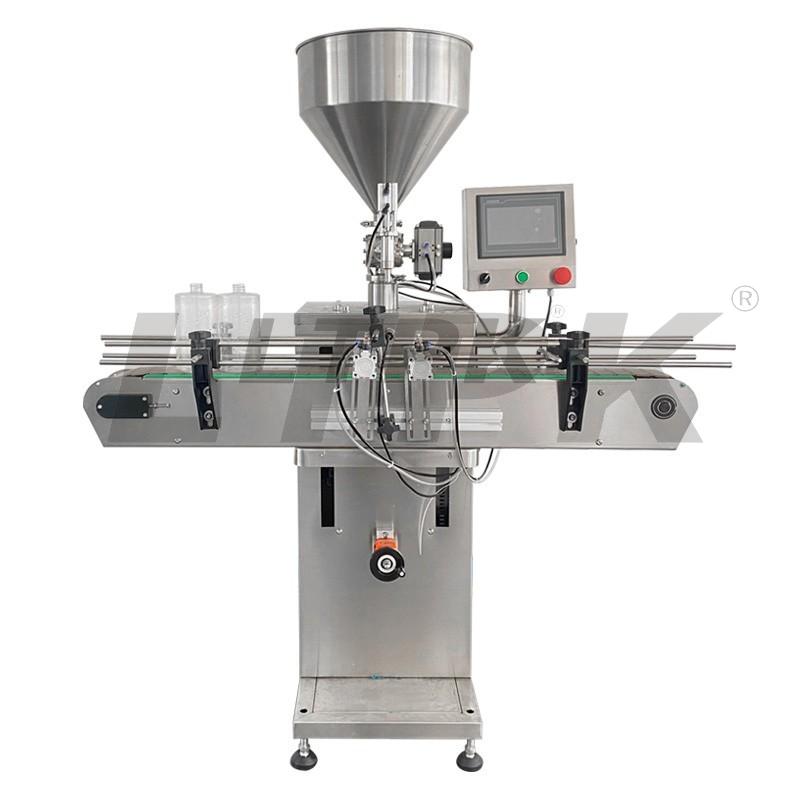

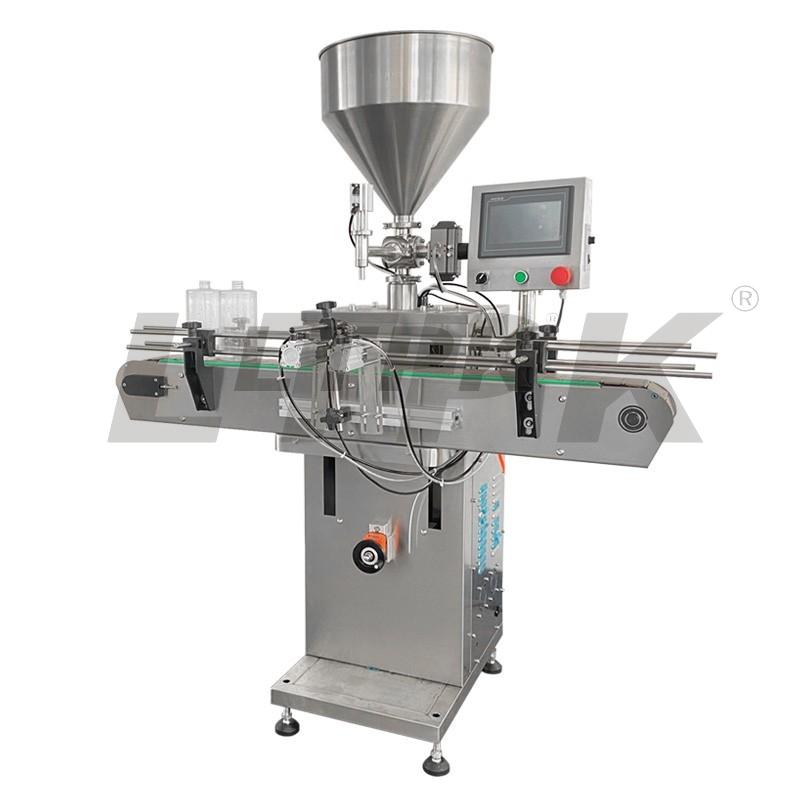

LT-SMG1F Automatic Servo Sauce Paste Bottle Filling Machine

Home Products Filling Machines Full Automatic Filling Machines LT-SMG1F Automatic Servo Sauce Paste Bot
LT-SMG1F Automatic Servo Sauce Paste Bottle Filling MachineLT-SMG1F Automatic Servo Sauce Paste Bottle Filling MachineLT-SMG1F Automatic Servo Sauce Paste Bottle Filling MachineLT-SMG1F Automatic Servo Sauce Paste Bottle Filling Machine

LT-SMG1F Automatic Servo Sauce Paste Bottle Filling Machine

  • Product Item:LT-SMG1F
  • Filling speed 10-25 bottles/min
  • Equipped with air pressure 0.4-0.6 MPa
  • Air consumption ≥0.1m³/min
  • Filling accuracy ≤±0.5%
  • Category:Full Automatic Filling Machines
  • Inquiry Send Email

    Description

    Products Description
    Description:
    Compared with other piston pump filling machine,this one is controlled by servo motor,and operator just need to enter certain number to control filling volume,this is more convenient and easier to operate.This machine is good for filling paste and liquid,it is widely used in food,daily chemical,and cosmetics industries.

    Technical Parameters
    Model
    LT-SMG1F
    Voltage supply
    220/110V 50/60Hz
    Power
    900w
    Filling accuracy
    ≤±0.5%
    Filling speed
    10-25 bottles/min
    Filling volume
    5-100/10-300/50-500/100-1000ml
    (choose based on your requirement)
    Conveyor size
    2m*10cm(L*W)
    Equipped with air pressure
    0.4-0.6 MPa
    Air consumption
    ≥0.1m³/min
    Machine weight
    About 82kg(Filling machine)+36kg(Conveyor belt)
    Package weight
    About 108kg(Filling machine)+59kg(Conveyor belt)


    Package size
    About 65*70*132cm(Filling machine) +45*45*48cm(Hopper)
    About 209*45*50cm(Conveyor belt)
    Product Details
    The machine is equipped with high quality touch screen control panel, it is more convenient to adjust and test working parameter
    in real time,this is good for control the machine and can prevent from machine error

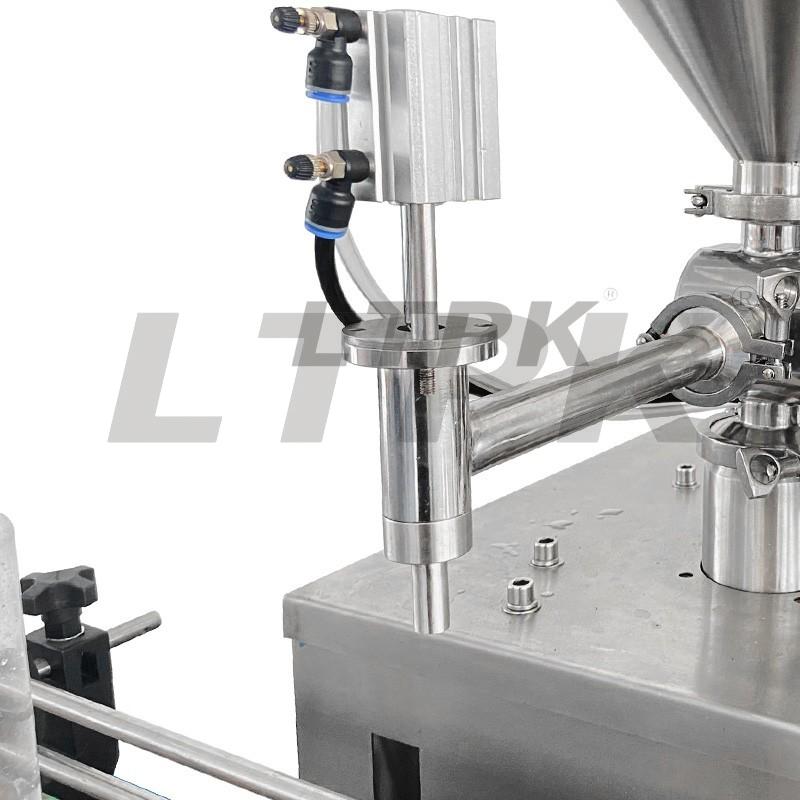

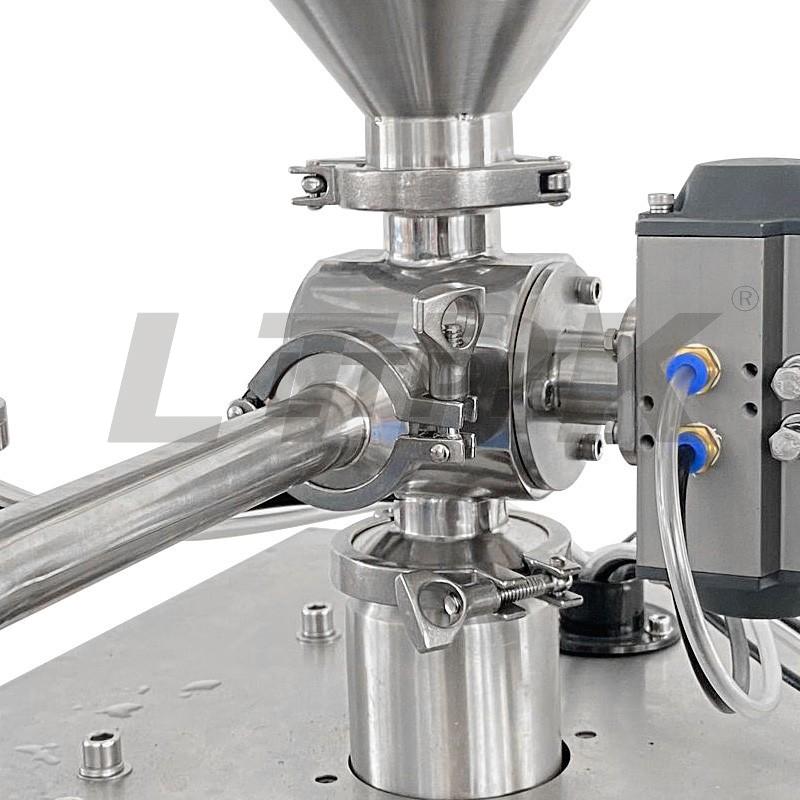

    Pneumatic filling nozzle is with larger great power,It also equipped with three-way valve which is good for filling liquid/ paste
    with particles. Multiple filling nozzles can be customized to help you improves working efficiency.
    Controlled by the servo motor,it can fill liquid/paste more accurately.Compared with other piston filling machine,this one can
    just enter certain number to set filling volume,no need to set filling time and filling speed.This is more convenient.
